1996-2004 Mustang 4.6L Valve Cover Bolt & Stud Diagram

Created by Cameron Bready / 5 min read
Date Created: 7/22/2025
Last Updated: 7/22/2025

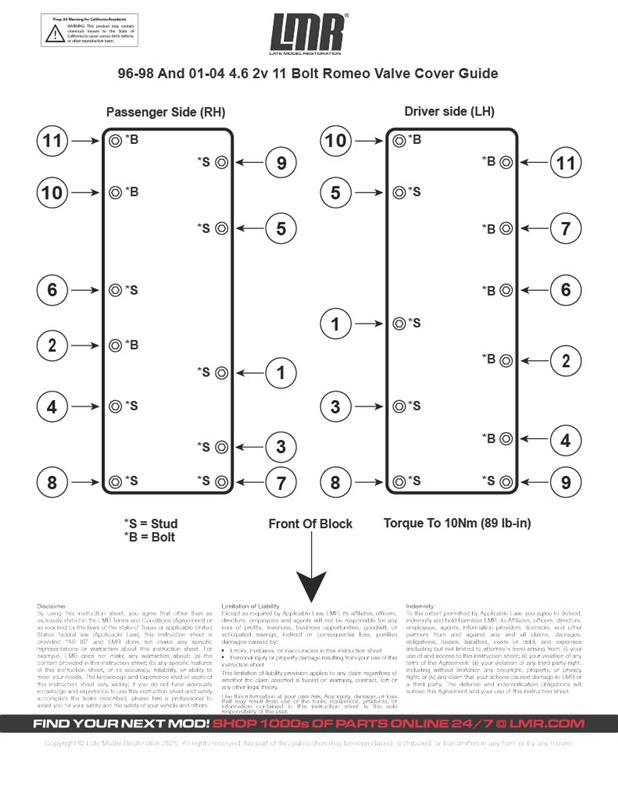

Get your 1996-2004 Mustang GT 4.6L motor put together correctly with this 1996-04 Mustang Valve Cover Bolt & Stud Diagram.

Show More Show Less
Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

While rebuilding the old 4.6L engine out of our project car Keeping Comp, shop assistant Cameron Bready put together this quick and easy guide for the valve cover bolt and studs.
