1996-2010 Mustang 4.6L Belt Routing Guide

Created by Jay Walling
Date Created: 7/7/2022
Last Updated: 12/9/2022

When replacing your worn, cracked, or squeaking belt, routing the belt is vital to ensure all of your accessories work as intended!

Show More Show Less
Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.
1996-2010 Mustang 4.6L Belt Routing Guide - 1996-2010 Mustang 4.6L Belt Routing Guide

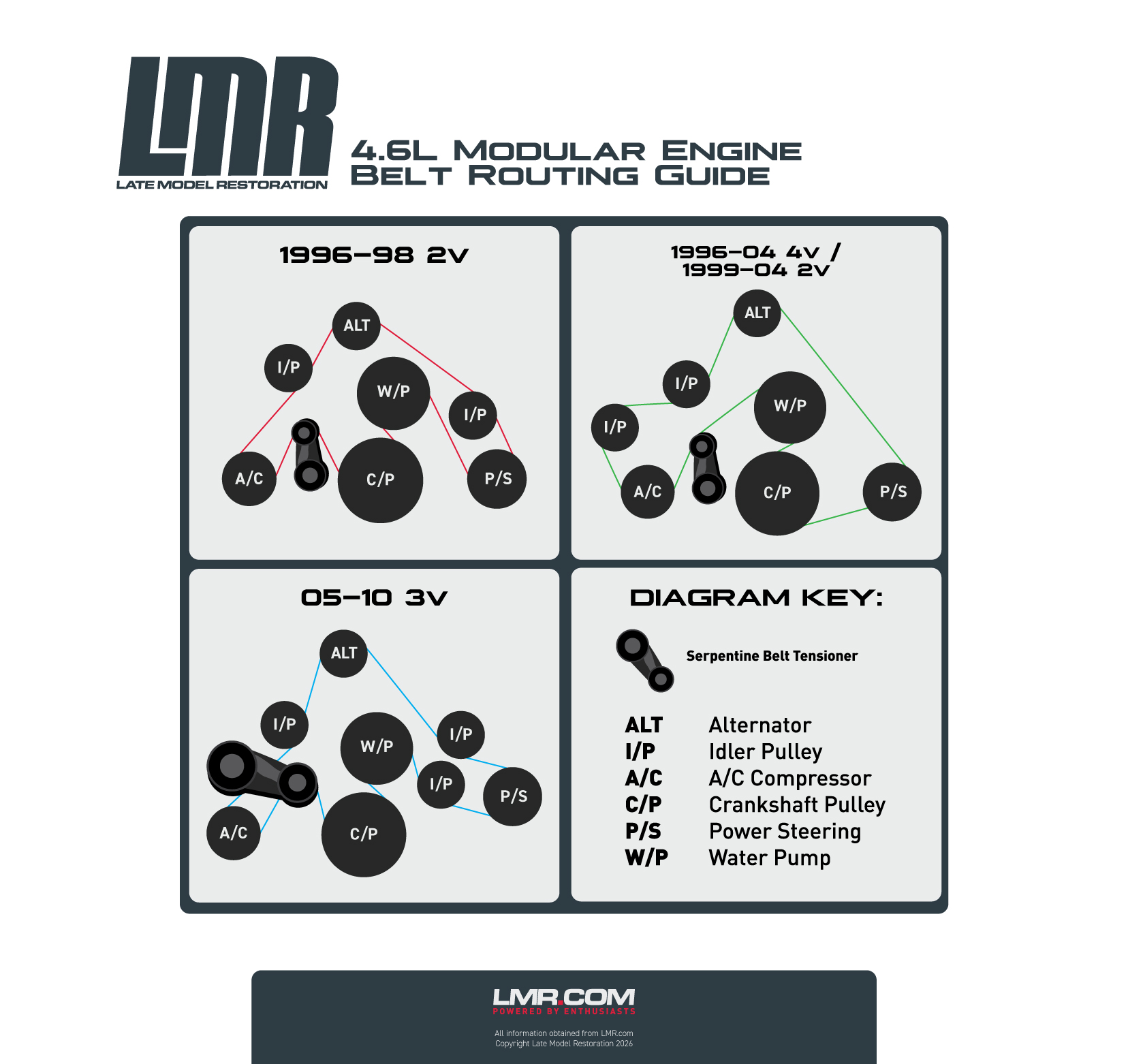

Replacing your serpentine belt on any 1996-2010 4.6L SOHC/DOHC engine is an easy task. As long as you know each specific belt routing, this task can be completed with basic hand tools in your driveway. Squeaking, cracked, or broken belts on your engine can leave you stranded at the worst times! Check out each of the diagrams below for your particular application.
1996-2010 Mustang 4.6L Belt Routing Guide - 1996-2010 Mustang 4.6L Belt Routing Guide
