Best Throttle Body For 4.6 Mustang 2V

Created by Jay Walling
Date Created: 4/4/2022
Last Updated: 6/13/2022

Adding a larger Mustang throttle body is a great way to increase horsepower and torque. With a direct bolt-on installation, you can easily mod your 4.6L motor to have your Mustang staying ahead of the competition with this information provided in the article below.

Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

FOLLOW: sn95 , new edge mustang , 94 04 mustang , throttle body , engine , tech guide

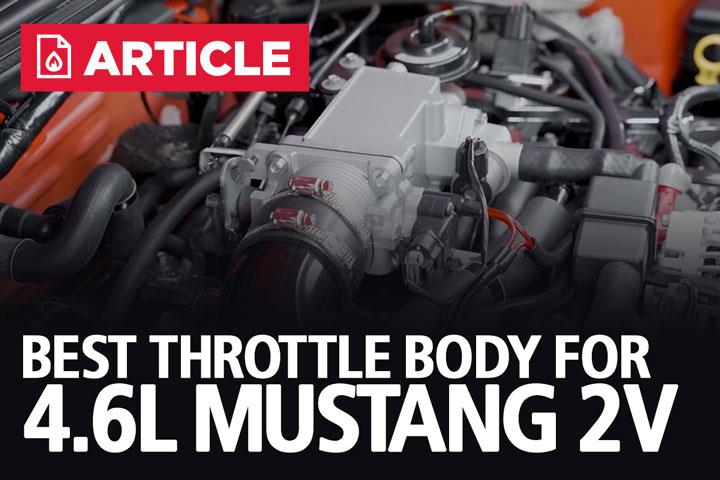

Best Throttle Body For 4.6 Mustang 2V - Best Throttle Body For 4.6 Mustang 2V

The throttle body and intake plenum found on your 4.6L SOHC Ford Mustang GT go hand in hand. These two items usually are one of the first mods that Mustang owners do to promote better airflow to the intake manifold. Aftermarket throttle body and plenum are designed to encourage a better incoming air charge; this, in turn, provides your engine with more horsepower and torque.

***Fitment note*** This article covers only the 1996-2004 2V 4.6L SOHC V8 applications. None of the products listed below will fit any 1994-2004 5.0L V8s, 1994-2004 V6 Mustang, 2001 Bullitt, 2003-2004 Mach 1, or 1994-2004 SVT Cobra Models.

4.6L Mustang Throttle Body Guide

Part Number Fitment Size
BBK-1700 1996-2004 Mustang GT 4.6L 70mm
BBK-17801 1996-2004 Mustang GT 4.6L 73mm
BBK-1780 1996-2004 Mustang GT 4.6L 78mm
AF-F7546 1996-2004 Mustang GT 4.6L 78mm


Throttle Body Vs. Throttle Body Intake Plenum


The throttle body found on the 4.6L SOHC Mustang is the primary metering device for the air entering the engine. It connects to the intake tubing or cold air intake if equipped. When you hit the accelerator pedal, a cable moves to open or close the internal butterfly valve. The throttle body also incorporates the throttle position sensor or TPS. This sensor sends a signal to your PCM, letting it know what range the butterfly valve is.

The intake plenum is the component between the throttle body and the intake manifold on the 4.6L 2V. This plenum, also called an elbow, directs air from the throttle body and sends it through the intake. The intake plenum also houses many integral vacuum ports for different functions of your Mustang’s operation. Your 2V plenum will also be the mounting location for the idle air control valve or IAC valve. This is what controls the idle quality of your engine.


1 | BBK 70 MM Mustang Throttle Body

Best Throttle Body For 4.6 Mustang 2V - Best Throttle Body For 4.6 Mustang 2V


Increase performance and throttle response in your 1996-2004 Mustang GT with BBK's 70mm throttle body! The increased throttle bore will allow more air to enter for improved horsepower and torque. Cast from high-grade aluminum, this product will last the lifetime of your Mustang and look great under the hood. Bolt-on extra horsepower in just minutes with this BBK Mustang performance throttle body.

Will This Fit My SN95/New Edge?

Part Number Year Model Size
BBK-1700 1996-2004 Mustang GT 4.6 70mm

Benefits & Features

Benefits Features
Increased Horsepower High-Grade Aluminum Construction
Increased Torque 70mm Diameter
Increased Throttle Response Bare Finish

ABOUT THE BRAND

For over 20+ years, BBK Performance has been the go-to brand for many Ford Mustang Enthusiasts. BBK is one of the industry leaders when it comes to providing Mustang owners with high-quality, performance parts for any late model application. BBK products are made here in the USA and feature premium materials and workmanship. BBK is one of the industry leaders to get your late model Mustang on track with a wide array of aftermarket parts!


2 | BBK 73 MM Mustang Throttle Body

Best Throttle Body For 4.6 Mustang 2V - Best Throttle Body For 4.6 Mustang 2V


Combining a 73mm throttle body and a matching intake plenum in one cast aluminum piece allows smoother air transfer for maximum power gains. This BBK 73mm throttle body and plenum combo will give you more horsepower and better throttle response in your 1996-2004 Mustang. This kit can provide your 4.6L motor up to 10-15 additional dyno-proven horsepower! It features a stylish grey power coated finish and is a direct bolt-on upgrade for quick and easy installation!

Will This Fit My SN95/New Edge?

Part Number Year Model Size
BBK-17801 1996-2004 Mustang GT 4.6 73mm

Benefits & Features

Benefits Features
Increased Horsepower High-Grade Cast Aluminum Construction
Increased Torque 73mm Diameter
Increased Throttle Response Bare Finish

ABOUT THE BRAND

For over 20+ years, BBK Performance has been the go-to brand for many Ford Mustang Enthusiasts. BBK is one of the industry leaders when it comes to providing Mustang owners with high-quality, performance parts for any late model application. BBK products are made here in the USA and feature premium materials and workmanship. BBK is one of the industry leaders to get your late model Mustang on track with a wide array of aftermarket parts!


3 | BBK 78MM Mustang Throttle Body

Best Throttle Body For 4.6 Mustang 2V - Best Throttle Body For 4.6 Mustang 2V


BBK decided to switch things up from the traditional throttle body and plenum offerings for your 1996-2004 Mustang GT. Instead of the separate design we are used to seeing, BBK incorporated both the throttle body and plenum together to give your 2V unmatched performance gains with its 78mm opening. This direct bolt-on replacement has shown increases from 12-15HP. It is manufactured from lightweight, 356 aluminum and powered coated grey for a perfect finish. This 78mm option also pairs with aftermarket centrifugal superchargers and turbos due to its sizing and airflow capabilities on forced induction applications.

Will This Fit My SN95/New Edge?

Part Number Year Model Size
BBK-1780 1996-2004 Mustang GT 4.6 78mm

Benefits & Features

Benefits Features
Increased Horsepower High-Grade Aluminum Construction
Increased Torque 78mm Diameter
Increased Throttle Response Bare Finish

ABOUT THE BRAND

For over 20+ years, BBK Performance has been the go-to brand for many Ford Mustang Enthusiasts. BBK is one of the industry leaders when it comes to providing Mustang owners with high-quality, performance parts for any late model application. BBK products are made here in the USA and feature premium materials and workmanship. BBK is one of the industry leaders to get your late model Mustang on track with a wide array of aftermarket parts!



4 | Accufab Mustang Throttle Body

Best Throttle Body For 4.6 Mustang 2V - Best Throttle Body For 4.6 Mustang 2V

This 75mm TB from Accufab is CNC machined from 6061-T6 billet aluminum and the exterior is polished to an eye-catching finish. The shafts are also CNC machined from stainless for durability and quality, with brass blades and the highest quality bushings, bearings, and screws. Furthermore, the throttle body cable guide is crafted from billet aluminum and anodized black, not plastic. Only the best components are used for unparalleled reliability and performance.


The Accufab Mustang GT throttle body can benefit any 1996 to 2004 4.6L 2V engine. Independent dyno tests on a completely stock 4.6L GT have shown an increase of up to 11 additional RWHP, with extra torque and no loss to bottom-end performance. Also, Accufab has performed flow testing on a majority of plenums with the stock and Accufab 75mm throttle bodies.

Will This Fit My SN95/New Edge?

Part Number Year Model Size
AF-F7546 1996-2004 Mustang GT 4.6 78mm

Benefits & Features

Benefits Features
Increased Horsepower High-Grade 6061-T6 Billet Aluminum Construction
Increased Torque 75MM Diameter
Improved Throttle Response Polished Finish

ABOUT THE BRAND

Accufab is one of the most well-known brands for Mod-Motor-based engine performance. All Accufab products are designed and manufactured in the USA. These throttle bodies will be produced from quality 6061-T6 billet aluminum and feature an aesthetically pleasing polished finish for underhood looks. Founded in 1993, Accufab has been a trusted brand for all late-model Mustang enthusiasts.
