1987-1993 Fox Body Mustang A/C Location Diagram

Created by Tyler Rodriquez / 10 min read
Date Created: 3/28/2025
Last Updated: 4/11/2025

If you need to locate where your Fox Body A/C components go, use this easy-to-use 1987-1993 Mustang A/C diagram.

Show More Show Less
Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

At LMR.com, we know how complicated it can be to try to piece together your Fox Body A/C kit when items have been removed from previous ownerships. That is why we have put together full Fox Body A/C kits to allow you to replace everything you need at one time.

We have also put together this quick guide for you to get a better understanding of which components go where to help with installation.

How An A/C System Works

The A/C system in your 1987-1993 Mustang works similarly to most vehicles of that time period. It works by cycling refrigerant through a closed loop to remove heat from the cabin. The compressor pressurizes the refrigerant and sends it to the condenser, where it releases heat and turns into a liquid. This liquid then flows to the evaporator inside the cabin, where it absorbs heat from the air, cooling it before it’s blown through the vents. The refrigerant, now a low-pressure gas, travels to the accumulator, which removes moisture and filters out debris before sending it back to the compressor to repeat the cycle. This continuous process keeps the interior cool and comfortable.

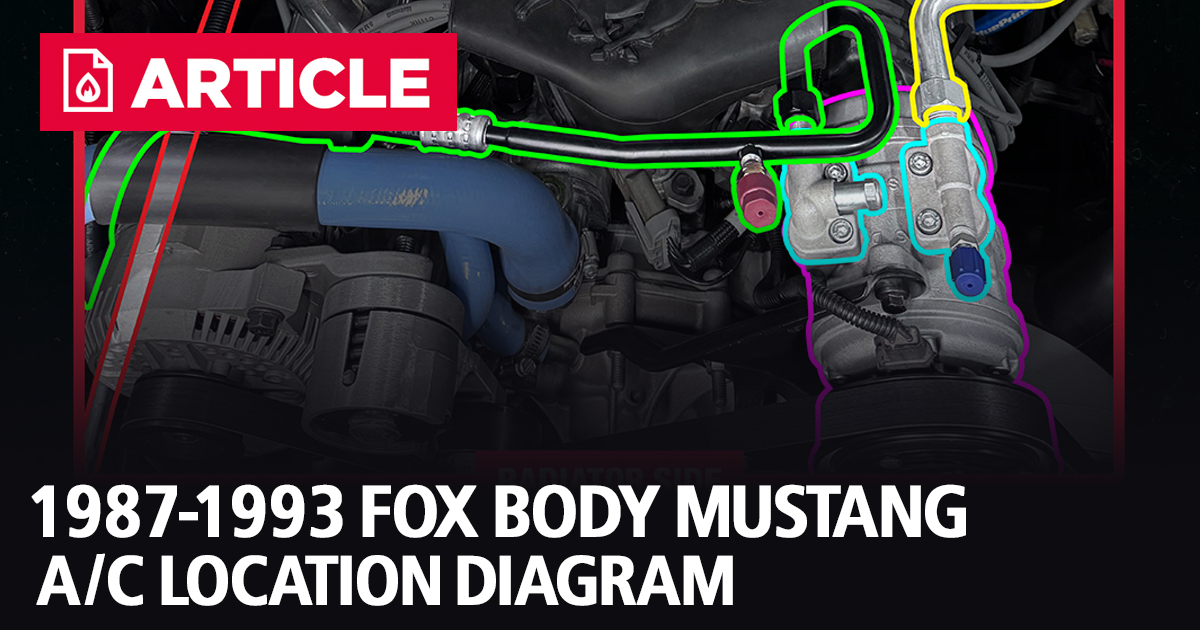

1987-1993 Mustang A/C Routing Diagram

KEY:

Yellow: A/C Accumulator
Red: A/C Liquid Line From Evaporator To Condenser
Green: A/C Compressor Discharge Line
Light Blue: Manifold Service Attachments
Purple: A/C Compressor With Clutch
Not Shown: A/C Condenser (Mounted In Front Of Radiator)

Check Out Our 1987-1993 Mustang A/C Bracket Diagram/Installation

Filter by:
R-12 to R-134a
Sort By
Shop by:

About the Video

Deleted A/C on a Fox Body Mustang? Here's how to reinstall it! | Step-by-step Guide

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Published on 2025-04-02
In this video, Landan shows the process of reinstalling the HVAC components on a 1989 Fox Body Mustang. If you have a car where the A/C components have been removed, you may not have the best idea on how to put it all back. These parts include the compressor, lines, accumulator, and the condenser. Keep in mind that everyone's situation will be different depending on what was left and what was removed.
