BluePrint Engines Ford 347ci Crate Engine - 415hp BP3479RCT by BluePrint Engines

Price: 7499.00 USD
Availability: InStock

BluePrint Engines Ford 347ci Crate Engine - 415hp BP3479RCT

This BluePrint Engines 415hp 347 long block crate motor is the perfect engine for your next big power 5.0 engine project!

Item #BPE-3479RCT
MPN# 3479RCT

Everyday Low Price: $7,499.00

In Stock

This item is not returnable. Details

This item is not eligible for discounts or coupon codes.

Free Shipping over $99

Add to Cart

Not Available for APO or Air shipping.

This product cannot be sold or shipped to the state of California. More Details

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Complete Assembly Ready For Installation
415 Horsepower & 415 ftlbs Of Torque
Brand New High-Strength Cast Iron Block
28oz External Balance Rotating Assembly

Features

Aluminum Cylinder Heads
Cast Steel Crank
4-Bolt Mains
Forged Rods & Pistons
10:1 Compression Ratio

What's in the Box

(1) Long Block Assembly

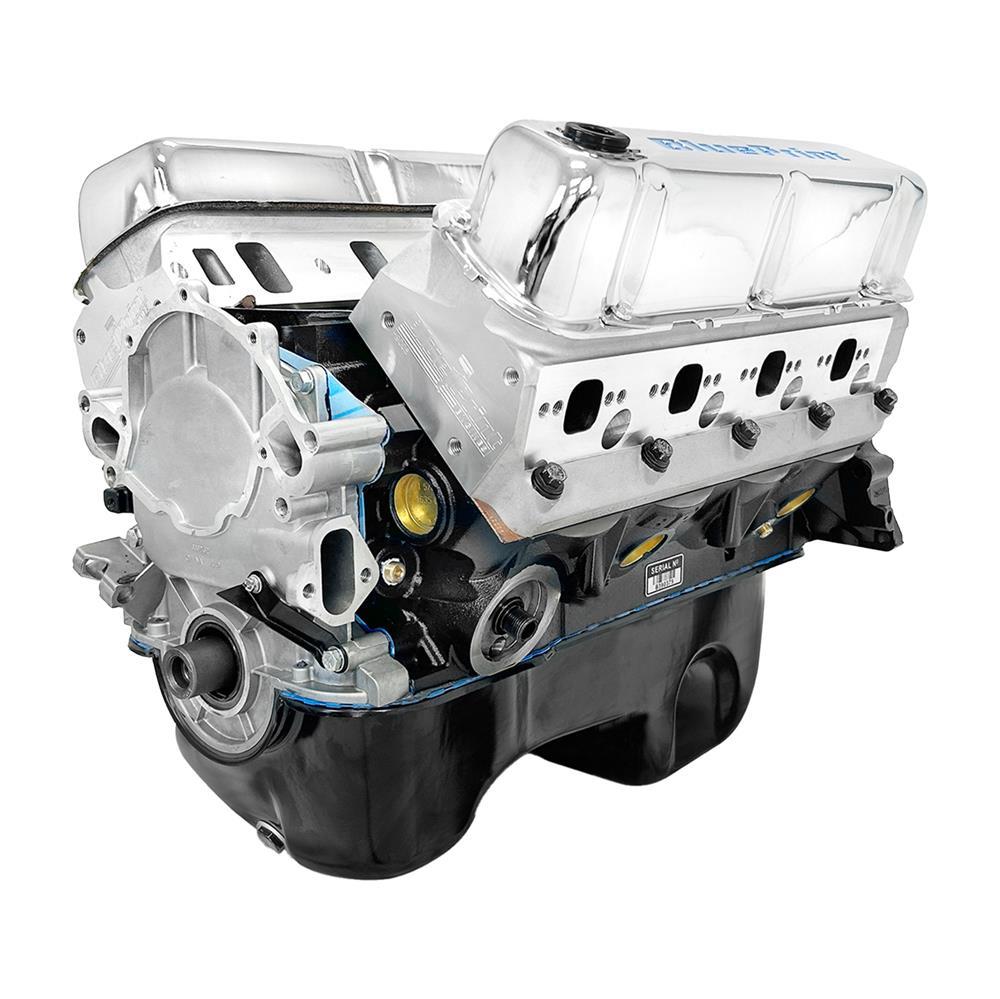

BluePrint Engines 347ci - 415hp 5.0 Long Block Crate Engine
415hp out of 347ci engine is a great motor to swap into your project vehicle looking for more power with this BluePrint Engines crate motor. If you don't want to spend time searching for the right parts for your build, pick up this BluePrint Engines crate motor and save time and money on your project. Whether you are building a street cruiser or a track monster, this crate motor will hold up to either. This engine comes ready for you to bolt on your choice of accessories, intake manifold, headers, and transmission to get the best combination for more horsepower and torque. This crate engine is a factory 28oz balanced rotating assembly. It comes assembled with a brand new Blueprint Engines high-strength cast iron block, HP9009 aluminum cylinder heads, a hydraulic roller cam, dual sump oil pan, a timing cover, dipstick, and a set of polished valve covers to top it off. Making up to 16 inches of vacuum and is designed to work excellently with power brakes, an upgraded torque converter and lower gearing on 91-octane fuel. Blueprint crate engines come with a 30-month/50k-mile warranty at no extra cost for great peace of mind. Extend your engine's warranty to 48-month/Unlimited miles using the following link - BluePrint Engine 347 Extended Warranty

Brand New Short Block
With the rarity of an unmodified stock block to remanufacture, Blueprint went out and made their own brand-new high-strength blocks! The robust short block has an Increased deck thickness and strengthening webbing throughout, making it far superior to the original Windsor-based 302. Improved water jacket designs for more efficient cooling and better coolant flow. Utilizing stronger 4 bolt mains with a 3.40" stroke cast steel crank, Forged 5.400" connecting rods, and forged pistons round out the rotating assembly and get more cubic inches with 347ci displacement. With a compression ratio of 10:1 making 415 horsepower straight out of the box!

Cylinder Heads & Cam

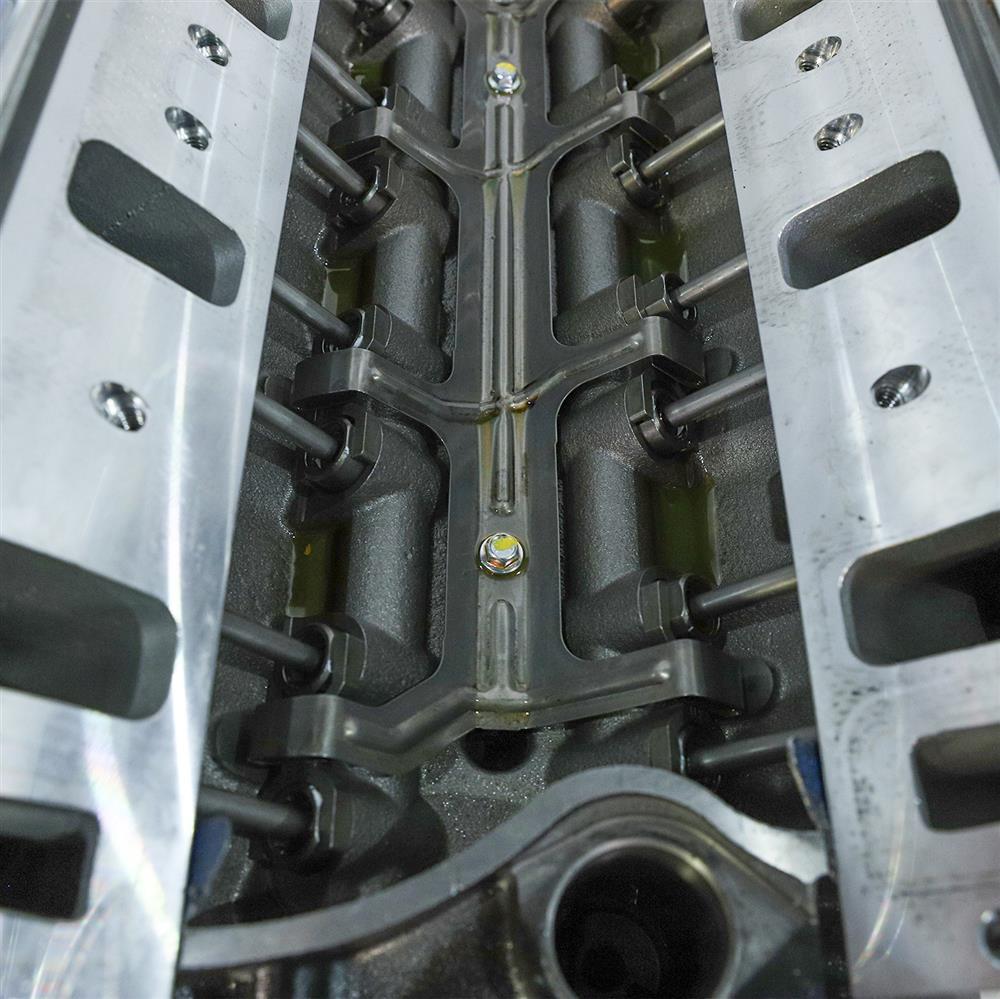

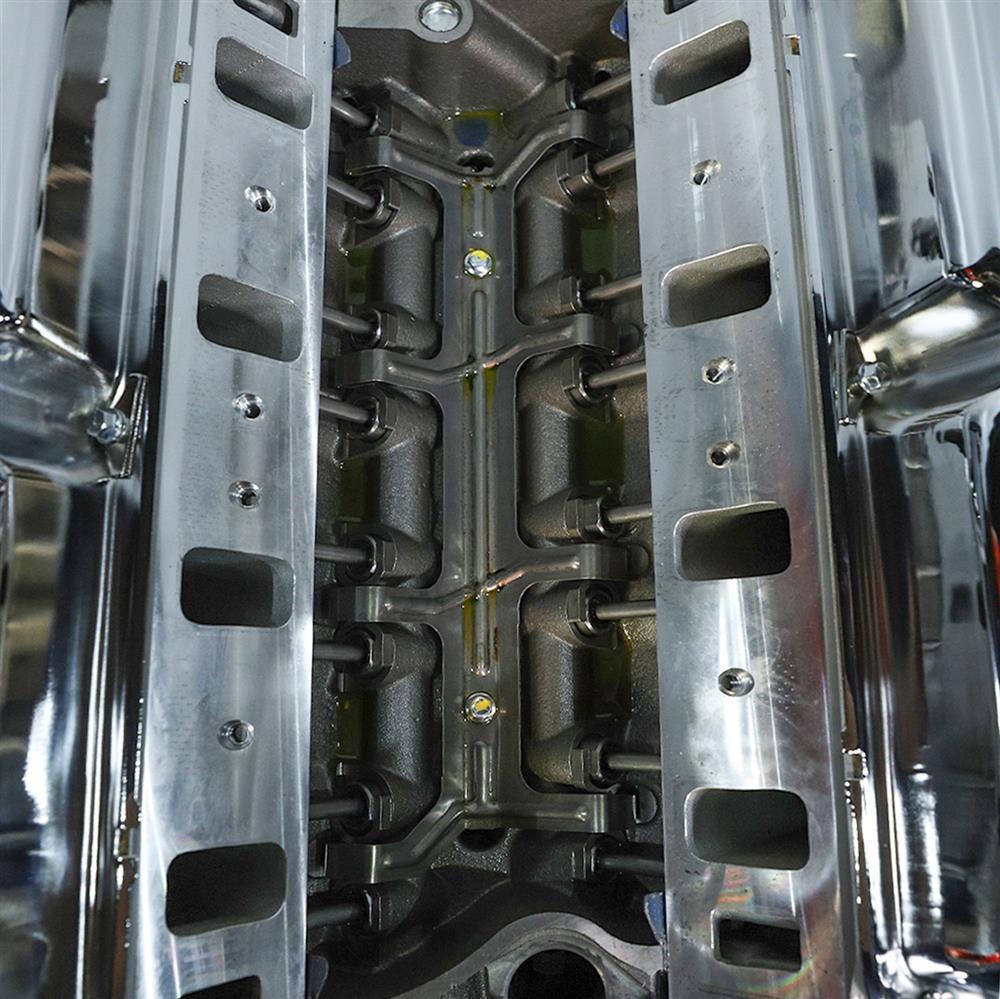

Equipped with Blueprints custom ground hydraulic roller camshaft to give you the extra power you need! This performance camshaft has a 218/226 duration and a .543/.554 lift with a 112-degree lobe separation to add a good amount of low-end torque. This hydraulic camshaft is preinstalled in this motor to save you time when building your ride. BluePrint HP9009 190cc aluminum cylinder heads feature a 60cc combustion chamber with a 2.02" intake and 1.60" exhaust valves. Large 190cc intake and 65cc exhaust runners will have more than enough flow to make all the power you could need. Roller rockers and a double roller timing chain ensure a long life with minimal valvetrain maintenance.

Engine Specs:

HP & Torque: 415 HP / 415 FT LBS
Compression Ratio: 10:1
NEW BluePrint Engines' high-strength cast iron block
- Increased deck thickness and strength webbing
- Priority main oiling
- 4-bolt main
- 1-piece rear main seal
- Improved water jacket design
- 3.400" Stroke Cast Steel Crank
- Forged 5.400" connecting rods
- Forged pistons
- 28oz External balance
BluePrint Aluminum Cylinder Heads - HP9009
- 60cc chamber
- 2.02" intake
- 1.60" exhaust valves
- 190cc intake
- 65cc exhaust runners
- Stud Mount Rockers
- Roller Rockers
Hydraulic Roller Cam
- .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration
- @.050-112 Degree Lobe Separation
Includes Rear Sump Oil Pan
Dipstick & Tube
Includes Valve Covers

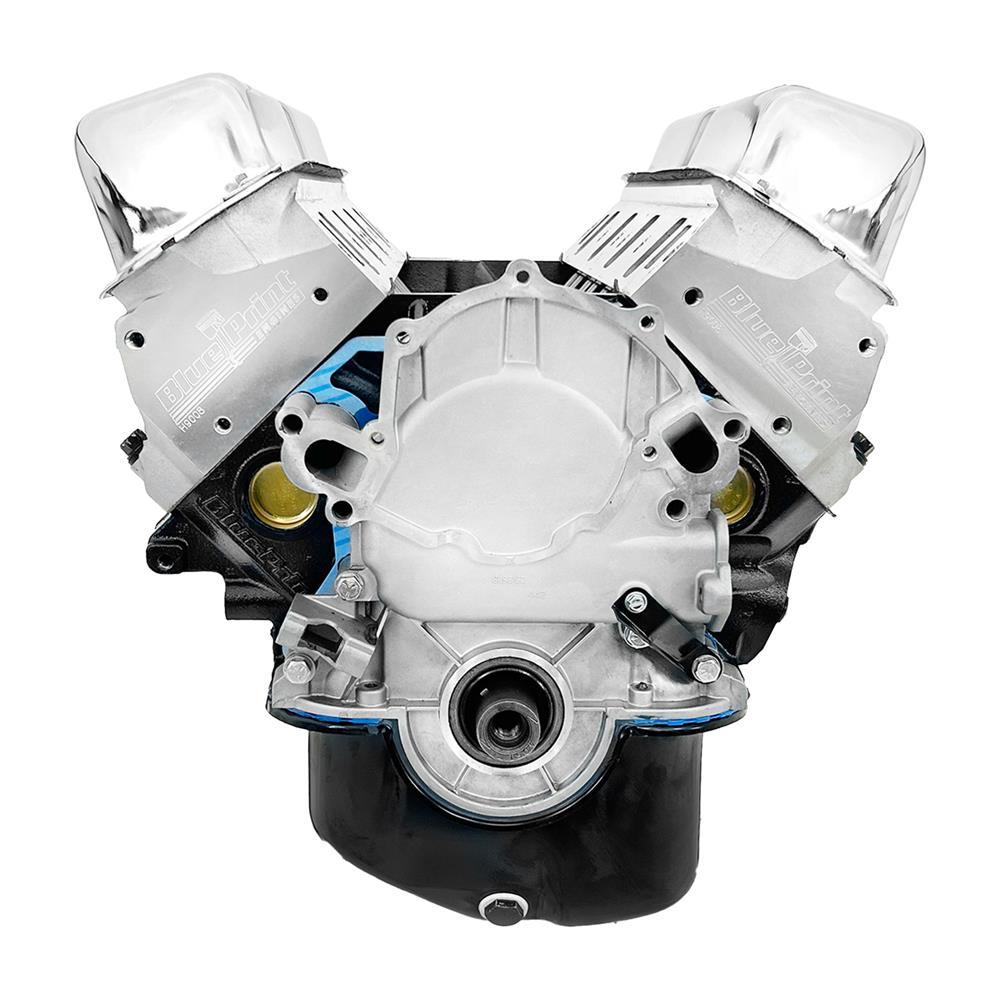

Includes Timing Cover

Product Note:
Complete your crate motor with this LMR Engine Finishing Kit - 28oz

This product is intended for off-road use only. Off-Road Disclaimer

Blue Print Engine Warranty - Click Here -

BluePrint Engine Dyno Specs

Download the pdf Link opens in a new window

Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995

Ford Bronco - 1992, 1993, 1994, 1995, 1996

Important Note:

For 1986-1988 models, LMR recommends a proper Mass Air Flow conversion for optimal drivability.
Engine block supports mechanical clutch; shorty headers may require block grinding for clearance in Mustang applications.
Timing cover includes two unused bolt holes (for crank sensors in Explorer/Mountaineer applications).
Heads do not support EGR.
The timing cover accepts a mechanical fuel pump and a reverse rotation water pump if the correct backing plate is used.

Specs:

Ignition Timing: 10–16° initial, 32–34° total
Spark Plug: NGK 7938 BKR5E (BPP7938), .750" reach, 14mm thread, 5/8" hex
Gap: .035"
Fuel: 91 Octane
Firing Order: 1-3-7-2-6-5-4-8
Oil: Conventional 10W30
