1996-04 Mustang Comp Cams Xtreme Energy-R Camshafts - 226/224 - NA 4.6 4V by Comp Cams

Price: 2134.95 USD
Availability: InStock

1996-04 Mustang Comp Cams Xtreme Energy-R Camshafts - 226/224 - NA 4.6 4V

Improve the performance of your NA 4V Modular engine with this 1996-2004 Mustang Comp Cams Xtreme Energy-R camshaft kit!

Item #CCA-106300
MPN# 106300

Everyday Low Price: $2,134.95

Ships from Supplier!
Ships in 7-10 business days

This item is returnable. Details

This item is not eligible for discounts or coupon codes.

Free Shipping over $99

Add to Cart

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Increased Horsepower & Torque
Naturally Aspirated Cams
Improved Exhaust Sound

Features

1,500-5,800 RPM Range
.475/.450 Lift
226/224 Duration @.050"

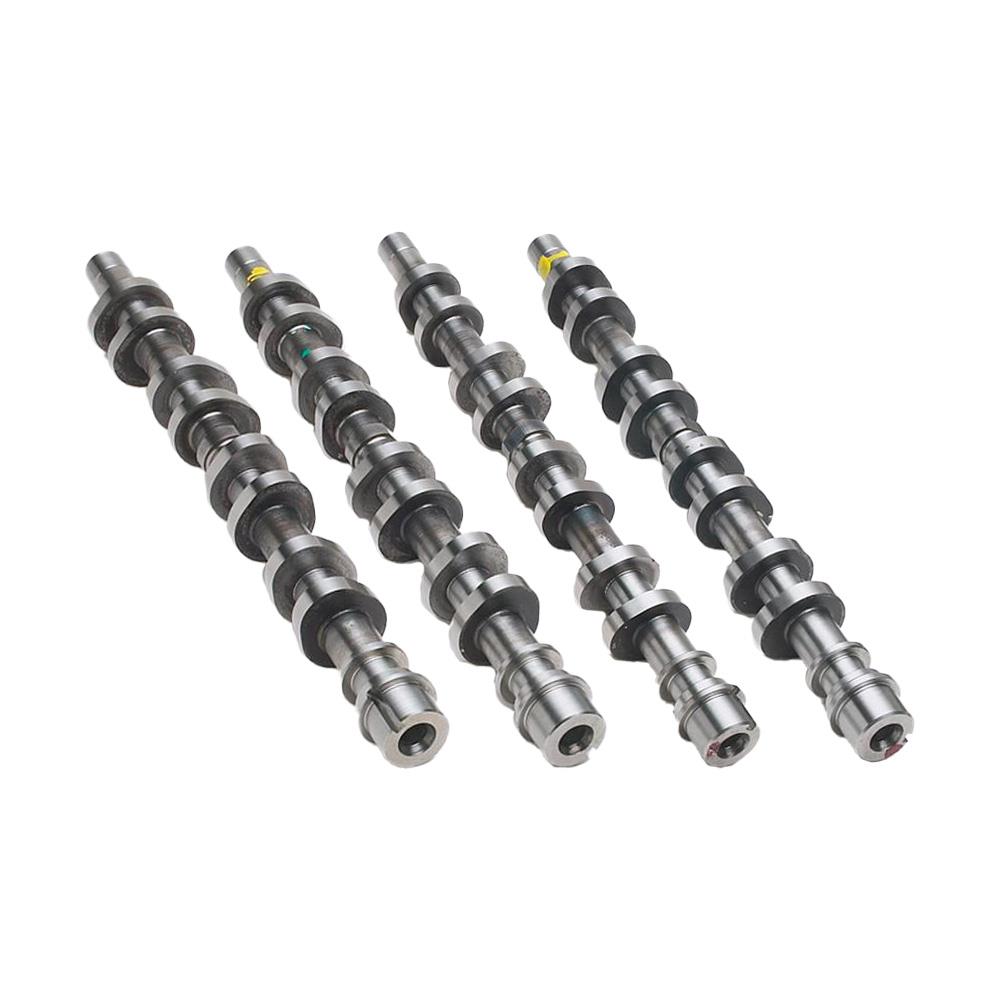

What's in the Box

(2) Intake Camshafts
(2) Exhaust Camshafts

1996-2004 Mustang 4.6 4V Comp Cams Xtreme Energy-R Camshafts - 226/224 - NA
Increase horsepower, torque, and sound in your naturally aspirated 4V Modular engine with this 1996-2004 Mustang Comp Xtreme Energy-R camshaft kit! Comp Cams has specifically tailored these cams for naturally aspirated 4V Modular engines for aggressive mid-range to high-RPM power. Xtreme Energy-R lobe profiles maximize airflow and responsiveness in high-demand naturally aspirated configurations. With a wide power band from 1,500 to 5,800 RPM, these cams are perfect for the street or strip. Aggressive profiles deliver lifts of .475 intake and .450 exhaust with a duration of 226 intake and 224 exhaust for a mild idle.

Cam Specs

Basic Operating RPM Range: 1,500-5,800
Intake Duration at 050 inch Lift: 226
Exhaust Duration at 050 inch Lift: 224
Advertised Intake Duration: 261
Advertised Exhaust Duration: 259
Intake Valve Lift with Factory Rocker Arm Ratio: 0.475 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.450 in.
Lobe Separation (degrees): 114
Valve Springs Required: Yes

What Else Do I Need For These Cams?

LMR recommends upgrading the valve springs with any aftermarket camshafts.

Suggested Parts

Comp Cam Warranty - Click Here

Ford Mustang - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Engines: 4.6 4V
