SVE Mustang Coyote Swap Hydroboost Plumbing Kit - PBH | 79-04

SVE Mustang Coyote Swap Hydroboost Plumbing Kits - Review (79-04)

SVE Mustang Coyote Swap Hydroboost Kit For PBH (79-04)

Finish the install of a Hydroboost system in your coyote swapped 1979-2004 Mustang with SVE's Coyote swap Hydroboost plumbing kit for Power By The Hour kits!

Item #HDW-2005HYDRO-P

Sale Price: $404.99

Everyday Low Price: $449.99
You Save 10.00 % ($45.00)

In Stock Ships tomorrow!

This item is returnable. Details

Free Shipping over $99

Add to Cart

Add to Wishlist

× close

Images

Benefits

Eliminates Guesswork With Plumbing Hydroboost
Designed for PBH Speed Drive Setup
Saves Time & Money
Simple Installation

Features

Premium High-Quality Components
Nylon High-Pressure Braided Hoses
Pre-Terminated 6AN Fittings
Upgraded Factory-Style Return Hoses

What's in the Box

(1) High-Pressure Supply Hose: OEM Pump to Hydroboost
(1) High-Pressure Supply Hose: Steering Rack to Hydroboost

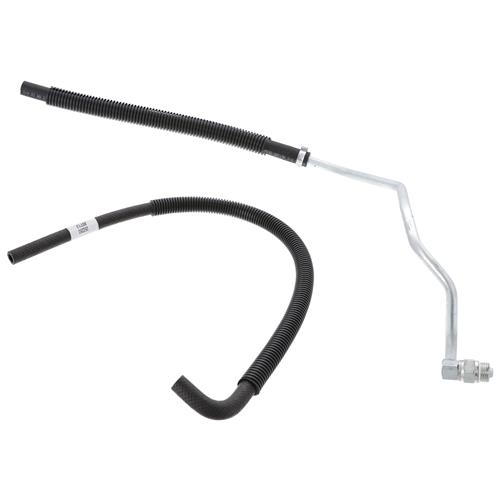

(1) Low-Pressure Return Hose: Steering Rack to Steering Cooler Tube
(1) Low-Pressure Return Hose: OEM Pump to Reservoir
(1) Low-Pressure Return Hose: Steering Cooler Tube to Tee Fitting
(1) Low-Pressure Return Hose: Tee Fitting to Reservoir
(1) Low-Pressure Return Hose: Hydroboost to Tee Fitting
(2) 6AN 90 Degree Banjo Fittings & Bolts
(1) 6AN Power Steering Pump Fitting
(2) Power Steering Rack to 6AN Line Conversion Fittings
(1) Brass Tee Fitting
(2) Power Steering Hose Fittings Seals
(10) Hose Clamps
(4) Copper Washers
(2) Tubes Threadlock Compound
(1) Bag of Zip Ties

SVE Coyote Swap Hydroboost Plumbing Kit - PBH
Ensure the Hydroboost system on your 1979-2004 Coyote Swapped Mustang is properly plumbed with SVE's premium Hydroboost plumbing kit! There are multiple ways to approach this swap regarding Coyote swapping 1979-2004 Mustangs. Regardless of the route, there is a desire for the luxury of Hydroboost-assisted brakes and power steering. After performing several Coyote swaps of their own, SVE researched and developed a viable solution-based kit to plumb the Hydroboost system properly. SVE designed this kit for cars using the Coyote Engine Swap Brackets setup and Hydroboost assembly from a 1999-2004 V8 Mustang.

Premium Components
SVE utilizes premium components within this plumbing kit to provide power assist brakes and power steering components. SVE includes (2) black nylon braided high-pressure hoses that have the correct length and are pre-terminated with 6AN fittings for an easy, direct install. Along with the high-pressure hoses, SVE provides their proprietary power steering pump fitting, a Teflon seal for this fitting, (2) 90-degree banjo fittings and bolts for the Hydroboost, a rubber return hose with a molded 90-degree end, a Tee fitting, (10) clamps, (2) two-foot rubber return hoses that will be cut-to-fit, (1) large rubber return hose that is also cut-to-fit, steering rack fittings, a factory-style return hose that connects to the steering rack and factory power steering cooler tube, and thread locking compound for hydraulic applications. The main benefit of this kit is that the return lines are constructed of a universal, power steering grade material, allowing each line to be custom routed and tailored to the end user's desired specifications. SVE didn't compromise on quality; the high-pressure hoses are triple steel & fabric reinforced with an operating pressure of 2250 PSI and pre-installed steel fittings. The low-pressure hoses feature pre-installed aluminum fittings. By utilizing these high-quality components, SVE provides a bolt-on plumbing kit with an exceptional fit and finish built to last! SVE is proud to offer this kit to eliminate all guesswork for your Coyote swap project and help you save time and money!

SVE Products Limited Warranty - Click Here

Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Fitment Notice

When using this kit on a 4-wheel disc brake swap (79-93 Fox), it is recommended to incorporate an adjustable proportioning valve to adjust the rear brake bias.
This kit is designed for Naturally Aspirated Coyote Swaps ONLY.
As with any swap or retrofit, there are several variables involved. Due to this, SVE can not guarantee that this plumbing kit will work for everyone's application.
Once this kit has been plumbed and the vehicle is ready to fire, you will need to fill and bleed the system properly.
AN hose fittings may come in black and/or silver finishes.

More videos of this product!

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Published on 2020-09-18
KRC Hydroboost Kit: http://latemodelres.to/SVEHyrdoboost_KRC_YouTube
PBH Hydroboost Kit: http://latemodelres.to/SVEHyrdoboost_PBH_YouTube

Check out the install videos below:
KRC: https://youtu.be/ee9kwldGNWs
PBH: https://youtu.be/T3nUxYyWmdo

Ensure the hydroboost system on your 1979-2004 Coyote Swapped Mustang is properly plumbed with SVE's premium hydroboost plumbing kit! When it comes to coyote swapped 1979-2004 Mustangs, there are multiple ways to approach this swap. Regardless of the route, there is a desire for the luxury of hydroboost assisted brakes and power steering. After performing several coyote swaps of their own, SVE researched and developed a viable solution based kit to properly plumb the hydroboost system. SVE specifically designed this kit for cars utilizing the Power By The Hour Speed Drive setup or KRC Power Steering Pump Kit and a hydroboost assembly from a 1999-2004 V8 Mustang.

Premium Components
SVE utilizes premium components within this plumbing kit to provide power assist brakes and power steering for coyote swapped 1979-2004 Mustangs with the Power By The Hour Speed Drive or KRC Power Steering Pump Kit. The main benefit of this kit is that the return lines are constructed of a universal, power steering grade material, allowing each line to be custom routed and tailored to the end user's desired specifications. By utilizing these high-quality components, SVE was able to successfully provide a bolt-on plumbing kit with an exceptional fit and finish! SVE is proud to offer this kit to eliminate all of the guesswork for your coyote swap project to help you save time and money!

*Please see the product page for specific kit info for the included parts and components*
KRC: http://latemodelres.to/SVEHyrdoboost_KRC_YouTube
PBH: http://latemodelres.to/SVEHyrdoboost_PBH_YouTube

Disclaimer
As with any swap or retro-fit, there are a number of variables involved. Due to this, SVE can not guarantee that this plumbing kit will work for everyone's application.

Application
Fits 1979-2004 Coyote Swapped Mustang w/ 1999-2004 V8 Mustang Hydroboost Assembly
