Increase the space between the sway bar and the engine in your coyote swapped 1979-1993 Fox Body Mustang with the help from this SVE sway bar relocation kit!

Item #LRS-5486-FRK

Everyday Low Price: $99.99

In Stock Ships today!
 This item is returnable. Details

Free Shipping over $99

 Add to Cart

Due to Hurricane Ian, shipments to certain areas in Florida may experience delays or suspended service. Fedex Service Disruptions

 Benefits

  • Eliminates All Guesswork
  • Improves Sway Bar Clearance
  • Simplifies Coyote Swap Projects
  • Provides Adequate Room For Accessory Drive

 Features

  • Grade 8 Hardware
  • Black E-Coat Finish
  • Heavy-Duty Steel Construction
  • Durable Center Bead and Side Gussets

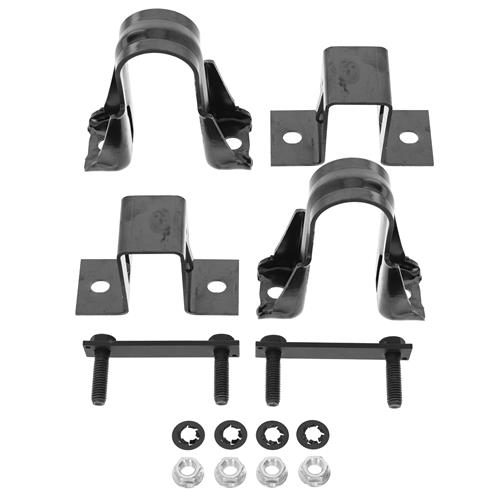

 What's in the Box

  • (2) Sway Bar Mounting Brackets
  • (2) Heavy Duty Stud Plates
  • (4) Push Lock Retainers
  • (4) Grade 8 Locking Nuts

Fox Body Mustang Coyote Swap Sway Bar Relocation Kit
Ensure your coyote swapped 1979-1993 Fox Body Mustang is complete with a properly functioning front sway bar with help from this SVE sway bar relocation kit! After thorough research and development, SVE has created a problem-solving, solution-based kit by designing the correct components necessary to run a 1994-2004 Mustang style front sway bar on the ever so popular coyote engine swap in a Fox Body Mustang. This kit is needed to prevent clearance issues and allow more room in the area between the sway bar and the accessory drive. Previously, if you were wanting to run a front sway bar on your coyote swapped Fox Body Mustang, custom fabrication was required in order to avoid contact between the sway bar, the A/C compressor, and its manifold attachment. SVE is proud to offer this sway bar relocation kit to eliminate all of the guesswork for your coyote swap project, saving you time and money!

SVE Quality

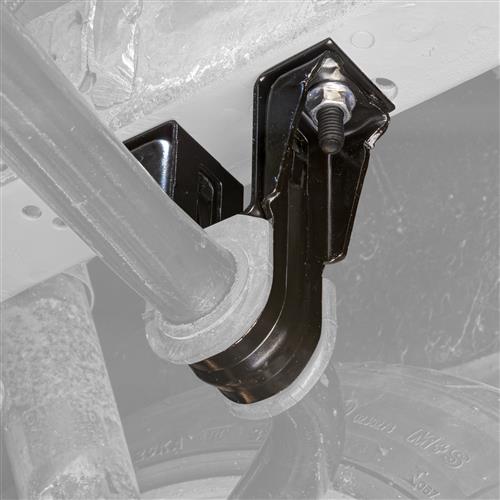

SVE utilizes only the most premium components possible to provide an effective solution for a sought-after swap. Featuring a heavy-duty steel construction, the provided stud plates are powder-coated black and have grade 8 bolts that are welded into place to serve as the mounting studs for the sway bar mounting brackets. SVE incorporates the robust 1994-2004 Mustang Sway Bar Mounting Brackets from LMR, that utilize the correct center bead and side gussets. This design provides the ultimate strength to prevent any flexing and is finished in a black e-coat to resist corrosion. To keep the studs in place during the installation process, four push-lock retainers are provided as well as grade 8 nuts to fasten the brackets to the frame rails.

Product Notes
  • We strongly recommend referencing our installation video and the fitment notes tab above.
  • Sway bar bushings & end links are not included in this kit due to the various thicknesses of the SN95 sway bars and ride height variables.
  • The sway bar mounting brackets provided in this kit will accommodate all aftermarket bushings that are designed to work with factory style 1994-2004 Mustang sway bar mounting brackets.
Application
  • Fits 1979-1993 Coyote Swapped Mustang

  • SVE Products Limited Warranty - Click Here

    • Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
    • Please note that the factory front sway bar brackets MUST be removed and the bottom side of the frame rail will need to be completely flat!
    • It is highly recommended to install this kit towards the end of your coyote swap build so there will be as much weight on the front of the car as possible.
    • To properly install this kit, you will need to utilize a factory or aftermarket sway bar designed for a 1994-2004 Mustang.
    • With this style of sway bar, you will have to use the correct front sway bar bushings that accommodate the overall diameter of the sway bar of your choosing.
    • The use of 1994-2004 Mustang style sway bar end links is required.
    • We recommended this sway bar end link kit as it will work for most applications, but if a smaller option is needed, you may have to shorten the sleeve and source a shorter bolt.
    • Depending on the ride height of your vehicle, these may have to be modified so that the ear of the sway bar is parallel to the ground when the weight of the car is on all four corners or when the suspension is loaded.
    • The measurement that needs to be taken is the length from the top of the control arm where the bolt slides through the hole to the bottom of the sway bar ear, but take into consideration the height of each end link bushing.
    • The rearward limit of the sway bar and the positioning of the sway bar mounts MUST be accounted for during the installation of this kit.
    • The ear of the sway bar in relation to the strut body needs to be as far back as it can go to provide maximum clearance for your wheels and tires when turning lock to lock.
    • Depending on the numerous variables (wheel, suspension, etc.) of every application, steering rack limiters may be required.
    • When positioning the sway bar, keep in mind the ear of the sway bar in relation to the strut body. You MUST check this distance for clearance issues when the wheels are pointed straight and when turning lock to lock.

    Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

  • How To Install Fox Body Coyote Swap Sway Bar Relocation Kit | 79-93

    Learn how to install SVE's Fox Body Coyote Swap Sway Bar Relocation Kit. This will help you run a 1994-2004 Mustang style front sway bar on your Fox Body. more
