1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear by Tremec


Details   |  Reviews

Details   |   Reviews
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear
1979-2004 Mustang Tremec T56 Magnum Transmission - 2.97 First Gear

Bulletproof your drivetrain with Tremec's 1979-2004 Mustang T56 Magnum transmission with 2.97 first gear!

Item #LRS-7003J
MPN# TUET 16884

Everyday Low Price: $3,545.00

Low Stock Only 2 available. Ships tomorrow!
This item is not eligible for discounts or coupon codes.
 This item is not returnable. Details
 Truck Freight Item - Shipping calculated at checkout. Details

 Add to Cart

× close

 Benefits

  • Extreme Durability
  • Optimized Gear Layout
  • 700lb-ft Torque Capacity
  • High RPM Shifting Capability
  • Provides Accurate, Smooth, Superior Shift-Ability

 Features

  • 26 Spline Input Shaft
  • 31 Spline Output Shaft
  • 7 Tooth Internal Drive Gear
  • Double & Triple Cone Synchronizers
  • Mechanical & Electronic Speedo Provisions

 What's in the Box

  • (1) T56 Magnum Transmission

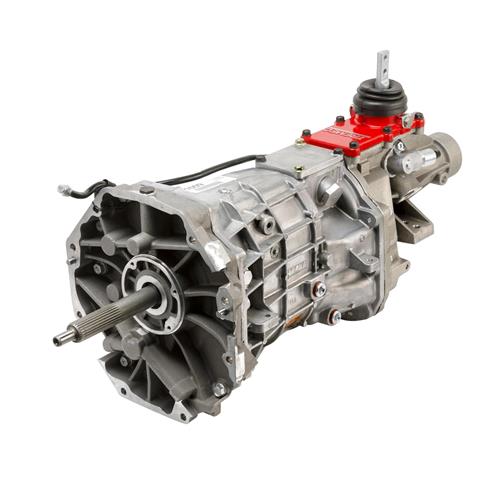

Tremec T56 Magnum 6-Speed Transmission with 2.97 First

If you are looking for the best 6-speed manual transmission on the market without breaking the bank, then the Tremec T56 Magnum with 2.97 first gear is for you! With the appropriate QuickTime Bellhousing, this transmission will bolt in behind your 5.0 or 5.8 pushrod engine as well as 4.6, 5.4, & 5.0 coyote modular engine, making this a great swap for 1979-2004 Mustang! The input shaft carries 26 splines and the output shaft is 31 splines. This Magnum transmission will handle up to 700lb-ft of torque and will provide crisp, clean shifts throughout the RPM range. Tremec T56 Magnum transmissions also feature provisions for mechanical & electronic speedometers & include a Tremec T56 billet shifter base. A preinstalled clutch fork pivot is included with the transmission as well as a reverse lockout, reverse light, and VSS. The Tremec T56 transmission should be your only consideration if doing a 5.0 Coyote swap in your 1979-2004 Mustang. Check out our Mustang manual transmission article if you would like to learn more about all of the different manual transmissions!



T56 Magnum Gear Ratios

  • 1st - 2.97
  • 2nd - 2.10
  • 3rd 1.46
  • 4th 1.00
  • 5th 0.80
  • 6th - 0.63
  • Reverse - 2.90

Application

  • Fits 1979-2004 Ford Mustangs


TREMEC Transmission Limited Warranty - Click Here

  • Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
  • Will not fit 2005+ Mustangs
  • 5.0 & 5.8 Pushrod engines require the RM-8031 Bellhousing
  • 4.6, 5.4, 5.0 Coyote engines require the RM-8080 Bellhousing
  • Because of the 7oclock clutch fork position, it requires the use of a 94-04 clutch fork for proper cable alignment available Here.
  • T56 manual transmission swap with this transmission connector & pigtail kit available Here

  • Will require a modified length driveshaft as well as a modified or aftermarket cross-member.
  • Will require 26 spline clutch
  • You will need to either transfer your factory shift handle and shift ball or pick up a new set!
  • Dexron VI or equivalent fluid is recommended  - Quantity - 3.75 Quarts
  • 7 Tooth internal drive gear
  • Transmission Gearing Explained

    When choosing a new transmission, gear selection will play an important role in the driving characteristics of your Mustang. more

    Read more: 79 93 mustang , 94 04 mustang , 05 09 mustang , 10 14 mustang , 2015 mustang , tech , tech guide , transmission

    Posted on 2/10/2023


  • California Residents:
    Prop 65 Warning SignWARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
    Ship Weight: 120 lbs

    About This Brand


    Tremec
    Tremec is one of the industry leading manufacturers of performance manual transmissions. They have spent years researching and developing the highest quality torque transfer solutions. Tremec provides world class products to the global automotive and industrial markets. With a wide range of Tremec transmissions available for the Ford Mustang, Latemodel Restoration is proud to offer the Tremec Magnum XL 6 speed transmission!
