Precise sending units with digitally controlled needle movements
Blue Illumination and Graduations
Fully Lit Needles
Back-lit Carbon Fiber Look Gauge Faces
Fits 1987-1989 Mustang
What's in the Box
(1) Digital Instrument Cluster
(1) Control Module
(1) Water Temp Sending Unit with Harness
(1) Oil Pressure Sending Unit with Harness
(1) Pack of Assorted Sending Unit Adapters
(1) Installation Instructions
Digital Accuracy with Analog Appearance
With the stock Mustang Gauge Cluster being known for it's level of inaccuracies, Dakota Digital really changed the game with their VHX Analog/Digital Gauge Clusters for 1987-1989 Mustang. The precise digital measurement and needle control allow you to trust the information being displayed on your Instrument Cluster! A must have for your High Performance Fox Mustang!
Analog Gauge Display and Indicators

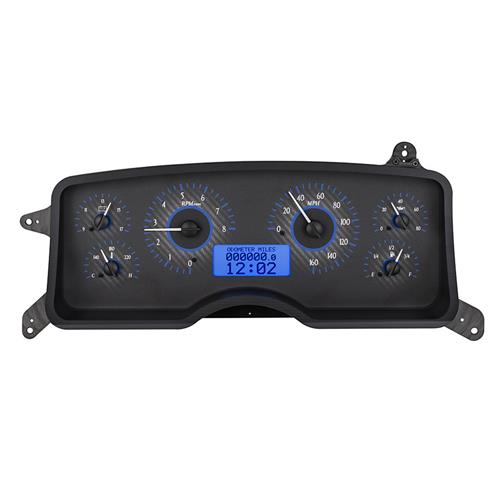

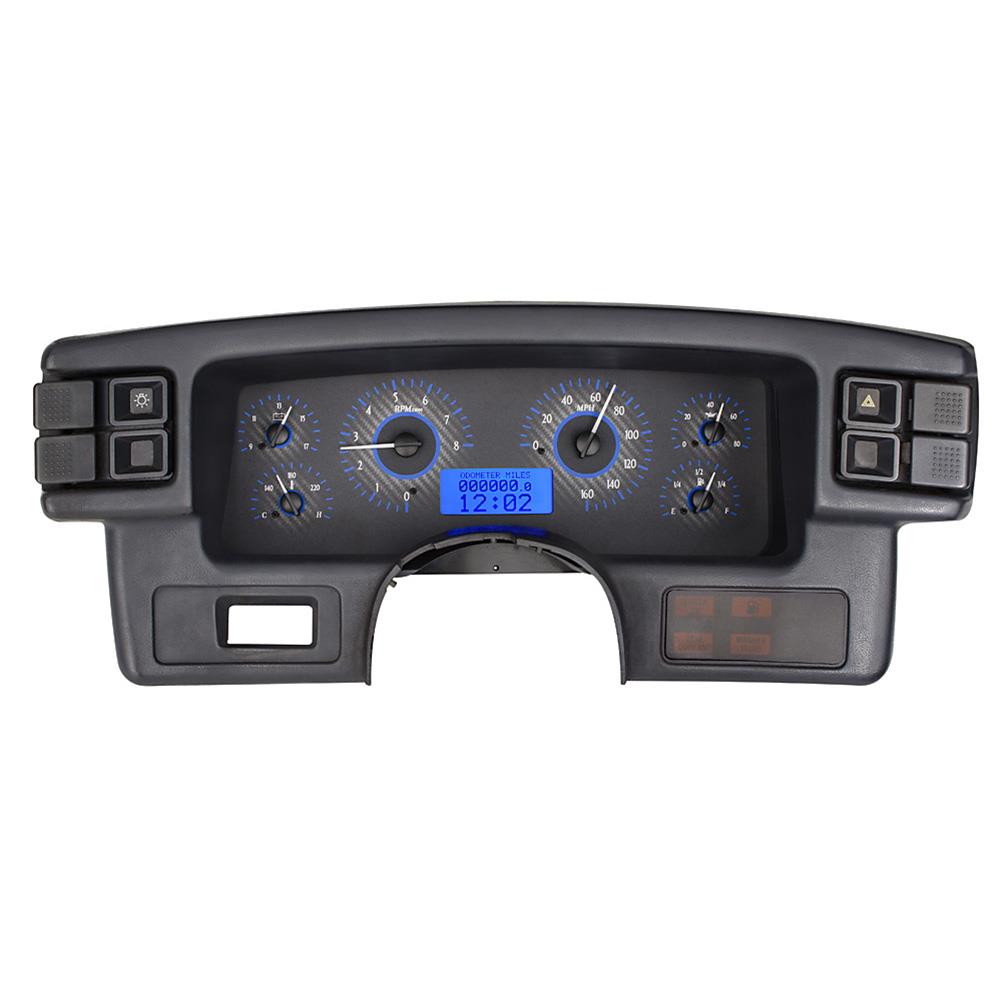

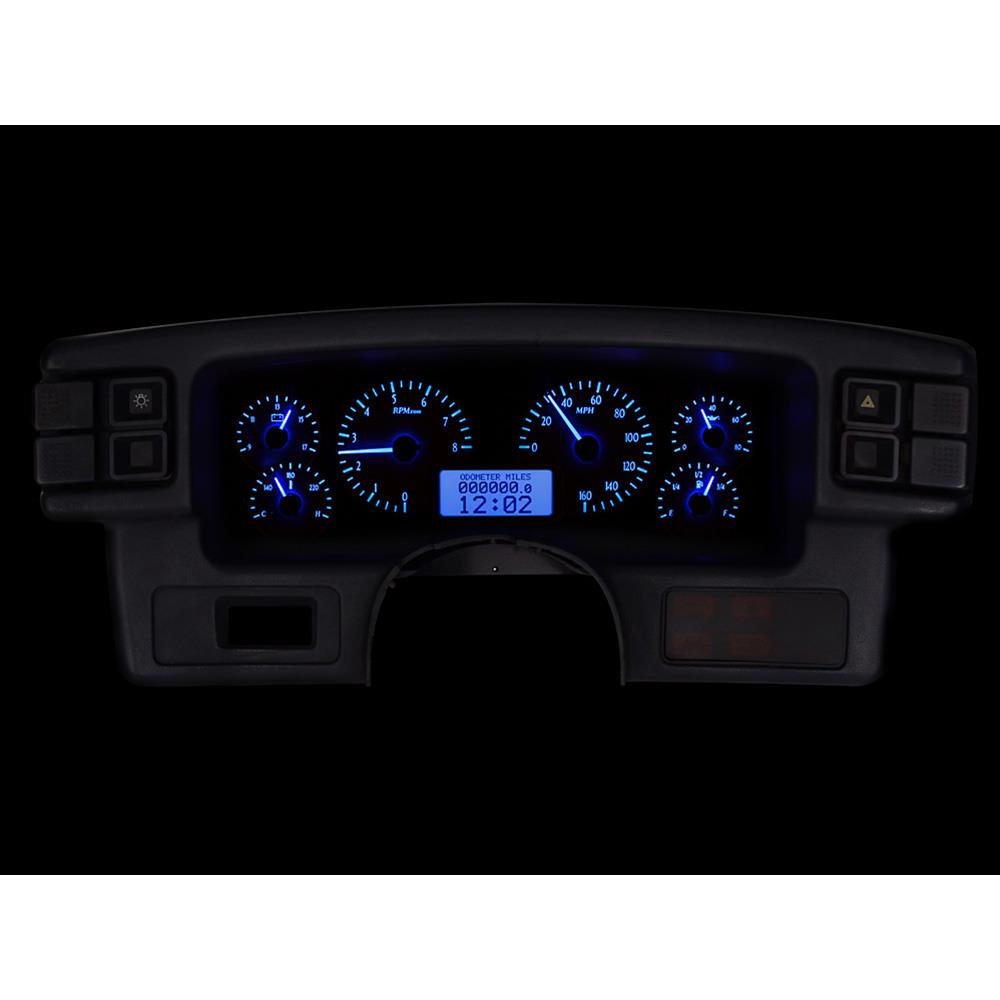

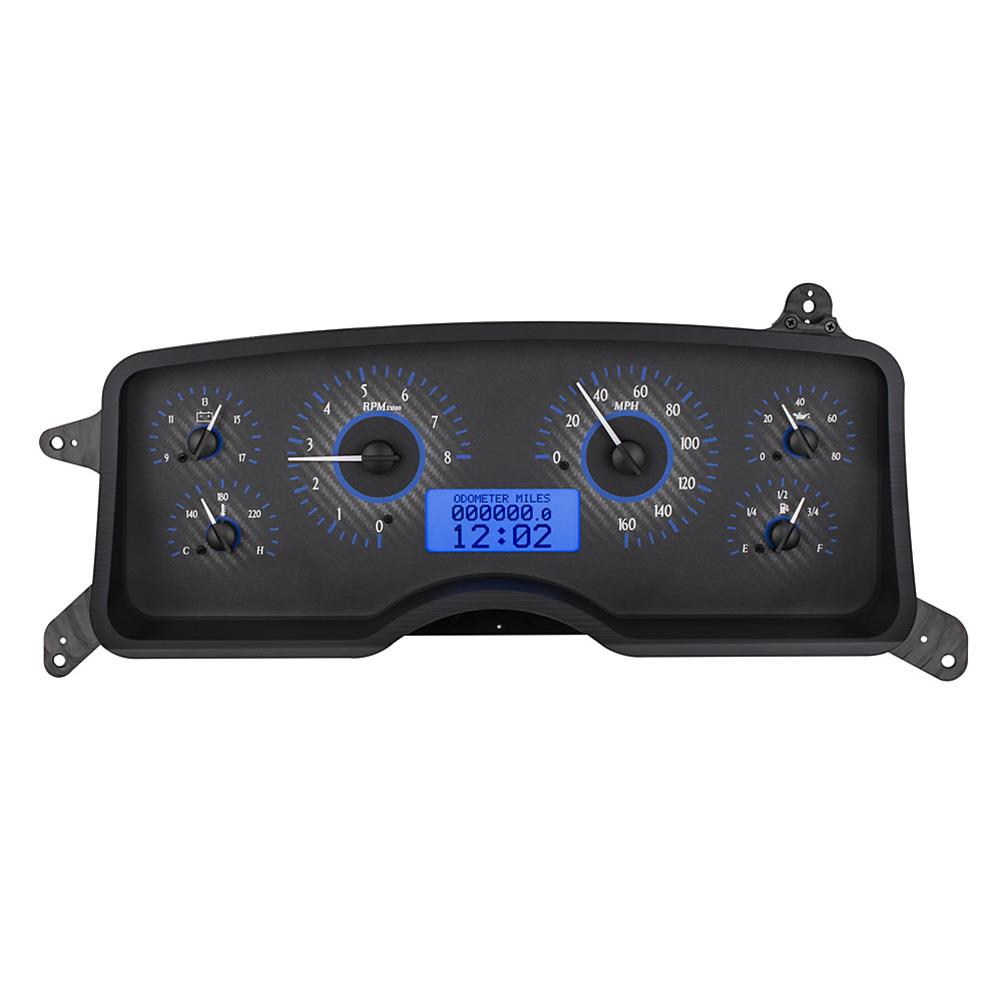

The visible gauge faces feature a carbon fiber appearance with blue graduations and blue back-lighting. The analog displays are Speedometer (0-160 mph), Tachometer (0-8000 RPM), Fuel Level (Full-Empty - uses stock sending unit), Water Temperature (140-220° F), Oil Pressure (0-80 psi), and Voltmeter (8-17 Volts DC). Visible indicators are RH and LH Turn Signal, High Beam, Cruise Control, Parking Brake, and Check Engine.
Digital Message Center
The Message Center displays several of the analog gauge functions in digital format such as Speedometer (0-255 MPH/KPH), Tachometer (0-9,990 RPM), Oil Pressure (0-80 psi), Water Temperature (0-300° F/0-150° C), Fuel Level (0-99%), and Voltmeter (8-17 Volts DC). Other display features include Odometer, Trip Odometer, Resettable Service Odometer, Engine Hour Meter, and Clock. There are also built in performance functions such as 0-60 mph timer, 1/4 mile timer, 1/4 mile speed, High Speed Recall, and High RPM Recall.
No Need for Aftermarket Gauges!
Keep an OE type appearance AND get the precise information you need to keep tabs on your Mustang's vitals all in this one inclusive bolt-in gauge cluster. The speedometer is user programmable, so your speed will never be wrong again regardless of tire size or rear gear changes. The Tach is adaptable to all ignition pickup styles, so you'll have correct RPM regardless of the engine. See your alternators true output via a correct Volt Meter! The Oil Pressure and Water Temp sending units are included. Fuel Level is compatible with your existing stock Foxbody sending unit.
Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!
Published on 2013-10-16 Bring your fox body Mustang out of the stone age of mechanical gauges. Pick up a Dakota Digital Instrument cluster from LatemodelRestoration.com Not only will these fix your problematic mechanical gauges but it will also add some awesome performance monitoring such as 0-60 mph time and even quarter mile times. These digital gauge clusters are available for 79-89 Mustangs and are a direct replacement. They come with detailed instructions and all the needed hardware. Give your Foxbody Mustang a modern looking dash with the Dakota Digital instrument clusters!!
Good Product. Took me about full two days to install. Recommend you get a wiring diagram for your mustang if you do not have one (and label your wires). Biggest issue I had was with the Alternator. When you replace the instrument panel, you disconnect the green wire for the "exciter" on the alternator. This has to be connected to 12 Volts for the alternator to work. Greg Karpe and the folks at Dakota Digital were very supportive and responsive to my questions. Very pleased with the new instrument panel.
Yes, I would recommend this item to a friend!
Was this review helpful to you?
Joseph S. on
I saw this on their website. Looked into it and bought it. Installed this pretty easy. Instructions are really good. Looks beautiful and get a lot of compliments. Much better and more acurate then the original. Plus extra stuff I didn't have before.
Over the past 25 years, Dakota Digital has been manufacturing the highest quality specialty electronics for cars, trucks, and motorcycles. Most of their products are designed, developed, and manufactures in their South Dakota facility. They strive for the best service and support and take pride in the products they build. Shop Dakota Digital for custom digital instrument gauge clusters for your Foxbody Mustang.
