1987-89 Mustang Dakota Digital VHX Digital Instrument Cluster - Alloy Face w/ Blue Backlighting by Dakota Digital


1987-89 Mustang Dakota Digital VHX Digital Instrument Cluster  - Alloy Face w/ Blue Backlighting
1987-89 Mustang Dakota Digital VHX Digital Instrument Cluster  - Alloy Face w/ Blue Backlighting
1987-89 Mustang Dakota Digital VHX Digital Instrument Cluster  - Alloy Face w/ Blue Backlighting
1987-89 Mustang Dakota Digital VHX Digital Instrument Cluster  - Alloy Face w/ Blue Backlighting
How To Remove Fox Body Mustang Gauge Cluster (87-93)

If you are looking to add a new look to your Foxbody, add a 1987-1989 Mustang digital instrument cluster! Great for Coyote Swaps!

Item #LRS-8793MUSSB
MPN# VHX-87F-MUS-S-B

Everyday Low Price: $878.75

Low Stock Only 1 available.
 This item is returnable. Details

Free Shipping over $99

 Add to Cart

× close

  • Ford Mustang - 1987, 1988, 1989
Fitment Notice
  • Cluster Control box works with T5 (with included new VSS) or T56 (using stock sensor)

 Benefits

  • Direct Replacement
  • LCD Message Center
  • Precise Sending Units With Digital Step Motors

 Features

  • Fully Lit Needles
  • Blue Illumination and Graduations
  • Back-lit Satin Silver Look Gauge Faces

 What's in the Box

  • (1) Digital Gauge Cluster
  • (1) Control Module
  • (1) Alternator Load Harness
  • (1) Water Temp Sending Unit with Harness
  • (1) Oil Pressure Sending Unit with Harness
  • (1) Pack of Assorted Sending Unit Adapters
  • (1) Switch Assembly
  • (1) CAT5 Cable
  • (1) Speed Sensor Plug
  • (1) Detailed Installation Instructions

1987-1989 DAKOTA DIGITAL INSTRUMENT GAUGE CLUSTER

Digital Accuracy with Analog Appearance the stock Mustang Gauge Cluster being known for it's level of inaccuracies, Dakota Digital really changed the game with their VHX Analog/Digital Gauge Clusters for 1987-1989 Mustang. The precise digital measurement and needle control allow you to trust the information being displayed on your Instrument Cluster! A must-have for your High-Performance Fox Mustang!


Analog Gauge Display and Indicators

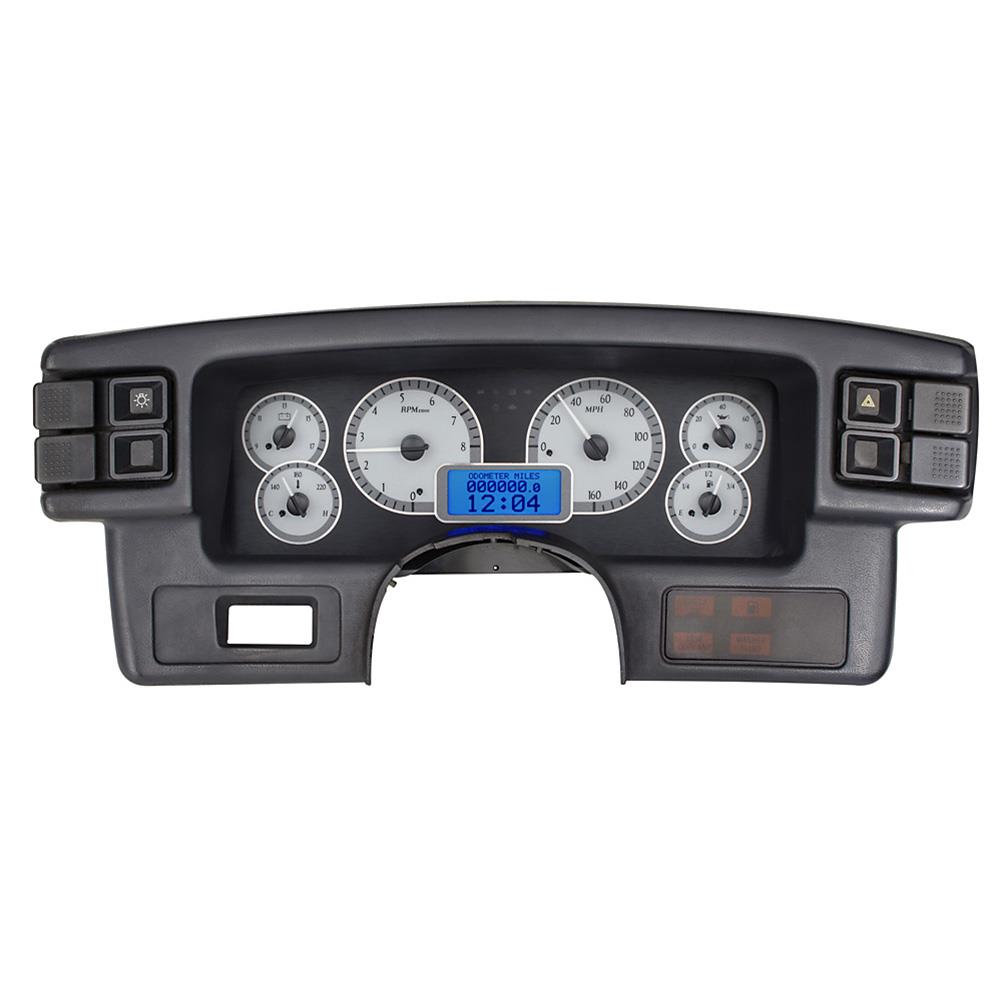

The visible gauge faces feature a satin silver appearance with blue graduations and blue back-lighting. The analog displays are Speedometer (0-160 mph), Tachometer (0-8000 RPM), Fuel Level (Full-Empty - uses stock sending unit), Water Temperature (140-220° F), Oil Pressure (0-80 psi), and Voltmeter (8-17 Volts DC). Visible indicators are RH and LH Turn Signal, High Beam, Cruise Control, Parking Brake, and Check Engine.


Digital Message Center

The Message Center displays several of the analog gauge functions in digital format such as Speedometer (0-255 MPH/KPH), Tachometer (0-9,990 RPM), Oil Pressure (0-80 psi), Water Temperature (0-300° F/0-150° C), Fuel Level (0-99%), and Voltmeter (8-17 Volts DC). Other display features include Odometer, Trip Odometer, Resettable Service Odometer, Engine Hour Meter, and Clock. There are also built-in performance functions such as 0-60 mph timer, 1/4 mile timer, 1/4 mile speed, High-Speed Recall, and High RPM Recall.


No Need for Aftermarket Gauges

Keep an OE type appearance AND get the precise information you need to keep tabs on your Mustang's vitals all in this one inclusive bolt-in gauge cluster. The speedometer is user-programmable, so your speed will never be wrong again regardless of tire size or rear gear changes. The Tach is adaptable to all ignition pickup styles, so you'll have the correct RPM regardless of the engine. See your alternator's true output via a correct Volt Meter! The Oil Pressure and Water Temp sending units are included. Fuel Level is compatible with your existing stock Foxbody sending unit.

Odometer Notice

  • To properly set up the odometer feature within this cluster, make sure to calibrate the speedometer first. You will only have 100 miles from the installation of the cluster to set up the odometer to the mileage of your vehicle! For further information, please reference the Wiring Guide below.
