1990-93 Mustang Digital Instrument Cluster Black Alloy, Blue Backlighting by Dakota Digital

Details   |  Description   |  Reviews

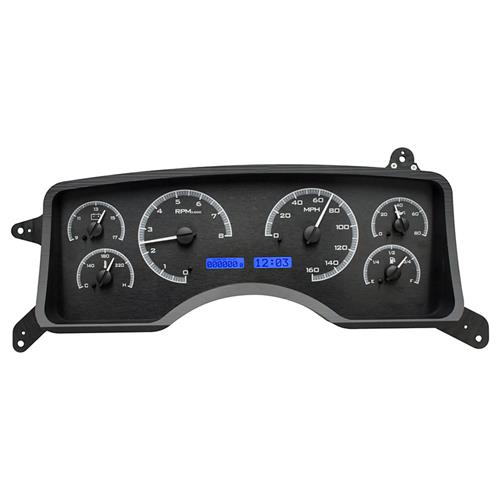

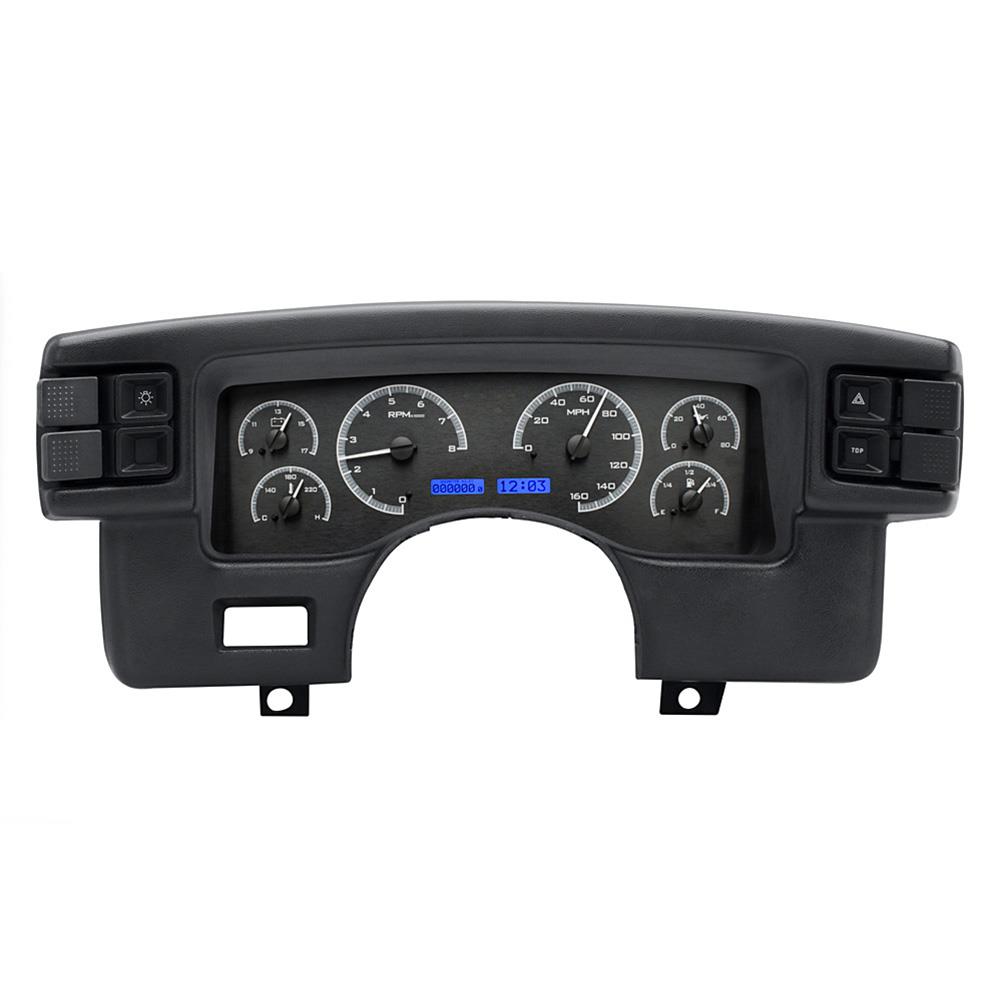

  • 1990-93 Mustang Dakota Digital Gauge Cluster. Black Alloy, Blue Odometer Picture
1990-93 Mustang Dakota Digital Gauge Cluster. Black Alloy, Blue Odometer Picture

Add this Dakota Digital instrument cluster to your 1990-1993 Fox Body for a custom new interior look!

Item #LRS-9093MUSBB

Everyday Low Price: $755.25

  Ships from supplier in 15-25 business days

Add to cart


  • Direct Replacement
  • LCD Message Center
  • Precise sending units with digitally controlled needle movements


  • Blue Illumination and Graduations
  • Fully Lit Needles
  • Back-lit Black Look Gauge Faces
  • Fits 1990-1993 Mustang

What's in the Box

  • (1) Digital Instrument Cluster
  • (1) Control Module
  • (1) Water Temp Sending Unit with Harness
  • (1) Oil Pressure Sending Unit with Harness
  • (1) Pack of Assorted Sending Unit Adapters
  • (1) Installation Instructions

Product Description

Digital Accuracy with Analog Appearance
With the stock Mustang Gauge Cluster being known for it's level of inaccuracies, Dakota Digital really changed the game with their VHX Analog/Digital Gauge Clusters for 1990-1993 Mustang. The precise digital measurement and needle control allow you to trust the information being displayed on your Instrument Cluster! A must have for your High Performance Fox Mustang!

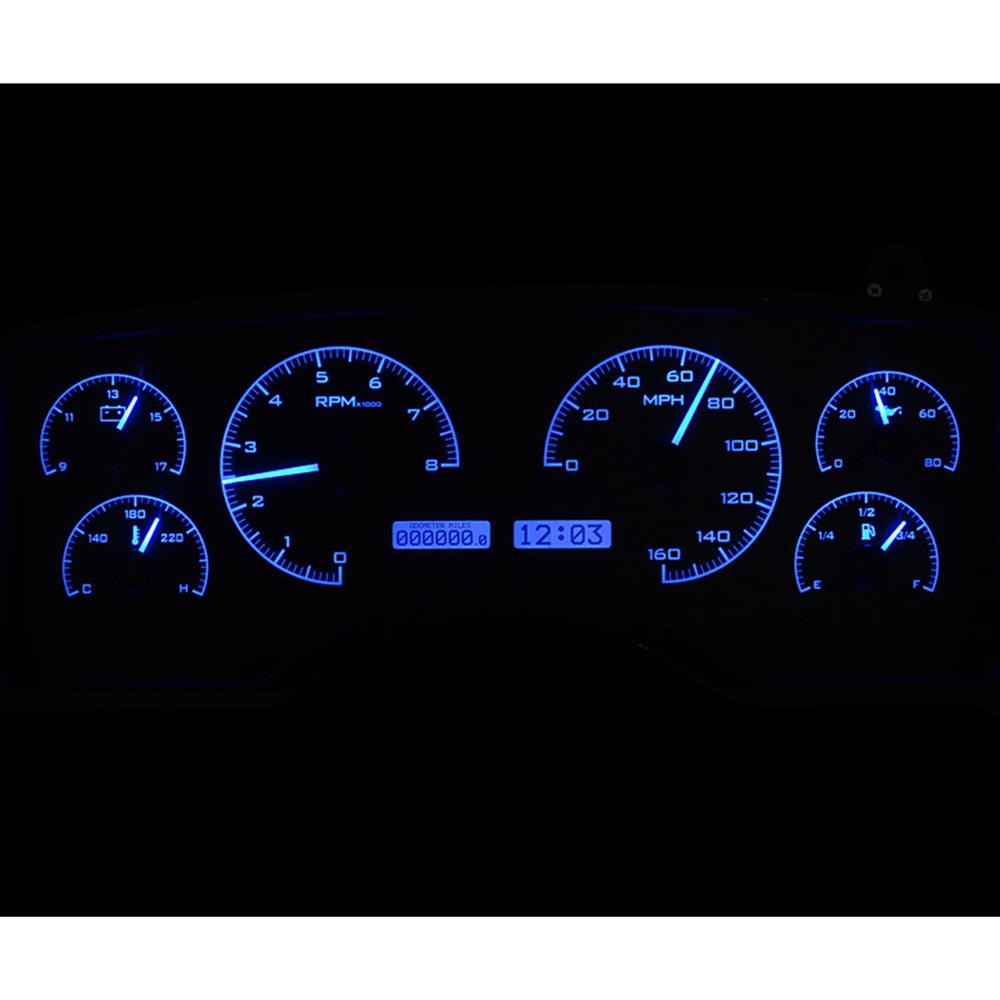

Analog Gauge Display and Indicators
The visible gauge faces feature a black appearance with blue graduations and blue back-lighting. The analog displays are Speedometer (0-160 mph), Tachometer (0-8000 RPM), Fuel Level (Full-Empty - uses stock sending unit), Water Temperature (140-220° F), Oil Pressure (0-80 psi), and Voltmeter (8-17 Volts DC). Visible indicators are RH and LH Turn Signal, High Beam, Cruise Control, Parking Brake, and Check Engine.

Digital Message Center
The Message Center displays several of the analog gauge functions in digital format such as Speedometer (0-255 MPH/KPH), Tachometer (0-9,990 RPM), Oil Pressure (0-80 psi), Water Temperature (0-300° F/0-150° C), Fuel Level (0-99%), and Voltmeter (8-17 Volts DC). Other display features include Odometer, Trip Odometer, Resettable Service Odometer, Engine Hour Meter, and Clock. There are also built in performance functions such as 0-60 mph timer, 1/4 mile timer, 1/4 mile speed, High Speed Recall, and High RPM Recall.

No Need for Aftermarket Gauges!
Keep an OE type appearance AND get the precise information you need to keep tabs on your Mustang's vitals all in this one inclusive bolt-in gauge cluster. The speedometer is user programmable, so your speed will never be wrong again regardless of tire size or rear gear changes. The Tach is adaptable to all ignition pickup styles, so you'll have correct RPM regardless of the engine. See your alternators true output via a correct Volt Meter! The Oil Pressure and Water Temp sending units are included. Fuel Level is compatible with your existing stock Foxbody sending unit.

Dakota Digital Warranty - Click Here

Customer Photos (0)

Product Reviews (1)

out of 5 stars
5 stars
1 reviews
5 stars    1
4 stars    0
3 stars    0
2 stars    0
1 star    0

1 of 1 REVIEWS
1 of 1 REVIEWS

5 Stars   The cluster I wish Ford installed at the Factory!
By on 4/5/2017
My 92 notchback is "stock-ish" appearing - just the way I like it. I didn't want the race car dash look, but I did want a nice upgrade from the stock cluster. All I can say is "WOW!". The Dakota digital cluster has so many features that go way beyond the terrific appearance. Installation is a little time consuming and requires some patience. In all, I ended up splicing in more than 20 connections, but this was one of the more enjoyable projects I've done and I'm no wiring guru. Initial set up is pretty easy and the results are terrific. The cluster is easy to read and use. At first glance the price tag seems steep, but look at what you'd spend on all of the gauges individually. In the end you simply won't get the features that the Dakota Digital cluster offers - I'd even go so far as to say it's a bargain. If you're looking for a nice, clean upgrade from the stock gauges in your fox body Mustang, look no further than this set up from Dakota Digital.

Yes, I would recommend this item to a friend!

Was this review helpful to you?

Vehicle Applications

Ford Mustang - 1990 (90) - 1991 (91) - 1992 (92) - 1993 (93)

About This Brand

Dakota Digital
Over the past 25 years, Dakota Digital has been manufacturing the highest quality specialty electronics for cars, trucks, and motorcycles. Most of their products are designed, developed, and manufactures in their South Dakota facility. They strive for the best service and support and take pride in the products they build. Shop Dakota Digital for custom digital instrument gauge clusters for your Foxbody Mustang.
