Precise sending units with digitally controlled needle movements

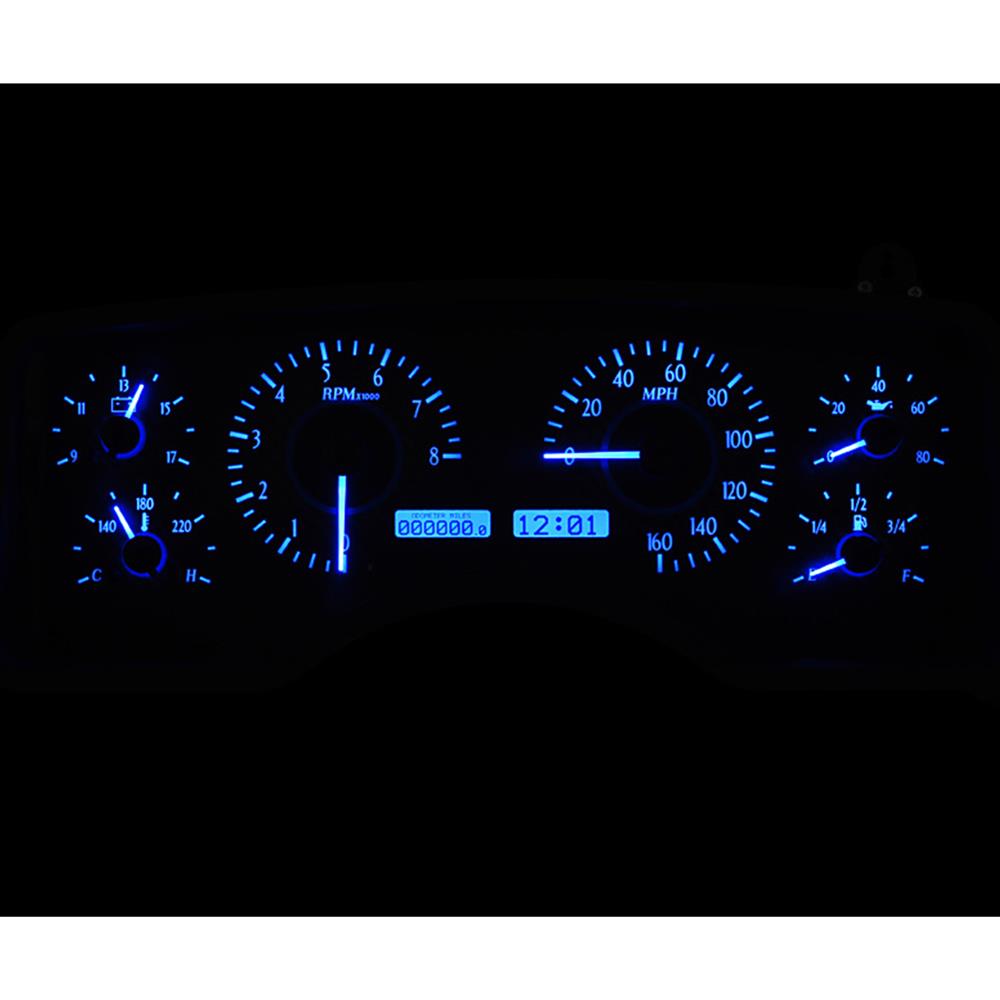

Blue Illumination and Graduations
Fully Lit Needles
Back-lit Carbon Fiber Look Gauge Faces
What's in the Box
(1) Digital Instrument Cluster
Digital Accuracy with Analog Appearance
With the stock Mustang Gauge Cluster being known for it's level of inaccuracies, Dakota Digital really changed the game with their VHX Analog/Digital Gauge Clusters for 1990-1993 Mustang. The precise digital measurement and needle control allow you to trust the information being displayed on your dual LCD Instrument Cluster! A must have for your High Performance Fox Mustang!

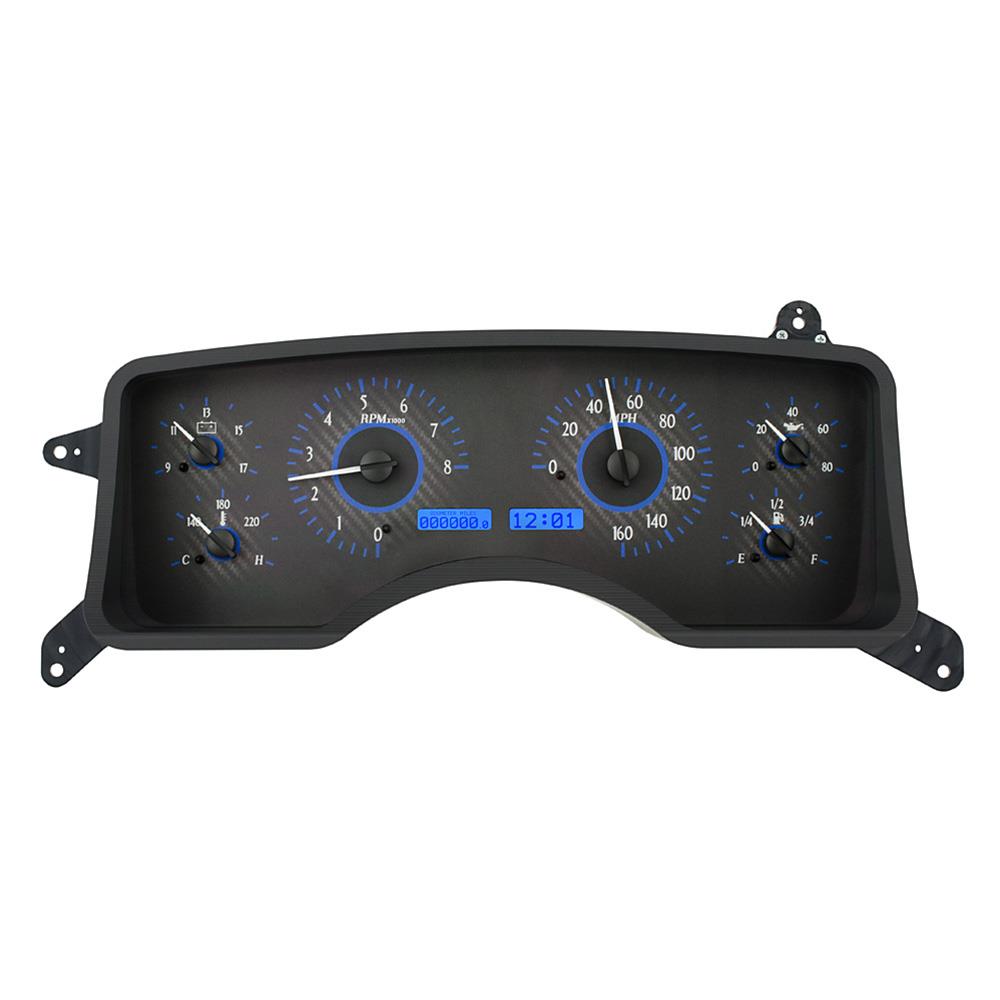

Analog Gauge Display and Indicators
The visible gauge faces feature a carbon fiber appearance with blue graduations and blue back-lighting. The analog displays are Speedometer (0-160 mph), Tachometer (0-8000 RPM), Fuel Level (Full-Empty - uses stock sending unit), Water Temperature (140-220° F), Oil Pressure (0-80 psi), and Voltmeter (8-17 Volts DC). Visible indicators are RH and LH Turn Signal, High Beam, Cruise Control, Parking Brake, and Check Engine.
Digital Message Center
The Message Center displays several of the analog gauge functions in digital format such as Speedometer (0-255 MPH/KPH), Tachometer (0-9,990 RPM), Oil Pressure (0-80 psi), Water Temperature (0-300° F/0-150° C), Fuel Level (0-99%), and Voltmeter (8-17 Volts DC). Other display features include Odometer, Trip Odometer, Re-settable Service Odometer, Engine Hour Meter, and Clock. There are also built in performance functions such as 0-60 mph timer, 1/4 mile timer, 1/4 mile speed, High Speed Recall, and High RPM Recall.
No Need for Aftermarket Gauges!
Keep an OE type appearance AND get the precise information you need to keep tabs on your Mustang's vitals all in this one inclusive bolt-in gauge cluster. The speedometer is user programmable, so your speed will never be wrong again regardless of tire size or rear gear changes. The Tach is adaptable to all ignition pickup styles, so you'll have correct RPM regardless of the engine. See your alternators true output via a correct Volt Meter! The Oil Pressure and Water Temp sending units are included. Fuel Level is compatible with your existing stock Fox Body sending unit.
Bought the gauge cluster about a month ago. Install was very easy, the wiring could have been done by my children it was so easy. Cluster illumination is way better than the stock fox gauge cluster. Price is a little hefty, but stands out far better than the florida clusters. Definitely adds a tasteful upgrade to the interior of the car.
Over the past 25 years, Dakota Digital has been manufacturing the highest quality specialty electronics for cars, trucks, and motorcycles. Most of their products are designed, developed, and manufactures in their South Dakota facility. They strive for the best service and support and take pride in the products they build. Shop Dakota Digital for custom digital instrument gauge clusters for your Foxbody Mustang.
