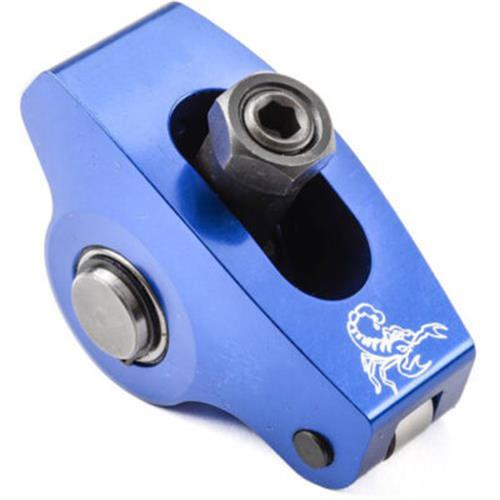

1979-1995 Mustang 5.0 Scorpion Race Series Rocker Arms -Stud Mount 1.6 Ratio 7/16" by Scorpion Racing Products

How To Install 302/351 Mustang Cylinder Heads & Valvetrain (1979-1995)

Improve the valvetrain performance on your 1979-1995 Mustang with these race series stud mount rocker arms from Scorpion Racing Products!

Item #SCP-1018
MPN# 1018

Everyday Low Price: $402.38

In Stock Ships tomorrow!

This item is returnable. Details

Free Shipping over $99

Add to Cart

× close

Images

Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Engines: 5.0,

Fits all aftermarket Small Block Ford Windsor cylinder heads that use a 7/16 rocker stud.
After installation, check clearance of rocker arms to valve covers before starting engine. Failure to do so may result in damage to valve covers and/or valve train.

Benefits

Reduces Internal Friction
Enhances High RPM Stability
Improves Valvetrain Performance
Allows For Greater Spring Rate Tolerance

Features

1.6" Fulcrum Width
Blue Anodized Finish
7000 Series Billet Aluminum
Precision CNC Machined in USA

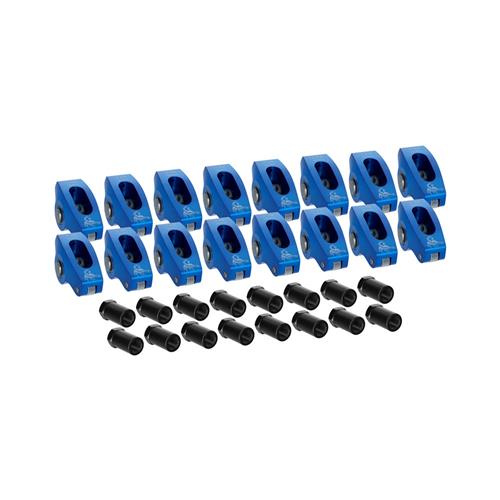

What's in the Box

(16) Polylock Nuts
(16) Race Series Rocker Arms

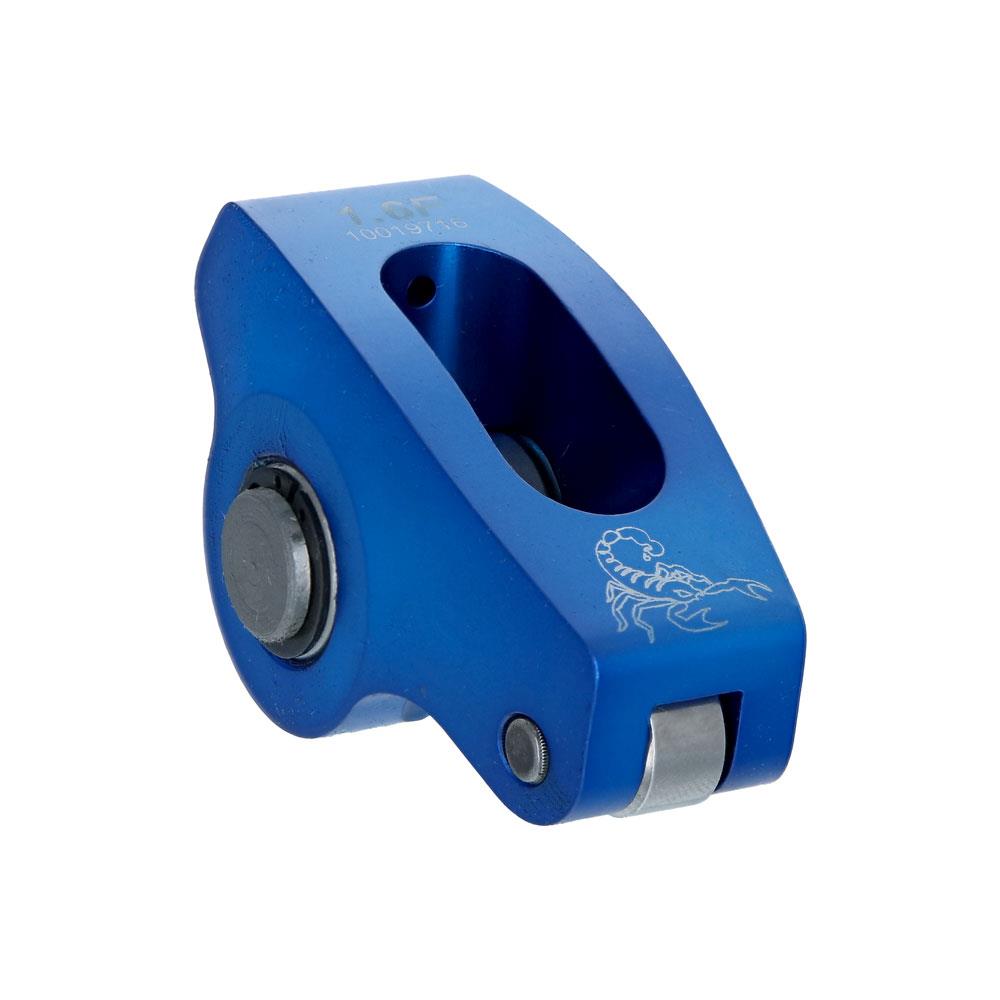

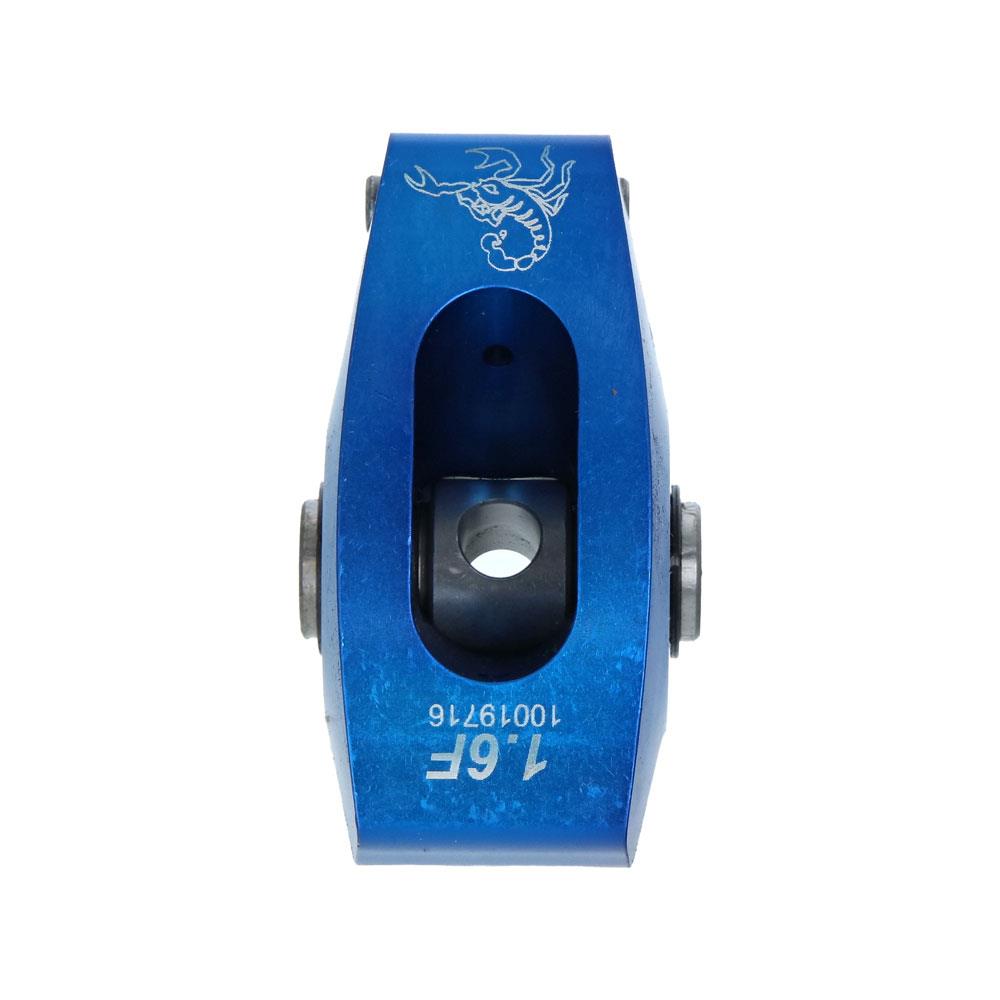

1979-1995 Mustang 5.0 Scorpion Race Series Rocker Arms -Stud Mount 1.6 Ratio 7/16"

Enhance high RPM stability of your 1979-1995 Ford Mustang with this race series stud mount rocker arm kit from Scorpion Racing Products! These race series rocker arms have a 1.6" needle bearing fulcrum and a body made of 7000 series billet aluminum. This design reduces friction which lowers the oil temperature increasing response and horsepower. The roller tip decreases valve guide load allowing for a greater spring rate tolerance and higher RPM stability! With those higher RPM tolerances, the rocker arms can handle up to .950" of lift and .950 lbs of max opening spring pressure. Increasing this lift along with the cam lift can increase the power since the engine will move more air. These rocker arms are CNC machined in the United States and finished in a blue anodized coating for further protection and longevity of your Mustang!

Rocker Arm Specs

Ratio: 1.6
Series: Race
Stud Size: 7/16″
Self Aligning: No
Engine Type: V8
Mounting Style: Stud
Adjustment: Adjustable
Head Type: Aftermarket heads with stud mount provisions

Application

1979-1995 Mustang 5.0

This product is intended for off-road use only, and is not legal for use in emission restrictive states. Off-Road Disclaimer
