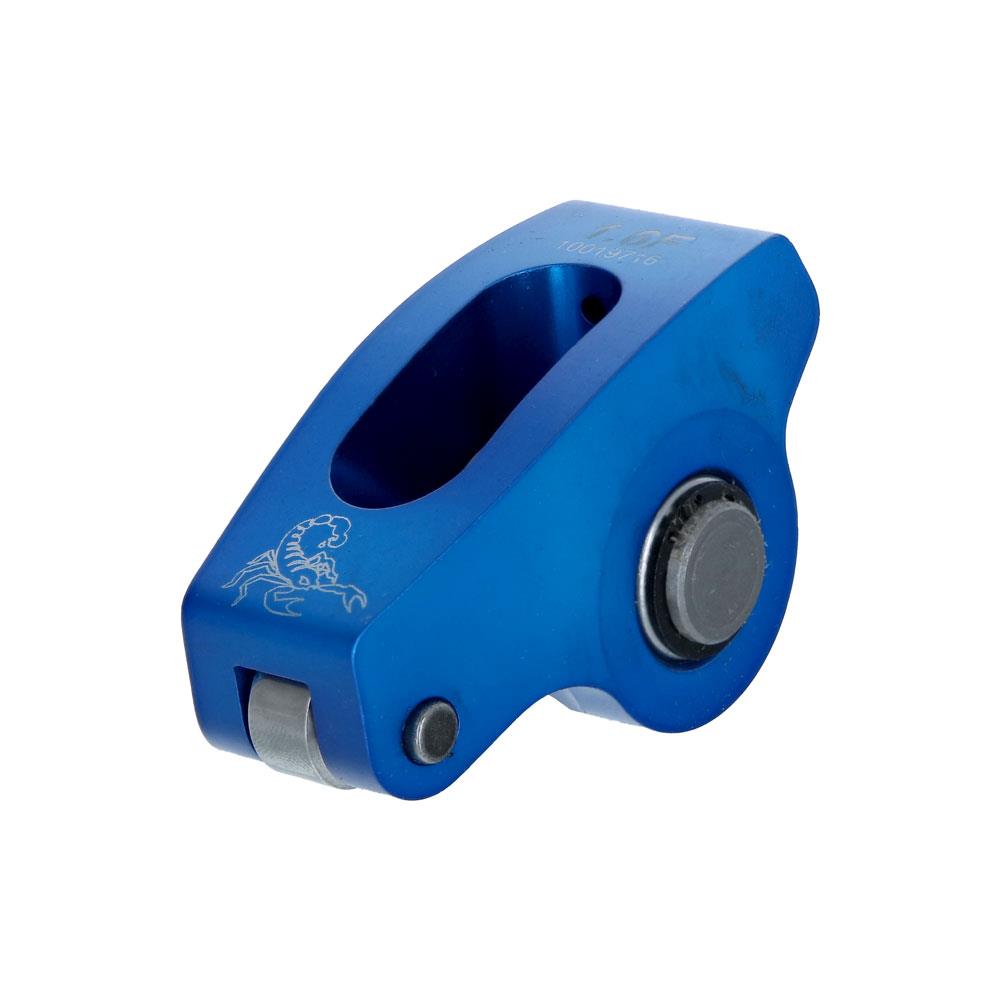

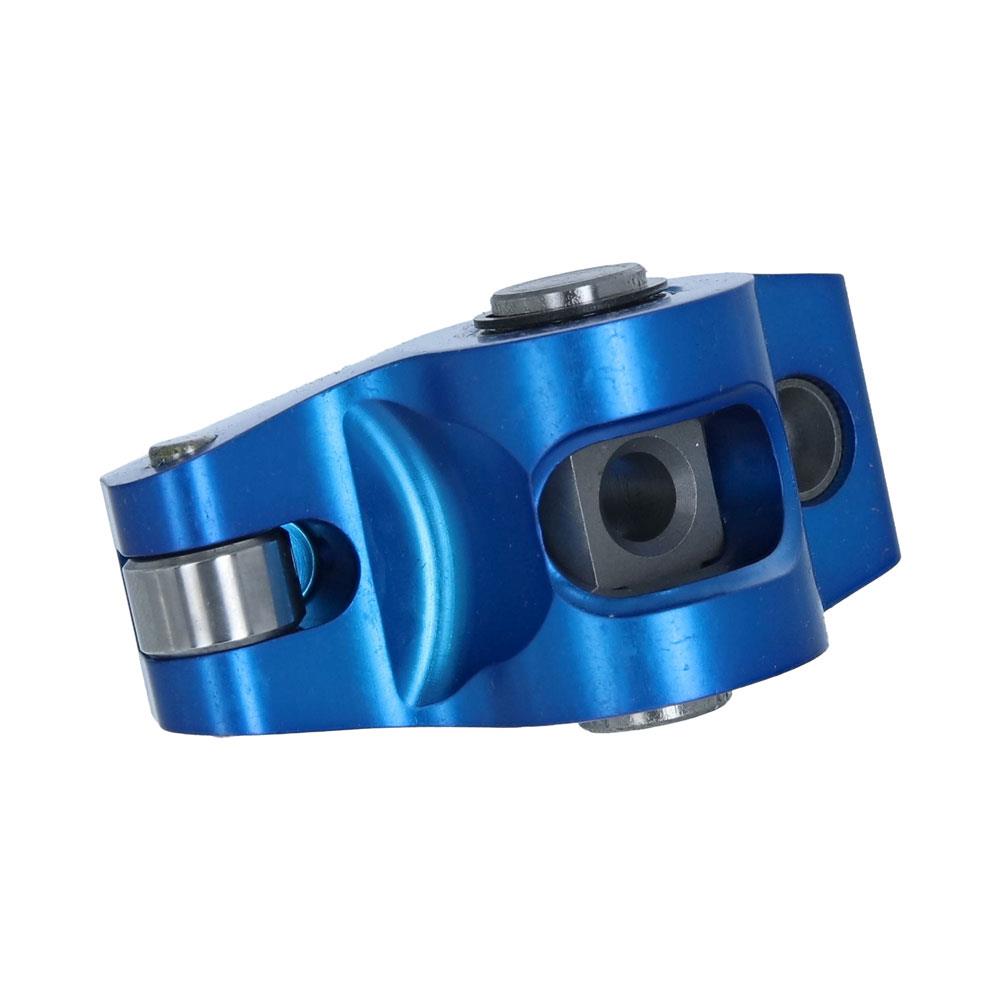

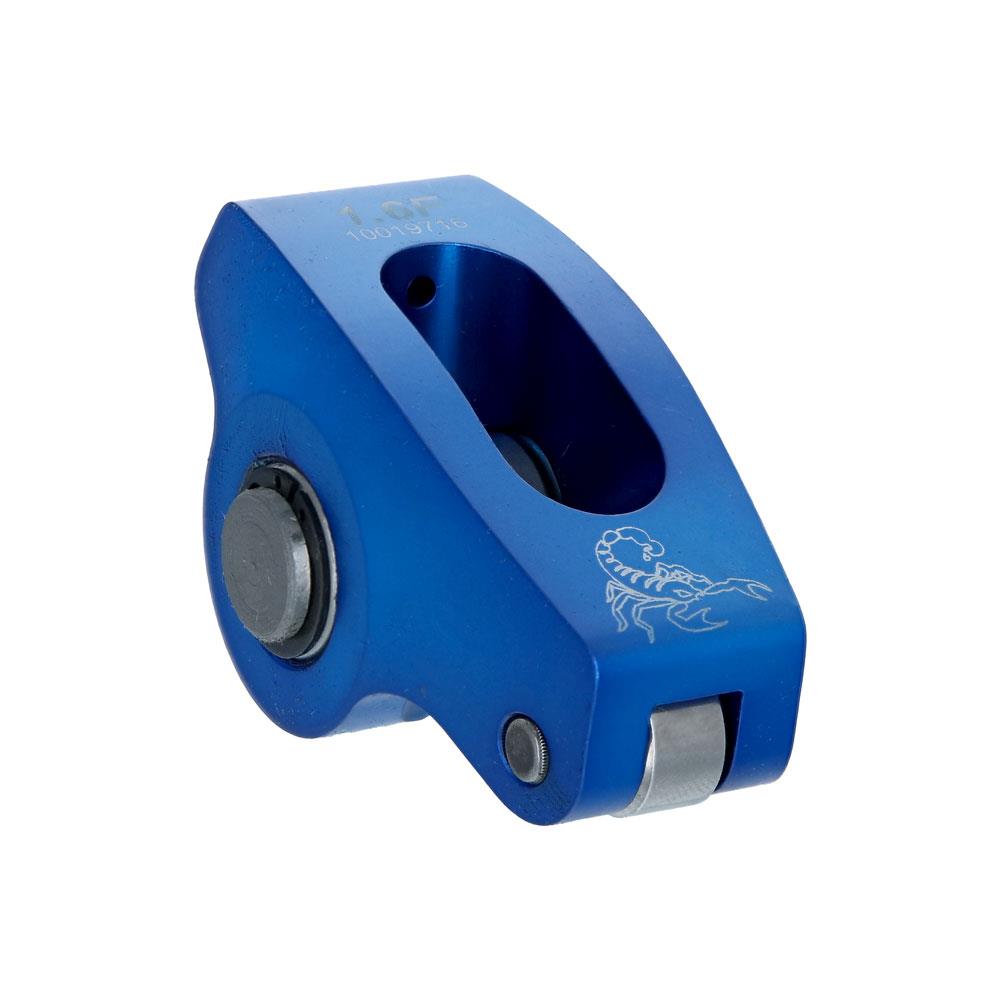

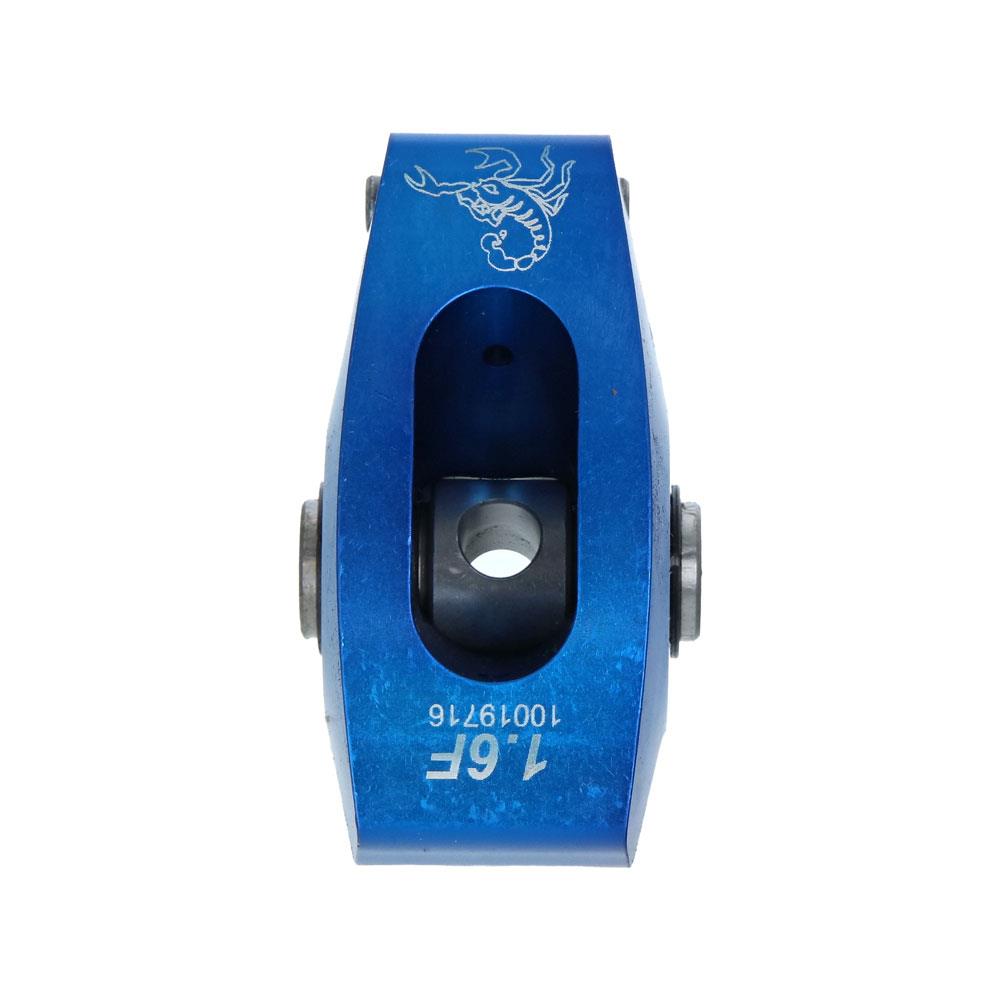

1979-1995 Mustang 5.0 Scorpion Race Series Rocker Arms - Pedestal Mount 1.6 Ratio 5/16" by Scorpion Racing Products

How To Install 302/351 Mustang Cylinder Heads & Valvetrain (1979-1995)

Upgrade the rocker arms in your 1979-1995 Ford Mustang with this race series pedestal mount rocker arm kit from Scorpion Racing Products!

Item #SCP-1021
MPN# 1021

Everyday Low Price: $444.82

In Stock Ships tomorrow!

This item is returnable. Details

Free Shipping over $99

Add to Cart

× close

Images

Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Engines: 5.0,

Fits all stock or aftermarket Small Block Ford Windsor cylinder heads that use a 5/16 pedestal mount rocker.
After installation, check clearance of rocker arms to valve covers before starting engine. Failure to do so may result in damage to valve covers and/or valve train.

Benefits

Reduces Internal Friction
Enhances High RPM Stability
Improves Valvetrain Performance
Allows For Greater Spring Rate Tolerance

Features

1.6" Fulcrum Width
Blue Anodized Finish
7000 Series Billet Aluminum
Precision CNC Machined in USA

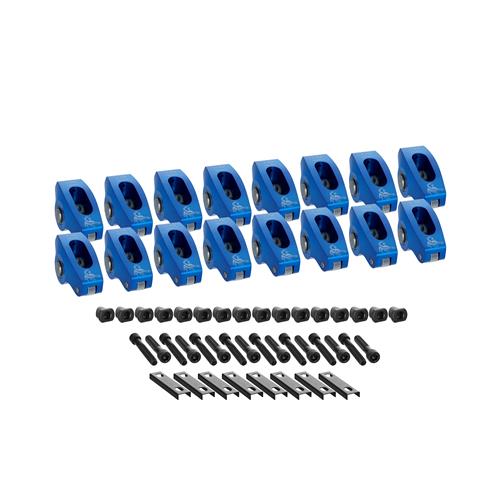

What's in the Box

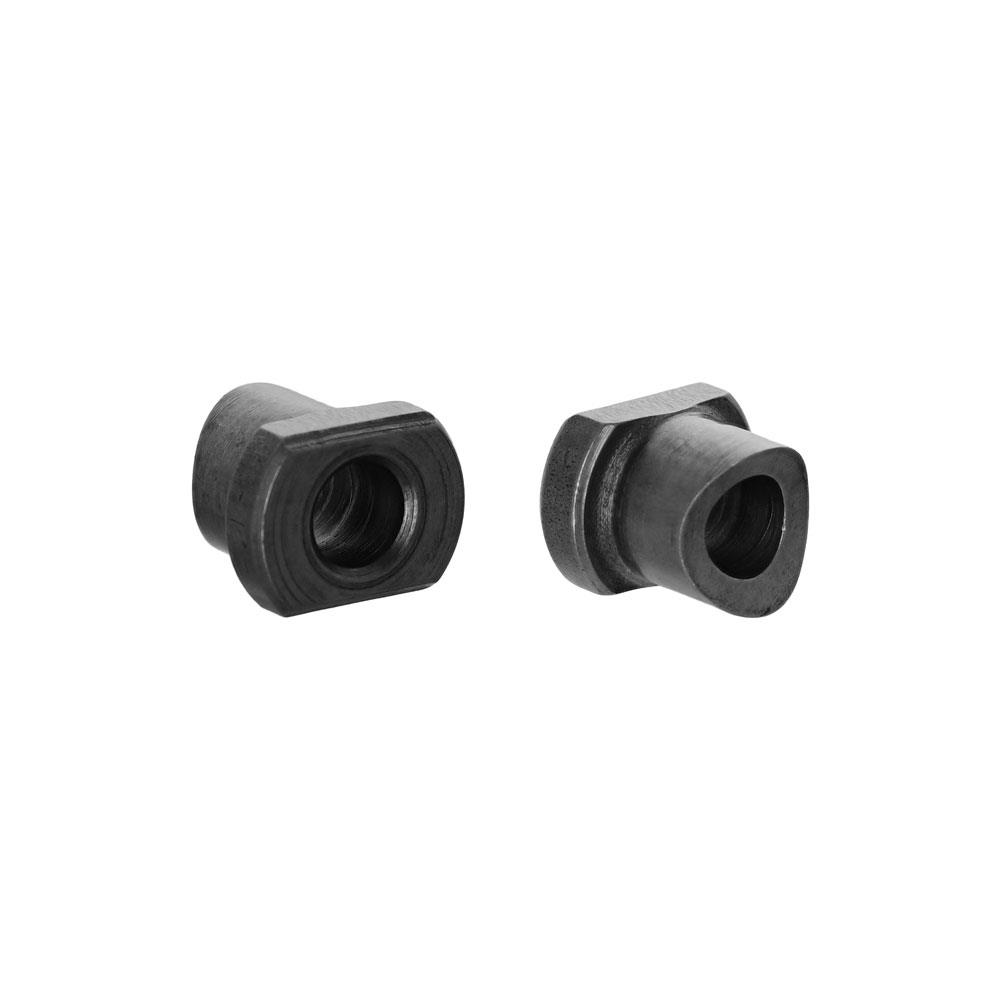

(16) Pedestals

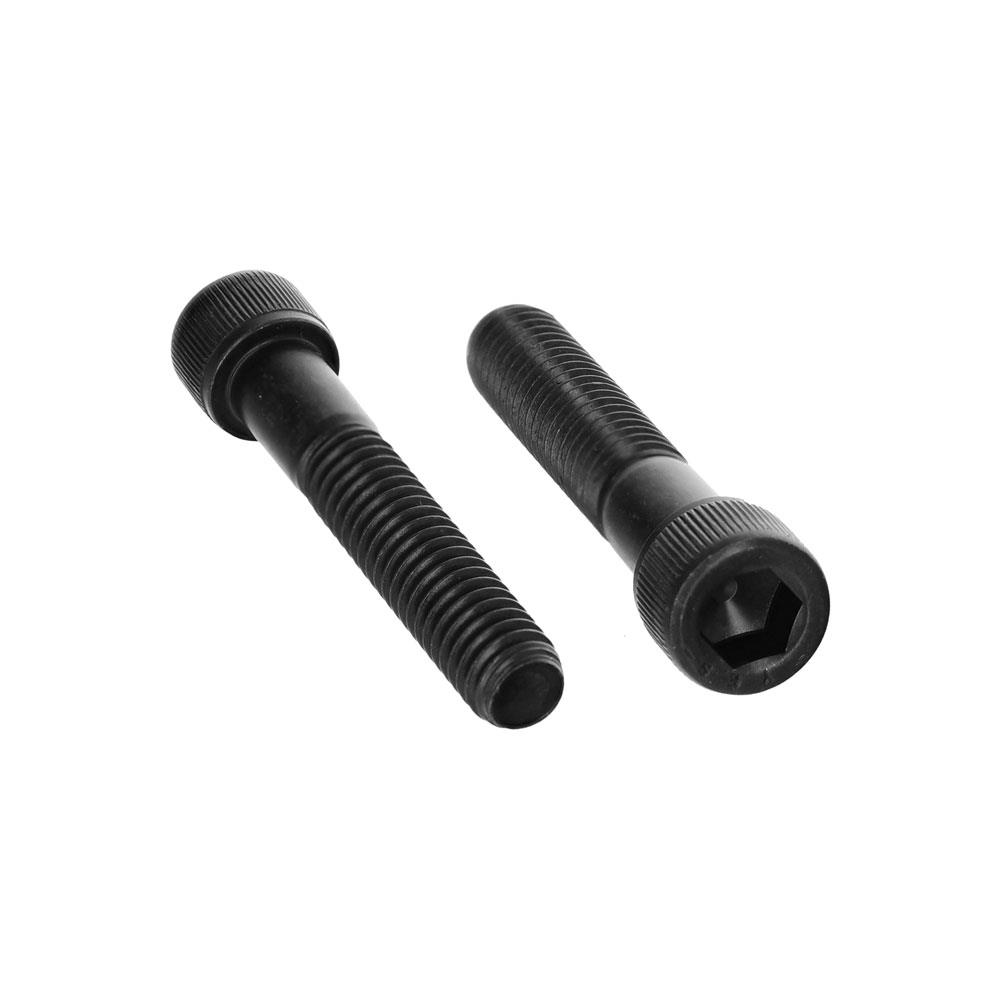

(16) Pedestal Bolts

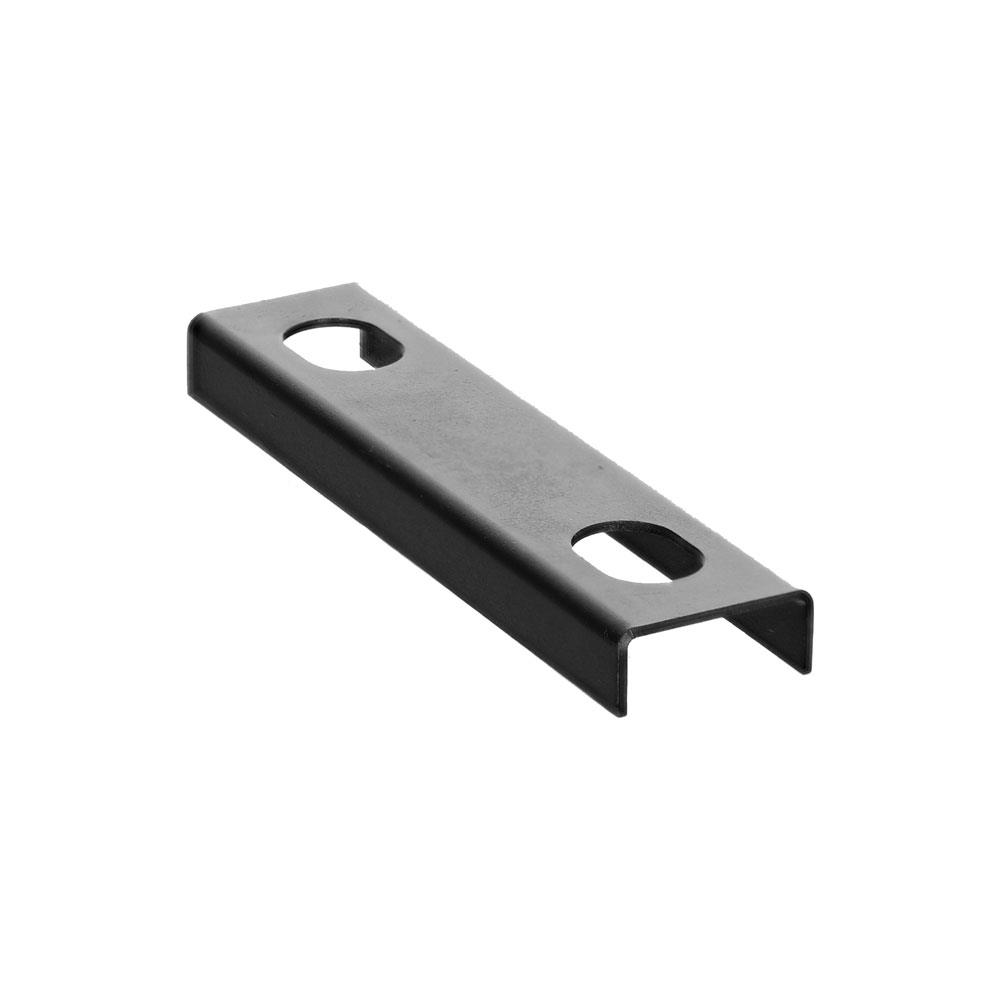

(8) Pedestal Channels
(16) Race Series Rocker Arms

1979-1995 Mustang 5.0 Scorpion Race Series Rocker Arms - Pedestal Mount 1.6 Ratio 5/16"

Increase the horsepower and performance of your 1979-1995 Ford Mustang with this race series rocker arm kit from Scorpion Racing Products! Pedestal rockers are what the factory head in your Mustang would have been equipped with from Ford. Due to the 1.6" needle bearing fulcrum and 7000 series billet aluminum contruction, this design decreases oil temperature and enhances horsepower and response by reducing friction. The roller tip reduces valve guide load, allowing for higher RPM stability and more spring rate flexibility! Because of the larger RPM tolerances, the rocker arms can take up to .950" of lift and .950 pounds of max opening spring pressure. The engine moves more air and creates more power when the lift is increased in tandem with the cam lift. These rocker arms are CNC machined in the United States and coated in a blue anodized coating for better longevity and protection of your Mustang.

Rocker Arm Specs

Ratio: 1.6
Series: Race
Stud Size: 5/16″
Self Aligning: No
Engine Type: V8
Mounting Style: Pedestal
Adjustment: Non-Adjustable
Head Type: Stock or Aftermarket heads that use a 5/16" bolt down rocker.

Application

1979-1995 Mustang 5.0

This product is intended for off-road use only, and is not legal for use in emission restrictive states. Off-Road Disclaimer

Scorpion Racing Products Warranty - Click Here
