1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16" by Scorpion Racing Products


1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16"
1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16"
1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16"
1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16"
1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16"
1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16"
1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16"
1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16"
1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16"
1979-1995 Mustang 5.0 Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16"
How To Install 302/351 Mustang Cylinder Heads & Valvetrain (1979-1995)

Scorpion Racing Products' endurance series rocker arm kit will increase the horsepower and performance of your 1979-1995 Ford Mustang!

Item #SCP-3222
MPN# 3222

Everyday Low Price: $497.74

In Stock
 This item is returnable. Details

Free Shipping over $99

 Add to Cart

This product cannot be sold or shipped to the state of California. More Details
× close

  • Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
  • Engines: 5.0
Fitment Notice
  • Fits all stock or aftermarket Small Block Ford Windsor cylinder heads that use a 5/16 pedestal mount rocker.
  • After installation, check clearance of rocker arms to valve covers before starting engine. Failure to do so may result in damage to valve covers and/or valve train.
Made in the USA

 Benefits

  • Reduces Internal Friction
  • Enhances High RPM Stability
  • Improves Valvetrain Performance
  • Adjustable Pedestal Mount Rockers

 Features

  • Adjustable Seat
  • Blue Anodized Finish
  • 7000 Series Billet Aluminum
  • Precision CNC Machined in USA

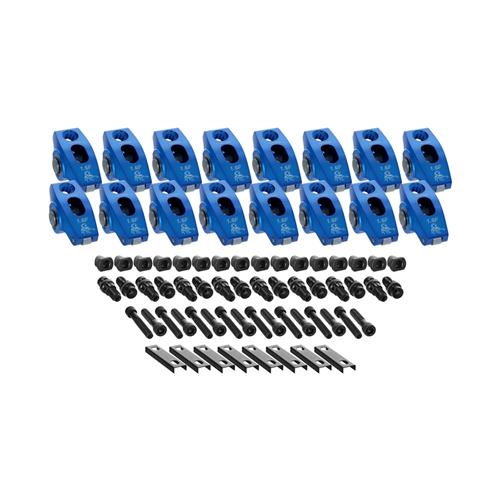

 What's in the Box

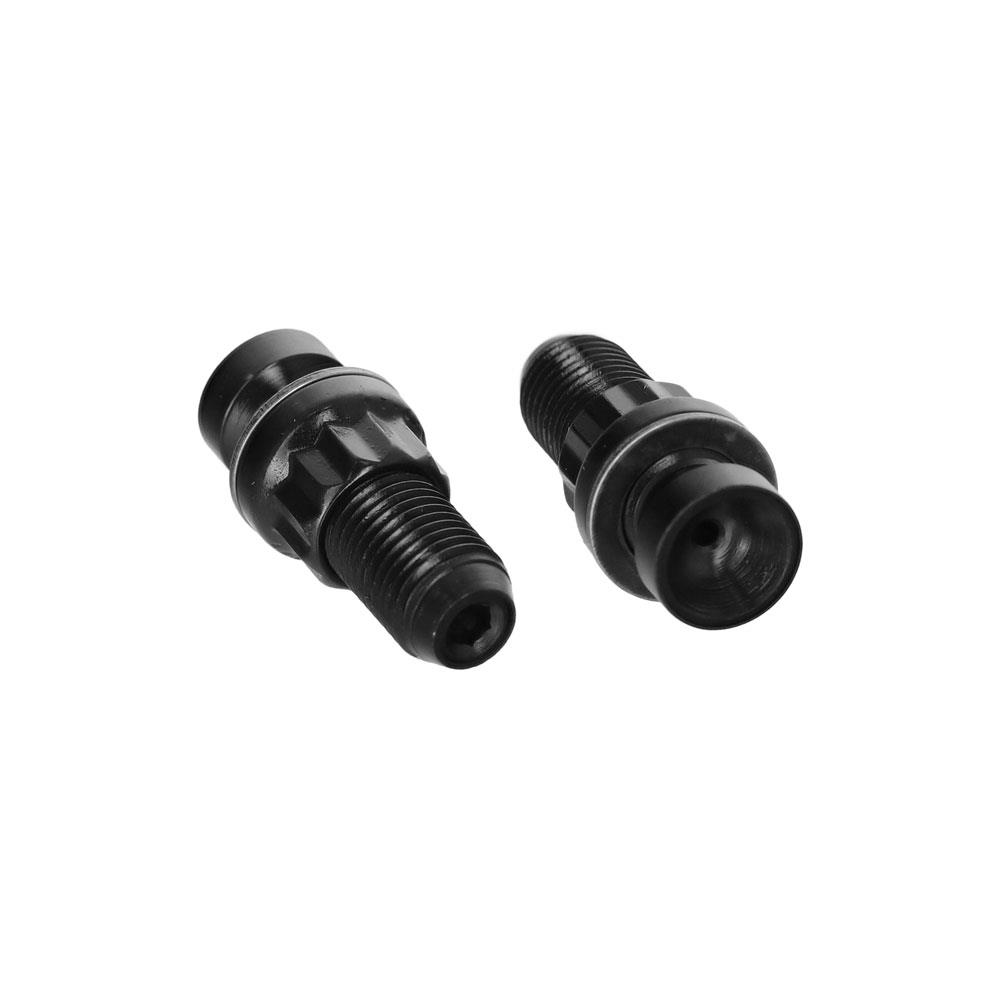

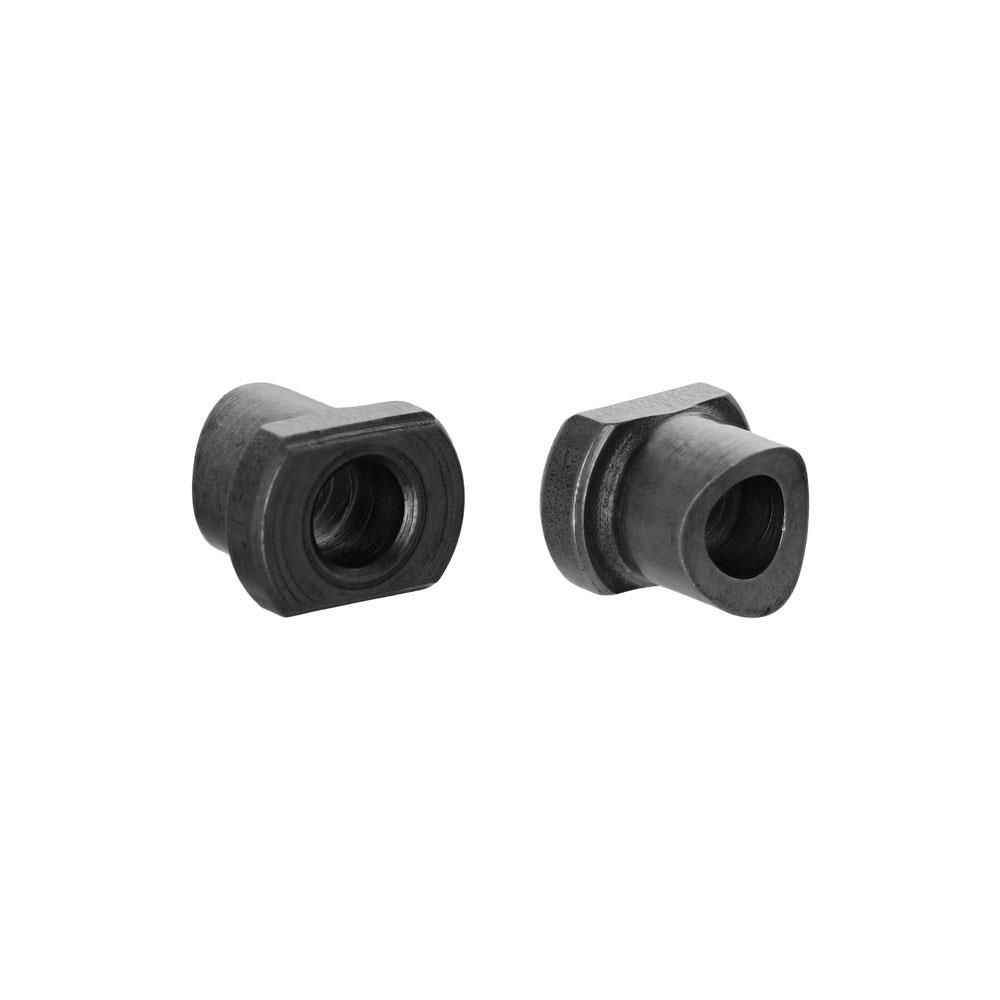

  • (16) Pedestals

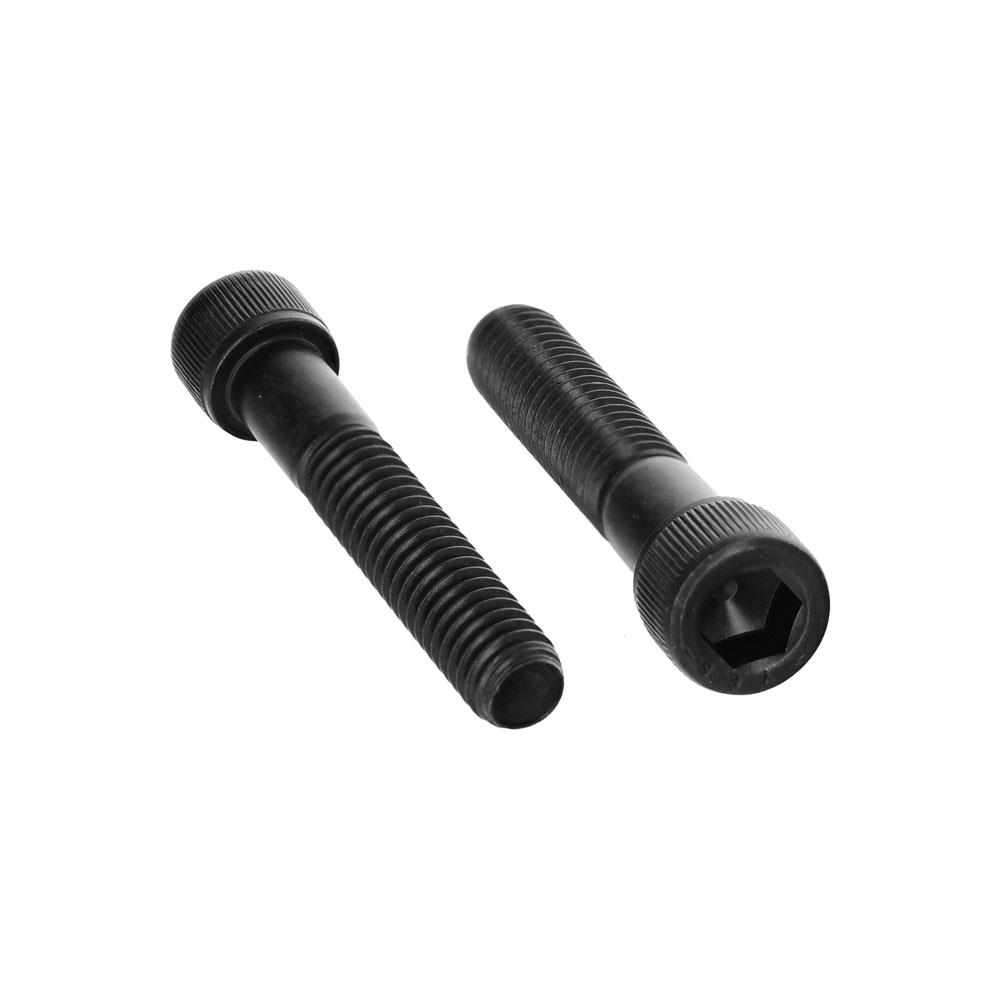

  • (16) Pedestal Bolts

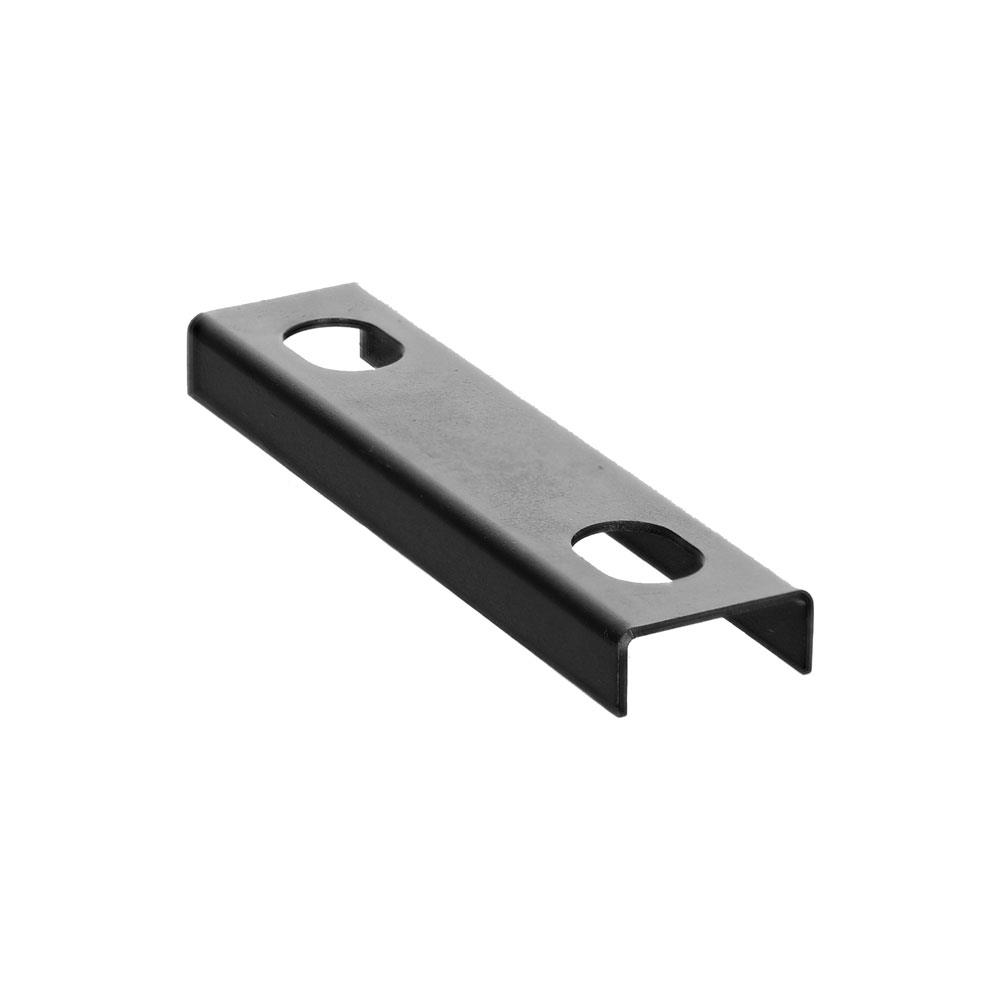

  • (8) Pedestal Channels

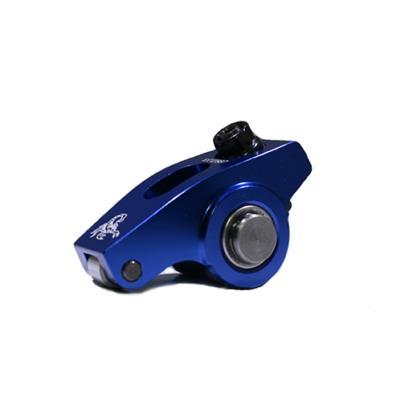

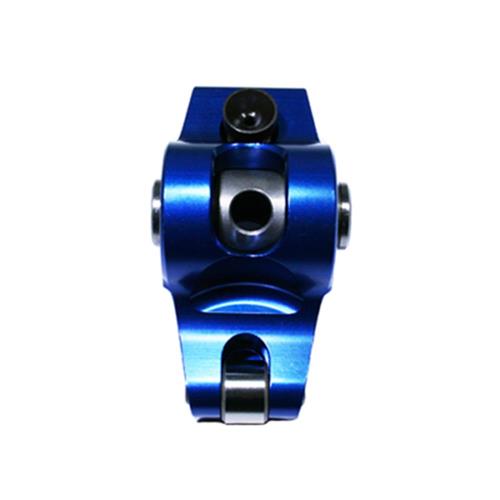

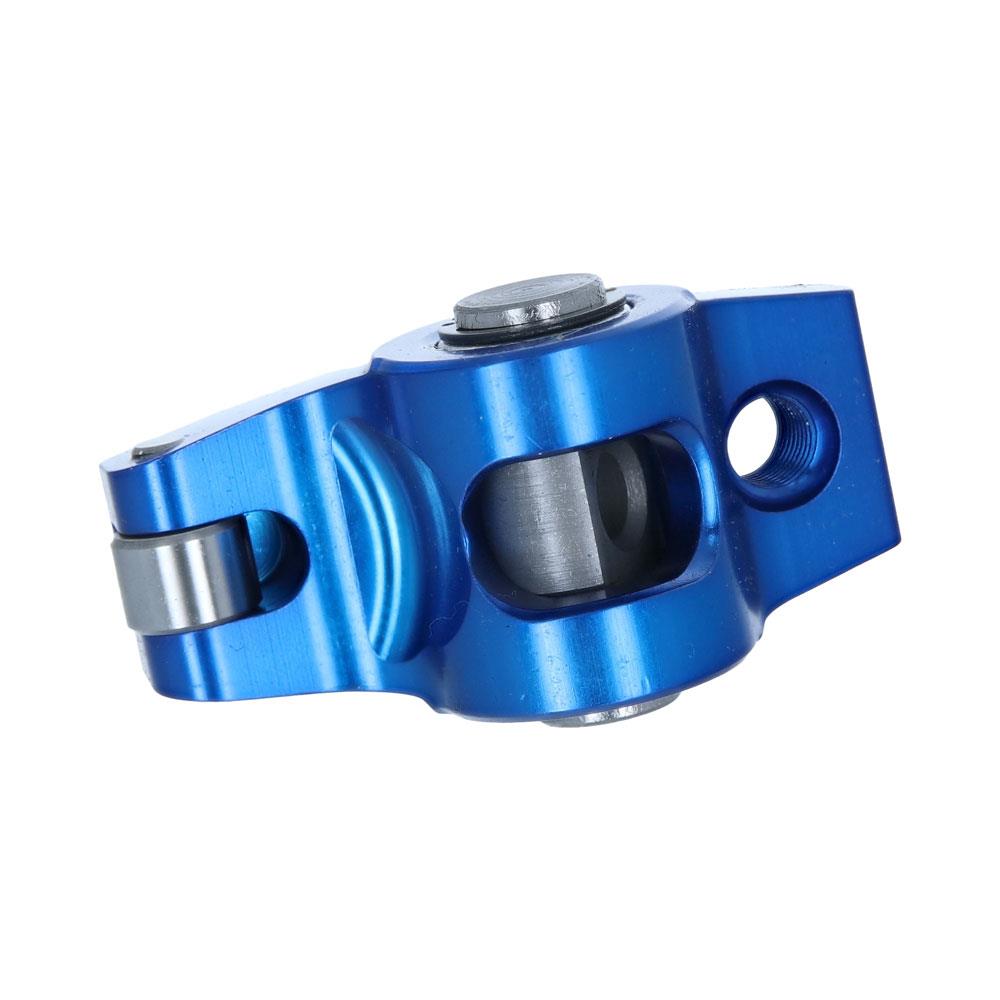

  • (16) Endurance Series Rocker Arms

Scorpion Endurance Series Rocker Arms - Pedestal Mount 1.72 Ratio 5/16" - Adjustable
Upgrade the rocker arms in your 1979-1995 Ford Mustang with this endurance series pedestal mount rocker arm kit from Scorpion Racing Products! Pedestal rockers are what the factory head in your Mustang would have been equipped with from Ford. Due to the 1.72" needle bearing fulcrum and 7000 series billet aluminum construction, this design decreases oil temperature and enhances horsepower and response by reducing friction. The Endurance series is lighter in weight than the Race series rockers and also has shorter polylocks for better valve cover clearance! Because of the larger RPM tolerances, the rocker arms can take up to .750" of lift and .750 pounds of max opening spring pressure. The engine moves more air and creates more power when the lift is increased in tandem with the cam lift. Scorpion's Endurance series features adjustable rocker arm seats to fine-tune pushrod preload! These rocker arms are CNC machined in the United States and coated in a blue anodized coating for better longevity and protection of your Mustang.


Rocker Arm Specs

  • Ratio: 1.72
  • Series: Endurance
  • Stud Size: 5/16″
  • Self Aligning: No
  • Engine Type: V8
  • Mounting Style: Pedestal
  • Adjustment: Adjustable
  • Head Type: Stock or Aftermarket heads that use a 5/16" bolt down rocker.

This product is intended for off-road use only, and is not legal for use in emission restrictive states. Off-Road Disclaimer


Scorpion Racing Products Warranty - Click Here

How To Install 302/351 Mustang Cylinder Heads & Valvetrain (1979-1995)

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!


California Residents:
Prop 65 Warning SignWARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

About This Brand


Scorpion Racing Products
Scorpion is also successful because they perform intense research and testing on every product it manufactures. An in-house engine building department, a dynometer, and real world use in numerous Scorpion-sponsored race vehicles including drag race cars, circle track race cars, monster trucks and offshore race boats enable the company to test its products for quality and durability under the most intense conditions. Every product Scorpion makes is dyno tested and race proven before it is ever offered for sale to the public. The result of this is top quality race winning parts and very satisfied customers. Simply put, Scorpion beats the competition by offering its customers superior quality that meets and beats Far East pricing and delivery schedules. Plus, while most U.S. competitors are locked into old machinery and traditional manufacturing techniques, Scorpion is committed to updating and replacing its sophisticated tooling to maintain maximum productivity and efficiency. The company’s manufacturing processes and procedures are also continually updated to achieve higher quality.
