1979-04 Mustang SVE Rear Sway Bar - 25mm by SVE Special Vehicle Equipment ®

Price: 199.99 USD
Availability: InStock

1979-04 Mustang SVE Rear Sway Bar - 25mm

How To Remove Fox Body Mustang Sway Bars (79-93)

1979-2004 Mustang SVE Sway Bars - Review & Install

Improve the handling and feel more planted to the road in your 1979-2004 Mustang with an SVE 25mm rear sway bar!

Item #SVE-547904K

Everyday Low Price: $199.99

In Stock Ships tomorrow!

This item is returnable. Details

Free Shipping over $99

Add to Cart

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Great For The Street & Track
One Piece Design
Decreases Body Roll
Improves Cornering Stability

Features

25mm Diameter
Silver Paint Finish
New Hardware Included
Chromium Alloy Spring Steel

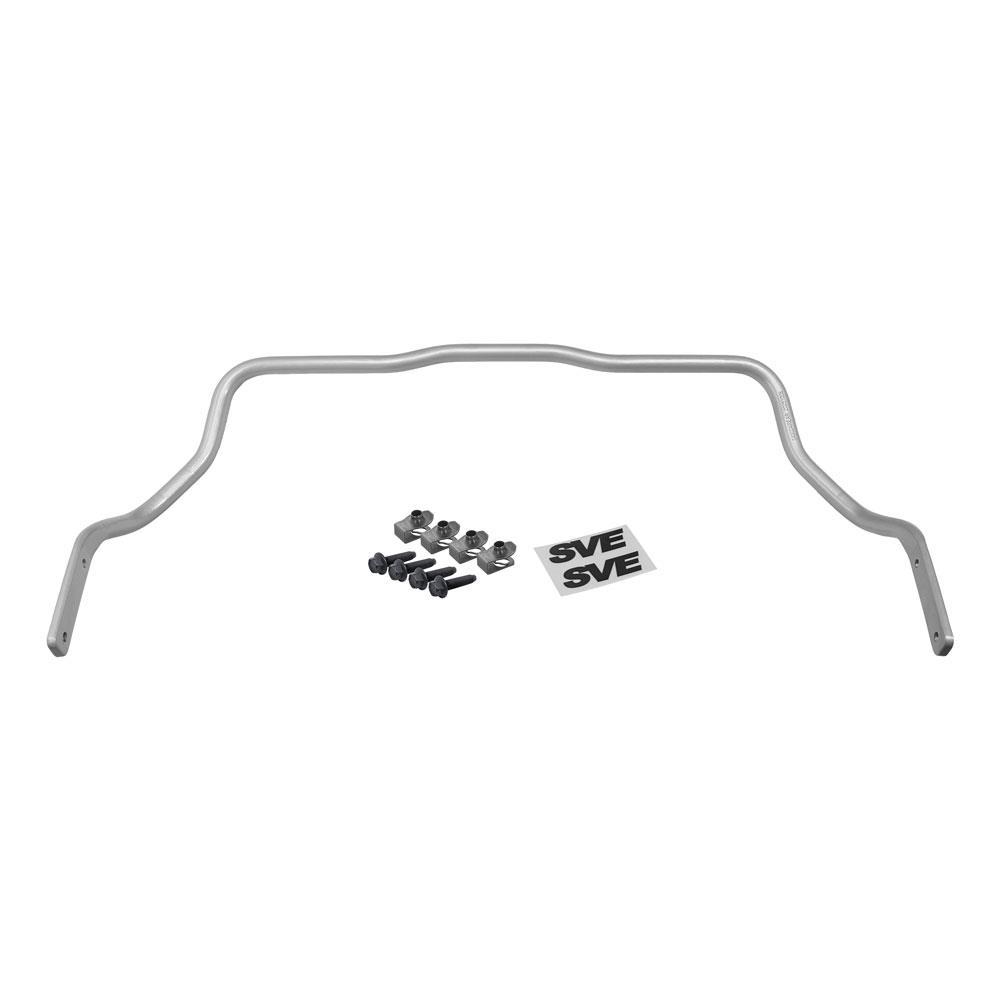

What's in the Box

(1) Rear SVE Sway Bar

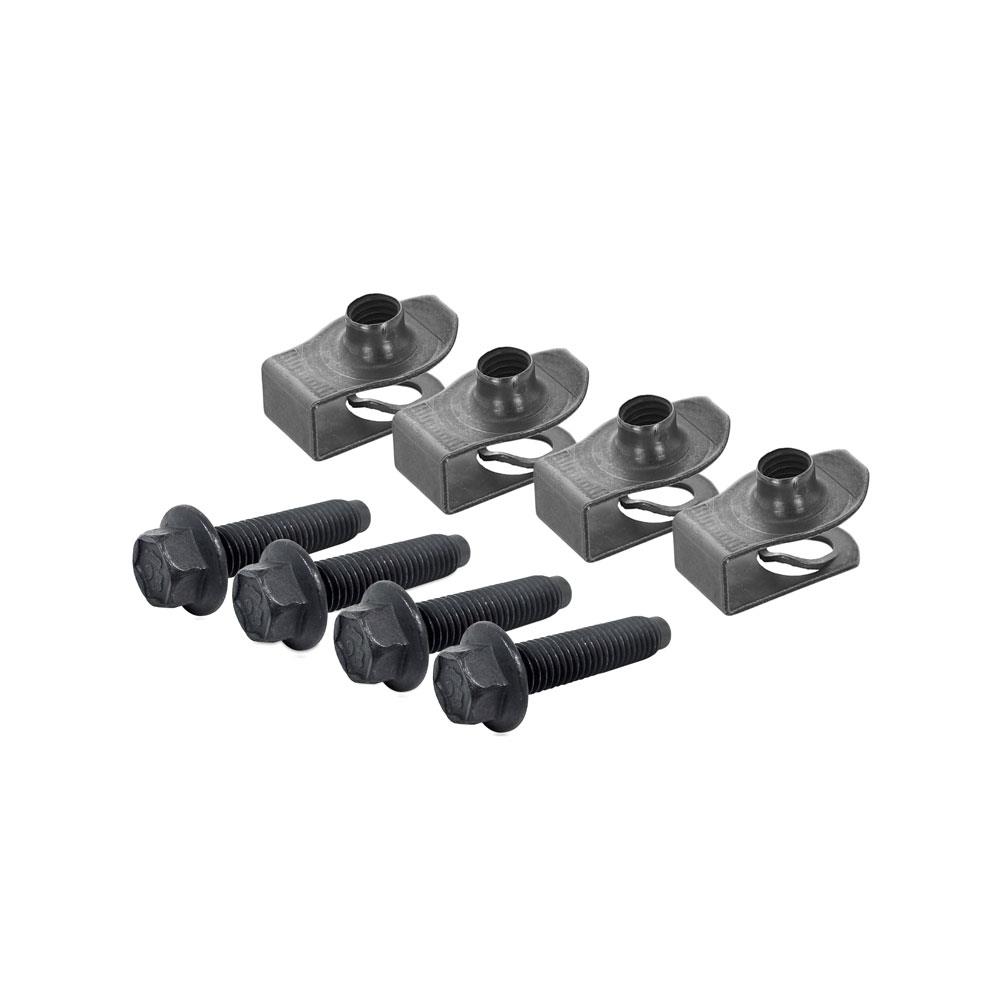

(4) Rear Sway Bar Bolts
(4) Rear Sway Bar Speed Nuts
(2) SVE Stickers

SVE Rear Sway Bar - 25mm
Ensure your 1979-2004 Mustang suspension is complete with the help of this 25mm SVE rear sway bar! To compliment our other SVE suspension components, SVE introduces a line of performance sway bars. We went to the drawing board to produce a bar that closely replicated the factory sway bar, all while increasing the diameter over most stock-size bars for better performance. The size SVE chose strikes a good balance for a daily or street-driven Mustang, while still performing well on the track. Reducing body roll improves handling and lateral stability during cornering, but also helps with straight-line stability. Corner entry and exit characteristics are really going to improve with more overall responsiveness for the car. All of this helps you feel more connected to the road and more confident in your Mustang's capabilities.

SVE High-Strength Construction

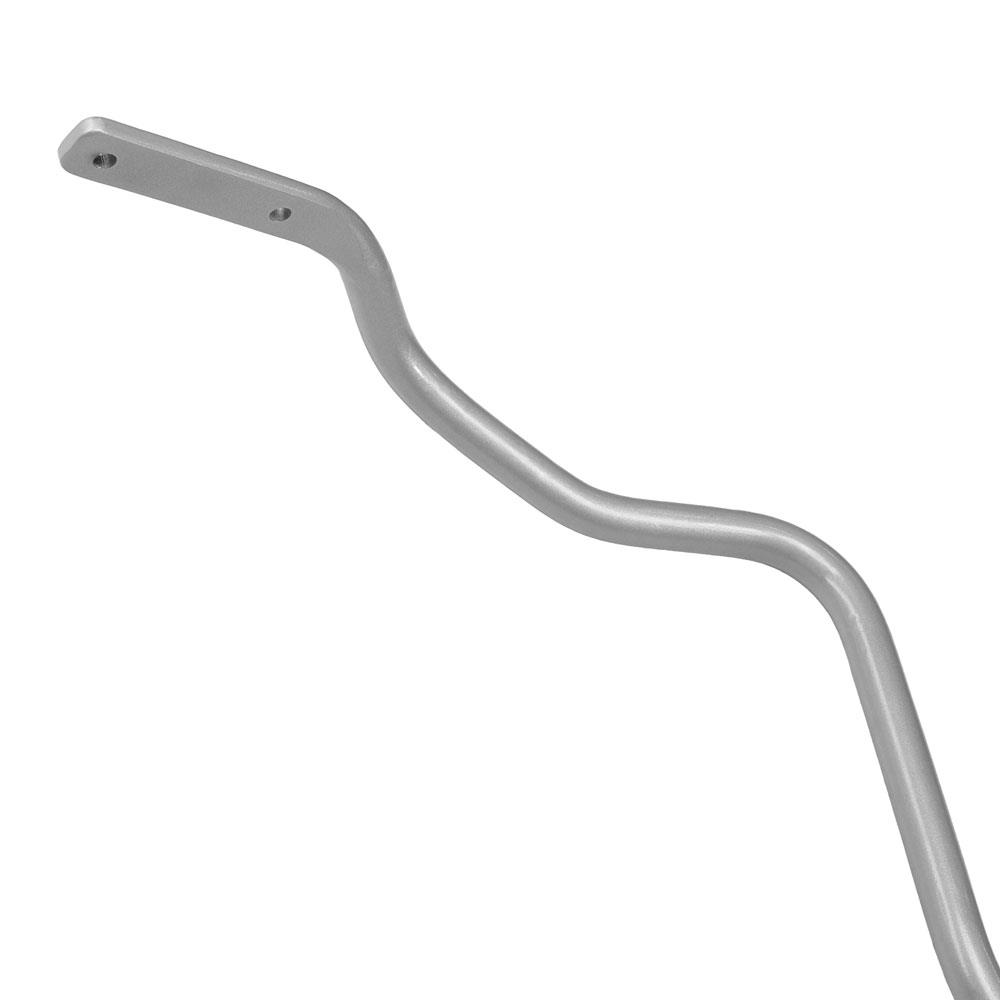

Constructed out of high-strength 25mm (1") diameter Chromium alloy spring steel to give it the proper spring rate and roll stiffness. Factory-style ends incorporate the mounting holes just like the factory sway, so they look good on the car and maintain factory geometry. Using forged seamless bar ends allows the SVE sway bar to be one continuous bar from end to end weighting in at 15lbs. A painted silver finish looks great and really stands out, helping show off your new upgrade. For an easy, complete installation, the correct bolts and speed nuts that attach the rear sway bar to the rear lower control arms to ensure proper fitment.

Bushing Lubrication

The suspension bushings included with this part can only be lubricated with PTFE grease, also referred to as "Marine Grease". PTFE grease is a very sticky, opaque grease that is water proof and will not degrade the bushing material. If lubed properly at installation, these bushings will not need to be lubricated again. Use of any other grease on these bushings will cause the bushing to fail and any bushing warranty to be voided.

SVE Products Limited Warranty - Click Here

Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Fitment Notice

Will NOT fit 1999-2004 SVT Cobra IRS
Due to tolerances and paint thickness, the holes may need to be cleaned up for installation purposes.

1979-93 FOX BODY MUSTANG SWAY BAR SIZES

Year	Model	Front	Rear
1979	2.3L	1"	N/A
1979	HD	27mm	12.7mm
1980-93	2.3L	15/16"	N/A
1980-82	HD & GT	1"	12.7mm
1983-84	GT	1 1/8"	12.7mm
1983-84	SVO	1 1/8"	14.2mm
1979-84	TRX	1 1/8"	14.2mm
1985-86	2.3L HD	1 1/8"	20mm
1985-93	GT	1 5/16"	21mm
1993	Cobra	1 1/8"	21mm
1993	Cobra R	1 5/16"	21mm

1994-04 SN95/NEW EDGE MUSTANG SWAY BAR SIZES

Year	Model	Front	Rear
1994-95	Cobra	25mm	27mm
1994-98	GT	30mm	24mm
1996-98	Cobra	29mm	27mm
1994-98	V6	27mm	21mm
1999	GT	28mm	23-24mm
1999-01	Cobra	28mm	36mm
1999-04	GT	27mm	23-24mm
1999-04	V6	1"	N/A
2000	Cobra R	28mm	26mm
2001	Bullitt	28mm	21mm
2003-04	Cobra	29mm	26mm
2003-04	Mach 1	27mm	23mm

About This Brand

SVE Special Vehicle Equipment is a brand focused on providing superior performance and restoration parts for 1979-present Mustang and Ford Lightning trucks. From kits to swap solutions, SVE fuels the enthusiast lifestyle with problem-solving solutions that provide performance with a purpose. Comprised of the highest quality materials, all SVE products display the thorough research and meticulous attention to detail that went into the development of that part. Rest assured that when you purchase an SVE part, you will know you are purchasing a quality solution that will save you time and money.
