Add the ultimate 351w swap manifold to your 1986-1995 Mustang with Trick Flow's 90mm R-Series Intake Manifold kit!

Trick Flow Brand Image
Questions? Click here to ask an expert.

Item #TFS-51511006

Everyday Low Price: $1,039.99

Low Stock Only 1 available.
 This item is returnable. Details

Free Shipping over $99

 Add to Cart
Add to a List
× close
1986-95 Mustang Trick Flow R-Series Intake Manifold - 90mm 5.8
1986-95 Mustang Trick Flow R-Series Intake Manifold - 90mm 5.8
1986-95 Mustang Trick Flow R-Series Intake Manifold - 90mm 5.8
1986-95 Mustang Trick Flow R-Series Intake Manifold - 90mm 5.8
1986-95 Mustang Trick Flow R-Series Intake Manifold - 90mm 5.8
1986-95 Mustang Trick Flow R-Series Intake Manifold - 90mm 5.8
1986-95 Mustang Trick Flow R-Series Intake Manifold - 90mm 5.8
1986-95 Mustang Trick Flow R-Series Intake Manifold - 90mm 5.8
LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Made in the USA

 Benefits

  • Increased Horsepower
  • Increased Torque
  • Adds Under Hood Styling
  • A Must For Any 351w Swap Project!

 Features

  • 90mm Throttle Opening
  • 3,000-7,750 RPM Range
  • Cast Aluminum Construction
  • Black Powder Coat Finish

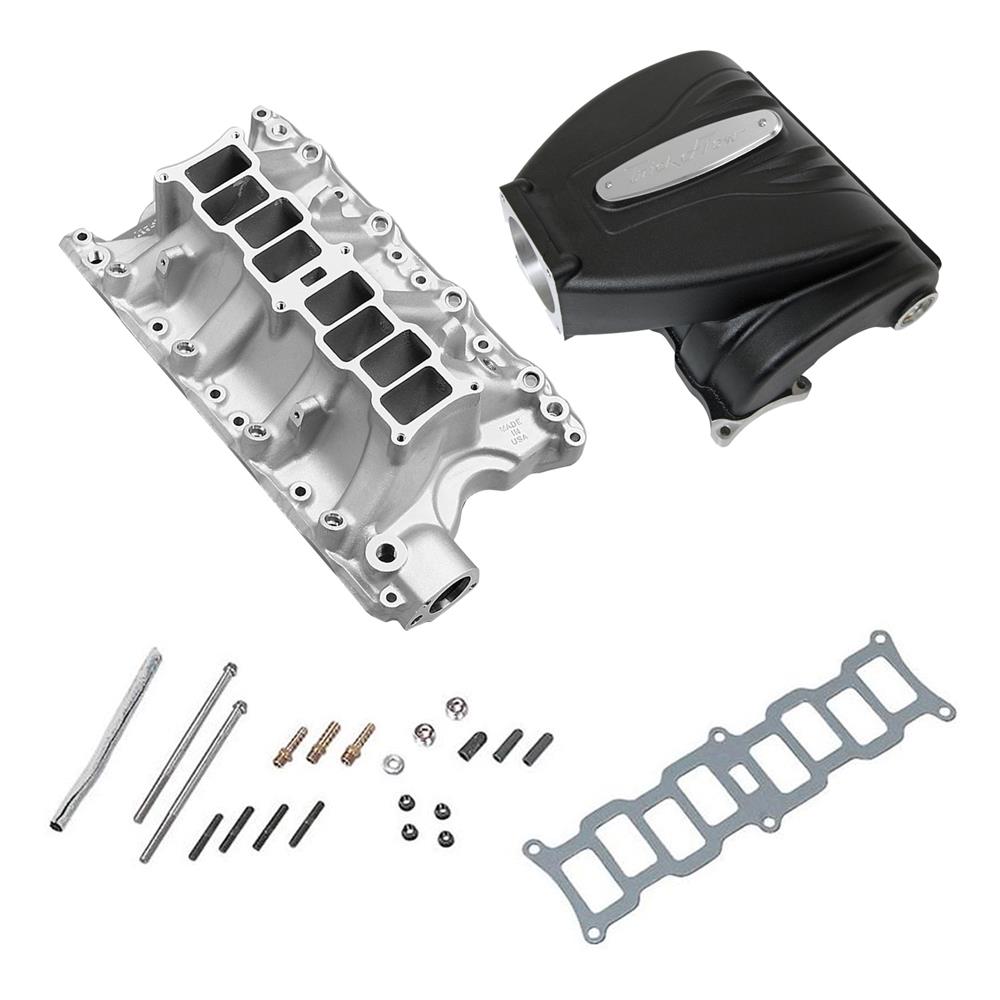

 What's in the Box

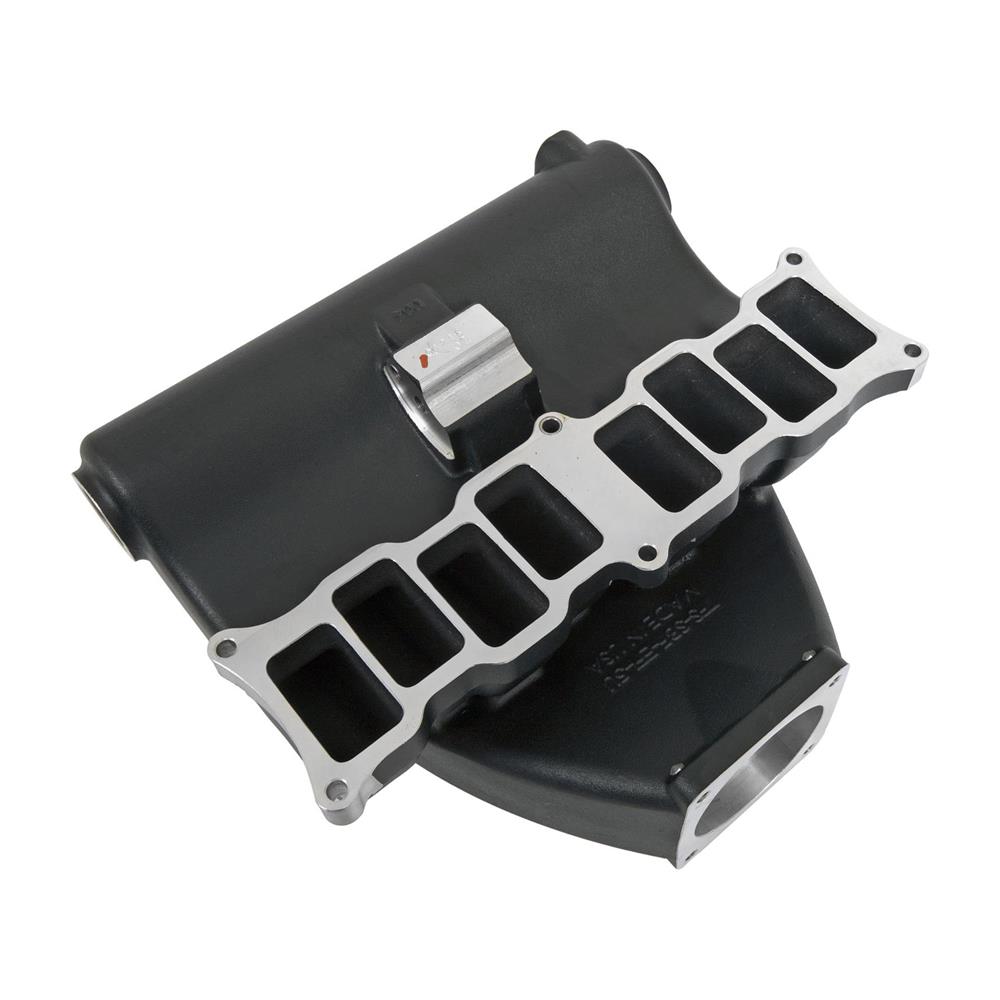

  • (1) Upper Intake Manifold

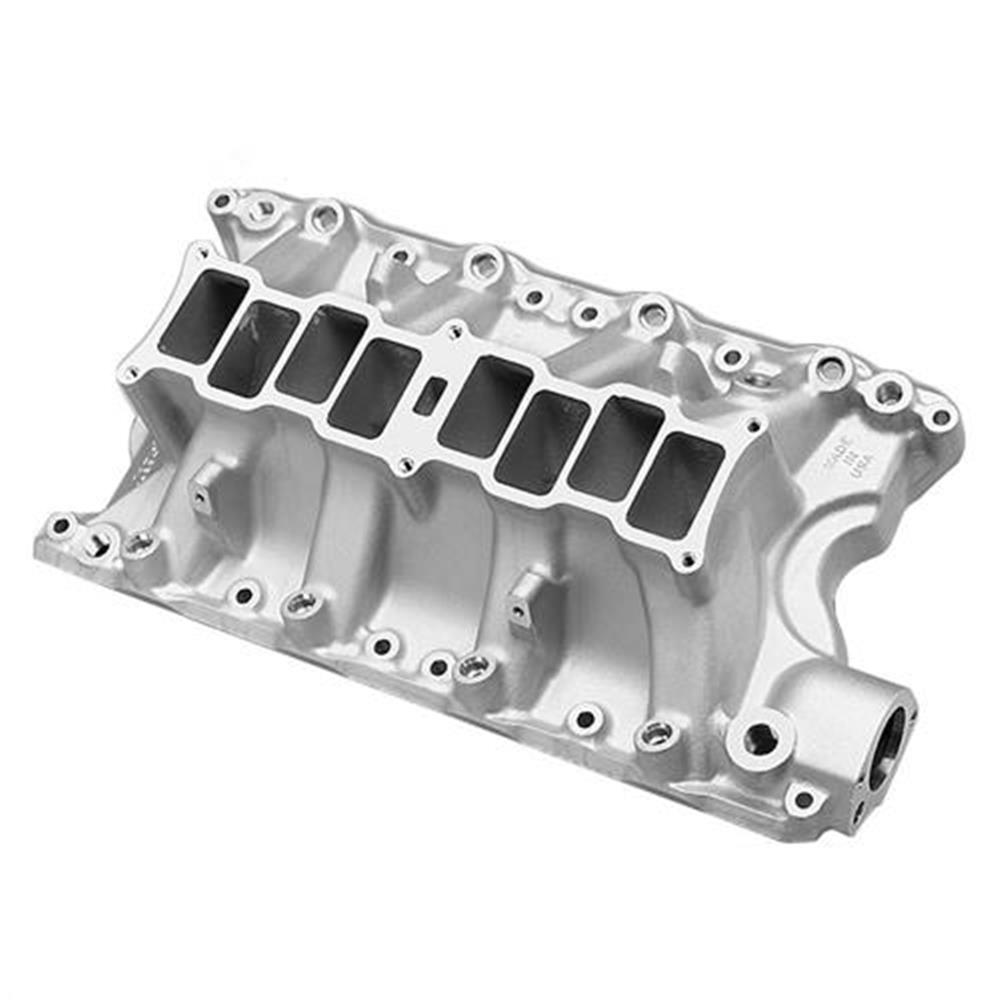

  • (1) Lower Intake Manifold

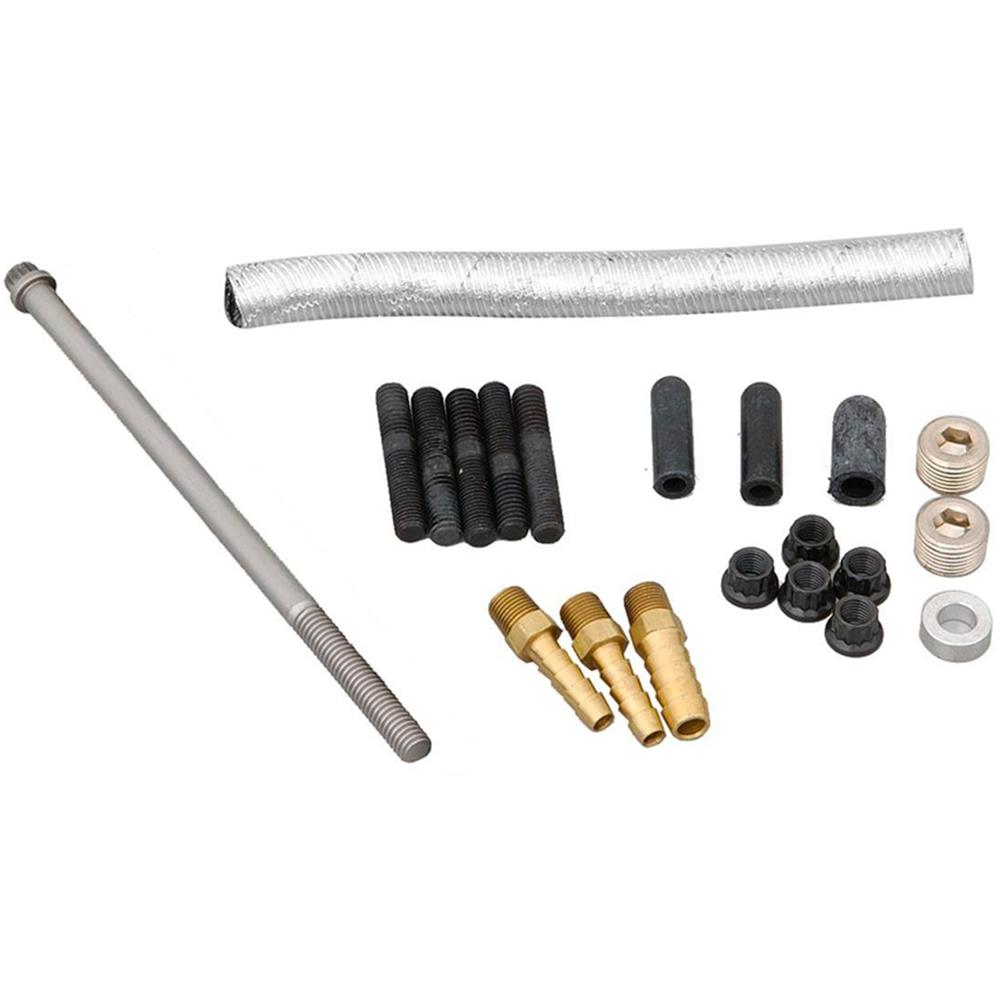

  • (1) Hardware Packet
  • Upper To Lower Intake Gasket

1986-1995 Ford Mustang Trick Flow R-Series Intake Manifold - 90mm - 5.8
Allow your 1986-1995 Mustang 5.8 engine swap to breathe better with this black 90mm Trick Flow R-series intake manifold kit! When it comes to making horsepower, one size doesn’t fit all. That’s why Trick Flow Specialties offers several different manifold combinations for 351 Windsor Fords. These Trick Flow R-Series EFI Intake Manifolds for 5.8 engines are emissions-legal and can be used on pollution-controlled vehicles. This kit comes with the upper intake, lower intake, upper-to-lower intake hardware, and gasket.

Trick Flow Quality

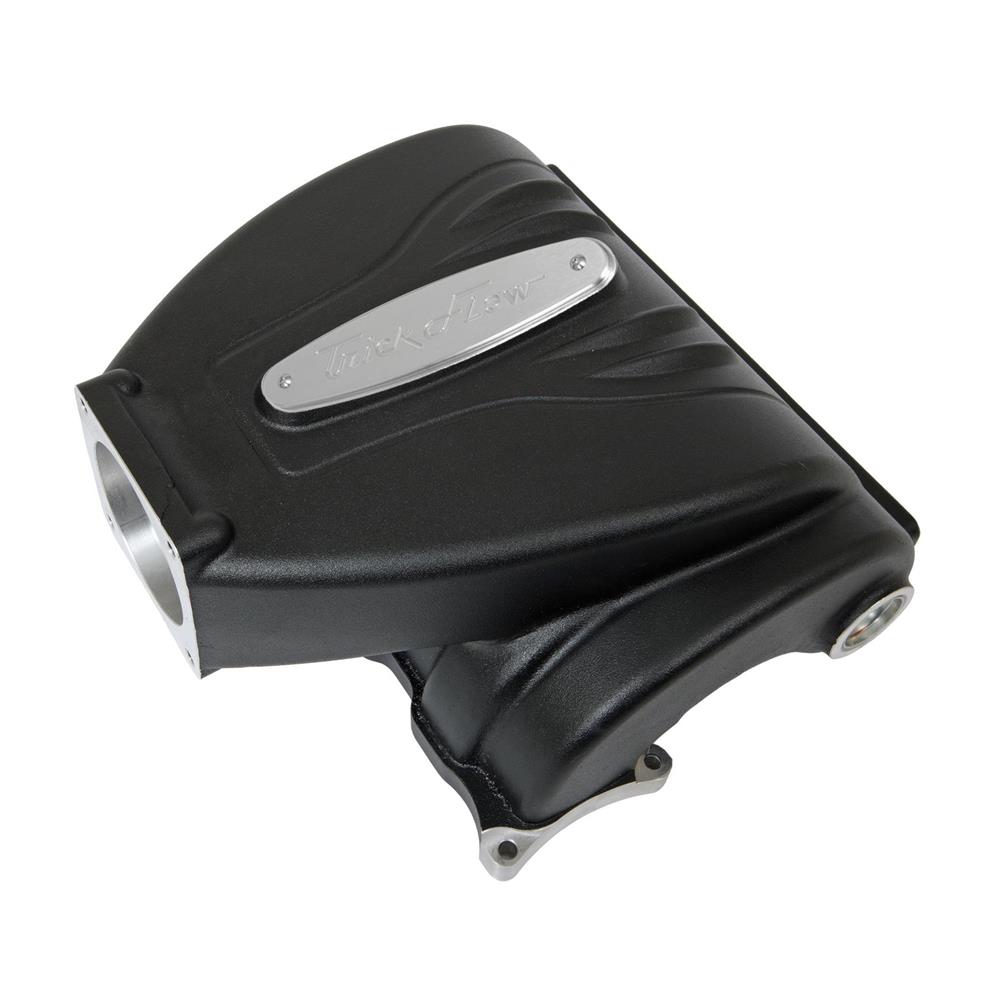

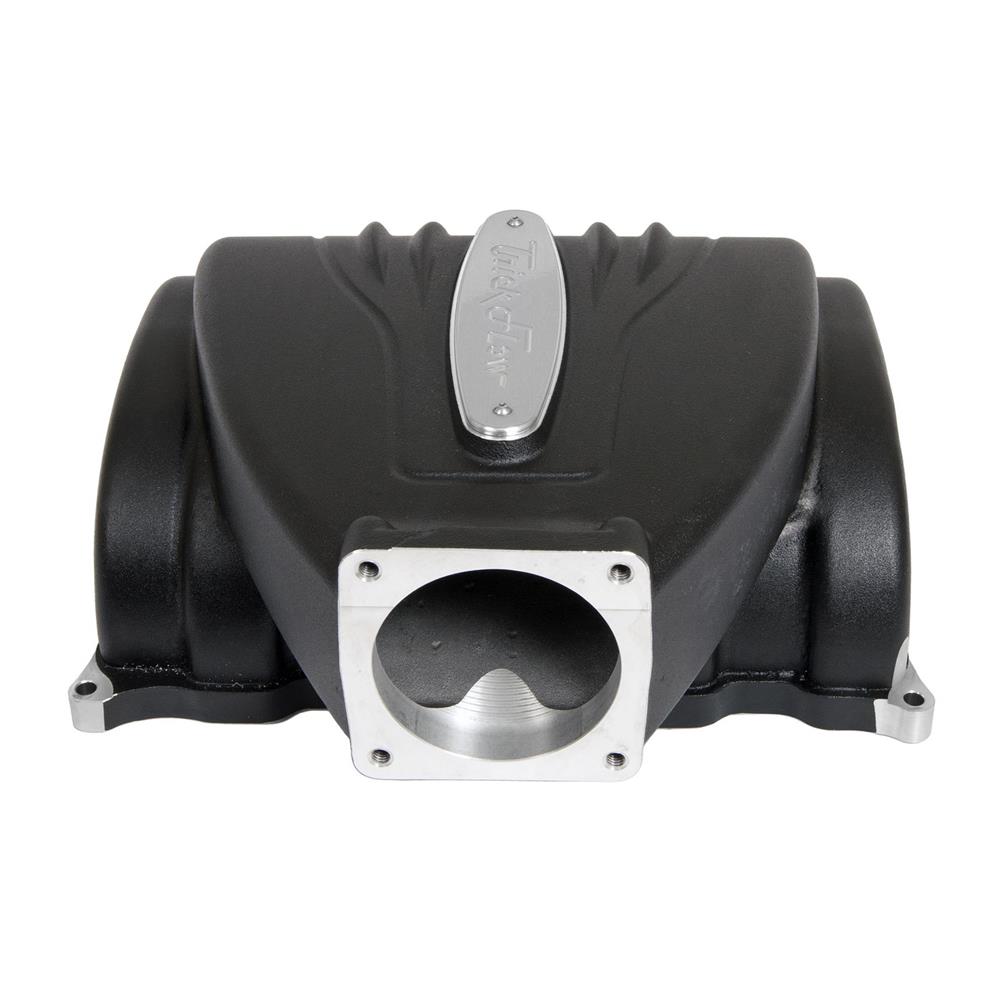

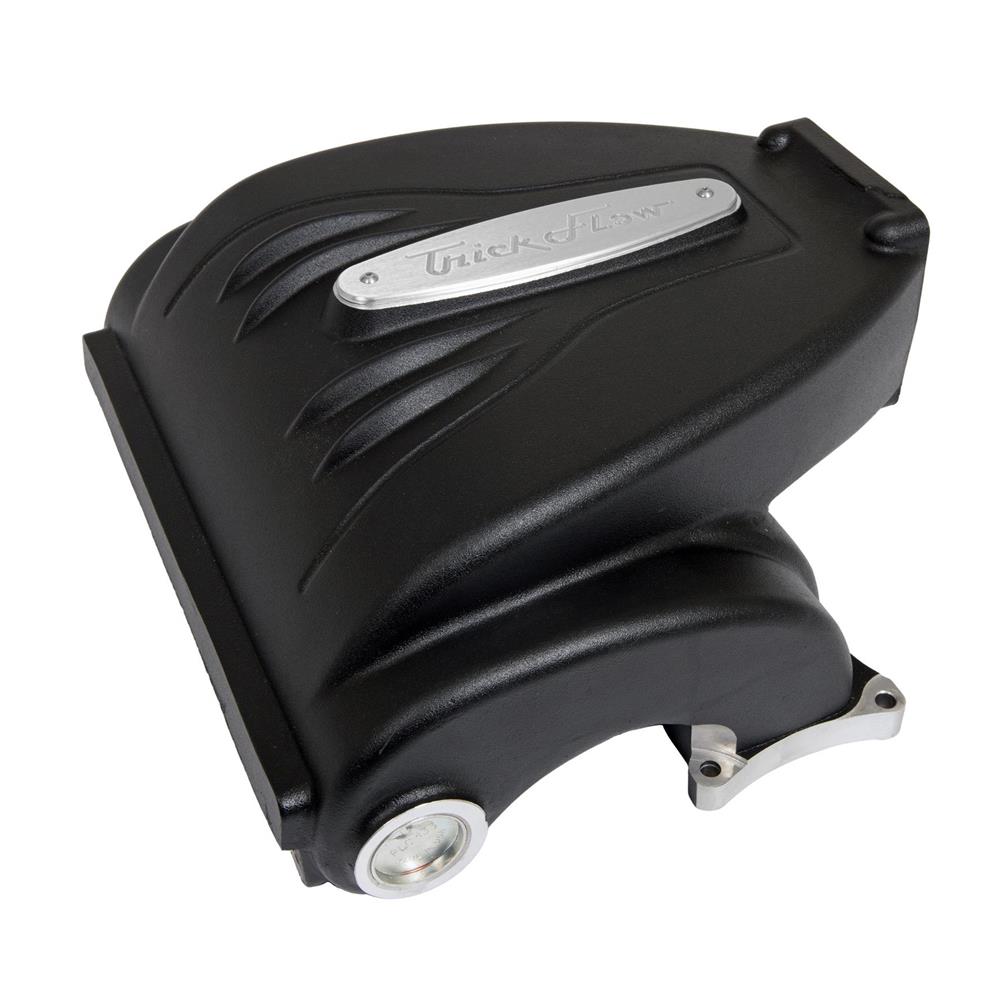

Each intake manifold is computer-engineered to deliver an excellent balance of airflow distribution and velocity to increase low-end torque and provide superior high-rpm horsepower. The design also prevents air starvation of the front cylinders, which is a common problem with Ford EFI engines. The castings are made from A319 aluminum, so they work well with nitrous and are designed to fit under most stock-height hoods. The "R" series manifold features a massive 90mm throttle opening and an RPM range of 3,000-7,750. The upper intake features a satin black finish, while the lower has a natural cast finish for a great-looking intake combo.

Intake Specs:
  • Large cross-section with 13.300 in. runners
  • Overall height to the upper manifold flange is 11.500 in.
  • Overall height to the lower manifold flange is 5.375 in.
  • 2.000 in. x 1.200 in. port size at head
  • 2.380 in. x 1.380 in. port size at mating flange
Suggested Parts
Emissions Note
  • These are not legal for street use in California, or California emissions ("CAA Sec. 177") states*. *Massachusetts, New York, Vermont, Maine, Rhode Island, Connecticut, Pennsylvania, New Jersey, Washington, Oregon, Maryland, Delaware, and New Mexico


Trick Flow Warranty - Click Here

  • Ford Mustang - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
  • Engines: 5.8
Fitment Notice
  • Fits 1986-1995 Ford Mustang with 5.8 swap
  • If installing this Intake Manifold with Tall Valve Covers, you may need an intake spacer for proper clearance.
