Add the ultimate 351w swap manifold to your ultra-high performance street and race 1986-1995 Mustang with Trick Flow's black 90mm Box-R-Series Intake Manifold!

Trick Flow Brand Image
Questions? Click here to ask an expert.

Item #TFS-51511009
MPN# TFS-51511009

Everyday Low Price: $1,249.99

Out of Stock
 This item is returnable. Details
This item is not eligible for discounts or coupon codes.
Alert Me Add to a List
× close
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.8
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.8
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.8
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.8
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.8
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.8
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.8
LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

 Benefits

  • Mid-Upper RPM Horsepower Gains
  • Increased Torque
  • Adds Under Hood Styling
  • A Must For Any 351w Swap Project!

 Features

  • 90mm Throttle Body Opening
  • 2,500-7,500 RPM Range
  • Cast Aluminum Construction
  • Black Powder Coat Finish

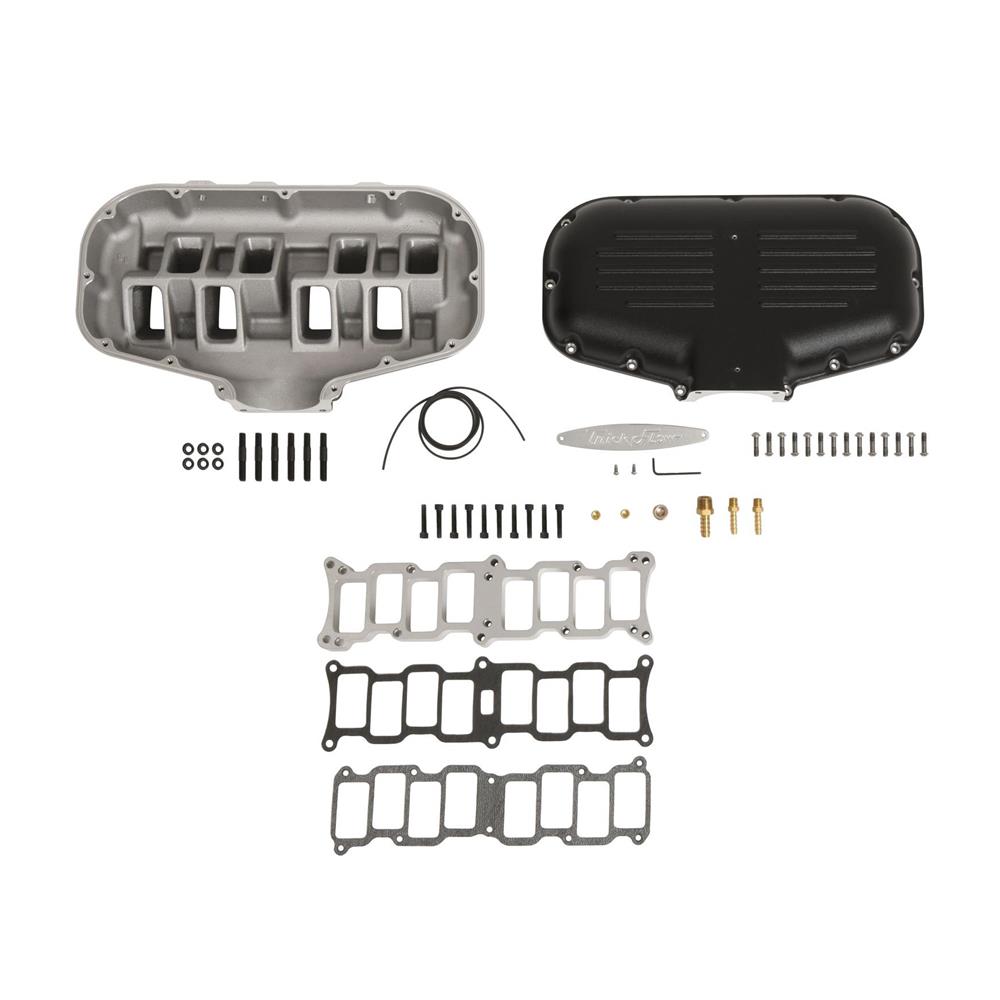

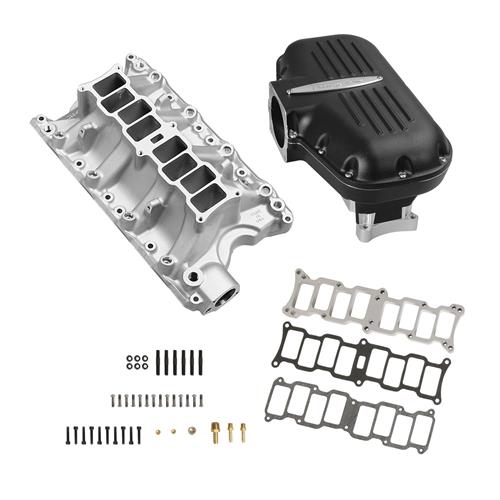

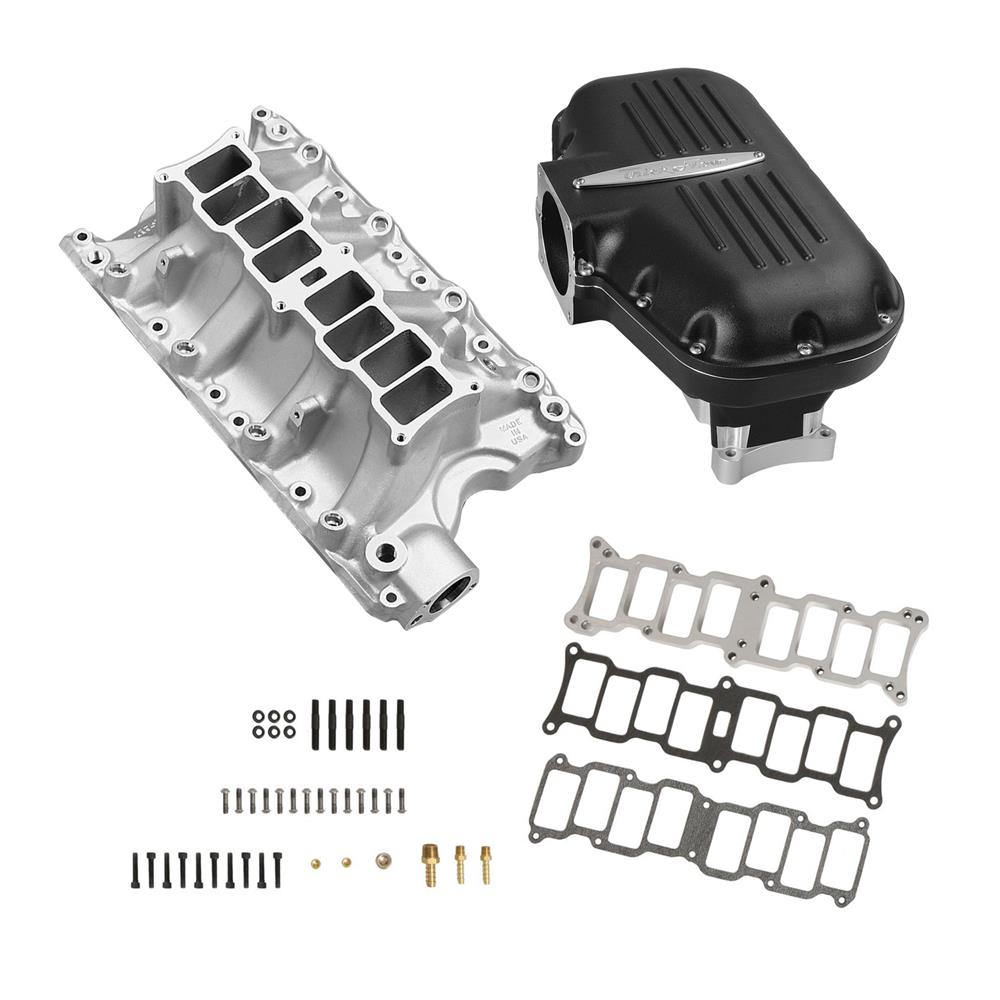

 What's in the Box

  • (1) Upper Intake Manifold
  • (1) Lower Intake Manifold
  • (1) Hardware Packet
  • Upper To Lower Intake Gasket

1986-1995 Ford Mustang Trick Flow Box-R-Series Intake Manifold - 5.8 - Black
Allow your high-revving 1986-1995 Mustang 5.8 engine swap to breathe better with this black 90mm Trick Flow Box-R-series intake manifold kit! When it comes to making horsepower, one size doesn’t fit all. That’s why Trick Flow Specialties offers several different manifold combinations for 351 Windsor Fords. Box-R-Series EFI intake manifolds are ideal for big mid- and upper-RPM horsepower gains for ultra-high performance street and race engines. This kit comes with the upper intake, lower intake, upper-to-lower intake hardware, and gasket.

Trick Flow Quality
Each intake manifold is computer-engineered to deliver an excellent balance of airflow for mid to high rpm, thanks to its short, large cross-section runners to further improve flow velocity and performance. The castings are made from A319 aluminum, so they work well with nitrous, boosted, or high rpm NA engines and are designed to fit under most stock-height hoods. The "R" series manifold features a massive 90mm throttle opening and an RPM range of 2,500-7,500. The upper intake features a satin black finish, while the lower has a natural cast finish for a great-looking intake combo.

Intake Specs
  • Large cross-section with 11.000 in. runners
  • Overall height to the upper manifold flange is 12.750 in.
  • Overall height to the lower manifold flange is 5.375 in.
  • 2.000 in. x 1.200 in. port size at head
  • 2.380 in. x 1.380 in. port size at mating flange

Suggested Parts
Emissions Note
  • These are not legal for street use in California, or California emissions ("CAA Sec. 177") states*. *Massachusetts, New York, Vermont, Maine, Rhode Island, Connecticut, Pennsylvania, New Jersey, Washington, Oregon, Maryland, Delaware and New Mexico


Trick Flow Warranty - Click Here

  • Ford Mustang - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
  • Engines: 5.8
Fitment Notice
  • Fits 1986-1995 Ford Mustang with 5.8 swap
  • If installing this Intake Manifold with Tall Valve Covers, you may need an intake spacer for proper clearance.

How To Install 302/351 Mustang Intake Manifold (79-95)

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Install Instructions
