1994-2004 Mustang UPR Chrome Moly K-Member & Control Arm Kit - Pushrod by UPR

Details | Reviews

1994-2004 Mustang UPR Chrome Moly K-Member & Control Arm Kit - Pushrod

Upgrade your SN95 Mustang suspension and save weight with this full chrome-moly tubular k-member & control arm kit from UPR!

Item #UPR-200579SPK

Everyday Low Price: $749.98

+ $40.00 Handling Fee

Out of Stock

This item is returnable. Details

× close

Images

Benefits

Increases Header & Oil Pan Clearance
Retains Factory Wheelbase
Eliminates 50+ lbs
Made In The USA

Features

Silver Powder Coated Finish
Thick 1/4" Motor Mount Pads
Tig Welded In Billet Fixtures
4130 Seamless Chrome Moly Tubing

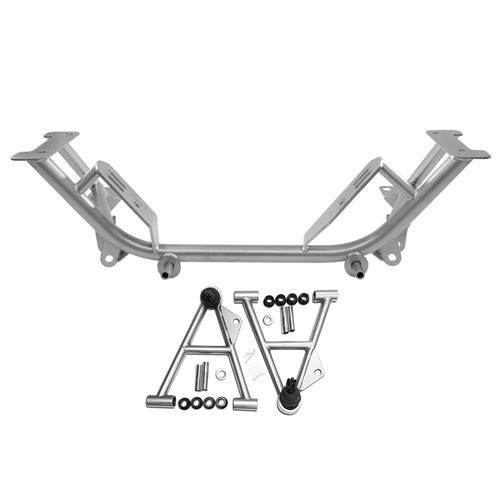

What's in the Box

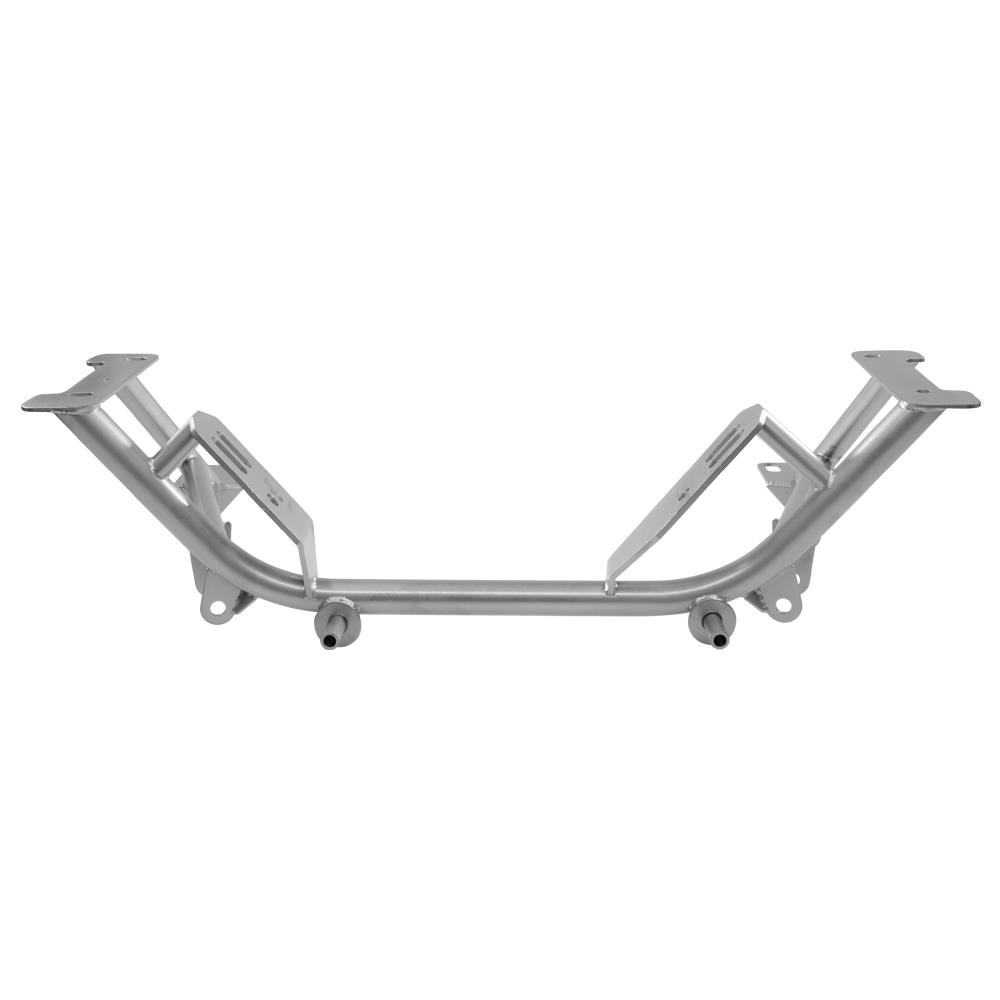

(1) Tubular K-Member
(1) K-Member Hardware Pack

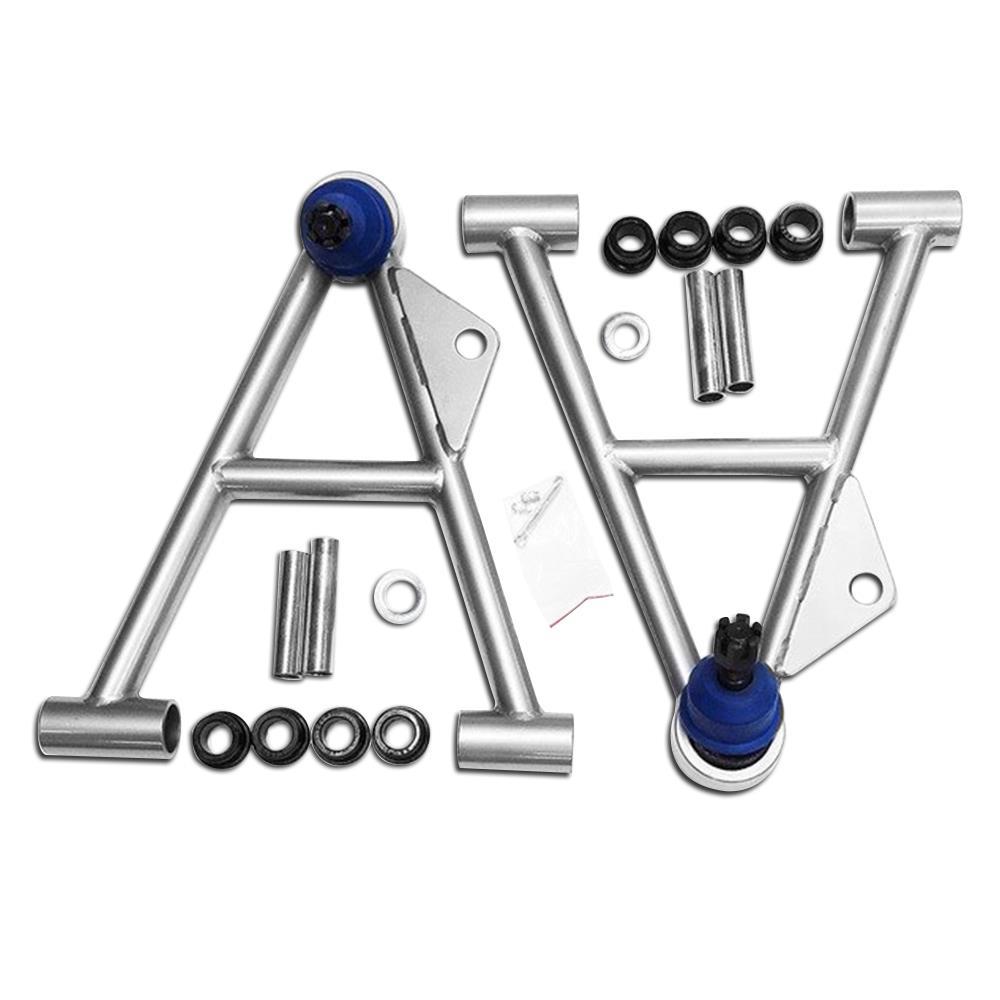

(1) LH Control Arm Assembly
(1) RH Control Arm Assembly

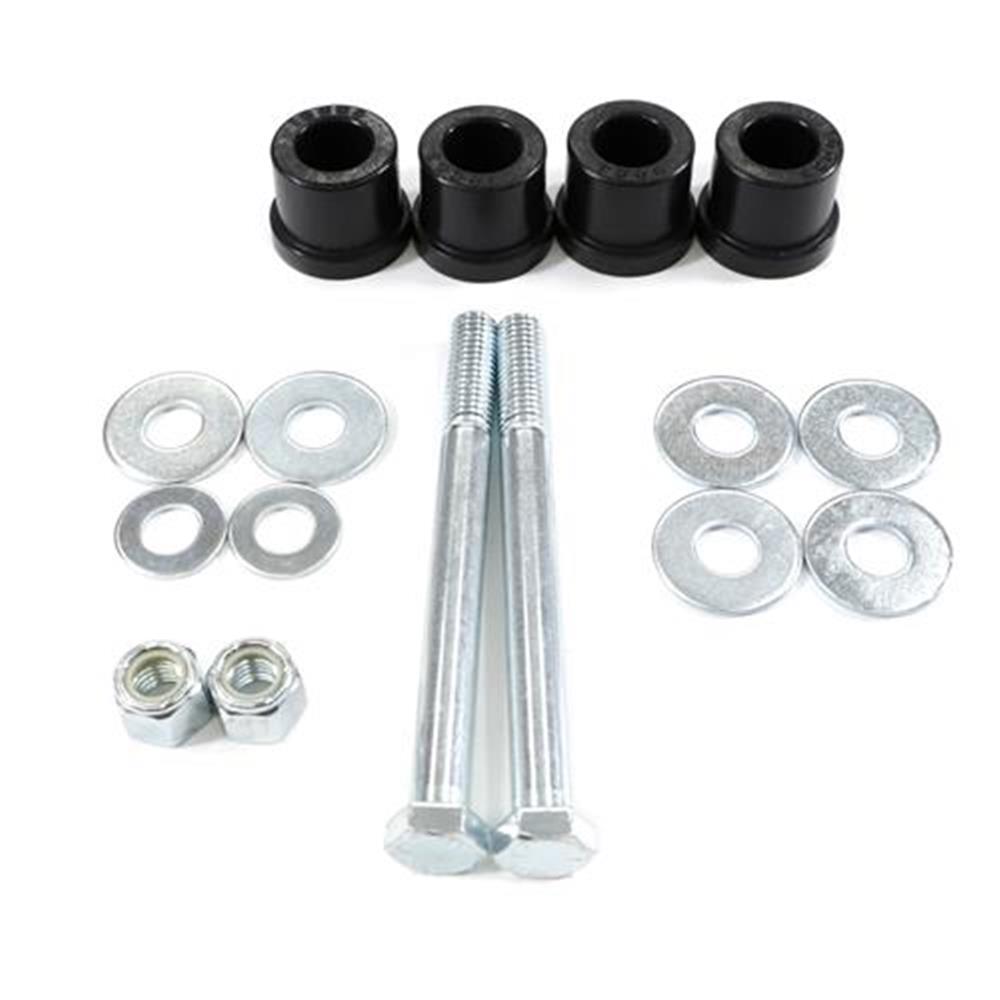

(1) Control Arm Hardware Pack
(1) Steering Rack Bolt Kit
(1) Standard Steering Rack Bushing Kit

1994-1995 Mustang Chrome Moly K-Member & Control Arm Kit

Reinforce your suspension setup and help trim weight off of your 1994-1995 Mustang GT/Cobra front end with this full chrome-moly tubular k-member and control arm kit from UPR! Ideal for drag and road racing applications, this k-member and control arm kit retains the factory wheelbase and is lighter than the factory setup, saving up to 50+lbs. By removing front end weight off of your Mustang, you will experience improved traction and weight transfer for the ultimate handling experience. While improving the front suspension geometry of your Mustang, UPR's designs increase clearance for aftermarket headers and oil pans to eliminate all the guesswork for your future installs!

UPR Quality

Featuring a 4130 Chrome Moly Steel tubular construction, UPR went the extra mile and manufactured this tubular k-member with thick 1/4" motor mount pads using a tig welder. Finished in a durable gloss silver powder coating, this k-member will resist corrosion as good as it looks and performs! UPR's unique design allows this k-member to handle the abuse of drag and road racing while, most importantly, handling the everyday wear and tear of street driving! The 100% CNC'd Chrome Moly control arms feature 1"x.095 wall seamless tubing with CNC machined bearing cups. Just like the k-member, these control arms are coated in a corrosion-resistant silver powder coat finish that will last a lifetime!

UPR Warranty - Click Here

Ford Mustang - 1994, 1995
Engines: 5.0, 5.8

Ford Mustang - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Engines: 5.0, 5.8

Applications

1994-1995 Mustang GT & Cobra w/302 pushrod (5.0L) and 351 pushrod (5.8L)

Modified Application:

1996-2004 Ford Mustang for use with Windsor-based engines pushrod 302/5.0L and 351/5.8L

Required Parts:

UPR heavy-duty hardware kit
UPR steering rack bolt kit
Requires the use of coil overs.
Requires the use of caster camber plates.

Applications And Fitment Notes:

Factory and aftermarket engine mounts may have alignment pins that can cause fitment issues. Removal of the alignment pin might be necessary for correct mating of engine mount to k-member.
Clunks, squeaks, and pops can be normal occurrences with coil-over setups
Coil-over conversion may reduce the area between the strut and wheel. High positive offset wheels or wide wheels may have clearance issues between wheels/tires and coil-over setup.
The suspension bushings included with this part can only be lubricated with PTFE grease, also referred to as "Marine Grease". PTFE grease is a very sticky, opaque grease that is water proof and will not degrade the bushing material. If lubed properly at installation, these bushings will not need to be lubricated again. Use of any other grease on these bushings will cause the bushing to fail and any bushing warranty to be voided.
Installation of the coilovers may require clearancing around the shock towers and frame rails.
Coil-over conversion may reduce the area between the strut and wheel. High positive offset wheels or wide wheels may have clearance issues between wheels/tires and coil-over setup.

What K-Member Do I Need For My Mustang?

Selecting a K-Member for your Mustang’s build can seem like a daunting task to some. Whether you are building a daily driver, weekend warrior, or a full-on race car, this guide will provide you with all of the needed info to make an educated decision that is right for your build! more
