1994-2004 Mustang UPR Tubular Mild Steel K-Member Kit w/ 12" 200lb Springs - Modular by UPR

Reduce front end weight, while improving your suspension, with this UPR 1994-2004 Mustang K-member and 12" 200lb coilover kit!

Item #UPR-200596SK
MPN# 2005-96SK-12-200

Everyday Low Price: $789.99

In Stock Ships tomorrow!

This item is not eligible for discounts or coupon codes.

This item is returnable. Details

Free Shipping over $99

Add to Cart

× close

Images

Ford Mustang - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Ford Mustang - 1994, 1995

Application
1996-2004 Mustangs with 4.6L 2V/3V/4V, 5.4L 2V/3V/4V, and 5.8L 4V Modular based engines

Modified Application:
1994-1995 Ford Mustang with 4.6L 2V/3V/4V, 5.4L 2V/3V/4V, and 5.8L 4V Modular based engines

Required Parts:

UPR heavy-duty hardware kit
UPR steering rack bolt kit
Requires the use of caster camber plates.
Oil filter relocation kit may be required for 03/04 Cobra.

Fitment Notes:

The coil overs included are designed to fit the following: Koni Yellow adjustable, Koni Orange non-adjustable, Strange 10-way adjustable
The coil-overs in this kit do not fit OEM shocks.
The use of anti-seize on the threaded collars is required for the smooth operation of adjustment nuts.
Installation of the coilovers may require clearancing around the shock towers and frame rails.
Factory and aftermarket engine mounts may have alignment pins that can cause fitment issues. Removal of the alignment pin might be necessary for correct mating of engine mount to k-member.
Clunks, squeaks, and pops can be normal occurrences with coil-over setups
Coil-over conversion may reduce the area between the strut and wheel. High positive offset wheels or wide wheels may have clearance issues between wheels/tires and coil-over setup.
The suspension bushings included with this part can only be lubricated with PTFE grease, also referred to as "Marine Grease". PTFE grease is a very sticky, opaque grease that is water proof and will not degrade the bushing material. If lubed properly at installation, these bushings will not need to be lubricated again. Use of any other grease on these bushings will cause the bushing to fail and any bushing warranty to be voided.

Benefits

64lbs Lighter Than Stock
Retains Factory Wheelbase
Maximizes Header/Oil Pan Clearance
Adjusts Ride Height

Features

12" 200lb Coilover Springs by Viking
Seamless Mild Steel Tubing
Silver Powder Coat Finish

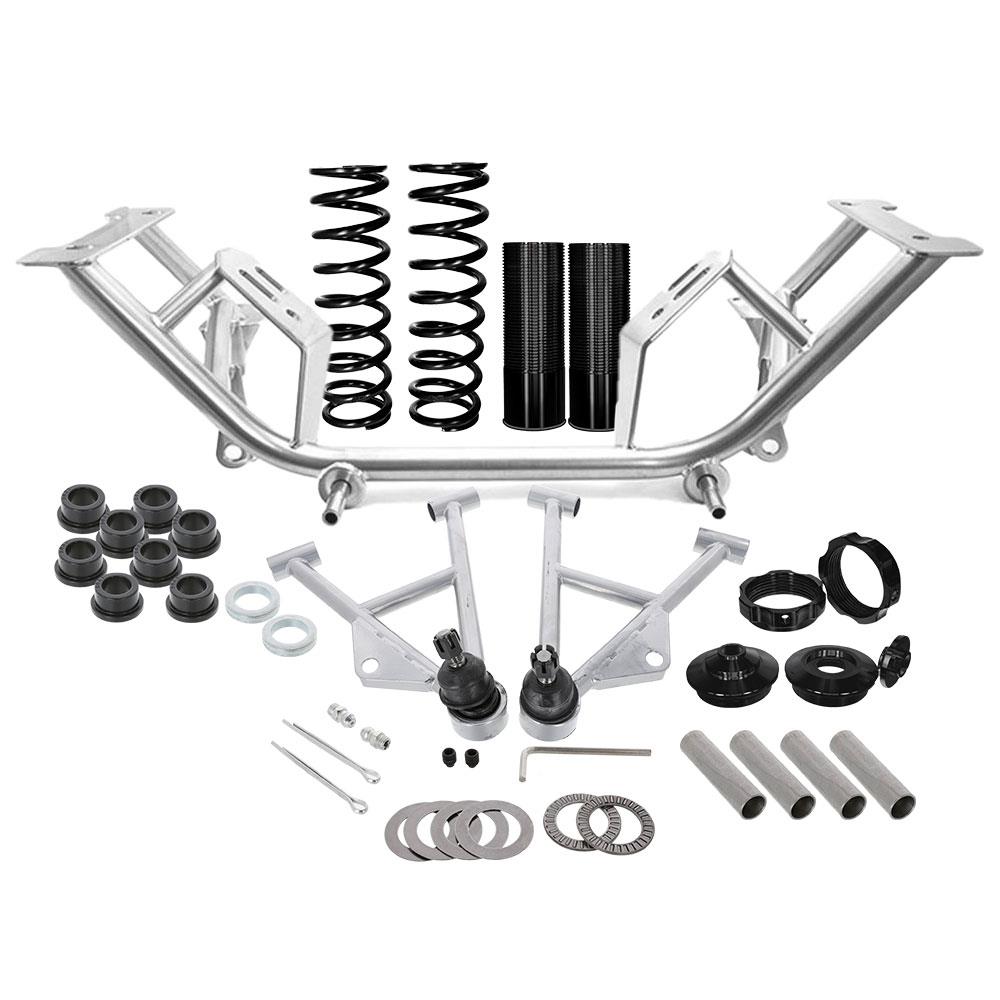

What's in the Box

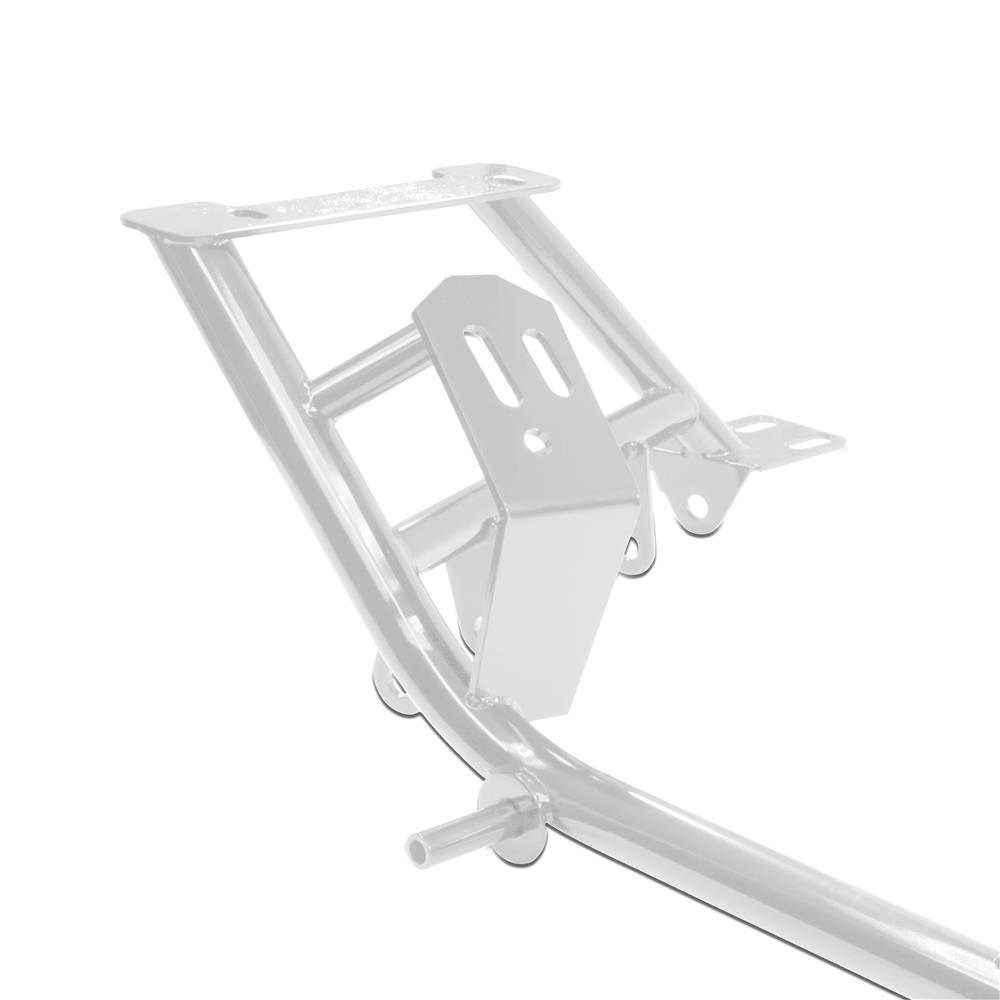

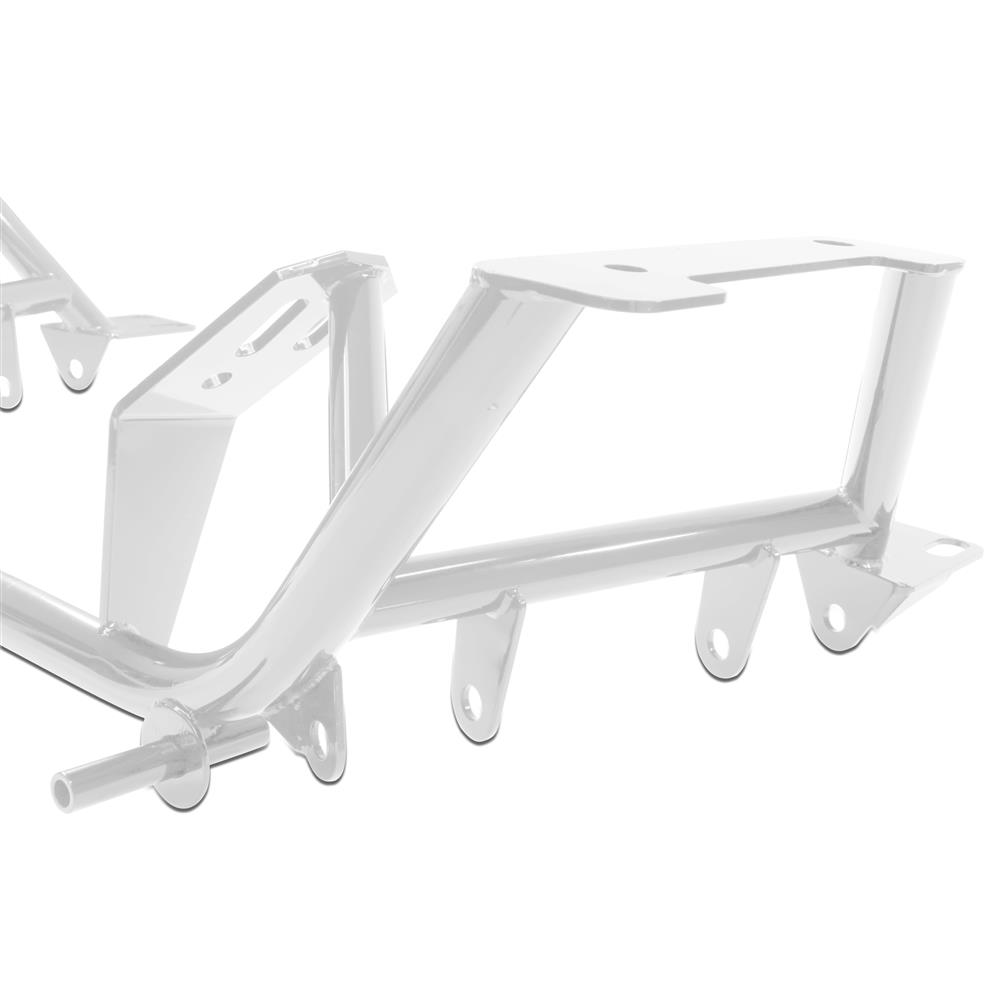

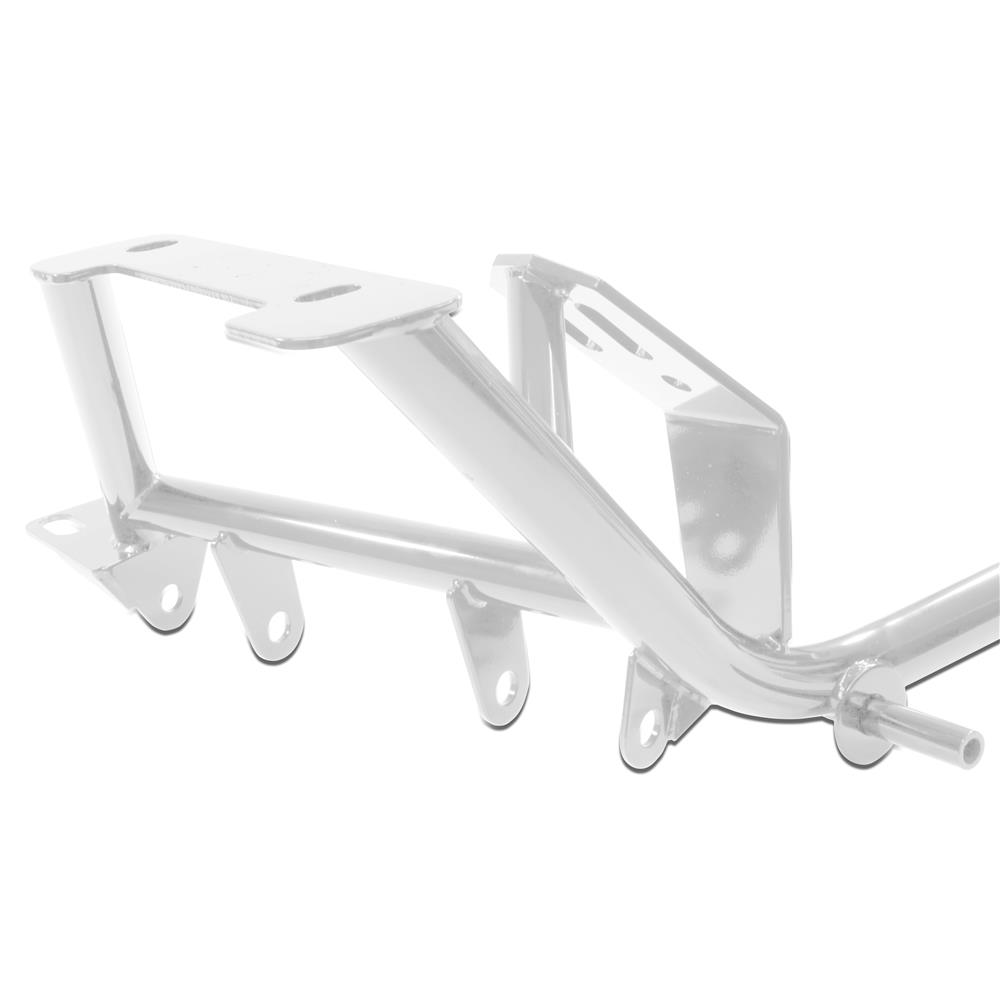

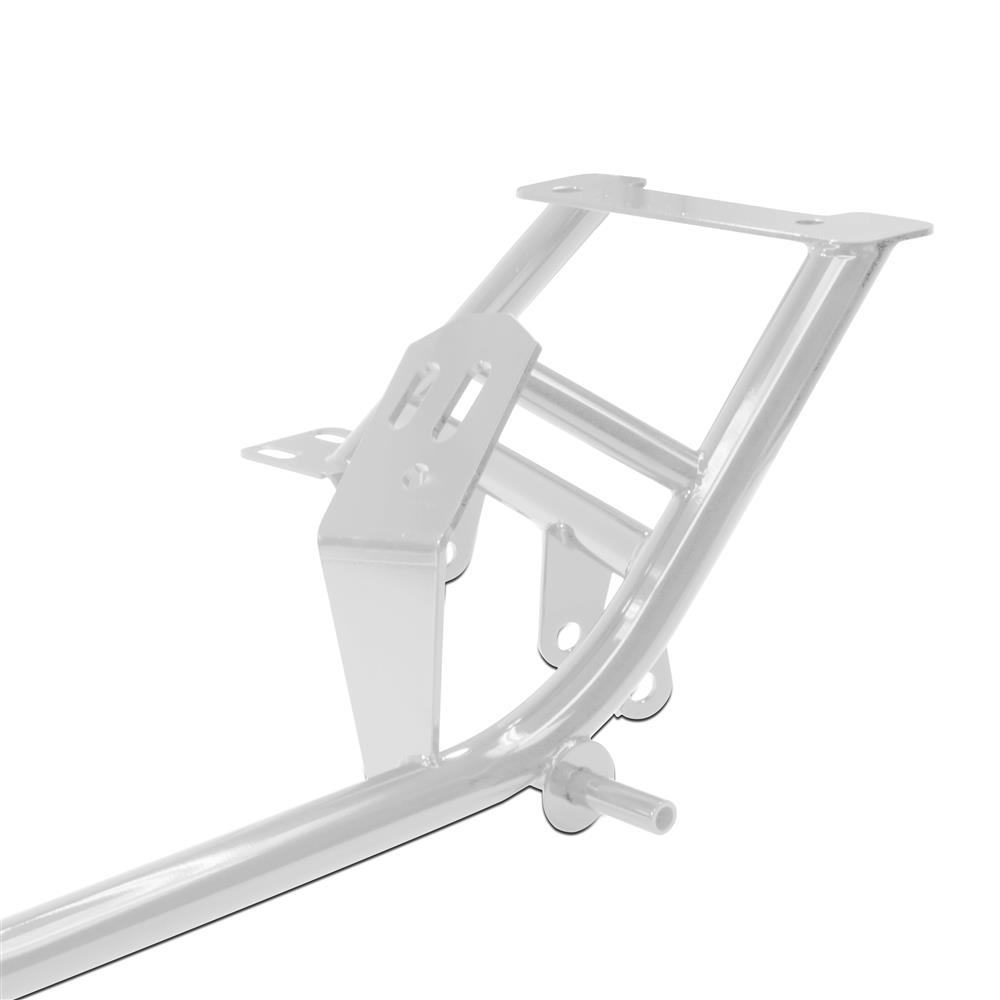

(1) Tubular K-Member
(2) Tubular Control Arms

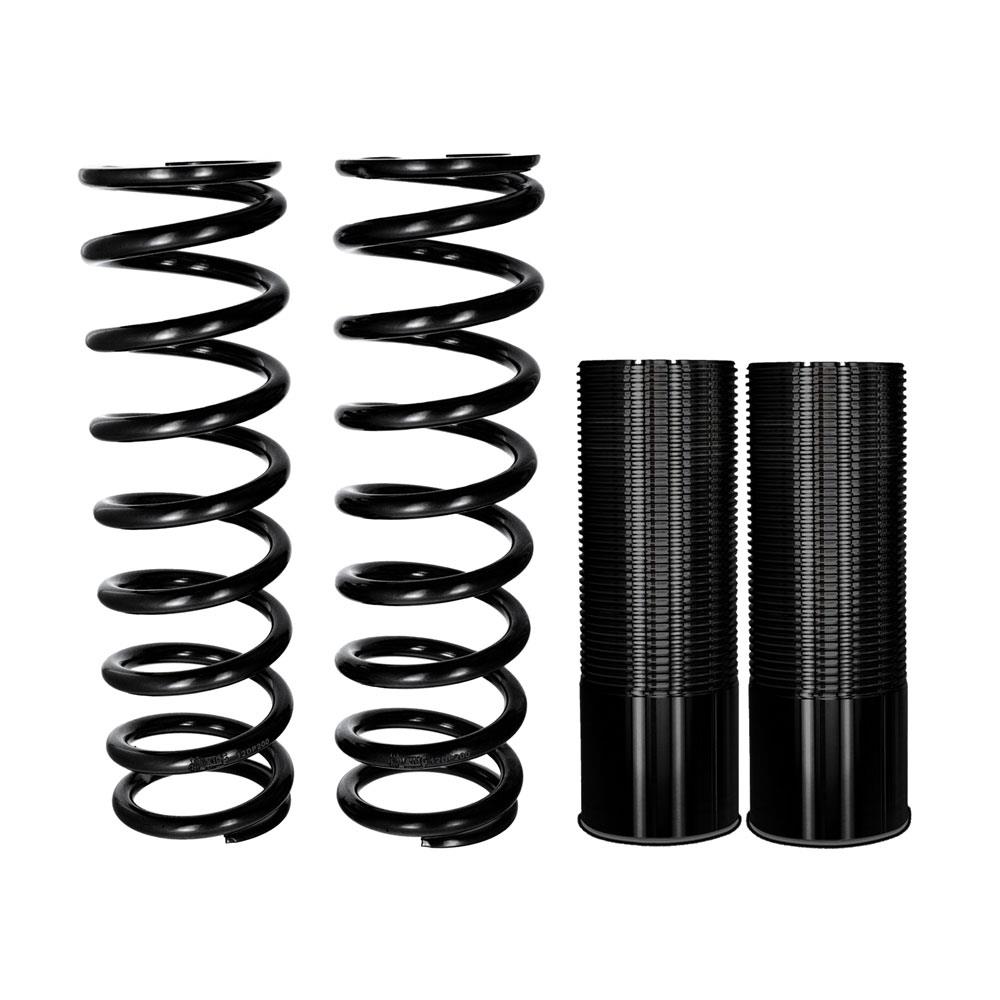

(1) Coilover Kit

Mustang UPR Mild Steel K-Member and Coil-over Kit
Improve the suspension of your Mustang, while reducing weight, with this UPR mild steel K-member kit for the 1994-2004 Mustang! Designed to handle the rigors of racing, and everyday wear & tear; this K-member kit will transform the look and feel of your Mustang! UPR's tubular K-member and control arms are 64 pounds lighter than the factory units! Reduced weight on your front end greatly improves weight transfer, handling, and acceleration. Along with the reduced weight, the tubular design maximizes header and oil pan clearance. A set of UPR coil-over springs are included to dial in the ride height of your Mustang, as well as further improve weight transfer and handling. UPR's K-member kit provides endless benefits to make your driving experience as enjoyable as it gets!

UPR Quality
UPR products are built with the highest quality materials right here in the USA, backed by their lifetime warranty, and this K-member kit is no exception. Constructed using seamless, mild steel tubing; this kit is built to last. TIG-welded billet fixtures, along with 1/4" thick motor mount pads, ensure a strong foundation for your engine and suspension. UPR utilizes a silver, powder coat finish that resists corrosion, and looks as good as it performs! Each control arm includes new bushings, shells, and ball joints for a quick and easy installation!

UPR Coil-over Springs
UPR's coil-over spring kits are designed to provide improved suspension performance while allowing you to dial in your ride height exactly where it needs to be. These coil-overs have a military-grade thread, and an exclusive adjuster nut with a set screw, to ensure it never moves after its set. UPR's coil-over springs can be adjusted with no tools required! This kit includes a pair of 12", 200lb springs, made by Viking, that are great for drag race, and street/strip applications.

UPR Warranty - Click Here

Installation Instructions

Download the pdf Link opens in a new window

What K-Member Do I Need For My Mustang?

Published 7/26/22
