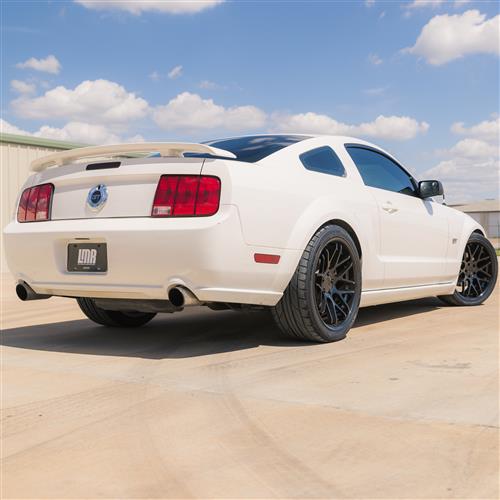

Mustang Downforce Wheel
Stimulate the appearance of your 2005-2020 Mustang with Wheel Replicas' Downforce wheel! Designed to look right at home on the street or the track, the Downforce wheel is the perfect addition to any S197 or S550 Mustang. The split, multi-spoke, mesh design accents your body lines to provide a perfect combination of performance and beauty. Completed in a gloss black paint, this sleek finish is sure to turn heads everywhere you go!
Constructed using high-quality aluminum, these Downforce wheels are built to last. To provide you the ultimate peace of mind, Wheel Replicas backs these wheels with a lifetime structural warranty and a 2-year finish warranty. From the backspacing and offset, to the width and diameter; you'll experience a superior fit wheel that perfectly compliments your Mustang.
Performance Tire LLC dba Wheel Replicas is located in Katy, TX and has been in the wheel business since 1994.
With multiple factories overseas they employ their own quality control agents to inspect and expedite their shipments. They insure their wheels are engineered to be the best that they can be by utilizing the latest casting and coating methods.
They strive to serve their customers to insure they are informed about their purchases. They price their products very competitively and are always welcome to feedback.
They are a company that was started by the enthusiast for the enthusiast.
Upload your own picture of the Mustang Downforce Wheel - 20x10 - Gloss Black (05-20)
Please make sure to hold your device horizontally (like a camera) rather than vertical (like a phone).
By uploading an image, you agree to give LMR.com ® permission to use it in future advertisements and promotions.
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Circle
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Lug Pattern
Wheel lugs or bolt pattern is merely the number of bolts or lugs on the wheel. As the bolts will be evenly spaced, the number determines the bolt pattern. For example, most U.S. passenger cars have 5 bolts while compact models sometimes have only 4 and pick-up trucks can have as many as 6 or 8.
