Modernize the interior of your 1987-1989 Fox Body Mustang by installing this 5.0 Resto exclusive factory inspired digital gauge cluster!

Item #LRS-17255OE-87

Everyday Low Price: $959.99

In Stock
 This item is returnable. Details

Free Shipping over $99

 Add to Cart

× close

  • Ford Mustang - 1987, 1988, 1989
Application
  • Fits 1987-1989 Mustang w/ tilt steering column
Installation Notes
  • All of the gauges in this cluster will need to be programmed and calibrated before final reassembly.
  • To properly set up the odometer feature within this cluster, make sure to calibrate the speedometer first.
  • You will only have 100 miles from the installation of the cluster to set up the odometer to the mileage of your vehicle! Further information can be found in the Wiring Guide below.
  • The speedometer can be calibrated manually by driving a measured mile or you can purchase Dakota Digital’s GPS sender box which operates off of a GPS signal.

 Benefits

  • Factory Look With Modern Internals
  • Eliminates Jumpy Speedometer
  • Accurate Fuel Gauge Reading
  • Increased RPM Range
  • Designed & Assembled In The USA

 Features

  • White Illumination With LED Bulbs
  • Fully Lit Needles
  • LCD Message Center
  • Modern Gauge Technology
  • Precise Sending Units With Digital Step Motors

 What's in the Box

  • (1) Digital Gauge Cluster
  • (1) Control Module
  • (1) Alternator Load Harness
  • (1) Water Temp Sending Unit with Harness
  • (1) Oil Pressure Sending Unit with Harness
  • (1) Pack of Assorted Sending Unit Adapters
  • (1) Switch Assembly
  • (1) CAT5 Cable
  • (1) Speed Sensor Plug
  • (1) Detailed Installation Instructions

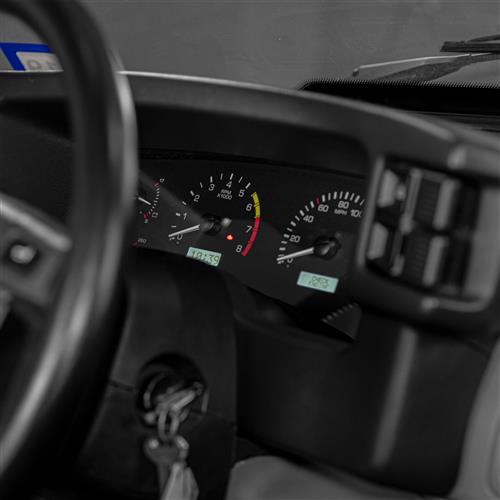

5.0 Resto Factory Inspired Digital Gauge Cluster
Eliminate the inaccuracies of your 1987-1989 Fox Body Mustangs gauges by upgrading to 5.0 Resto's exclusive factory inspired digital gauge cluster! Fox Body Mustang's have had their fair share of inaccuracies when it came to the factory clusters. From jumpy speedometer needles to inaccurate fuel level readings, this is where 5.0 Resto and Dakota Digital step in with this exclusive factory inspired digital gauge cluster solution! These 5.0 Resto digital gauge clusters are meticulously custom built in-house by Dakota Digital right here in the USA. Featuring a factory reminiscent display, this gauge cluster provides your Fox Body's interior with a period correct look with modern digital components for the most accurate information with the highest of quality!

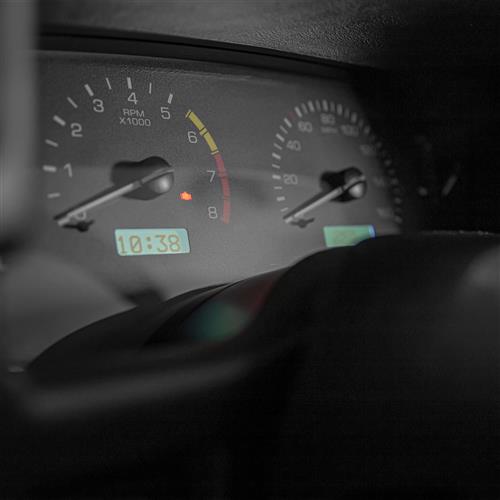

Analog Gauge Display And Indicators
Each 5.0 Resto gauge cluster is illuminated with white LEDs and has a dimming feature whenever the parking lights or headlights are turned on. Additionally, each needle will glow orange whenever the LED backlighting is triggered to ensure maximum visibility is achieved during dark conditions. The gauge faces have the factory correct black background with white text and font. This cluster includes six analog-gauge sweeps in conjunction with the twin LCD message center to show the most vital parameters while your Mustang is running. The analog sweep displays are speedometer (0-160 mph), tachometer (0-8000 RPM), fuel level (full to empty - uses stock sending unit), water temperature (140-220° F), oil pressure (0-80 psi), and voltmeter (8-17 Volts DC) all of which are positioned in the same location as your factory cluster. Visible indicators include: the RH and LH turn signal, high beam lights, cruise control, parking brake, and check engine.

All In The Details
As the true Fox Body enthusiasts, 5.0 Resto realized there were several areas that could be improved upon and updated to compliment the newer modern technology that is now available for these cars. Looking closely, you will quickly see the attention to detail 5.0 Resto used to help Dakota Digital design this custom digital gauge cluster. From the signature red tick mark at 55 mph, to the positioning of the gauge indicator logos, this digital cluster does a fantastic job of resembling the factory unit. 5.0 Resto even made sure to increase the miles-per-hour from 140 to 160 to provide a modern take on a factory-like design. Digging deeper, the RPM caution sweep now starts at 5,500 and then transitions to red at 6,500 which is very close to the factory gauge cluster. If you notice closely, the tachometer has even been bumped to 8,000 to give a much needed update for newer power plants in your Fox Body Mustang!

Digital Message Center
The message center displays in a digital LCD format for several of the analog gauge functions such as the speedometer (0-255 MPH/KPH), tachometer (0-9,990 RPM), oil pressure (0-80 psi), water temperature (0-300° F/0-150° C), fuel level (0-99%), and voltmeter (8-17 Volts DC). Other vital display features include the odometer, trip odometer, re-programmable service odometer, engine hour meter, and clock. Additionally, there are built-in performance functions such as 0-60 mph timer, 1/4 mile timer, 1/4 mile speed, high-speed recall, and high RPM to recall your personal records!

No Need For Aftermarket Gauges
Retaining your factory appearance while receiving precise information is the best way to keep tabs on your Mustang's vitals with this all-inclusive bolt-in gauge cluster. The speedometer is user programmable, so your speed will never be wrong again regardless of tire size or rear gear changes. The tachometer is adaptable to all ignition pickup styles, so you'll have correct RPM regardless of the engine. Seeing your alternators true charging output is a breeze with the included voltmeter! The oil pressure and water temperature sending units are also included. Finally, your fuel level is compatible with your existing stock Fox Body sending unit for a simple installation!
