Benefits
- Complete Kit For A Stress-Free Install
- 600lb-ft Torque Capacity
- 8000 RPM Shifting Capability
- All New Transmission Components
- Eliminates Guessing
- Ensures Compatibility
Features
- TKX 26 Spline Transmissions w/ .68 Overdrive
- Heavy Duty Components
- New Sheet Metal For Clean Install
- Appropriate Hardware For Complete Install
- SVE Billet Steel Flywheel
What's in the Box
- (1) Tremec 5-Speed TKX Transmission
- (1) Tremec TKX Bellhousing

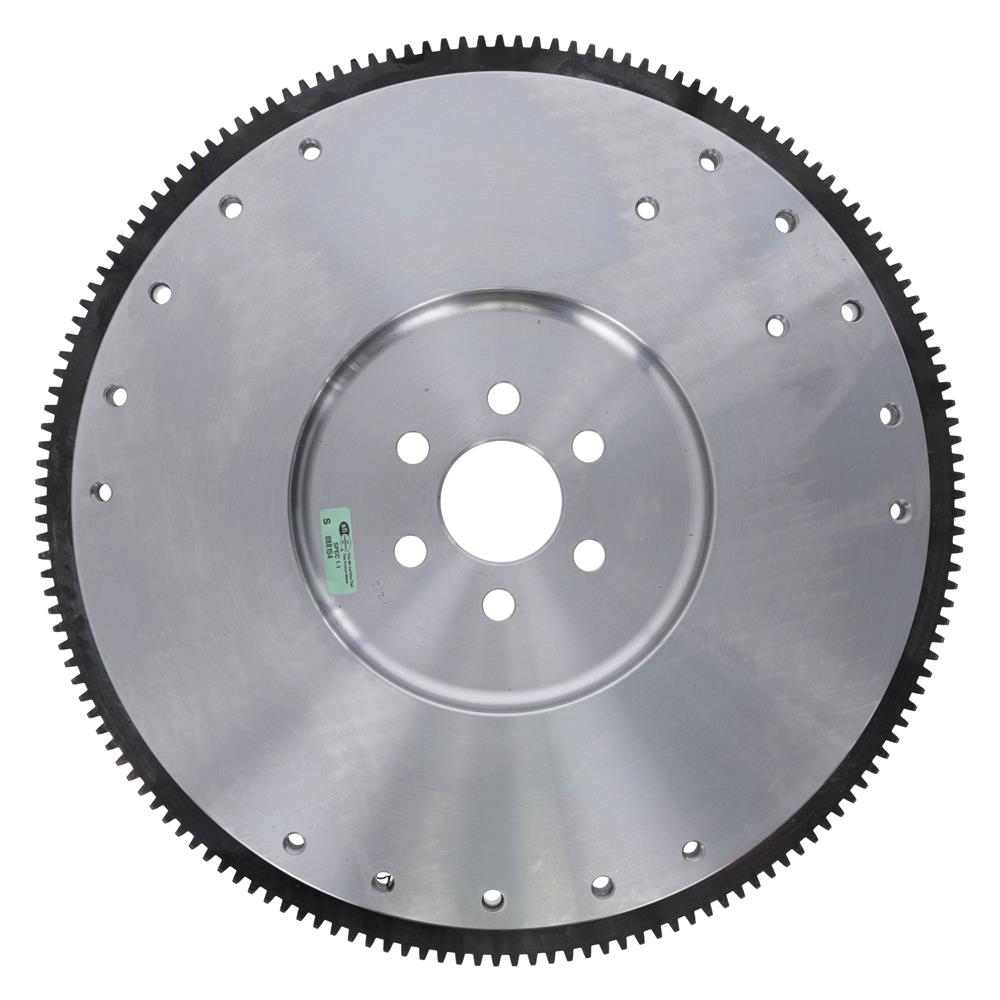

- (1) SVE Billet Steel Flywheel 10.5"
- (1) Ford Performance Pressure Plate Bolt Kit
- (1) Ford Performance Flywheel Bolt Kit
- (1) SVE Double Hook Clutch Quadrant

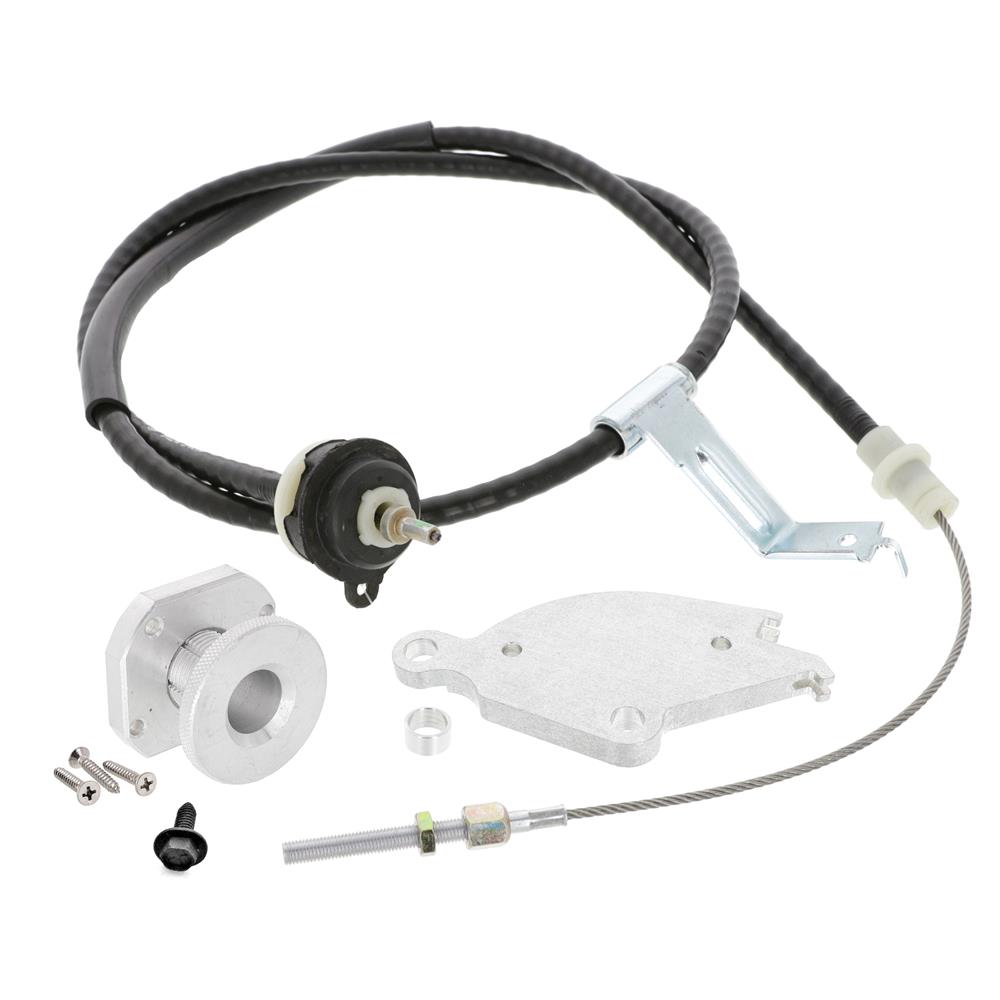

- (1) SVE Clutch Cable Firewall Adjuster
- (1) SVE Heavy-duty Transmission Mount
- (1) 5.0 Resto adjustable clutch cable
- (1) Bellhousing Spacer Plate
- (1) Bellhousing Dowel Pins
- (1) Bellhousing Bolt Kit
- (1) Reverse Light Pigtail Connector
- (1) Stifflers Transmission Cross Member
- (1) Crossmember To Body Hardware
- (1) Clutch Pedal Safety Switch
- (1) Clutch Fork
- (1) Clutch Fork Dust Cover
- (1) Mid-pipe Hanger
- (1) Manual Transmission Hump Kit
- (4) Bellhousing To Transmission Bolts
TKX Manual Transmission Swap KitThis 1982-1993 Mustang TKX Transmission swap kit includes high-quality components you need to convert your automatic Fox Body to a 5-speed TKX setup! This Fox Body TKX transmission swap kit is the
ONLY kit on the market that offers all of the hard-to-find components needed to swap out your automatic or AOD transmission for a 5-speed transmission at an economical price. This kit was put together by LMR's Mustang specialists, who have done the swap numerous times before and know just what you need to complete the installation. Assembled with all-new parts to keep your Mustang rolling down the street with confidence.
Quality You Expect For Your Fox Body MustangThis kit includes a ton of high-quality components from great brands such as SVE, 5.0 Resto, Ford Performance, and others. Included is the
Tremec TKX transmission that features triple cone synchronizers with a non-leading tooth profile (taken from the T56) to eliminate the notchy feeling the TKO had. With the provided billet aluminum, short-throw shifter, you'll experience buttery smooth shifts all the way up the extended RPM range! The TKX is capable of 8,000 RPM engine speeds with shifts at 7,500 RPMs! A new bell housing spacer plate and a stifflers crossmember add stiffness and strength far beyond that of the OEM versions while offering versatility like no other. The SVE heavy-duty transmission mount is built with a heavy-duty rubber that helps reduce bushing deflection. 5.0 Resto's mid-pipe hanger properly locates your exhaust after installation. A new 5.0 Resto transmission hump kit is included to properly locate your shifter after installation. There are many more high-quality parts included in this kit to give you peace of mind, knowing your Fox Body is going to hold up to the torture of the road.
What's Not Included
The major components not in this kit that you will need to source to complete your TKX transmission swap are:
- Driveshaft (LMR recommends ALWAYS measuring before purchasing a new driveshaft)
- 26 Spline Clutch kit select your own to customize it to your application and power level - 1979-1993 Fox Body Mustang Clutch Kits
- The TKX transmission in this kit will require the use of a 31 Spline Driveshaft SVE-4602J, M4602J, or Slip Yoke M236041X.
- Mustang manual pedal assembly.
- 1979-1986 models will need to purchase the LRS-04424A shifter bezel separately.
FAQ (FREQUENTLY ASKED QUESTIONS)- Do I need to swap my automatic computer to a manual computer when doing this swap? You may continue using your automatic transmission computer.
- This flywheel has bolt-on weights; which weights do I use? Depending on your engine and balance, different weights may be used. Please check your engine build, especially if you have installed a stroker, before installing the weight on your flywheel. As a rule of thumb, 82-95 Mustang 5.0L 302 will be 50oz, most 351 engines will be 28oz, and strokers will depend on the manufacturer.
- Can this be used on a 351? The flywheel with this kit includes a neutral balance flywheel with 28oz and 50oz flywheel weights. Most 351 motors are 28oz which will be the smaller bolt-on weight included with the flywheel.
TKX Gear Ratios- 1st - 2.87
- 2nd - 1.89
- 3rd - 1.28
- 4th - 1.00
- 5th - 0.68
Transmission Notes- Input shaft is 26 spline.
- Output shaft is 31 spline.
- For all TKX 5-speed models, TREMEC recommends TREMEC High-Performance Manual Transmission Fluid (HP-MTF™), Dexron-III, GM Synchromesh™, Mobil 1 Synthetic ATF, or Pennzoil® Synchromesh.
- Fluid capacity is 2.7 quarts.
- The transmission in this kit also features a 7-tooth drive gear.
- You will need to purchase a TKX-specific shifter handle, as the factory shift handle does NOT have the correct bolt pattern!
- Machining marks on the transmission mount boss may be present.
