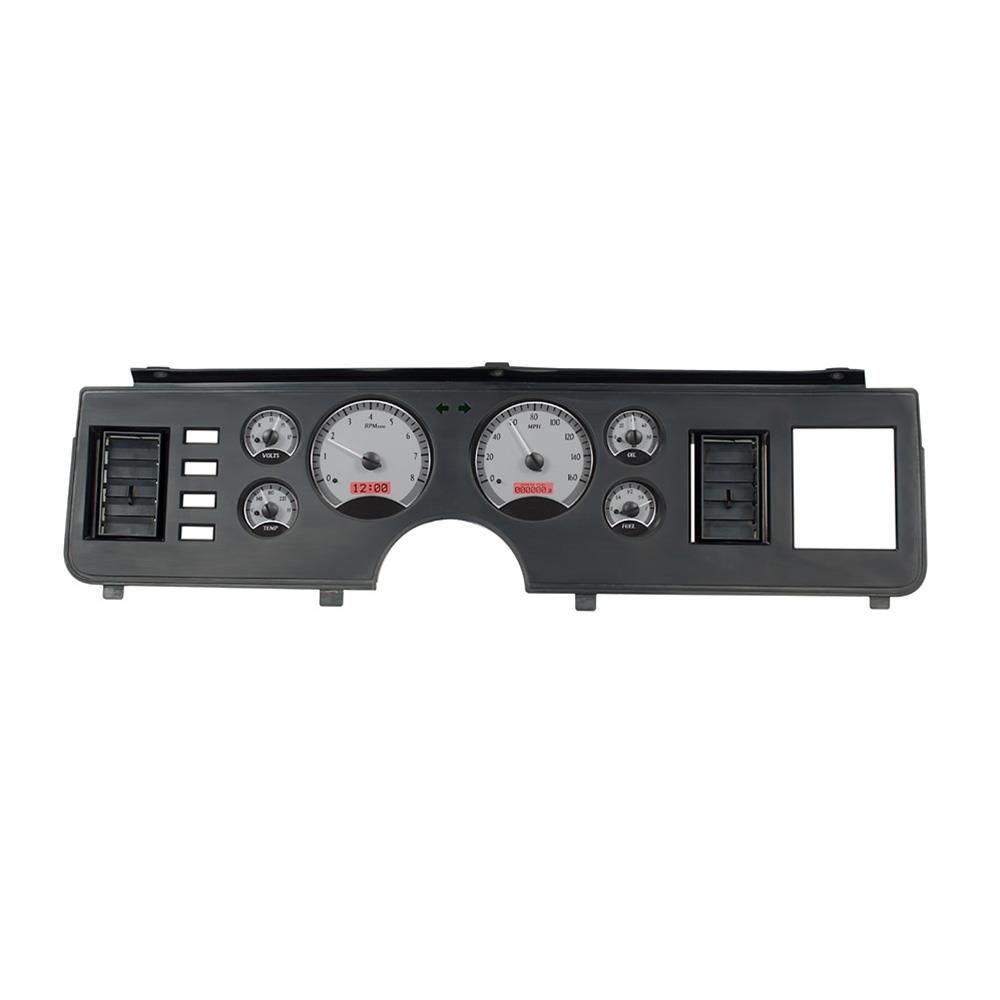

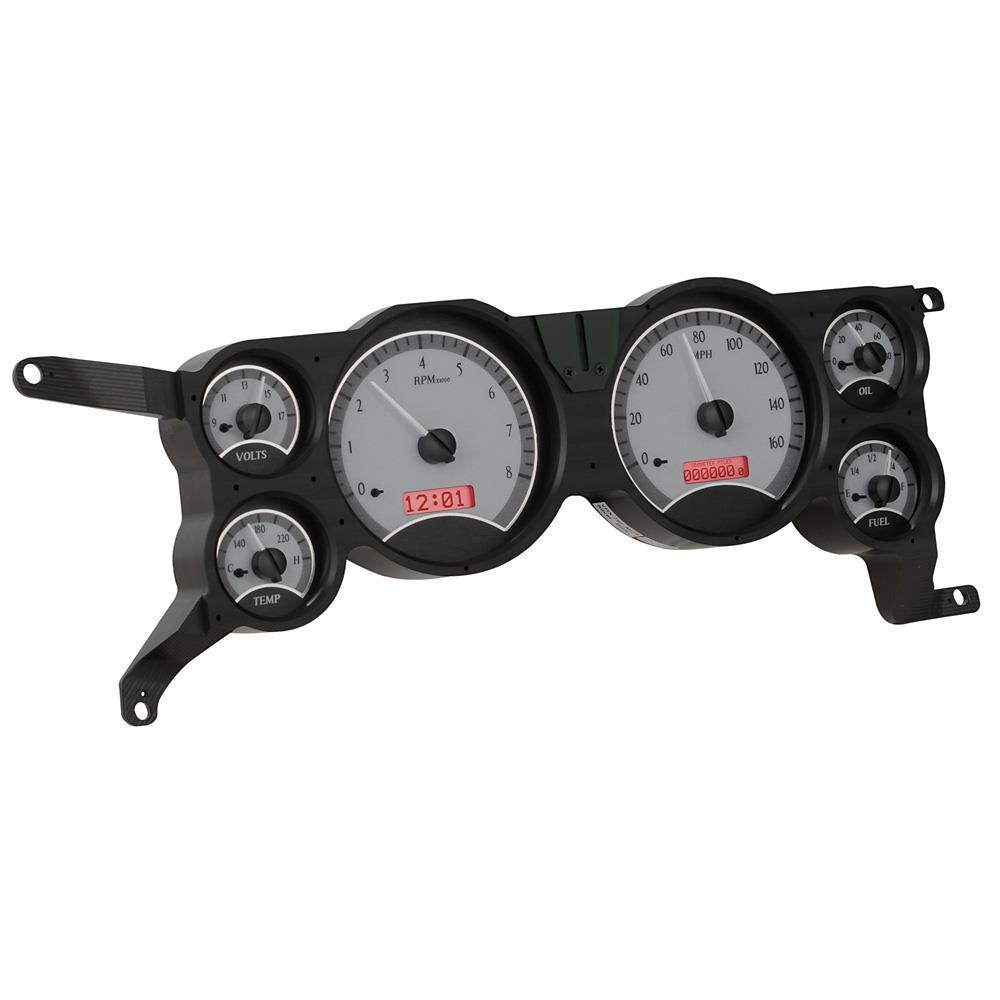

1979-86 Mustang Digital Instrument Cluster Satin Face/Red Backlighting by Dakota Digital

Details   |  Description   |  Videos   |  Customer Photos   |  Reviews
  • 1979-86 Mustang Dakota Digital Vhx Gauge Cluster. Alloy Face/Red Backlighting
  • Mustang Digital Instrument Cluster Satin Face/Red Backlighting (79-86)
Picture of 1979-86 Mustang Dakota Digital Vhx Gauge Cluster. Alloy Face/Red Backlighting
  • Picture of 1979-86 Mustang Dakota Digital Vhx Gauge Cluster. Alloy Face/Red Backlighting
  • Picture of Mustang Digital Instrument Cluster Satin Face/Red Backlighting (79-86)

Add this Dakota Digital instrument gauge cluster to your 1979-1986 Mustang for custom interior styling.

Item #LRS-7986MUSSR

Everyday Low Price: $755.99

  Ships from supplier in 15-25 business days

Add to cart


  • Direct Replacement
  • LCD Message Centers
  • Precise sending units with digitally controlled needle movements

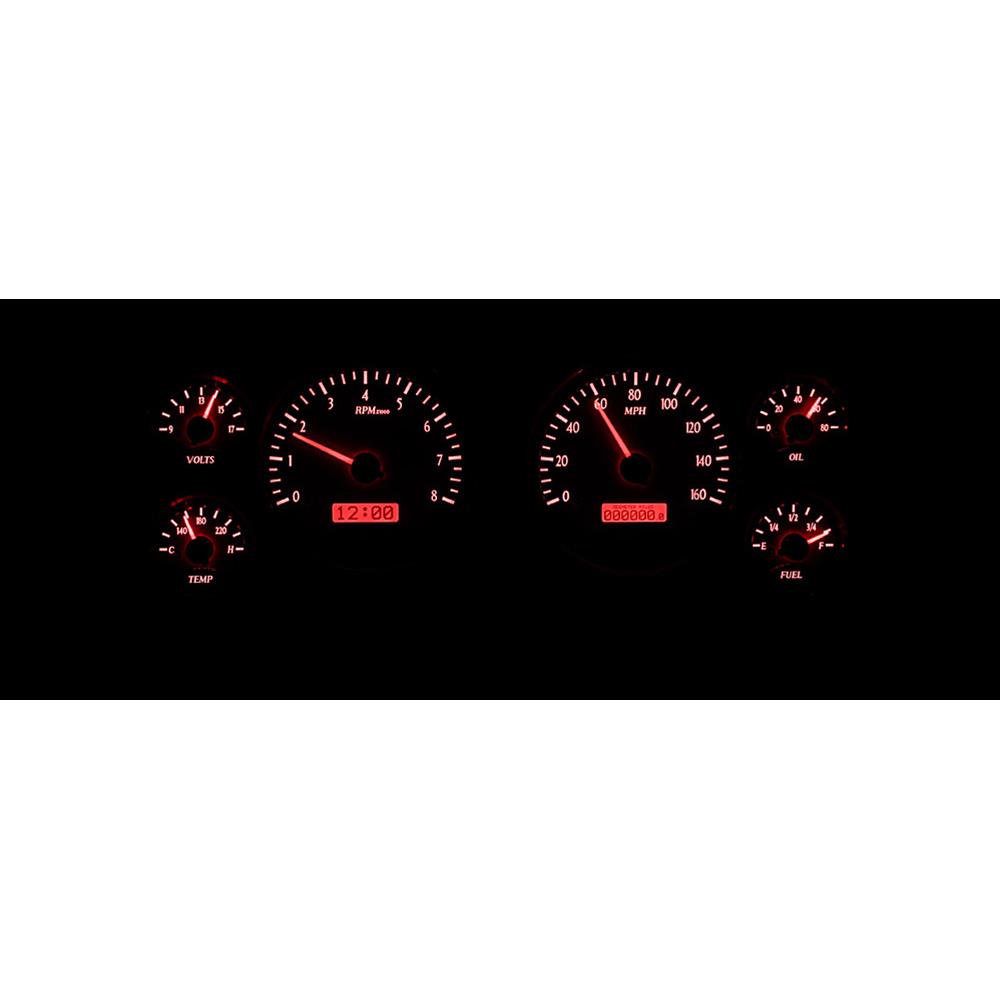

  • Red Illumination and Graduations
  • Fully Lit Needles
  • Back-lit Satin Silver Look Gauge Faces
  • Fits 1979-1986 Mustang

What's in the Box

  • (1) Digital Instrument Cluster
  • (1) Control Module
  • (1) Water Temp Sending Unit with Harness
  • (1) Oil Pressure Sending Unit with Harness
  • (1) Pack of Assorted Sending Unit Adapters
  • (1) Installation Instructions

Product Description

Digital Accuracy with Analog Appearance
With the stock Mustang Gauge Cluster being known for it's level of inaccuracies, Dakota Digital really changed the game with their VHX Analog/Digital Gauge Clusters for 1979-1986 Mustang. The precise digital measurement and needle control allow you to trust the information being displayed on your Instrument Cluster! A must have for your High Performance Fox Mustang!

Analog Gauge Display and Indicators
The visible gauge faces feature a satin silver appearance with red graduations and red back-lighting. The analog displays are Speedometer (0-160 mph), Tachometer (0-8000 RPM), Fuel Level (Full-Empty - uses stock sending unit), Water Temperature (140-220° F), Oil Pressure (0-80 psi), and Voltmeter (8-17 Volts DC). Visible indicators are RH and LH Turn Signal, High Beam, Cruise Control, Parking Brake, and Check Engine.

Digital Message Center
The Message Center displays several of the analog gauge functions in digital format such as Speedometer (0-255 MPH/KPH), Tachometer (0-9,990 RPM), Oil Pressure (0-80 psi), Water Temperature (0-300° F/0-150° C), Fuel Level (0-99%), and Voltmeter (8-17 Volts DC). Other display features include Odometer, Trip Odometer, Resettable Service Odometer, Engine Hour Meter, and Clock. There are also built in performance functions such as 0-60 mph timer, 1/4 mile timer, 1/4 mile speed, High Speed Recall, and High RPM Recall.

No Need for Aftermarket Gauges!
Keep an OE type appearance AND get the precise information you need to keep tabs on your Mustang's vitals all in this one inclusive bolt-in gauge cluster. The speedometer is user programmable, so your speed will never be wrong again regardless of tire size or rear gear changes. The Tach is adaptable to all ignition pickup styles, so you'll have correct RPM regardless of the engine. Get rid of the useless 79-86 Mustang Ammeter and take full advantage of a correct Volt Meter! The Oil Pressure and Water Temp sending units are included. Fuel Level is compatible with your existing stock Foxbody sending unit.

Dakota Digital Warranty - Click Here

Product Videos

Mustang Dakota Digital Gauge Clusters

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Customer Photos (1)

Product Reviews (1)

out of 5 stars
5 stars
1 reviews
5 stars    1
4 stars    0
3 stars    0
2 stars    0
1 star    0

1 of 1 REVIEWS
1 of 1 REVIEWS

5 Stars   This cluster is awesome!
By on 8/11/2015
Image uploaded by Jerry G. I love this product. I'd say this is about as difficult to install as the average car stereo. There are a few wires on the factory harness that you will need to tie into, it helps to have access to an electrical manual. The gauges function well, have a lot of neat features and look badass. I have gotten a ton of compliments on them online and from my friends. I highly recommend them.

Yes, I would recommend this item to a friend!

Was this review helpful to you?

Vehicle Applications

Ford Mustang - 1979 (79) - 1980 (80) - 1981 (81) - 1982 (82) - 1983 (83) - 1984 (84) - 1985 (85) - 1986 (86)

About This Brand

Dakota Digital
Over the past 25 years, Dakota Digital has been manufacturing the highest quality specialty electronics for cars, trucks, and motorcycles. Most of their products are designed, developed, and manufactures in their South Dakota facility. They strive for the best service and support and take pride in the products they build. Shop Dakota Digital for custom digital instrument gauge clusters for your Foxbody Mustang.
