1996-2004 Mustang 4.6 Ram HDX Clutch Master Kit - 11" - 10 Spline - 6 Bolt by Ram

Price: 699.99 USD
Availability: InStock

1996-2004 Mustang 4.6 Ram HDX Clutch Master Kit - 11" - 10 Spline - 6 Bolt

Easily replace your clutch in your 1996-2004 Mustang 4.6 with this Ram HDX 11" Master Clutch Kit for a 6-bolt crankshaft engine!

Item #LRS-889516-K

Everyday Low Price: $699.99

In Stock

This item is returnable. Details

Free Shipping over $99

Add to Cart

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Good Up To 400 HP!
Increased Holding Capacity
Improved Bearing Retainer Design
Includes Necessary Hardware For Installation

Features

11" Ram Clutch
Iron Pressure Plate
10 Spline Clutch Disc
6 Bolt Billet Steel Flywheel

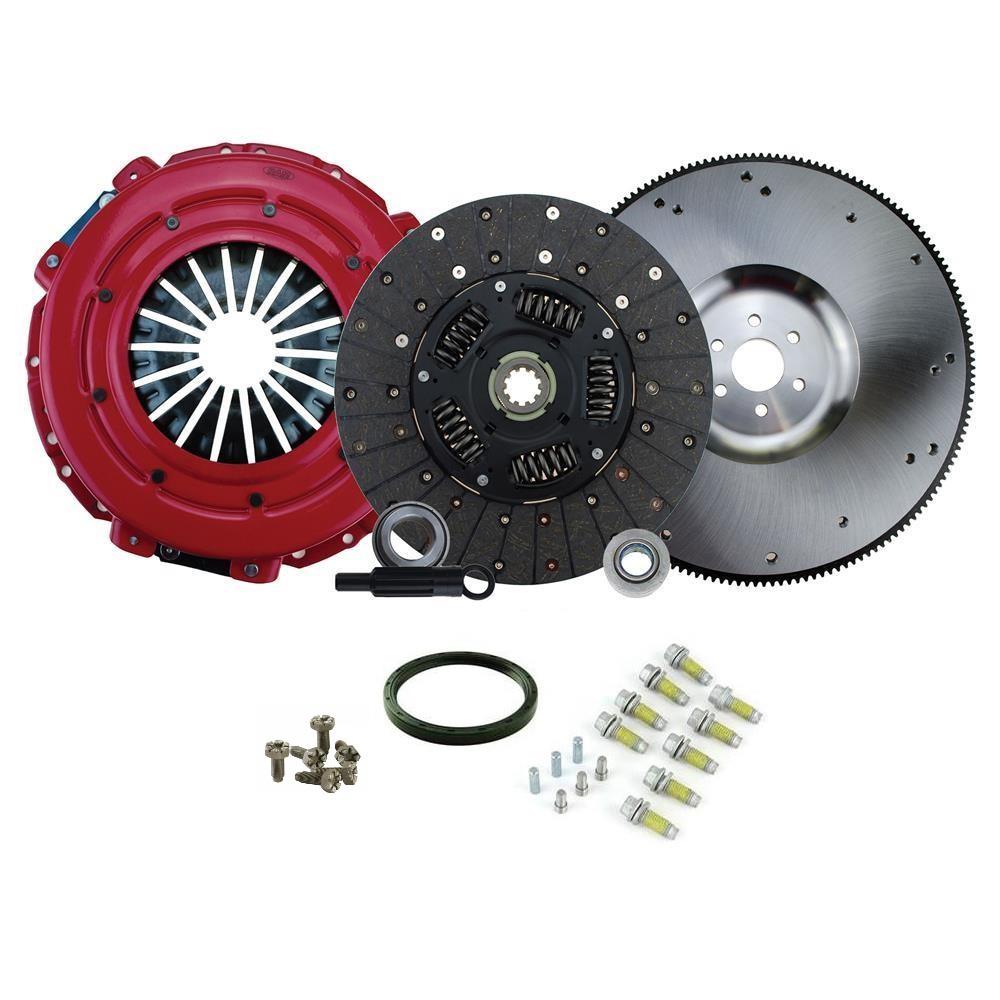

What's in the Box

(1) RAM Billet Steel Flywheel - RAM-1540
(1) RAM HDX 11" Clutch Kit - RAM-88951HDX
(1) Ford Performance Pressure Plate Bolt and Dowel kit

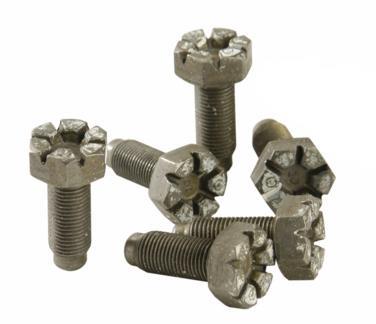

(1) Ford Performance Flywheel Bolt Kit
(1) Ford Rear Main Seal

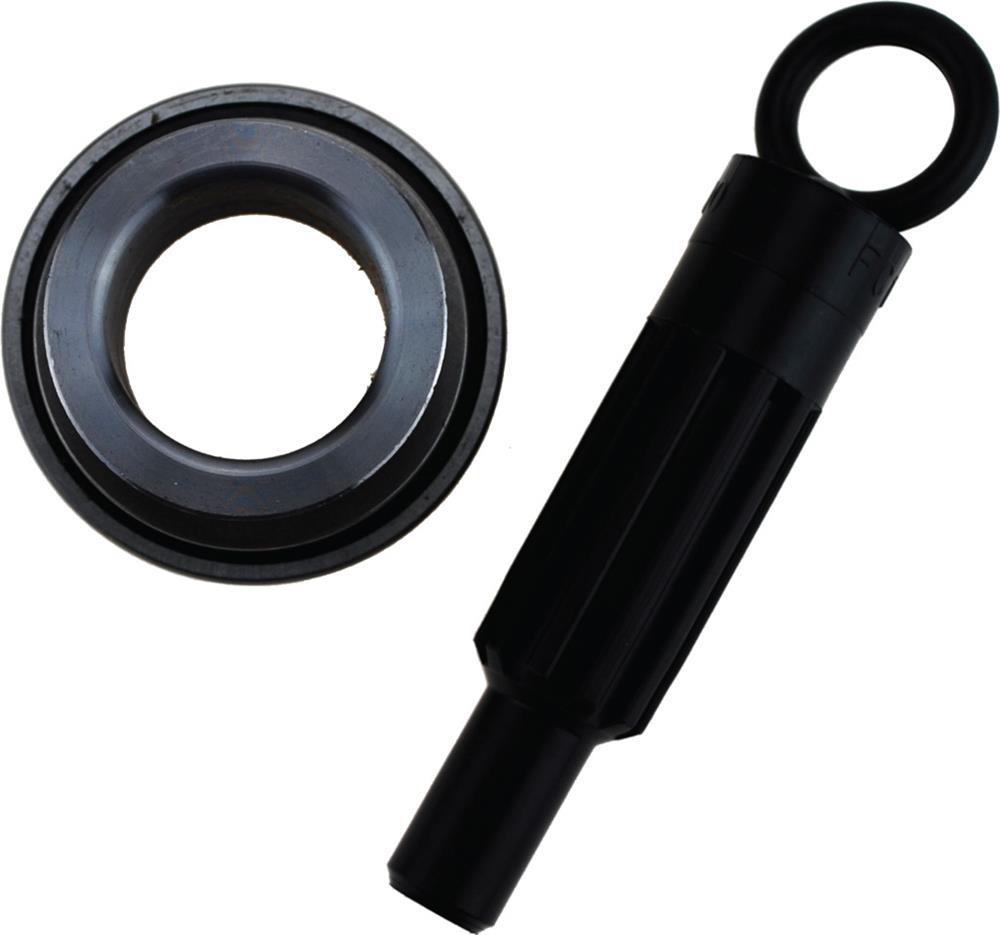

(1) Ford Performance Pilot Bearing

1996-2004 Mustang 4.6 Ram HDX Clutch Master Kit - 11" - 10 Spline - 6 Bolt

Replace your 1996-2004 Mustang 4.6 clutch easily with this Ram HDX Clutch Master Kit with a 6-bolt flywheel! This complete kit is designed to replace everything needed to do a thorough clutch swap including a rear main seal to fix that common 4.6L oil leak while you are there! This kit features all of the needed components to get your clutch replaced and your SN95 Or New Edge back on the road. This all-in-one kit features a Ram HDX clutch kit with 10 spline disc, billet steel Ram flywheel, throw-out bearing, pressure plate bolts, dowel kit, flywheel bolts, rear main seal, and pilot bearing.

Ram HDX Clutch 11" Kit

The RAM HDX Clutch kits are the perfect performance upgrade for your daily driver/hot rod Mustang 4.6. The RAM Pressure Plate features an increased clamp load of 2500lb (compared to the stock pressure plate at 2000lb clamp load) while maintaining a great pedal feel. The RAM 10 spline clutch disc is faced with the 300 series friction material on both sides & features a 5 spring center hub for excellent shock absorption. The 300 series material consists of steel-backed organic facing material that greatly increases rotational strength.

Ram Billet Steel Flywheel

This 1996-2004 Ford Mustang, RAM 1540 Billet Steel 6 bolt flywheel is recommended as a replacement for the factory cast flywheel in your high performance or race Mustang. The stock cast flywheel is not explosion-proof and can be dangerous when used in your high-performance Mustang at higher RPMs. This Ram billet steel flywheel is CNC machined from certified materials and exceeds SFI specifications. This 164 tooth, neutral balance RAM billet steel flywheel is a direct replacement for your 1996-2004 Ford Mustang with 6 bolt crankshaft.

Ram Clutches Warranty - Click Here

Ford Mustang - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Engines: 4.6

Converts factory 1996-2000 10.5" clutch to 11" clutch
Will Not fit 8 Bolt Crankshaft engines
