Stronger Than Standard T5
Urethane Bushings for longer life
Improved Synchronizers and Bearings
Steel input bearing retainer already installed!
Tremec approved oil
All needed replacement wear parts

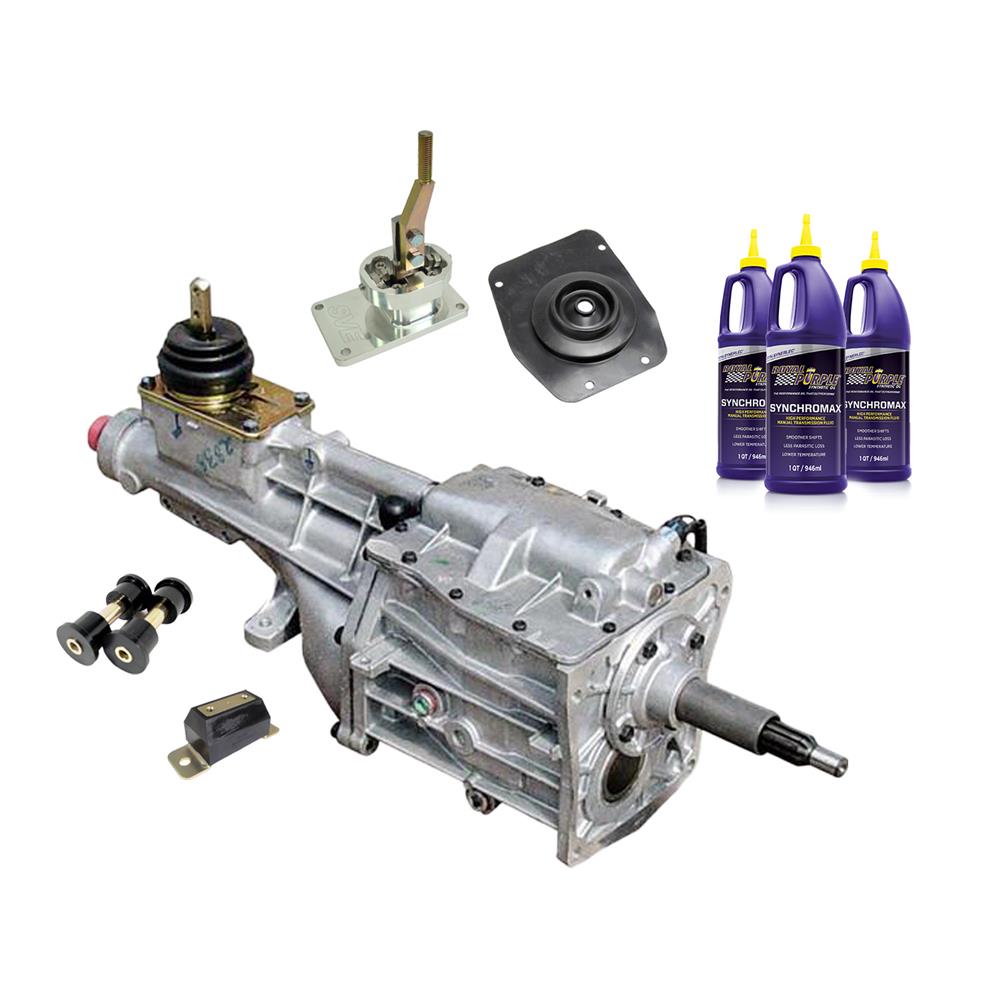

What's in the Box
(1) Heavy-duty T-5 Transmission
(1) SVE Shifter & Handle
(1) Prothane Transmission Mount
(1) Prothane Crossmember Bushing Set
(1) Lower Shifter Boot
(3) Quarts Royal Purple Synchro-Max
Ford Mustang Heavy-duty "World Class" T-5 Transmission & Upgrade Kit!
This Ford Performance M-7003-Z Heavy-duty "World Class" T-5 Transmission is a great replacement for a blown, grinding, or malfunctioning Ford Mustang transmission. This 1979-1993 Fox Body T5 transmission offers several upgraded features over the factory transmission. Not only does this T5 transmission include higher performance internal parts it is also rated for more power than the factory transmission of your Mustang. This all-inclusive upgrade kit from LMR.com comes with all the pertinent parts to replace your busted Mustang T5.

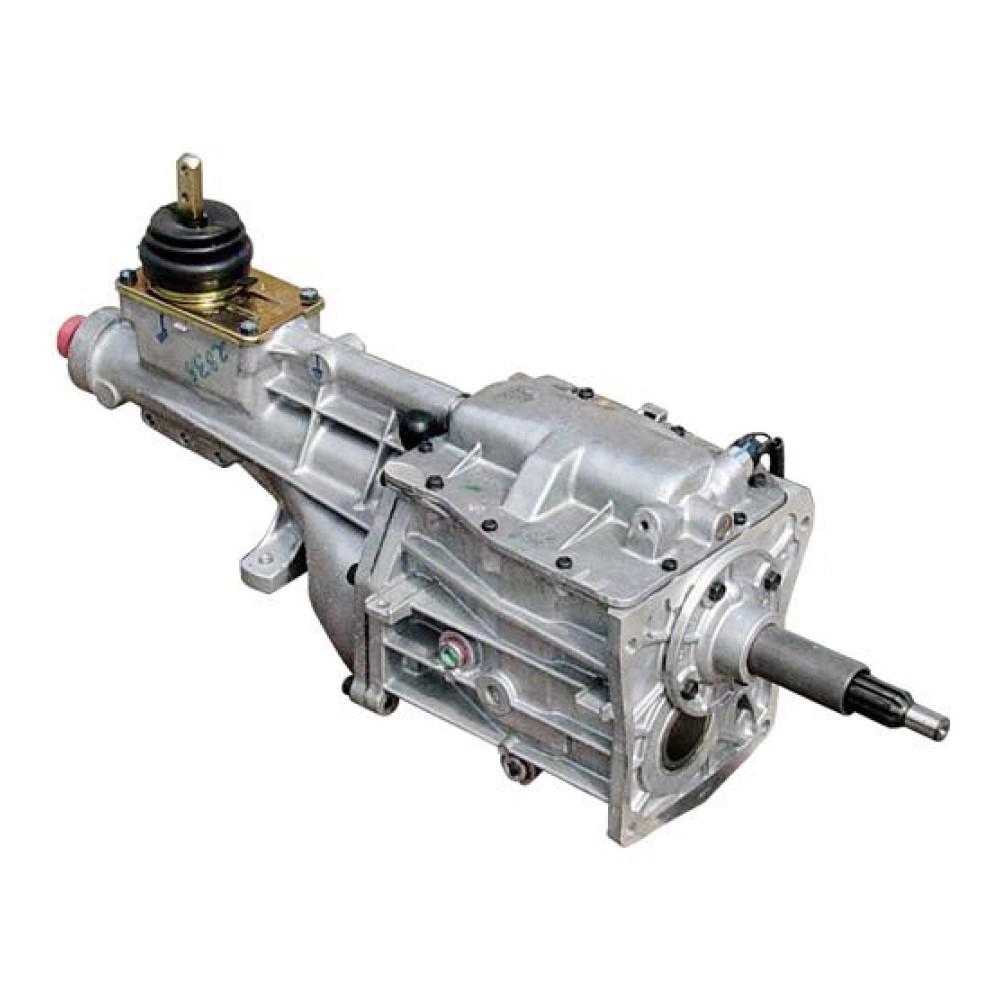

The Ford Performance Heavy-duty "World Class" T-5 Transmission fits behind any 1983-1993 5.0L Mustang originally equipped with a T5. Gear ratios of 1st 2.95; 2nd 1.94; 3rd 1.34; 4th 1.00; 5th 0.63, double moly 2nd speed, 3rd speed, and countershaft cluster gears, Carbon fiber 3-4 blocker rings, and Cobra pocket bearing allow for a 300lb-ft torque capacity! Plus, it has a 7-tooth speedometer drive gear & steel input bearing retainer already installed.

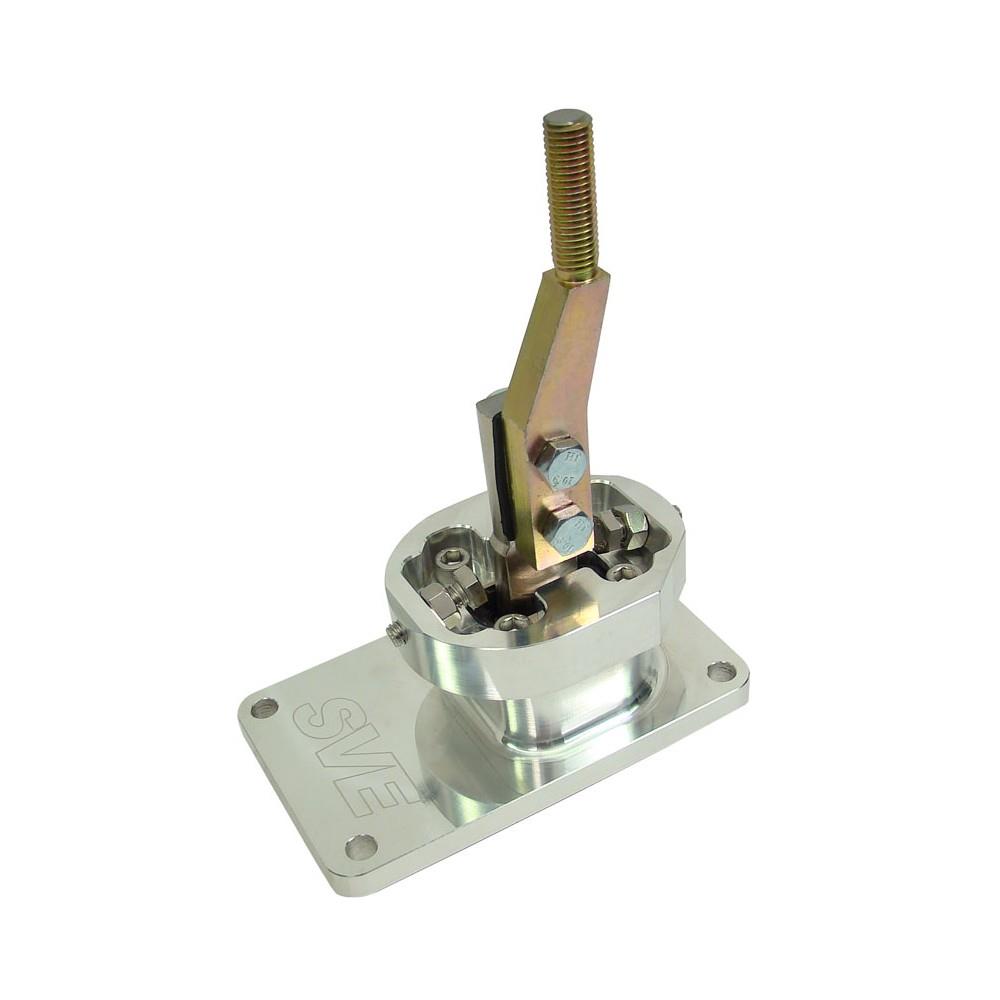

The SVE short throw shifter is a direct bolt on to the M-7003-Z transmission. It is constructed of 6061-T6 aluminum & features built-in adjustable shift stops & a 3/8" thick shifter base. Made right here in the USA!
Royal Purple Synchromax is a manual transmission fluid that is recommended for manual transmissions which specify an automatic transmission fluid. It increases performance and the life of your transmission while improving shifting, reducing gear noise and increasing power transfer to the wheels. It also lowers operating temperatures and provides outstanding wear protection for longer transmission life.

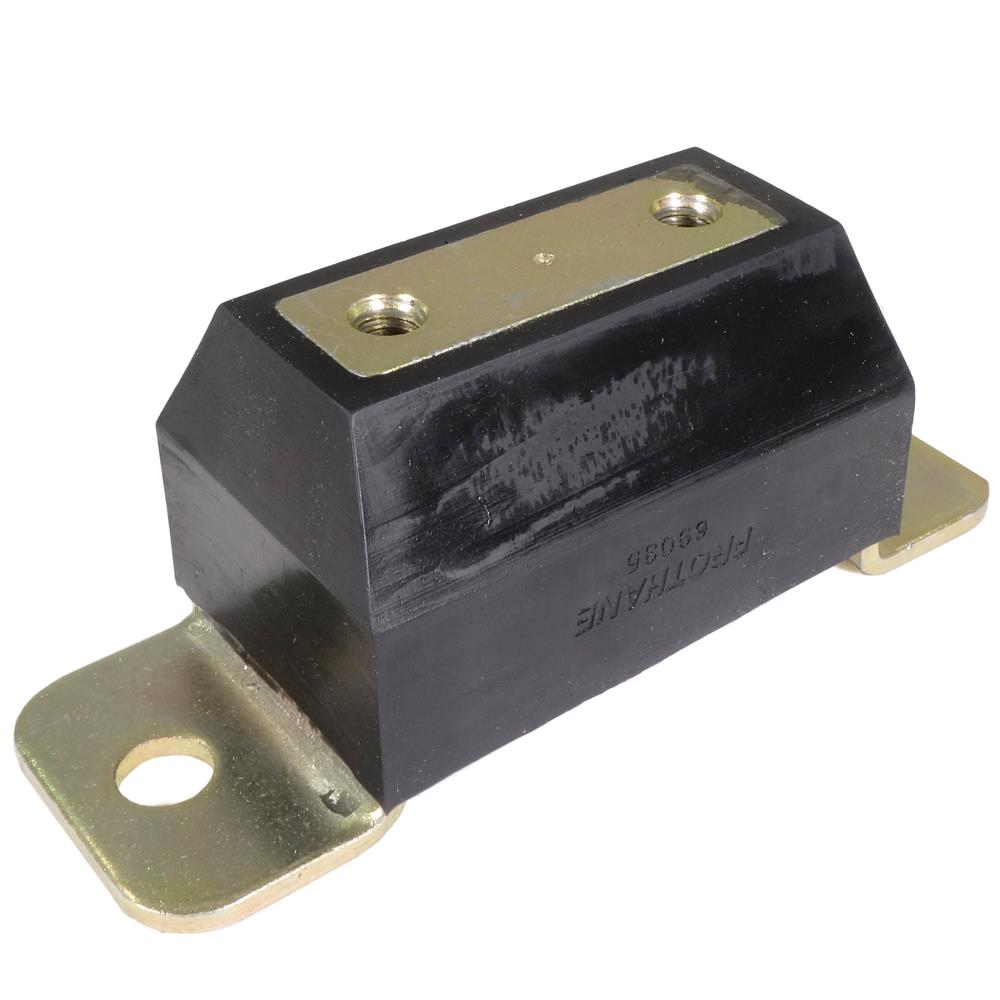

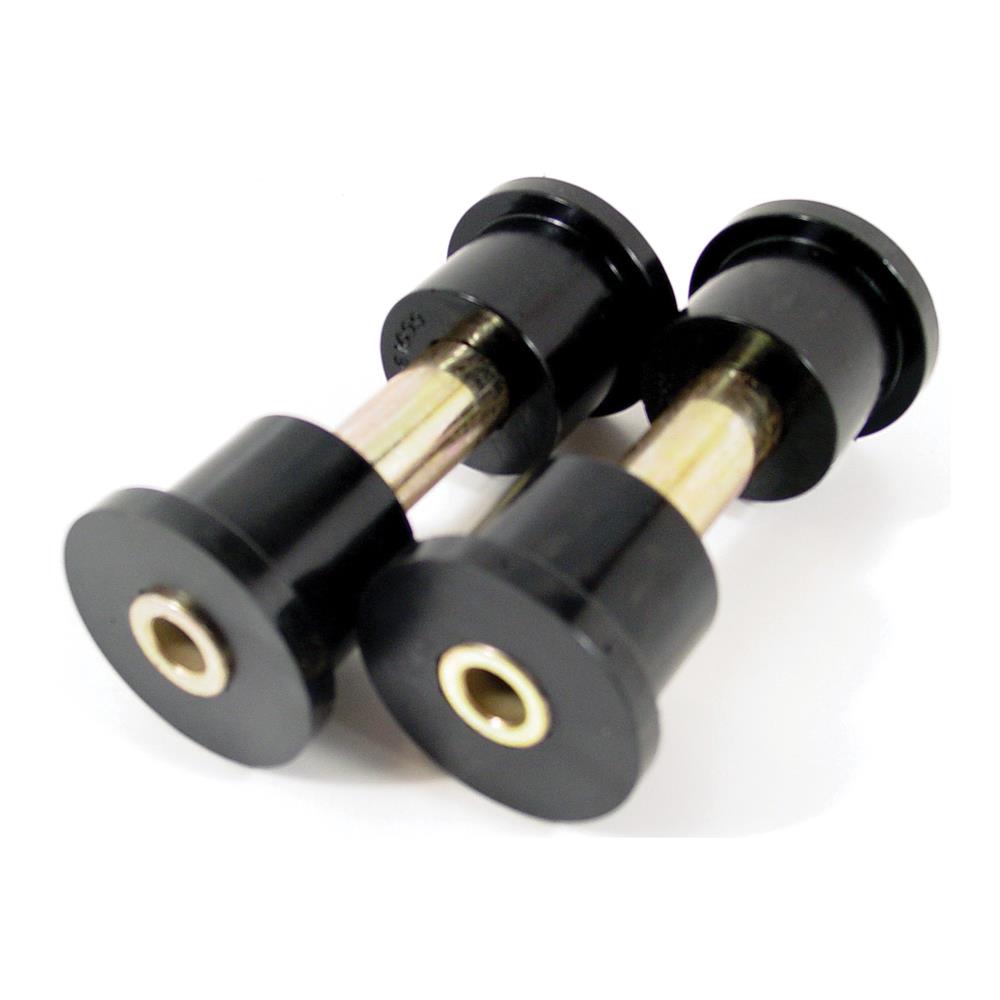

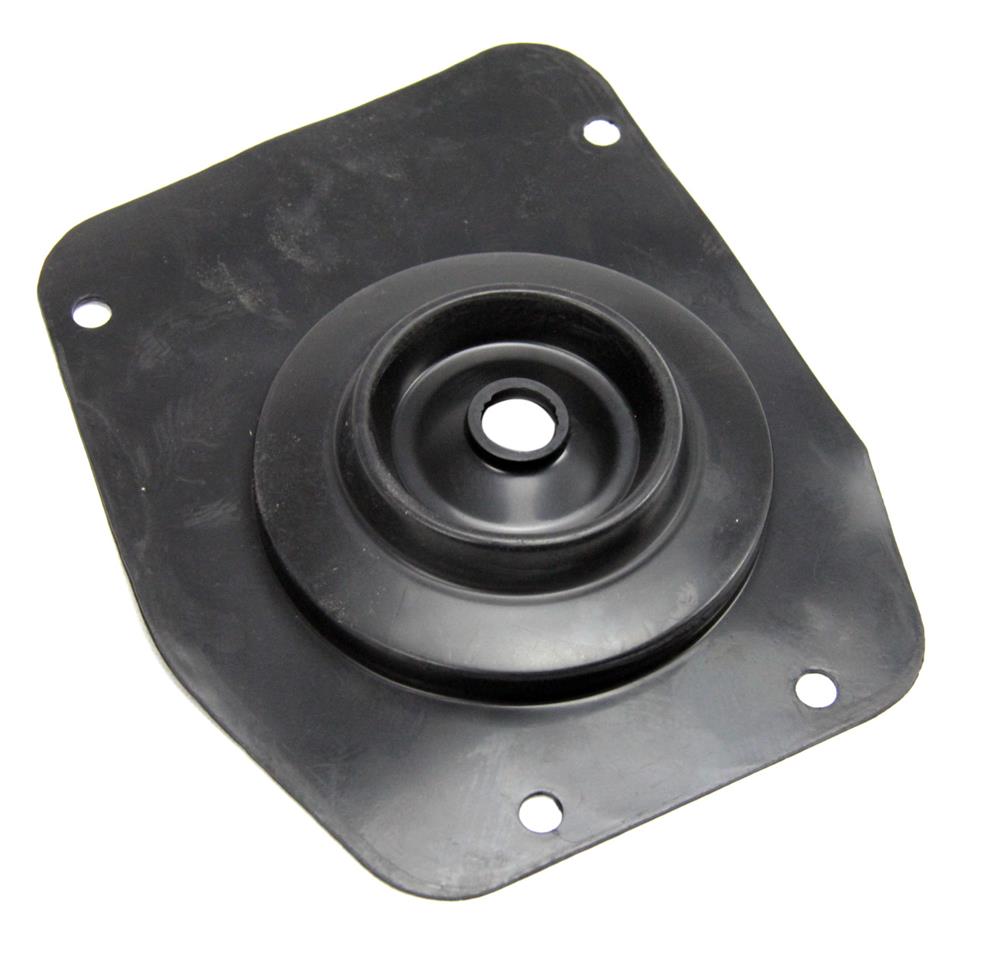

Prothane polyurethane crossmember bushings and transmission mount are included to replace the torn, degraded rubber stockers. The offer reduced deflection, oil resistance, and longer life. The 50Resto lower shifter boot replaces your torn or missing boot & seals off the transmission tunnel to the outside world.
Additional Fitment Note
This is a direct replacement for 1983-1993 Ford Mustang 5.0L originally equipped with a T5 5-speed. This transmission will also bolt up to a 1979-1982 that was originally equipped with the SROD 4-speed transmission as long as a T5-specific bell housing is used.
- Fits 1979-1993 Ford Mustang V8 Only
Due to Hazmat regulations, lubricants/fluids cannot be shipped to APO/FPO addresses.
Mustang Ford Racing T5 Transmission M-7003-Z (World Class Heavy Duty T-5/T5z)
How To Remove Mustang T5 Transmission (1982-2004 5.0L, 3.8L, 2.3L)
Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!
Published on 2013-11-14 You don’t have to live with that grinding 5 speed transmission anymore! Replace that worn out factory T5 transmission in your Fox Body Mustang with a FRPP Heavy Duty T5z transmission that was made popular in the 93 Cobra! This World Class Tremec T-5 features heavy duty upgrades to help increase torque capacity to 300 ft/lbs.
These high quality upgrades include improved synchronizers, bearings and steel bearing retainer just to name a few! This 5 speed manual transmission features a 10 spline input shaft and a 28 spline output shaft. It is assembled with the popular 7 tooth speedometer drive gear. The gear ratios are:
1st 2.95 2nd 1.94 3rd 1.34 4th 1.00 5th 0.63
The Ford Racing M-7003-7 Heavy Duty T5 Transmission will give you smooth and clean shifts for years to come! Don’t forget to pick up a new clutch, short throw shifter, bell housing, Royal Purple transmission fluid, cross member & hardware when replacing your Fox Body Mustang Transmission! See more manual transmission components here: http://www.latemodelrestoration.com/products/79-93-Mustang-Manual-Transmission-Components
Published on 2018-08-01 Removing the T5 transmission from your Fox Body or SN95 Mustang is needed whenever you need to access vital drivetrain and engine components. These components include the clutch and pressure plate, clutch fork, throw out bearing, fly wheel, rear main seal, and other various parts.
This video covers the core steps in the removal process. The work is performed on a 1991 Fox Body race car. Depending on the year of your Mustang, the removal of the few interior pieces will slightly differ.
