1979-95 Ford Mustang 5.0 Trick Flow Twisted Wedge Heads 170cc w/ Upgraded Valve Springs - 61cc Chamber

How To Install 302/351 Mustang Cylinder Heads and Valvetrain (79-95)

Add some serious gain in horsepower under the hood of your 5.0L Mustang with these 170cc twisted wedge heads from Trick Flow!

Item #TFS-51400004M61
MPN# TFS-51410004-M61

Everyday Low Price: $1,715.98

Out of Stock

This item is not eligible for discounts or coupon codes.

This item is returnable. Details

Shop Similar Products

× close

Images

Benefits

Reduces Weight
Increases Torque
Increases Horsepower

Features

170cc Volume
Aluminum Construction
61cc Combustion Chamber

What's in the Box

(2) Cylinder Heads

This part is 50-state legal - CARB E.O. #: D-747-1

1979-95 Ford Mustang 5.0 Trick Flow Twisted Wedge Heads 170cc w/ Upgraded Valve Springs - 61cc Chamber

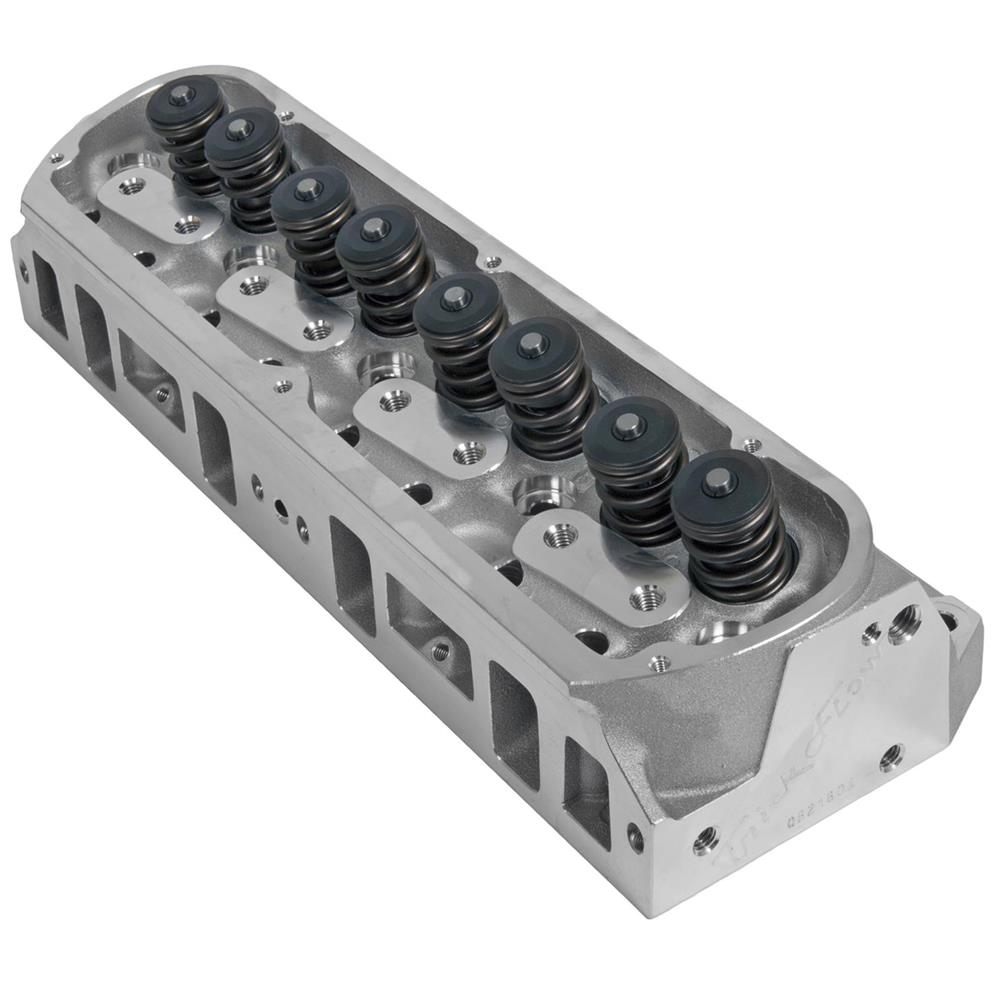

Make serious horsepower with these Twisted Wedge Street Ported 170cc Aluminum Cylinder Heads that are 50-state-emissions-legal for your 1979-1995 Mustang 5.0! Twisted Wedge heads feature an exclusive combustion chamber design. The patented 61cc chambers feature rotated intake and exhaust valves moved over the center of the cylinder bores. As a result of optimizing the valve locations, valve angles, and combustion chamber shape, the Twisted Wedge heads use stock height intake and exhaust ports that allow the use of most OEM and aftermarket intake and exhaust manifolds.The Twisted Wedge heads are built for heavy duty use, too. They have .56" thick combustion chamber walls and fire deck for strength without compromising cooling capacity. Additional support risers are strategically located in the water jacket for additional rigidity and head gasket integrity.

Head Specs

Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Combustion Chamber Volume (cc): 61cc
Intake Runner Volume (cc): 170cc
Exhaust Runner Volume (cc): 66cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Valve Diameter (in): 2.020 in.
Exhaust Valve Diameter (in): 1.600 in.
Maximum Valve Lift (in): 0.600 in.
Outside Diameter of Outer Spring (in): 1.460 in.
Number of Springs Per Valve: Dual
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 3/8-24 in.
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplate Pushrod Size: 5/16 in.
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 15
Exhaust Valve Angle: 17
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes

Application

Fits 1979-1995 Mustang 5.0

Trick Flow Warranty - Click Here

Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Engines: 5.0,

Designed for hydraulic roller camshafts.
Some piston modification may be needed depending on your specific application.
These cylinder heads will accept factory emissions (AIR Injection) and are street ported.
