1986-1995 Mustang 5.0 Trick Flow R-Series Intake Manifold w/ 75mm Throttle Opening - Black by Trick Flow

Price: 1014.99 USD
Availability: OutOfStock

1986-1995 Mustang 5.0 Trick Flow R-Series Intake Manifold w/ 75mm Throttle Opening - Black

Increase the horsepower and torque of the 5.0 in your 1979-1993 Mustang with this Black Trick Flow Series "R" Intake Manifold!

Item #TFS-51511003
MPN# TFS-51511003

Everyday Low Price: $1,014.99

Out of Stock

This item is returnable. Details

This item is not eligible for discounts or coupon codes.

This product cannot be sold or shipped to the state of California. More Details

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Improves Air Flow
Increases RPM Range
More Horsepower & Torque
Improved Under Hood Styling

Features

Black Powder Coated Upper Plenum
75mm Throttle Body Opening
Natural Finished Base
2500-7250 RPM Band

What's in the Box

(1) Upper Intake Manifold
(1) Lower Intake Manifold
(1) Gasket Set

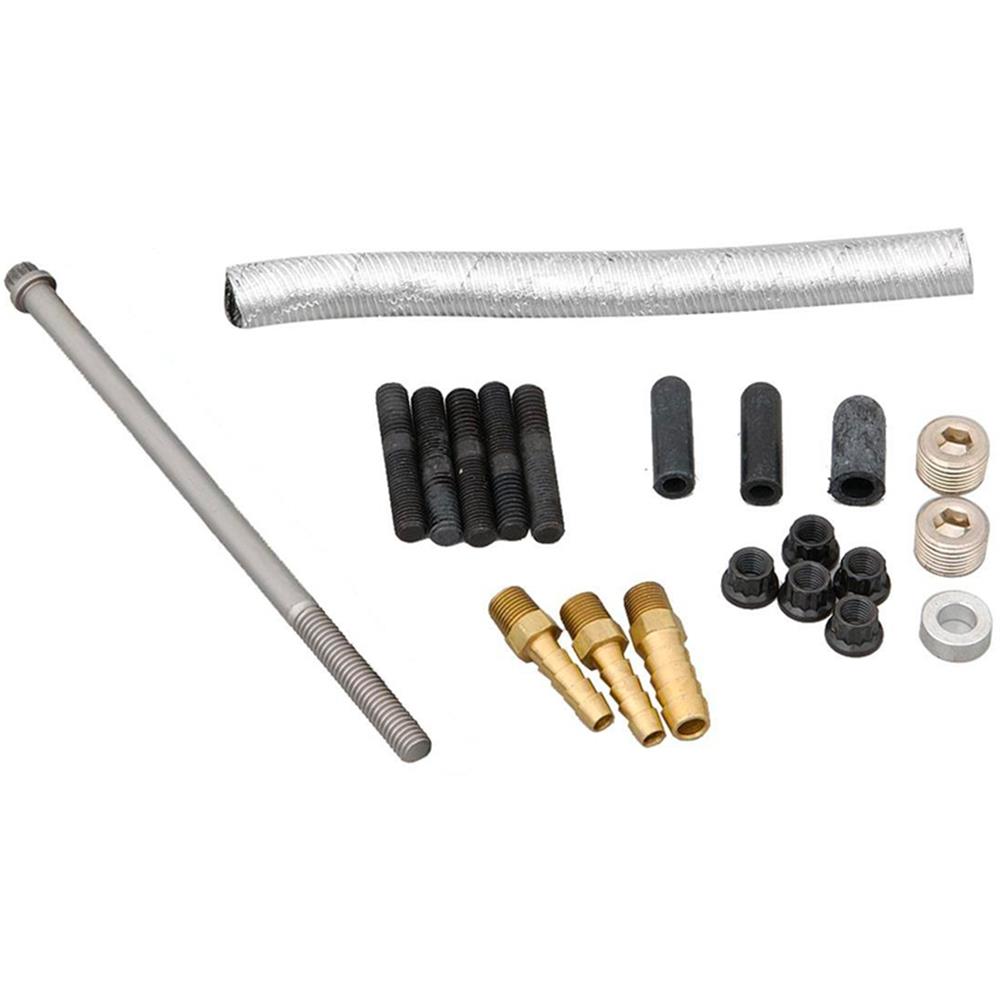

(1) Hardware Set

Trick Flow "R" Series Performance
When it comes to making horsepower, one size doesn’t fit all. That’s why Trick Flow Specialties offers several different manifold combinations for the 302 5.0. These Trick Flow R-Series EFI Intake Manifolds for 5.0L Fords are computer-engineered to deliver an excellent balance of airflow distribution and velocity to increase low-end torque and provide superior high-rpm horsepower. Pair it up with a new cold air intake, performance cylinder heads, camshaft, or even a supercharger or turbo for maximum gains!

High-Quality Construction
An upgrade in style and strength! Manufactured from A319 aluminum, this intake features a durable black powder-coated upper plenum and bare finish lower plenum. Trick Flow is a leader in the industry when it comes to making quality intake manifolds that can hold up to high rpm power.

Specifications

Runner Configuration: Large Cross Section with 12.2" Runner
RPM Range: 2,500 to 7,250 rpm</li
Throttle Inlet Diameter: 75 mm
Port Size at Head: 2.0" x 1.2"
Port size at Mating Flange: 2.38" x 1.38"
Overall Height: 11"
Upper Manifold Finish: Black Powdercoat
Lower Manifold Finish: Bare

Trick Flow Warranty - Click Here

Ford Mustang - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Engines: 5.0

Fitment Notice

Fits 1986-1995 Ford Mustang 5.0
1994-1995 Mustangs will require the use of a throttle body adapter.
If installing this Intake Manifold with Tall Valve Covers, you may need an intake spacer for proper clearance.
