Add some serious gain in horsepower under the hood of your 5.0L Mustang with these 11R 205cc twisted wedge heads from Trick Flow!

Item #TFS-52616601-K
MPN# TFS-52616601-C03

Everyday Low Price: $2,573.99

Out of Stock
This item is not eligible for discounts or coupon codes.
 This item is returnable. Details


× close

Made in the USA

 Benefits

  • Reduces Weight
  • Increases Torque
  • Increases Horsepower

 Features

  • Aluminum Construction
  • 66cc Combustion Chamber
  • High Velocity Intake Runners

 What's in the Box

  • (2) Cylinder Heads

1979-95 Mustang 5.0 Trick Flow Twisted Wedge Heads 11R 205cc w/ Upgraded Valve Springs - 66cc Chamber

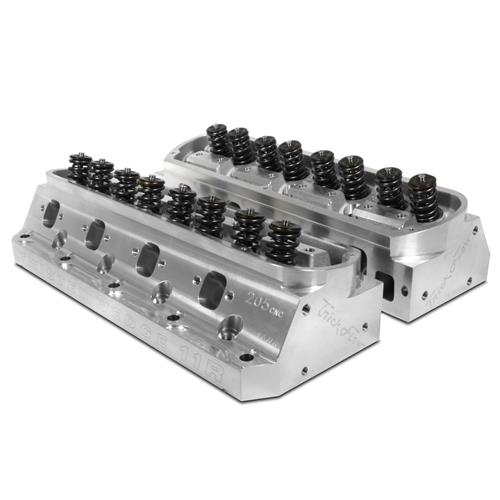

These highly potent Twisted Wedge heads have been modified with 3D modeling to feature new, modified 11 degree intake and 13 degree exhaust valve angles to provide more airflow and performance! This set features new, high velocity, CNC machined, competition ported intake runners. Trick Flow optimized these runners for modern bore and stroke combinations. These heads are for OFF-ROAD use only and will not pass emissions testing.

Head Specs

  • Cylinder Head Style: Assembled
  • Cylinder Head Material: Aluminum
  • Cylinder Head Finish: Natural
  • Combustion Chamber Volume (cc): 66
  • CNC-Machined Combustion Chamber: Yes
  • Intake Runner Volume (cc): 205cc
  • Exhaust Runner Volume (cc): 66cc
  • CNC-Machined Intake Runner: Yes
  • CNC-Machined Exhaust Runner: Yes
  • Combustion Chamber Style: Twisted Wedge®
  • Intake Port Shape: Rectangular
  • Intake Port Location: Standard
  • Exhaust Port Shape: Square
  • Exhaust Port Location: Standard
  • Spark Plug Style: Angle
  • Intake Valves Included: Yes
  • Intake Valve Diameter (in): 2.080 in.
  • Exhaust Valves Included: Yes
  • Exhaust Valve Diameter (in): 1.600 in.
  • Valve Springs Included: Yes
  • Maximum Valve Lift (in): 0.600 in.
  • Outside Diameter of Outer Spring (in): 1.295 in.
  • Damper Spring Included: Yes
  • Number of Springs Per Valve: Dual
  • Retainers Included: Yes
  • Retainer Material: Chromoly steel
  • Locks Included: Yes
  • Lock Style: 7 degree
  • Valve Stem Seals Included: Yes
  • Rocker Arm Studs Included: Yes
  • Rocker Arm Nut Thread Size: 7/16-20 in.
  • Rocker Arms Included: No
  • Rocker Arm Nuts Included: No
  • Guideplates Included: Yes
  • Guideplate Pushrod Size: 5/16 in.
  • Accessory Bolt Holes Drilled: Yes
  • Intake Valve Angle: 11
  • Exhaust Valve Angle: 13
  • Valve Guides Included: Yes
  • Valve Guide Material: Bronze
  • Valve Seats Machined: Yes
  • Valve Seat Machine Style: 3-angle
  • Valve Seat Material: Ductile iron
  • Steam Holes Drilled: No
  • Oiling Style: Through pushrod
  • Machined for O-Ring: No
  • Heat Crossover: No

Application

  • Fits 1979-95 Mustang 5.0


Trick Flow Warranty - Click Here

  • Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
  • Engines: 5.0,
  • These heads are drilled for 1/2" head bolts. 7/16" bolts will require reducer bushings.
