Spline drive lug nuts are highly recommended for installation.
WILL clear 4/6 Piston Brembo brakes, including GT, Boss 302, Mach 1, Bullitt, and PP1/PP2 applications.
WILL NOT fit GT350, GT350 R, 2020+ GT500, or M2300Y/M2300YBK brake kit.
WILL NOT fit 2024-25 Mustang Dark Horse Handling Pack.
Wheel Torque Specs
2015-2025 = 150 lb/ft
Benefits
Provides Sleek, Modern Styling
Lightweight Flow Formed Construction
Superior Fitment
Accepts Factory GT350 Center Cap
Features
Gloss Black Finish
SVE Center Cap
Size: 20x10
Lifetime Structural Warranty

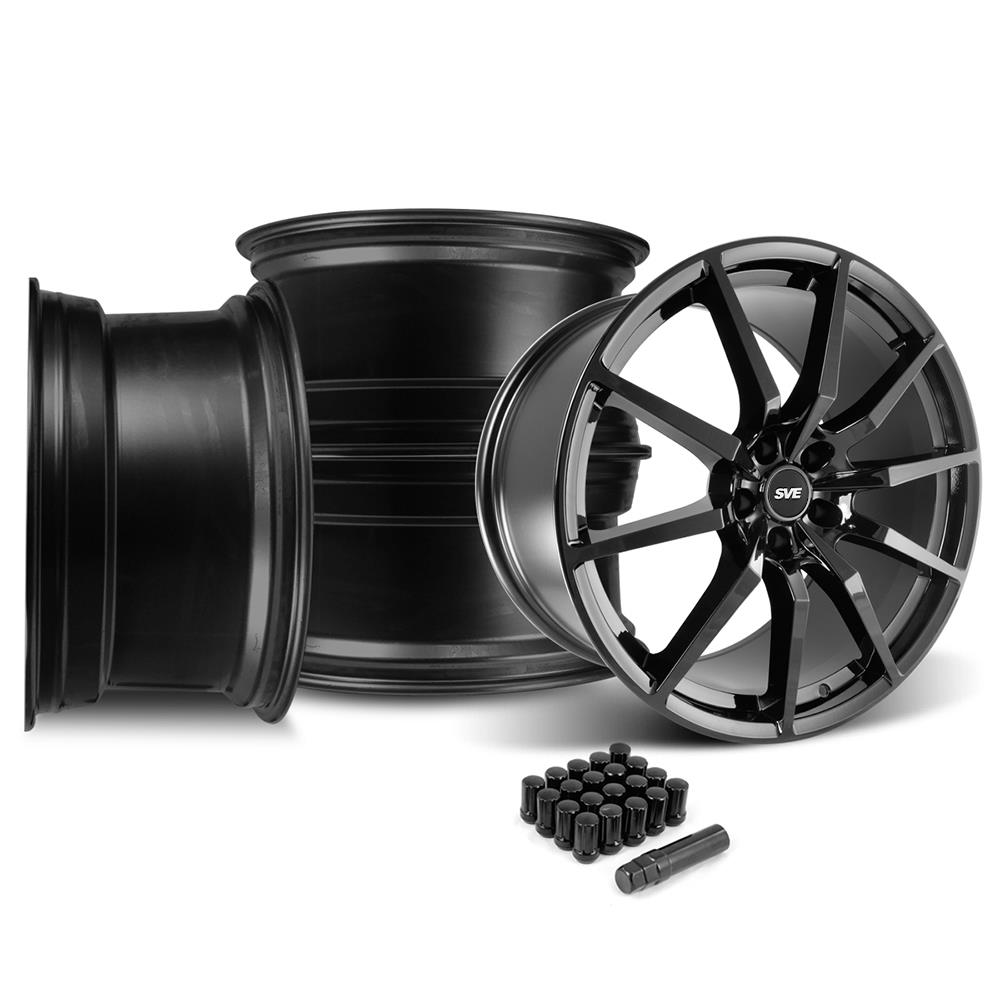

What's in the Box
(4) 20x10 S350 Wheels
(1) Spline Drive Lug Nut Kit

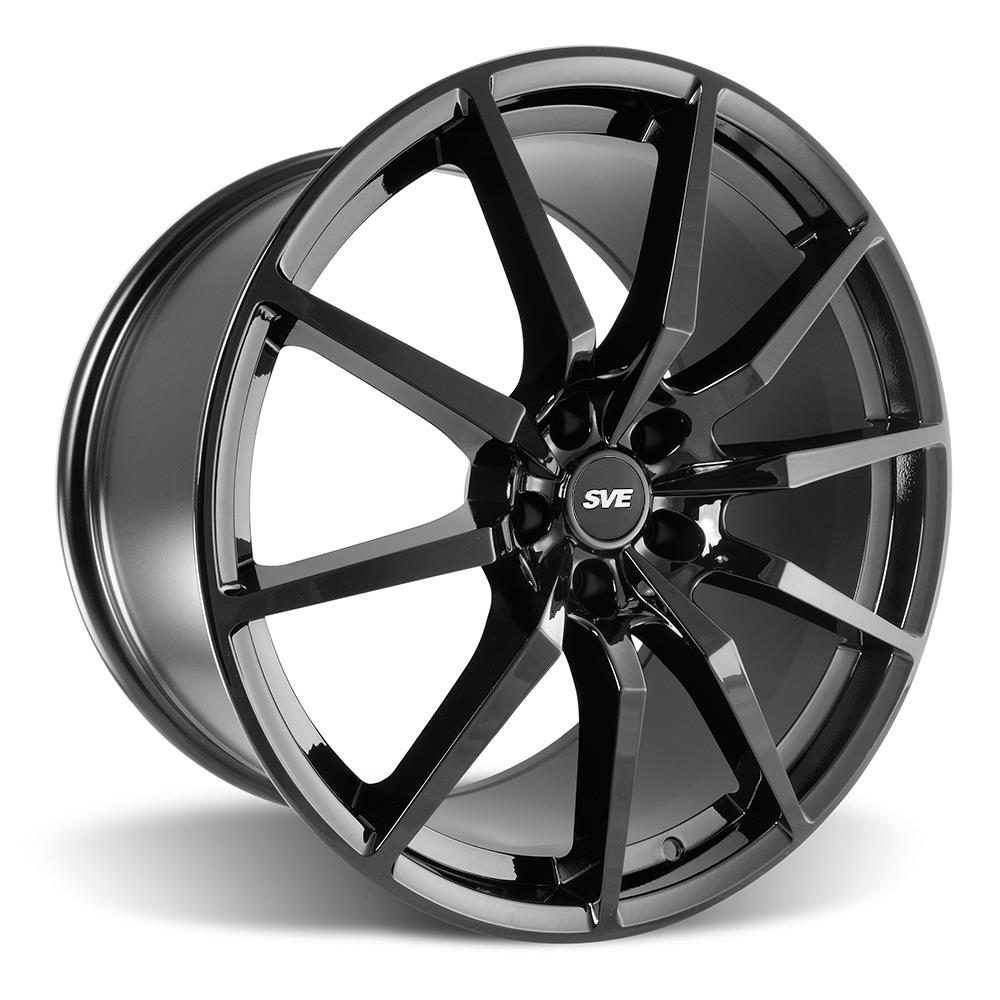

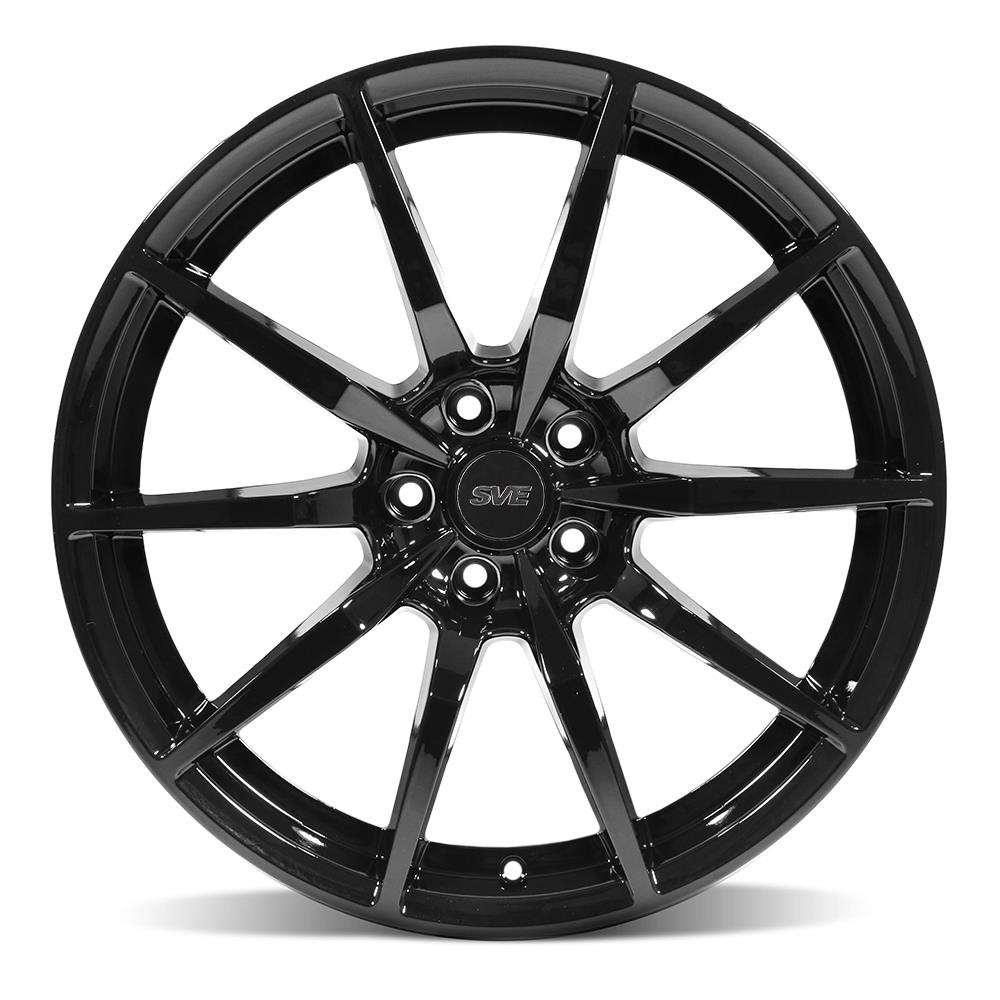

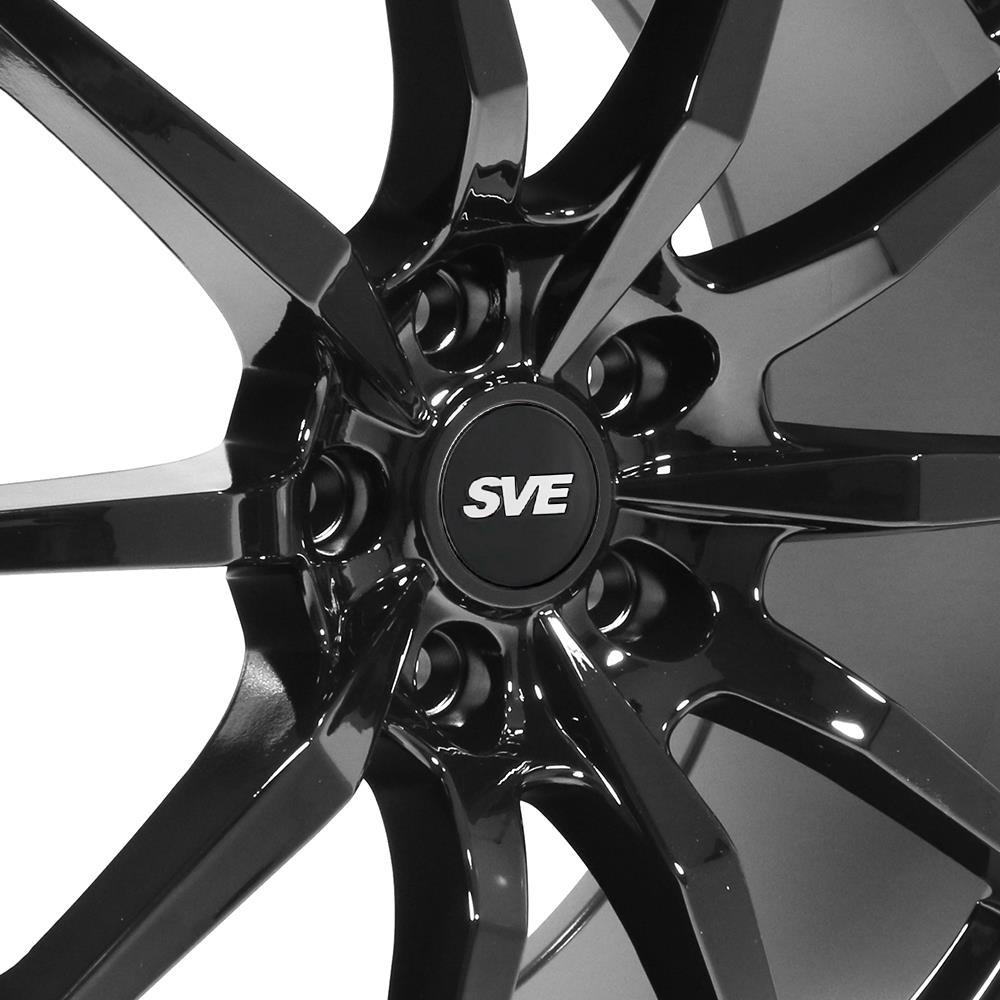

SVE Gloss Black S350 Wheel Kit These SVE S350 Mustang wheels bring a new level of style to the Mustang world. This SVE S350 wheel kit features a modern 10 spoke design in a 20" diameter. This will fill out your wheel wells while still maintaining a sleek look! The SVE S350 wheel kit features a gloss black finish, like the original wheel, that is sure to look great on any color Mustang!
Flow Formed Construction SVE's S350 wheel is constructed using the flow formed process. After casting, the wheel is then flow formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance, load capacity, and results in a very strong, lightweight wheel versus heavy, cast aluminum wheels. S350 wheels are nearly 10 pounds lighter than factory Performance Pack wheels! SVE's S350 wheel is backed by a limited lifetime structural warranty for the ultimate peace of mind!
Superior Fitment SVE carefully measured every millimeter of this wheel to ensure the best fit and finish on the market. Designed to not only flow with the body lines of your Mustang, the S350 wheel will also clear big brake packages. From the backspacing and offset, to the width and diameter, the S350 wheel provides your Mustang with superior styling and exceptional performance! Even the center cap bore is the correct size, so you have the option of inserting factory Ford GT350 center caps if desired!
SVE 20" S350 Mustang Wheels - 2005-2023 LMR.com Exclusive!
SVE 20" S350 Mustang Wheels - 2005-2023 LMR.com Exclusive!
Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!
Published on 2016-03-17 Please Note: The 20" gloss graphite wheels have been discontinued.
These SVE S350 Mustang wheels bring a new level of style to the Mustang world. This SVE S350 wheel kit features a modern 10-spoke design in a 20" diameter. This will fill out your wheel wells while still maintaining a sleek look! The SVE S350 wheel kit features a gloss black finish, like the original wheel, that is sure to look great on any color Mustang!
Flow Formed Construction. SVE's S350 wheel is constructed using the flow formed process. After casting, the wheel is then flow formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance, load capacity, and results in a very strong, lightweight wheel versus heavy, cast aluminum wheels. S350 wheels are nearly 10 pounds lighter than factory Performance Pack wheels! SVE's S350 wheel is backed by a limited lifetime structural warranty for the ultimate peace of mind!
Superior Fitment. SVE carefully measured every millimeter of this wheel to ensure the best fit and finish on the market. Designed to not only flow with the body lines of your Mustang, the S350 wheel will also clear big brake packages. From the backspacing and offset, to the width and diameter, the S350 wheel provides your Mustang with superior styling and exceptional performance! Even the center cap bore is the correct size, so you have the option of inserting factory Ford GT350 center caps if desired!
Wheel Specs: Finish: Gloss Black or Gloss Graphite Size: 20x10 Backspace: 7.07" Offset: +40mm Weight: Approx. 26lbs
Fitment Note: - Spline drive lug nuts are highly recommended for installation.
What is Wheel offset? What is backspacing? Wheel Width, Wheel Offset & Backspacing Explained by Landan with LMR: https://www.youtube.com/watch?v=euzvLAOYCrM
#LMR #SVE #Mustang
Use of this video is subject to the terms as set forth in our LMR Install Video Disclaimer | https://lmr.com/page/lmr-install-video-disclaimer
SVE Wheels® is a brand dedicated to producing premium-grade wheels that boost the aesthetics and performance of any 1979-present Mustang or Ford Lightning truck. Precision-engineered down to every millimeter, each SVE Wheel not only ensures the best fit and finish on the market, but provides performance with purpose. SVE Wheels® fuels the enthusiast lifestyle through in-depth research and development to create cutting-edge wheel solutions, built with the highest quality materials, giving you a sense of security on or off the road! As always, SVE Wheels are covered by a two-year finish warranty and a lifetime structural warranty, eliminating any guesses on which wheels are the perfect choice for your Mustang or Lightning project.
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore, a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
Wheel Width
Wheel Backspacing
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Pattern
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
Wheel Offset
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Centerbore
The centerbore of the wheel is the opening in the middle of the wheel, surrounded by the lug holes. This opening helps to center the wheel to the hub. Its diameter is typically measured in millimeters (mm) and varies in size depending on vehicle application. Manufacturers approve up to a 1% variance in tolerance to pass wheels during inspection.
