2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black by Velgen Wheels


Details   |  Reviews

Details   |   Reviews
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black
2015-23 Mustang Velgen VF5 Wheel & M/T Tire Kit - 20x10/11 - Gloss Black

Update the exterior of your 2015-2023 Mustang with this Light Weight Series, Gloss Black 20x10/11 Velgen VF5 wheel & tire kit from Late Model Restoration!

Item #WTK-VRF52011GBC

Everyday Low Price: $3,499.99

Out of Stock
 This item is returnable. Details


× close

 Benefits

  • High Quality Construction
  • Clears Brembo Brakes
  • 5 Year Manufacture Warranty

 Features

  • Light Weight Series
  • Gloss Black Finish
  • Flow Formed Construction
  • M/T Street Comp Tires

 What's in the Box

  • (2) 20x10 Velgen VF5 Wheel
  • (2) 20x11 Velgen VF5 Wheel
  • (2) 275/35/20 M/T Street Comp Tires
  • (2) 305/35/20 M/T Street Comp Tires
  • (4) TPMS Sensors
  • (1) Lug Nut Kit

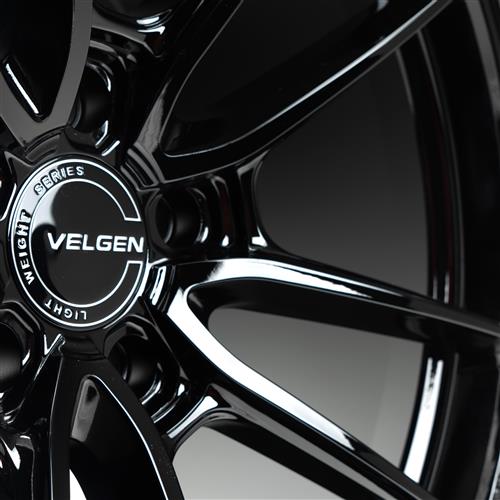

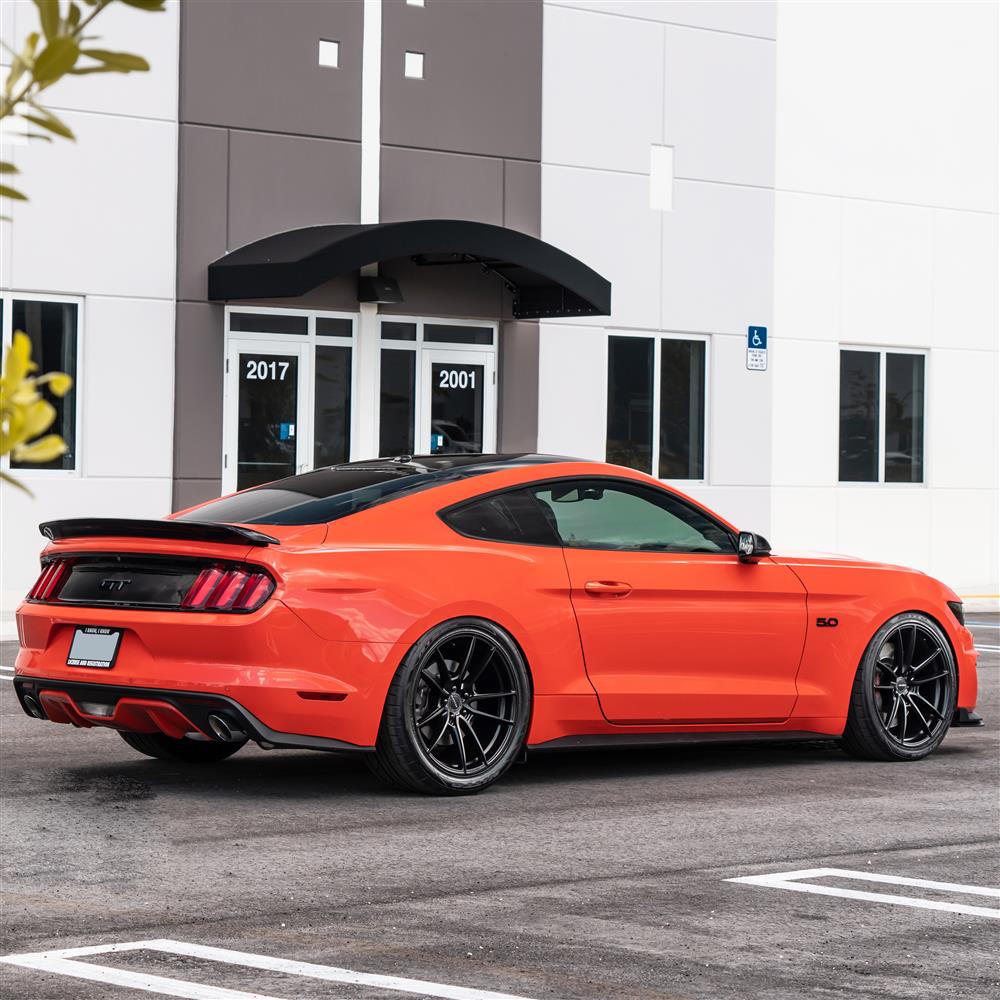

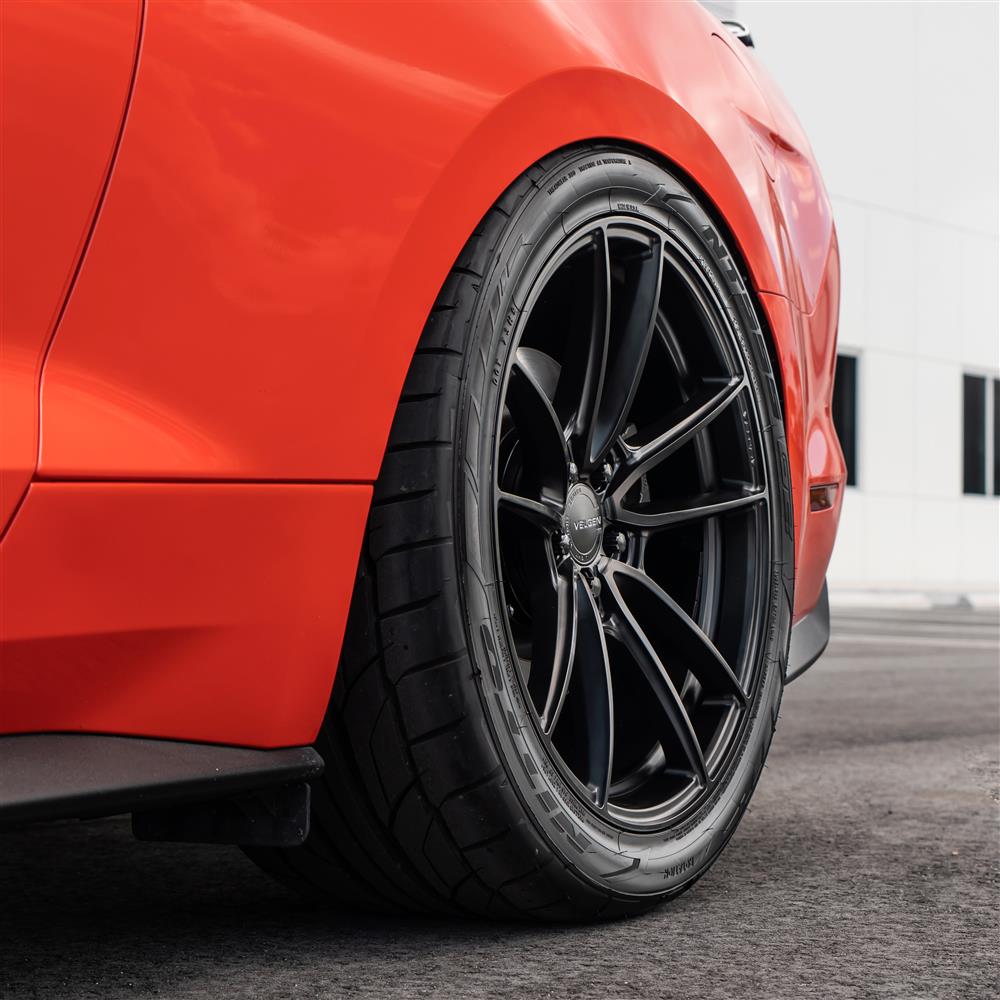

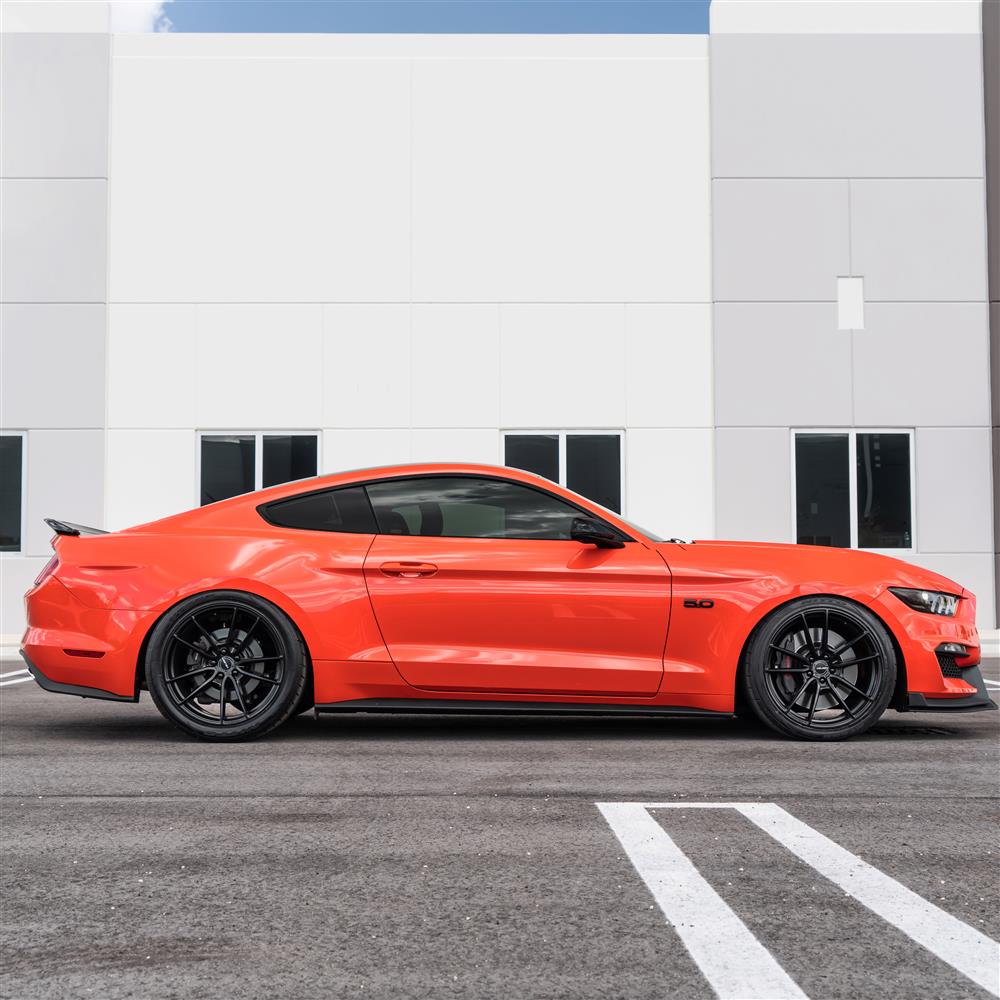

Velgen VF5 Wheel & Tire Kit
Making your 2015-2023 Mustang stand out from the crowd is the first thing any Mustang enthusiast needs to do, and Late Model Restoration has the perfect solution! The light weight series, Velgen VF5 wheels are premium wheels that will take the looks of your S550 Mustang to the next level! With a concave, multi-spoke design, the VF5 wheel & tire kit will give your Mustang an aggressive look while weighing in at only 25.20 lbs per wheel on the front and 25.80 lbs per wheel on the rear. Also featured in this kit are (2) 275/35/20 and (2) 305/35/20 M/T Street Comp tires.

Flow Formed Construction
Velgen's VF5 wheel is constructed using the flow formed process. After casting, the wheel is then flow-formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance, load capacity, and results in a very strong, lightweight wheel versus heavy, cast aluminum wheels. The VF5 wheel is backed by a 5-year manufacturer warranty and limited lifetime structural warranty for the ultimate peace of mind!

Mickey Thompson Street Comp Tires
This kit comes pre-mounted and balanced with Mickey Thompson Sport Comp tires. This tire was manufactured specifically for ultra high-performance applications. Featuring an asymmetric tread design, you get a tire that gives you high-speed cornering ability, amazing handling, and great traction, this tire is built to the same high standard Mickey Thompson is famous for. Compounded for both dry and wet traction, this tire will improve the look and handling of your Mustang with its 300 AA A UTQG rating.

Tire Specs
  • Tire Diameter: 275/35/20, 27.6"
  • Tread Width: 9.7
  • Section Width: 10.7
  • Approximate Weight - 29lbs
  • Tire Diameter: 305/35/20, 28.4"
  • Tread Width: 10.6
  • Section Width: 12.3
  • Approximate Weight : 33lbs

From Start To Finish
All Mustang wheel and tire kit orders are handled professionally and with the highest level of quality to make sure they are ready to bolt on when they arrive on your doorstep! Our facilities utilize high tech digital mounting equipment, trained technicians, and a clean work area. All mounting and balancing is done FREE of charge with the purchase of any Mustang wheel & tire kit!


Velgen Wheel/Wheel & Tire Kit Warranties - Click Here

Wheel Specs Front Rear
Diameter 20" 20"
Width 10" 11"
Bolt Pattern 5x114.3 mm. 5x114.3 mm.
Offset +33 mm. +55 mm.
Backspacing 6.8 in. 8.17 in.
Centerbore 70.6 mm. 70.6 mm.
Weight 25.2 lbs 25.8 lbs
  • Ford Mustang - 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Fitment Notice
  • WILL clear 4/6 Piston Brembo brakes, including GT, Boss 302, Mach 1, Bullitt, and PP1/PP2 applications.
  • WILL NOT fit GT350, GT350 R, 2020+ GT500, or M2300Y/M2300YBK brake kit.
  • The sensors included with this kit are Schrader sensors. These sensors are self learning and do not require a TPMS learning tool or for Ford to reprogram TPMS system.
Wheel Torque Specs
  • 2015-2023 = 150 lb/ft
  • Wheel & Tire Kit Mounting & Balancing Process
