WILL clear 4/6 Piston Brembo brakes, including 2007-2014 GT500 applications.
It may NOT fit aftermarket brake kits. Please see the manufactures recommended clearance notes for the brake kit you have.
2015-2025 fitment notes
WILL clear 6 Piston Brembo brakes, including Mach 1, Bullitt, and PP1/PP2 applications.
WILL NOT fit GT350, GT350 R, 2020+ GT500, or M2300Y/M2300YBK brake kit.
WILL NOT fit 2025 Mustang Dark Horse Handling Pack.
It may NOT fit aftermarket brake kits. Please see the manufactures recommended clearance notes for the brake kit you have.
These wheel and tire kits do NOT include TPMS sensors. You MUST re-use your existing TPMS sensors or purchase a new TPMS sensor kit when purchasing a set of our wheels.
This wheel does not include lug nuts. New spline drive lug nuts are required for installation. Your stock lug nuts will not work!
Wheel Torque Specs
2005-2014 = 100 lb/ft
2015-2025 = 150 lb/ft
Benefits
Sleek Modern Design
Lightweight, Flow Formed Construction
Superior Fitment
Features
Liquid Graphite Finish
Concave, 7-Spoke Design

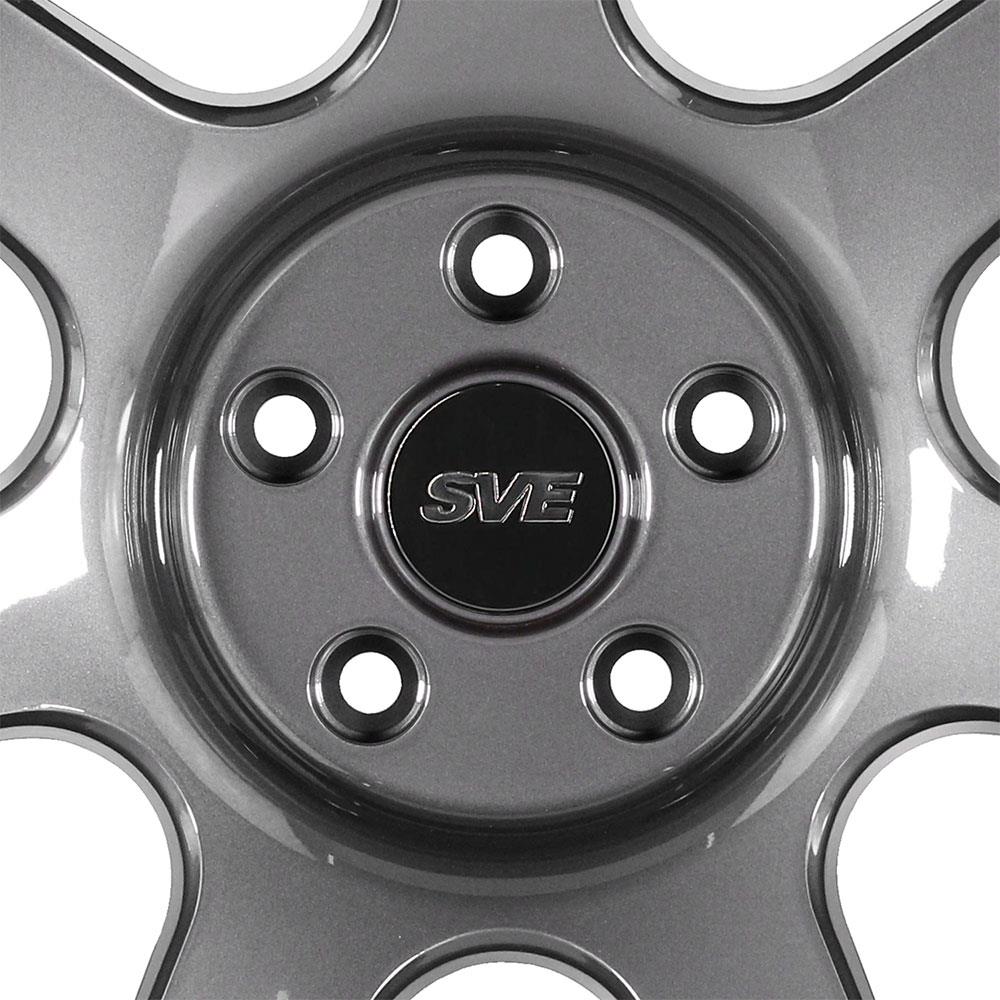

SVE R Center Cap
Lifetime Structural Warranty
What's in the Box
(1) 19x10 R350 Wheel

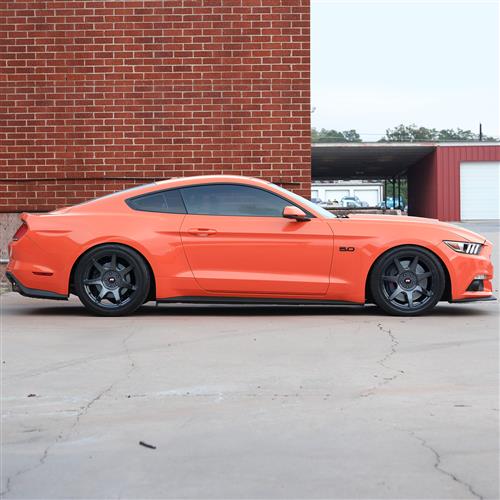

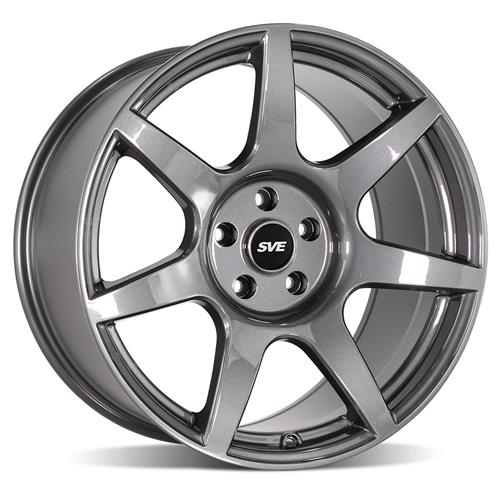

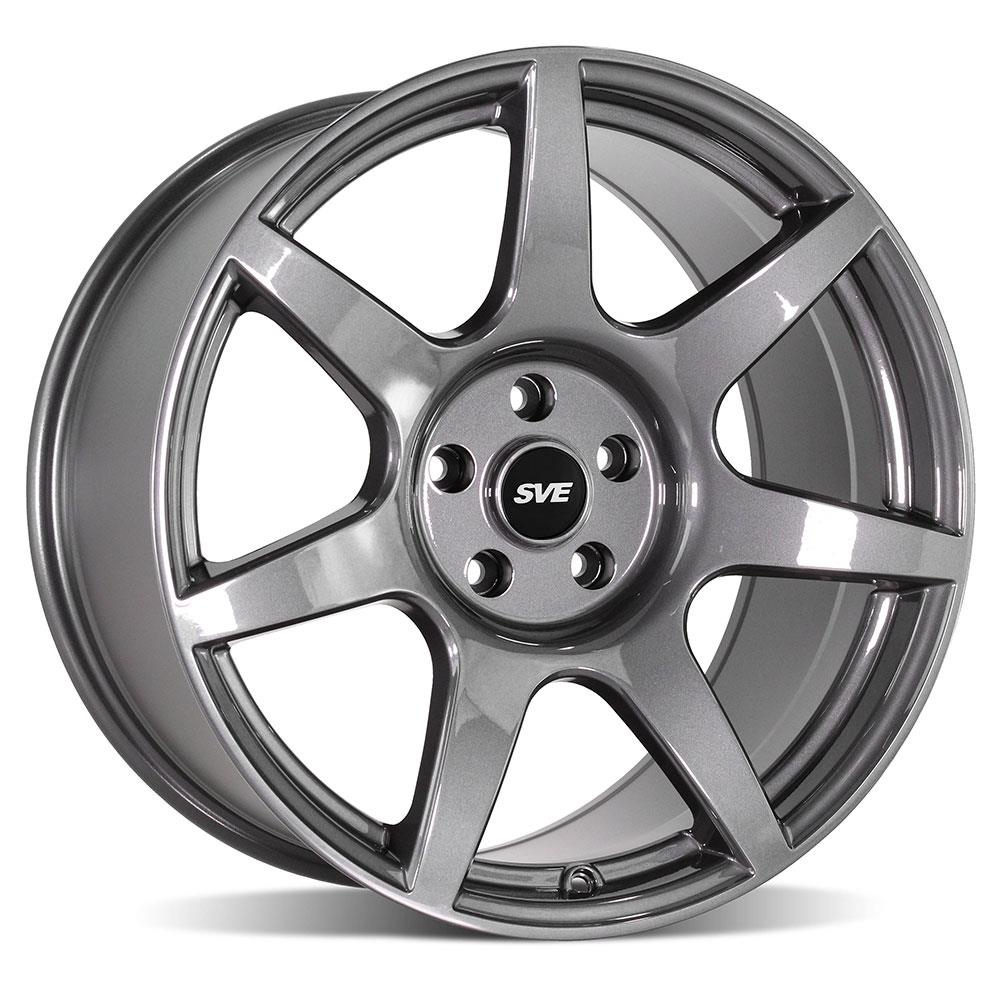

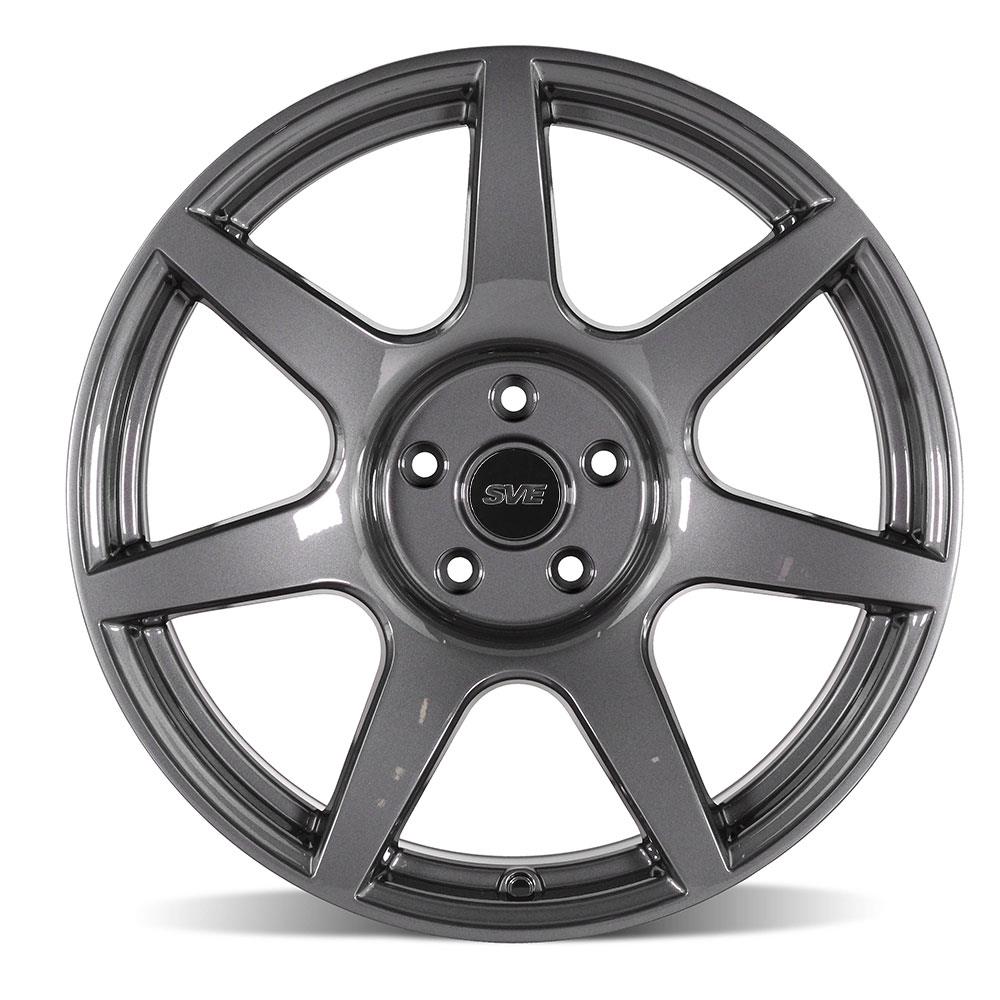

Mustang Liquid Graphite SVE R350 Wheel Invigorate the look of your 2005-2025 Mustang with this liquid graphite, 19x10 SVE R350 wheel! The R350 wheel transcends the wheel market with a flawless blend of race-inspired design and elegant styling. SVE's R350 wheel uses flow formed aluminum for light weight performance at an economical price! Featuring a concave, 7-spoke design; the R350 wheel highlights the body lines of S197, S550, and S650 Mustangs. Each concave spoke descends to the center section of the wheel, where an SVE "R" center cap resides. Finished in a sleek, liquid graphite paint; your new SVE R350 wheel will look right at home on any color Mustang!
Flow Formed Construction SVE's R350 wheel is constructed using the flow formed process. After casting, the wheel is then flow-formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance, load capacity, and results in a very strong, lightweight wheel versus heavy, cast-aluminum wheels. SVE's R350 wheels are nearly 10 pounds lighter than factory Performance Pack wheels! The R350 wheel is backed by a limited lifetime structural warranty for the ultimate peace of mind!
Superior Fitment SVE carefully measured every millimeter of this wheel to ensure the best fit and finish on the market. Designed to not only flow with the body lines of your Mustang, the R350 wheel is designed to clear large brake packages. From the backspacing and offset, to the width and diameter, the R350 wheel provides your Mustang with superior styling and phenomenal performance!
Due to variations in lighting, the color of this wheel vary slightly in person compared to pictures displayed.
2005-2023 Mustang SVE R350 Flow Formed Wheels - LMR.com Exclusive!
SVE R350 Flow Formed Mustang Wheels - Review 2005-2023
Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!
Published on 2017-09-25 The R350 wheel transcends the wheel market with a flawless blend of race-inspired design and elegant styling. SVE's R350 wheel uses flow formed aluminum for lightweight performance at an economical price! Featuring a concave, 7-spoke design; the R350 wheel highlights the body lines of both S197 and S550 Mustangs.
SVE's R350 wheel is constructed using the flow formed process. Flow forming provides greater shock resistance, load capacity, and results in a very strong, lightweight wheel versus heavy, cast-aluminum wheels. SVE carefully measured every millimeter of this wheel to ensure the best fit and finish on the market. Designed to not only flow with the body lines of your Mustang, the R350 wheel is designed to clear large brake packages. From the backspacing and offset, to the width and diameter, the R350 wheel provides your Mustang with superior styling and phenomenal performance!
Published on 2017-09-27 Invigorate the look of your 2015-2022 Mustang with an R350 wheel or wheel and tire kit. The R350 wheel transcends the wheel market with a flawless blend of race inspired design, and elegant styling. SVE's R350 wheel uses flow formed aluminum for light weight performance at an economical price! Featuring a concave, 7-spoke design; the R350 wheel highlights the body lines of your S550 Mustang. Each concave spoke descends to the center section of the wheel, where an SVE "R" center cap resides. Finished in a gloss black, liquid graphite, or satin bronze paint; your new SVE R350 wheels will look right at home on any color Mustang!
Flow Formed Construction. SVE's R350 wheel is constructed using the flow forming process. After casting, the wheel is then flow formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance, load capacity, and results in a very strong, lightweight wheel versus heavy, cast aluminum wheels. SVE's R350 wheels are nearly 10 pounds lighter than factory Performance Pack wheels! The R350 wheel is backed by a limited lifetime structural warranty for the ultimate peace of mind!
Superior Fitment. SVE carefully measured every millimeter of this wheel to ensure the best fit and finish on the market. Designed to not only flow with the body lines of your Mustang, the R350 wheel is designed to clear large brake packages. From the backspacing and offset, to the width and diameter, the R350 wheel provides your Mustang with superior styling and phenomenal performance!
SVE Wheels® is a brand dedicated to producing premium-grade wheels that boost the aesthetics and performance of any 1979-present Mustang or Ford Lightning truck. Precision-engineered down to every millimeter, each SVE Wheel not only ensures the best fit and finish on the market, but provides performance with purpose. SVE Wheels® fuels the enthusiast lifestyle through in-depth research and development to create cutting-edge wheel solutions, built with the highest quality materials, giving you a sense of security on or off the road! As always, SVE Wheels are covered by a two-year finish warranty and a lifetime structural warranty, eliminating any guesses on which wheels are the perfect choice for your Mustang or Lightning project.
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore, a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
Wheel Width
Wheel Backspacing
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Pattern
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
Wheel Offset
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Centerbore
The centerbore of the wheel is the opening in the middle of the wheel, surrounded by the lug holes. This opening helps to center the wheel to the hub. Its diameter is typically measured in millimeters (mm) and varies in size depending on vehicle application. Manufacturers approve up to a 1% variance in tolerance to pass wheels during inspection.
