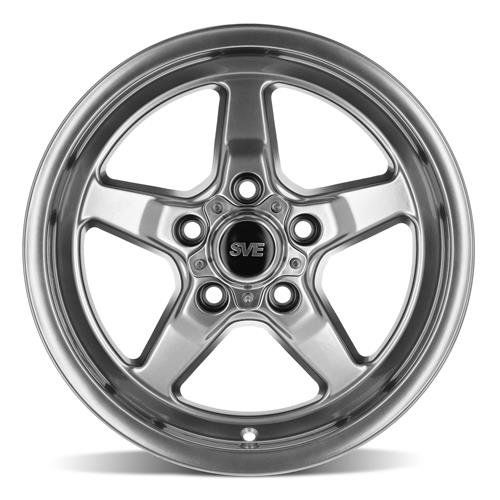

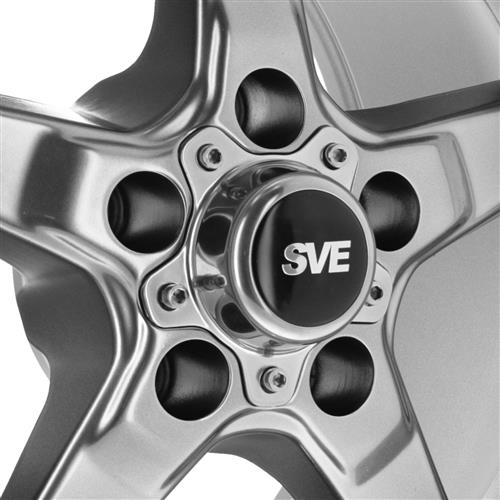

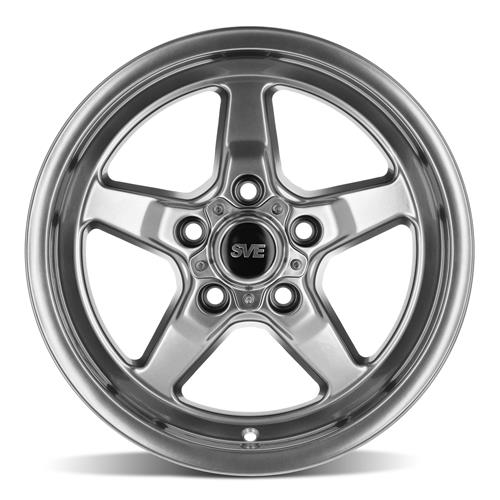

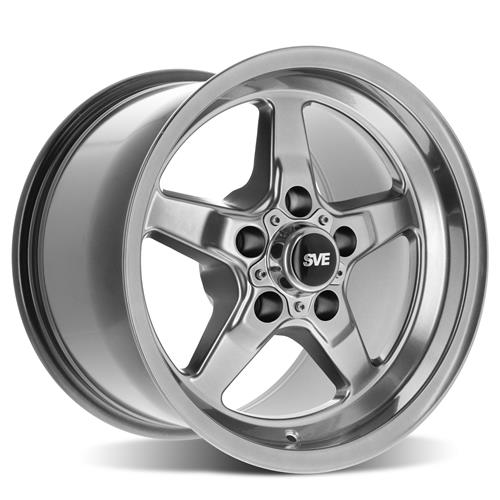

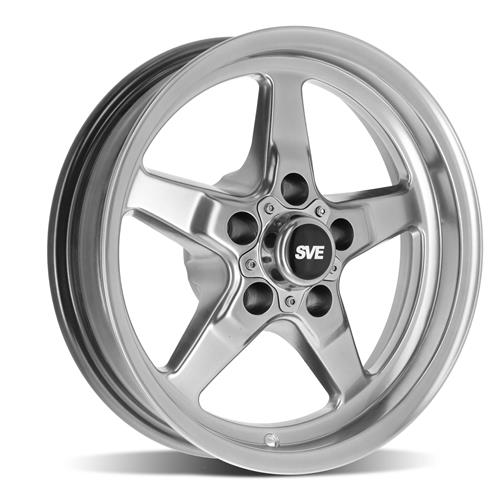

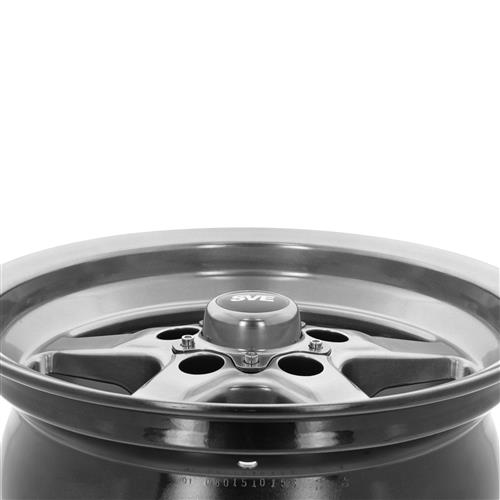

2005-10 Mustang SVE Drag "Classic" Wheel & Tire Kit - 15x3.75 /10 - Dark Stainless by SVE Wheels ®

This 2005-2014 Mustang SVE Drag "Classic" wheel and tire kit is a great way to get your S197 ready for the track!

Item #WTK-10071653DH

Everyday Low Price: $1,549.99

Out of Stock

This item is returnable. Details

× close

Images

Ford Mustang - 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

Fitment Notice

Late Model Restoration is not responsible for damages or replacement to any brakes, brake components, or suspension components caused by customer modification.
Designed for use with 1/2" diameter wheel studs.
Spline drive lug nuts are recommended due to the narrow lug cavity.
The use of rear sway bar relocation brackets (SVE-5772BRKT) is a must for this wheel kit.
2005-2010 Mustang
- Fits 2005-2010 V6 & GT
- Will NOT clear 2011-2014 V6, 2011-2014 GT, 07-14 GT500, Boss 302, or any 4/6 Piston Brembo brakes

Wheel Torque Specs

1979-2014 = 100 lb/ft

Benefits

Reduced Weight
Increased Traction
No Washers Needed
Improved Track Times
Comes Mounted and Balanced

Features

Hub Centric
Direct Drilled
Dark Stainless Finish
Bolt-On SVE Center Cap
Nexen SB802 Radial Tires
Mickey Thompson Drag Radials
Includes Swaybar Relocation Brackets

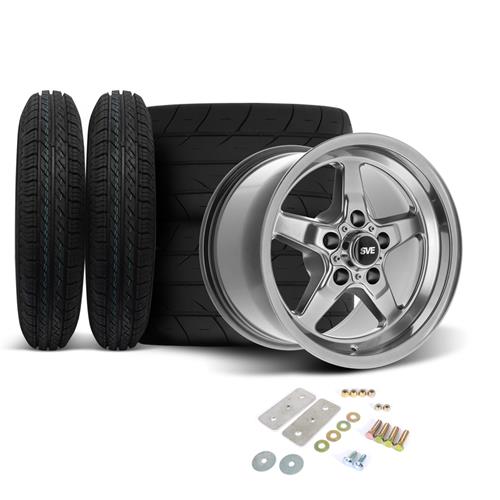

What's in the Box

(2) 15X3.75" SVE Drag Wheels
(2) 15X10" SVE Drag Wheels
(2) 165/80R15 Nexen SB802 Radial Tires
(2) 275/60R15 Mickey Thompson Drag Radials
(1) Pair Steeda Sway Bar Relocation Brackets

SVE Drag "Classic" Wheel and Tire Kit
This 2005-2010 Ford Mustang SVE drag wheel kit is a great way to get your drag car ready for the track! The Dark Stainless SVE Drag wheel kit features two 15X3.75 and two 15x10 wheels to give you an awesome look and great performance! Plus, we've refined this wheel by making installation hassle-free by utilizing a hub-centric wheel. No washers to lose or shank lugs to complicate bolting them on, use acorn style nuts for quick changes at the track. Pick up a set today and drop your ET in your S197 Ford Mustang.

Why Drag Wheels?
Switching to SVE Mustang drag wheels reduces weight and allows for track-specific, performance tires to be mounted on your Mustang. The front SVE wheels, known as front-runners, are skinnier than regular wheels to keep your front end as light as possible. The rear wheels are offered in 10" to mount wider tires, drag radials or slicks for more traction. This allows you to launch harder and improve your ET's at the track.

Mickey Thompson ET Street S/S Radial Tires
The Mickey Thompson ET Street S/S Radial line is specifically designed for modern performance cars that require bigger wheel diameters for brake clearance. This tire features a soft compound for superior traction on the drag strip, while the radial construction allows for excellent ride control on the street. Constructed with polyester ply and steel belts for strength and durability.

Nexen SB802 All-Season Radial Tires
The Nexen SB802 165/80R15 tire is just the ticket to lower your ET and have faster trap speeds. This radial tire has a 3 groove straight tread design with tightly spaced blocks for quiet operation. This is a great tire for the front of your Mustang while at the strip and can be used to get to and from the track but we do NOT recommend these for daily use on your Mustang.

Drag Wheel/Lug Nut Disclaimer

When using longer than factory studs, an open end lug nut is required.

Drag Radial Disclaimer

All Drag Radial tires are designed for drag racing use. While Mickey Thompson ET Street Radial tires, Nitto NT05R, and NT555R2 meet Department of Transportation requirements for marking and performance, they are recommended for DRY PAVEMENT USE ONLY. It is not recommended that radial and non-radial tires be mixed on the same vehicle.
Due to the composition and design of soft compound tires, ride and handling can be different than standard compound tires. This includes but not limited to tracking, vibrations, and/or a floating sensation.

5.0 Resto and SVE Wheel Limited Warranty - Click Here

Wheel Specs	Front	Rear
Diameter	15"	15"
Width	3.75"	10"
Bolt Pattern	5x114.3 mm.	5x114.3 mm.
Offset	-28 mm.	+41 mm.
Backspacing	1.2 in.	7.12 in.
Centerbore	70.6 mm.	70.6 mm.
Weight	14 lbs	17 lbs
