Spline drive lug nuts are recommended due to the narrow lug cavity.
This wheel is specifically designed as a rear wheel ONLY. It will NOT fit on the front of your Mustang.
Wheel Torque Specs
1979-2014 = 100 lb/ft
Benefits
1 Piece Aluminum Construction
Direct Fit
Exclusive From LMR
Features
Gloss Black Finish

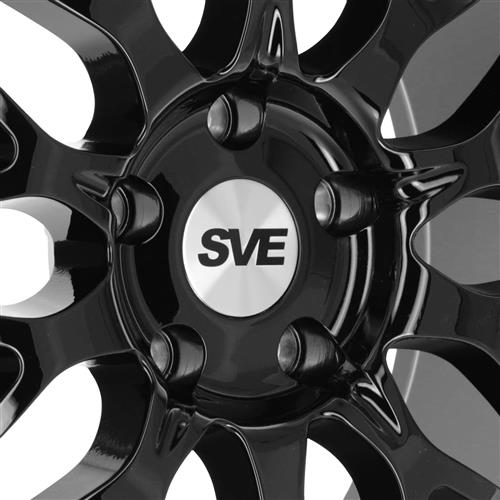

Brushed SVE Center Cap

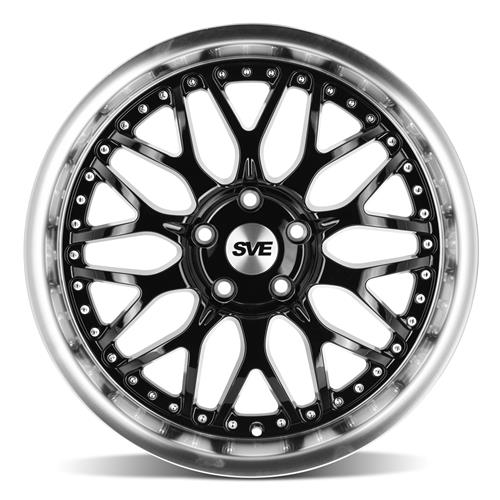

Split Multi Spoke Design
What's in the Box
(1) 18x10" SVE Series 3 Wheel

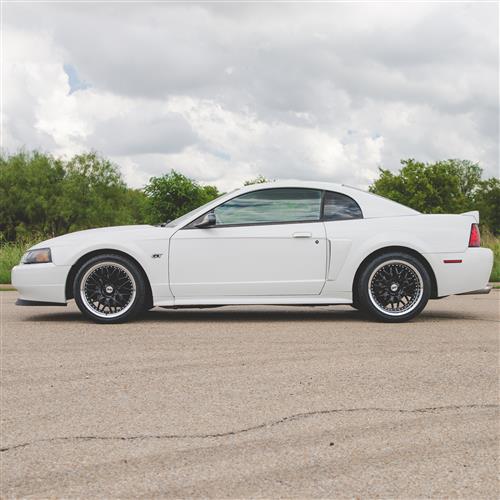

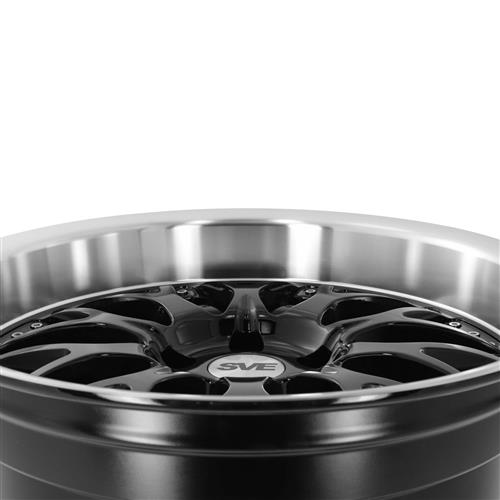

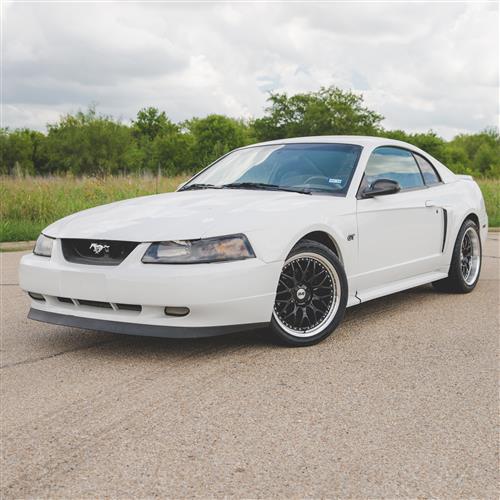

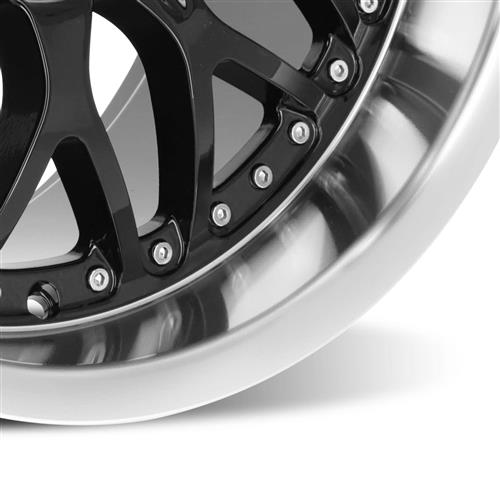

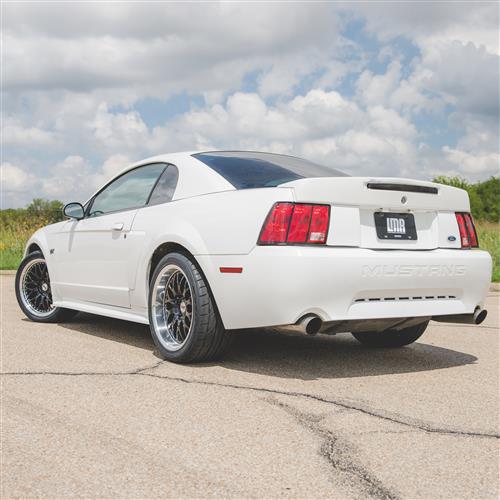

1994-2004 Mustang SVE Series 3 Wheels It's time to make your 1994-2004 SN95 or New Edge Ford Mustang stand out from others! The SVE Series 3 wheel offers a level of class that is hard to beat. With the split multi-spoke design, this Series 3 wheel is in a league of its own! The SVE Series 3 wheel comes with a brushed center cap, and the "SVE" logo is painted black. The machined lip and chrome rivets finish the gloss black wheel off and add that extra pop. Upgrade your wheels today with an SVE Series 3. These wheels are offered exclusively by Late Model Restoration!

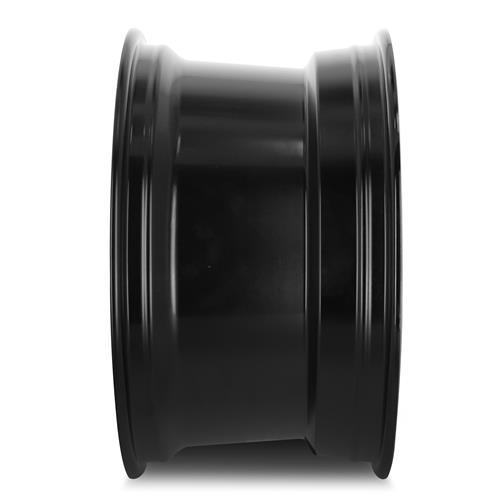

High-Quality Construction These SVE Series 3 wheels are made from high-quality components to give you a great-looking wheel that performs under any racing or driving conditions. With a one-piece aluminum construction, this lightweight wheel weighs in at 26 lbs, lighter than many aftermarket aluminum wheels.
SN95 Spindle Wheels - Clearance Notes
1979-04 Mustang (All)
Installation of wheels that are wider than the factory wheels on the rear of your Mustang may require fender rolling and exhaust modification for proper fitment.
Rear quad shock equipped Mustangs may need to have the quad shocks reversed or removed for proper fitment. Please check for clearance before driving.
The 1996-2004 spindle can still be easily used, but these will have a slightly different position for the outer tie rod end and may cause bumpsteer in some cases. These will also kick the wheel out around 8mm.
1979-93 Mustang (All)
Must be using 1994-2004 Mustang spindles for correct fitment.
Steering rack limiters May be needed to eliminate rubbing issues when turning the front wheel.
1979-90 Mustang (All)
Due to smaller front wheel openings, installing wheels or tires that are wider than the factory may require additional clearance on front fenders.
A 1/8" Wheel Spacer may be required to ensure the rear center caps are adequately secured.
For information on installing these wheels on a 1979-1993 Fox Body Mustang, please review our detailed Fox Body Wheel & Tire Fitment Guide for everything required.
1994-2004 Ford Mustang SVE Series 3 Wheels - Review
1994-2004 Ford Mustang SVE Series 3 Wheels - Review
Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!
Published on 2018-10-10 Mustang Series 3 Satin Bronze Wheel. Featuring split, multi-spoke mesh spokes; the Series 3 wheel is the perfect combination of high-class styling and race-inspired design! The 18" diameter gracefully fills out your wheel wells without sacrificing performance. Available in gloss black, gunmetal, chrome, and satin bronze; there's an SVE Series 3 wheel that is the perfect match for any color Mustang!
SVE Quality. SVE carefully measured every millimeter of this wheel to ensure the best fit, and finish, for your Mustang. From the backspacing and offset, to the 9" width and 18" diameter, the Series 3 wheel provides your Mustang with superior styling and exceptional performance! Constructed using 1-piece, cast aluminum; the Series 3 wheel is built to last! SVE wheels are backed by a two-year finish warranty, and lifetime structural warranty, for the ultimate peace of mind!
SVE Wheels® is a brand dedicated to producing premium-grade wheels that boost the aesthetics and performance of any 1979-present Mustang or Ford Lightning truck. Precision-engineered down to every millimeter, each SVE Wheel not only ensures the best fit and finish on the market, but provides performance with purpose. SVE Wheels® fuels the enthusiast lifestyle through in-depth research and development to create cutting-edge wheel solutions, built with the highest quality materials, giving you a sense of security on or off the road! As always, SVE Wheels are covered by a two-year finish warranty and a lifetime structural warranty, eliminating any guesses on which wheels are the perfect choice for your Mustang or Lightning project.
Email Me When It's Back In Stock!
Email Me When It Arrives!
Wheel Diameter
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore, a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
Wheel Width
Wheel Backspacing
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Pattern
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
Wheel Offset
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Centerbore
The centerbore of the wheel is the opening in the middle of the wheel, surrounded by the lug holes. This opening helps to center the wheel to the hub. Its diameter is typically measured in millimeters (mm) and varies in size depending on vehicle application. Manufacturers approve up to a 1% variance in tolerance to pass wheels during inspection.
