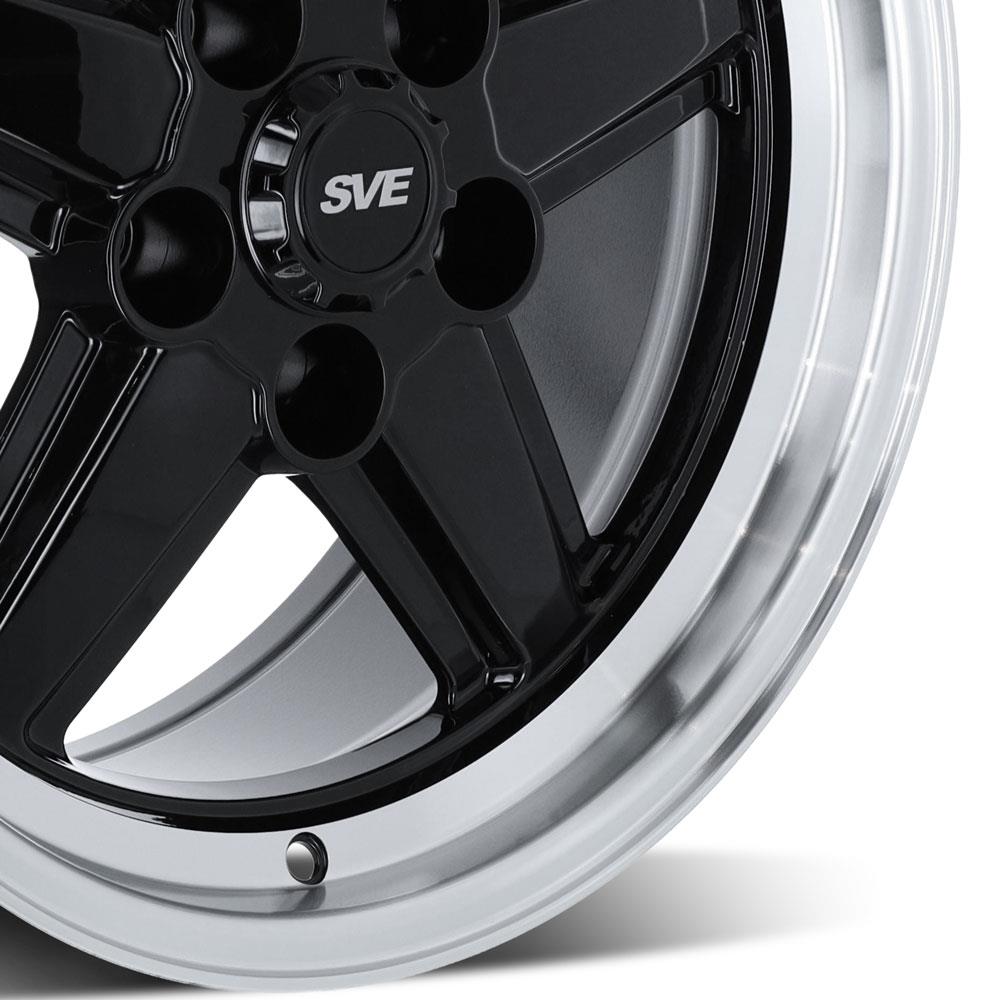

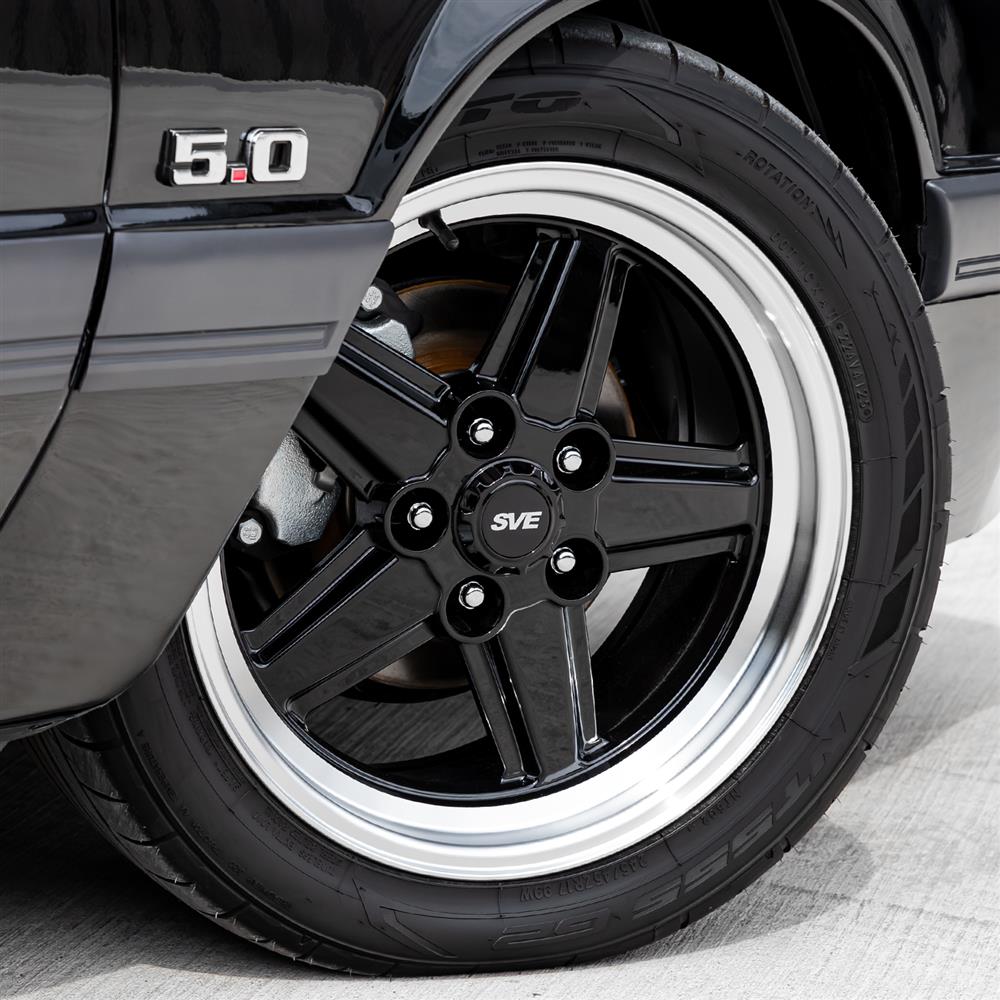

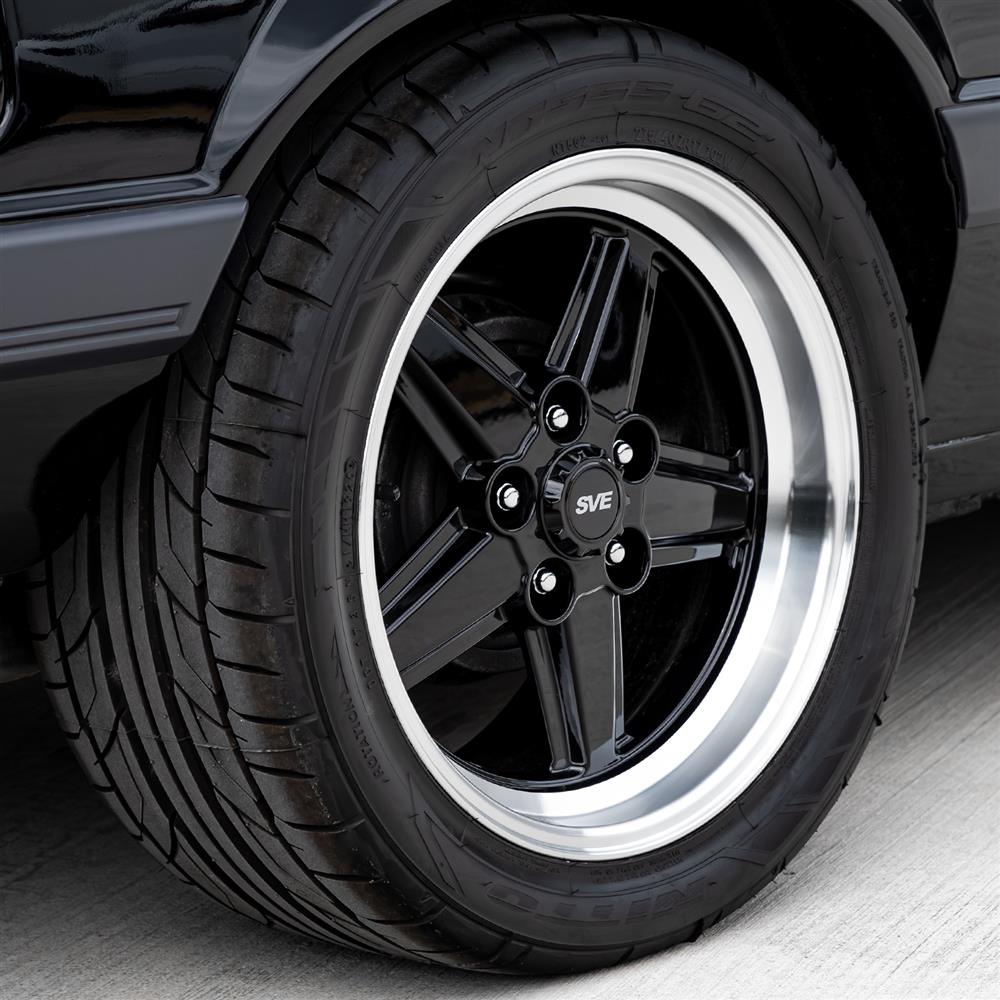

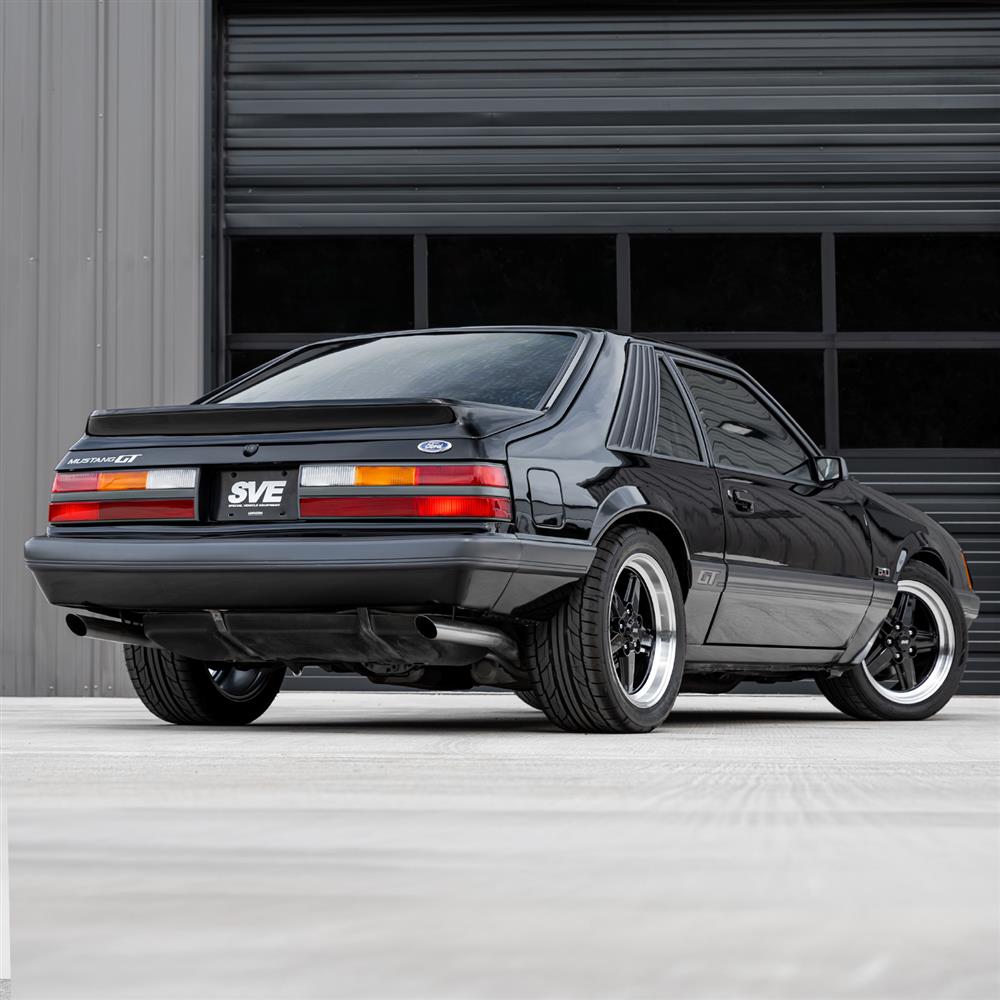

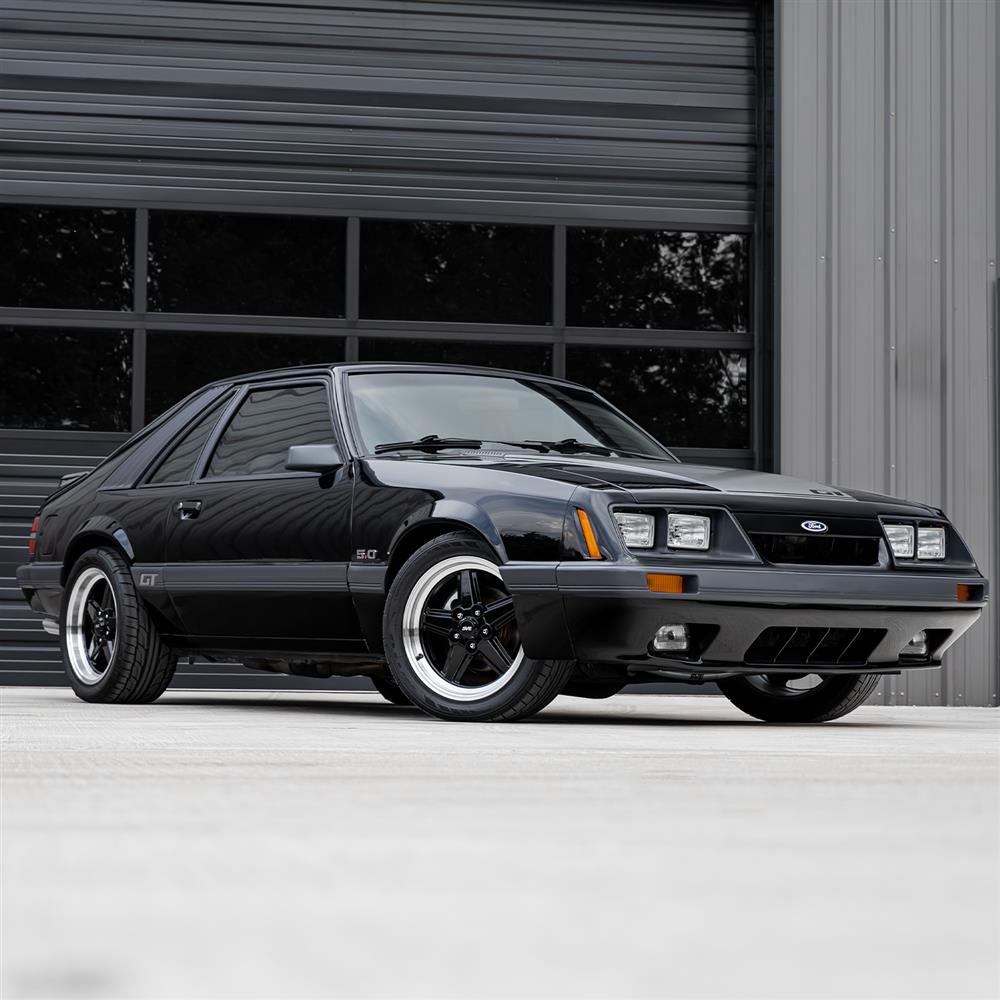

1979-93 Mustang SVE 5 Lug S89 Wheel Kit - 17x8/9 - Black by SVE Wheels ®

Price: 999.99 USD
Availability: InStock

1979-93 Mustang SVE 5 Lug S89 Wheel Kit - 17x8/9 - Black

Capture the spirit of 90s Fox Body styling with this Flow Formed gloss black, 5 lug 17x8/9 1979-1993 Mustang SVE S89 wheel kit!

Item #WK-115792

Everyday Low Price: $999.99

In Stock

This item is returnable. Details

Free Shipping over $99

Add to Cart

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Timeless Retro Aesthetics
Exceptional Fit & Finish
Industry Leading Warranty
Superior SVE Quality

Features

Flow Formed Construction
5-Lug Bolt Pattern

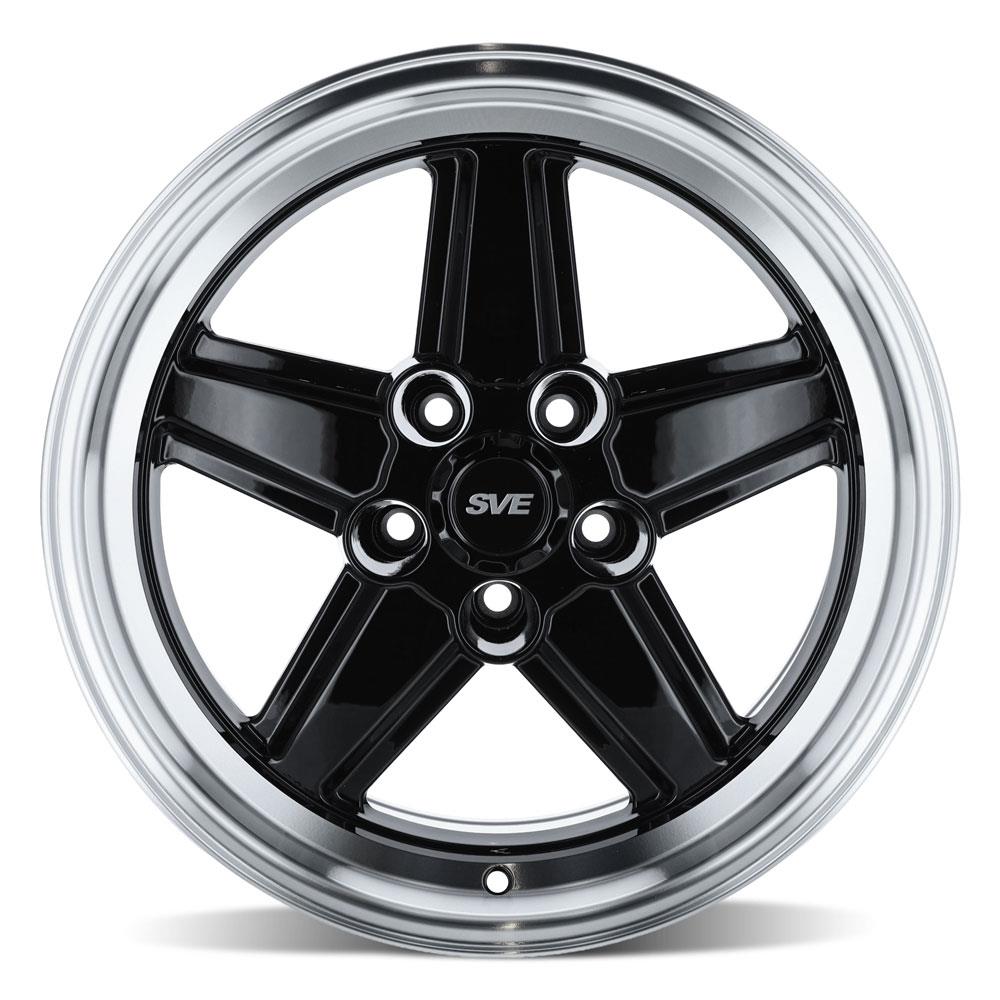

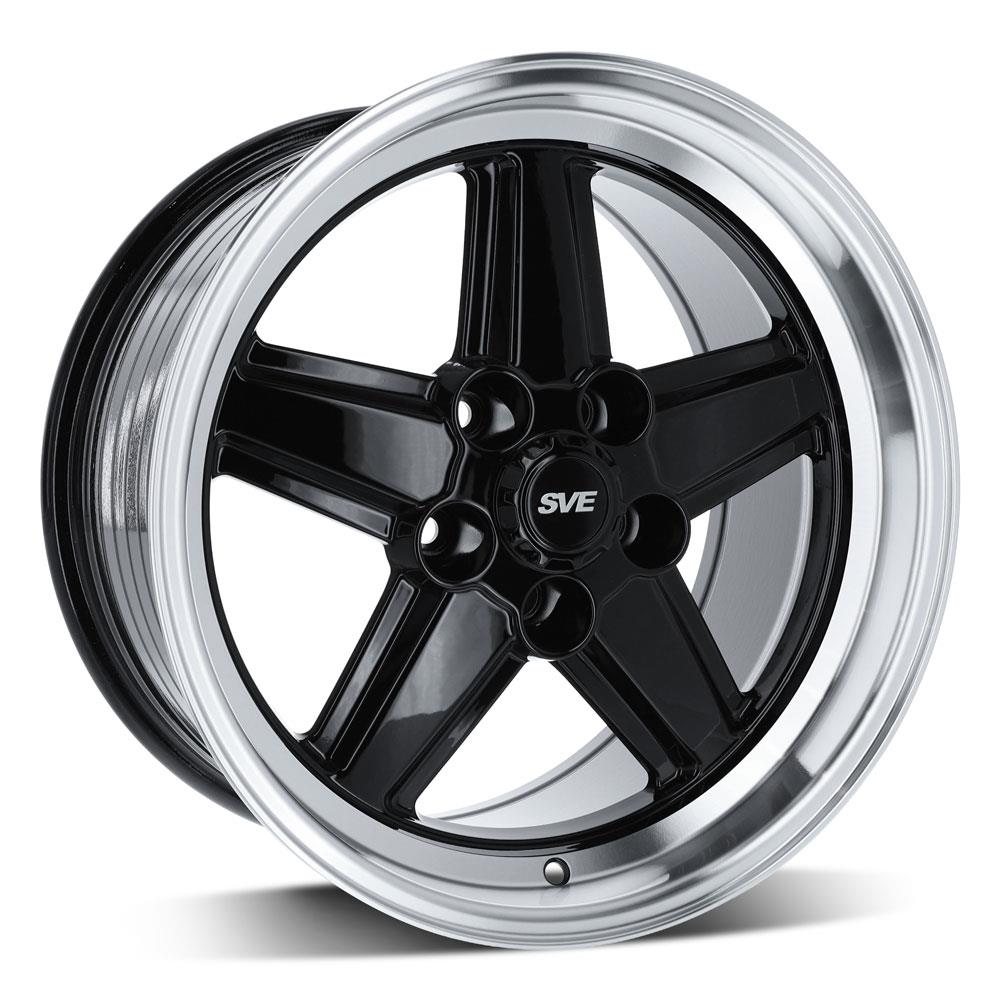

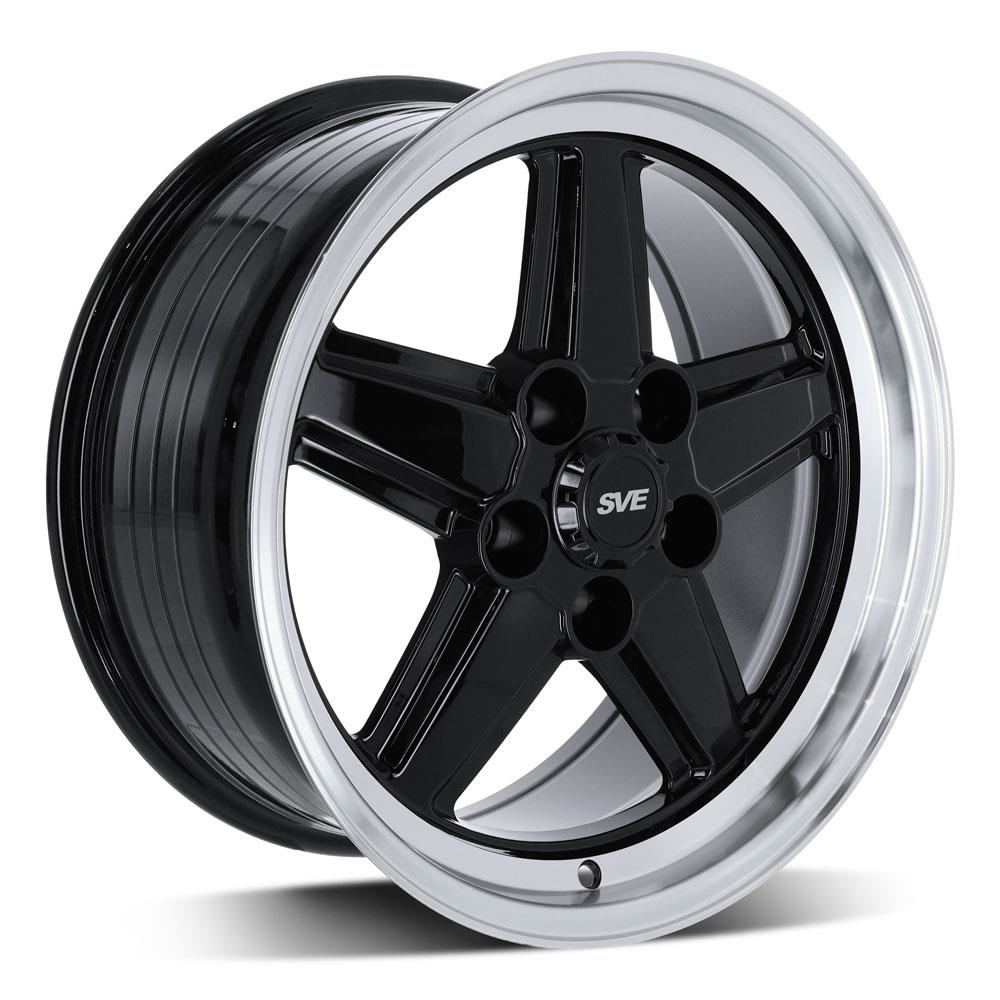

Stepped 5 Spoke Design

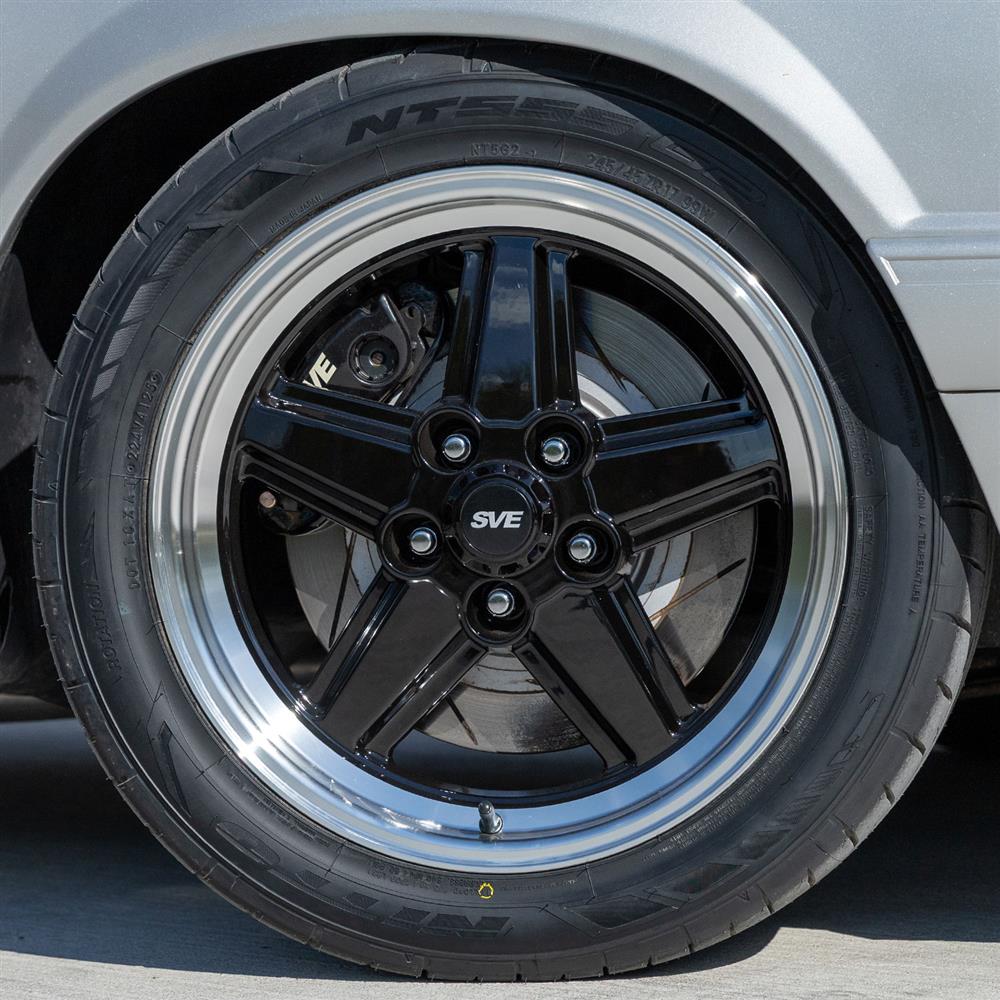

Machined Outer Lip
Gloss Black Finish

What's in the Box

(2) 17x8 S89 Wheel
(2) 17x9 S89 Wheel
(4) SVE Center Cap
(1) Chrome Lug Nut Kit

Mustang SVE 5-Lug S89 Wheel Kit - 17x8/9 - Black

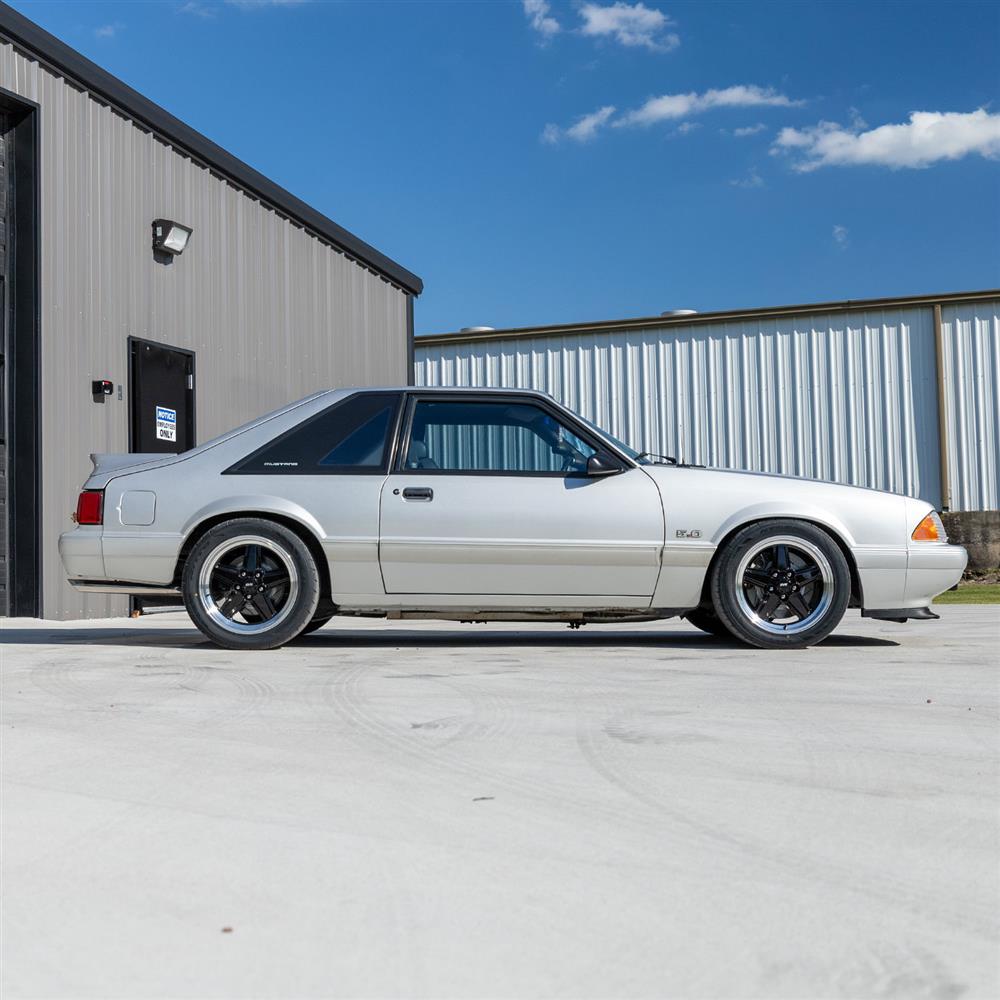

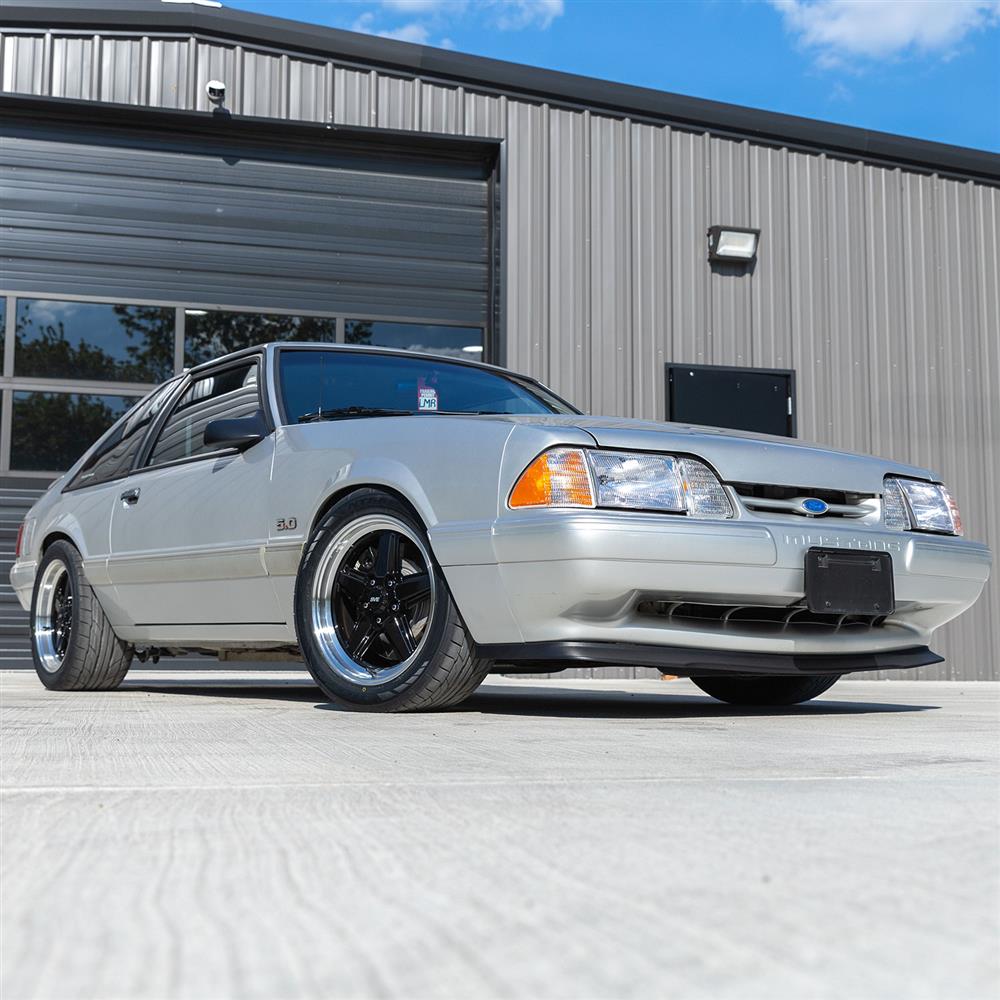

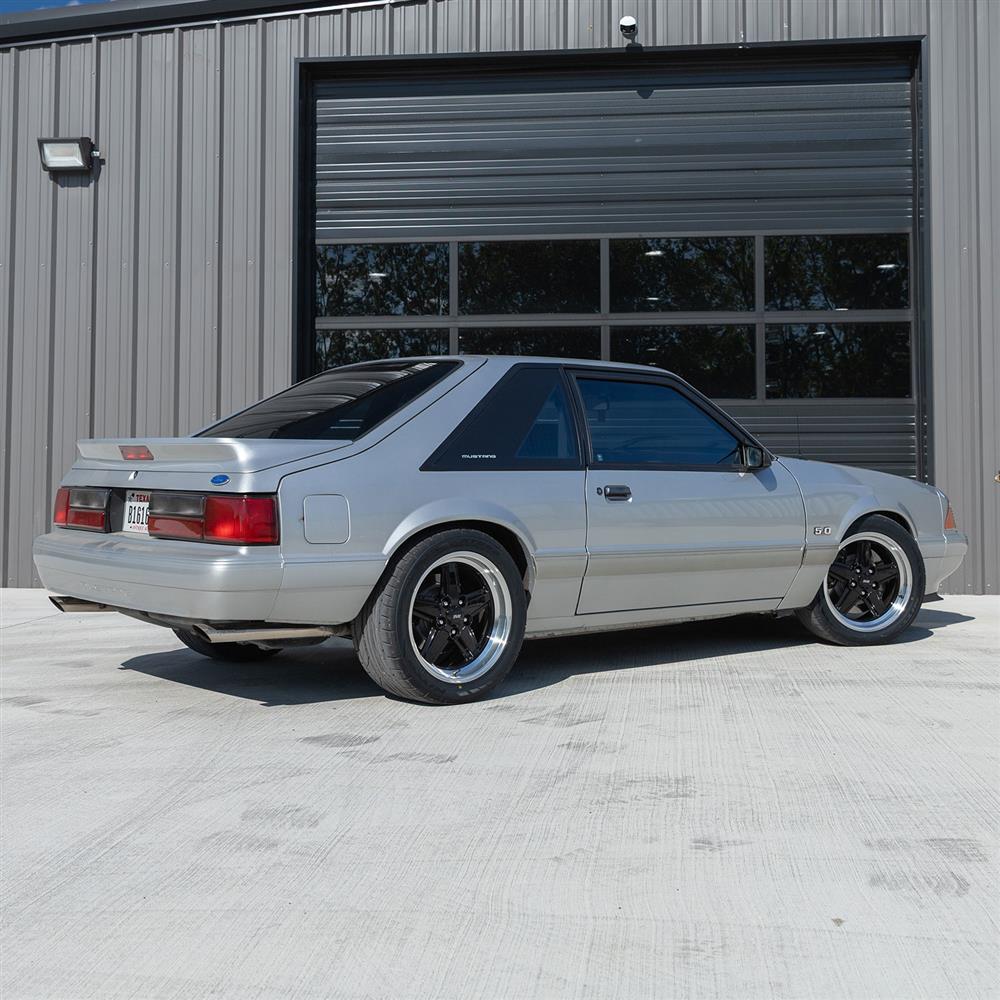

Transport your Fox Body back to true 90s styling and a period-correct look with this gloss black Flow Formed gloss black 5-lug 1979-1993 Mustang 17x8/9 SVE S89 wheel kit! This 5-lug wheel is the perfect throwback to the early '90s era performance and authentic styling. While the late 80's originals were optioned with 16" wheels and 7" front and 8" rear widths, SVE took it up a notch with a modern 17" diameter and 8" front and 9" rear widths, and Flow Formed construction. Featuring a wide, stepped 5 spoke design with round lug openings at the apex of the corners, these attributes give the wheel its signature styling, which beautifully complements the sharp lines of your Fox Body. Included with this kit are a set of spline drive, chrome lug nuts that have an extended length to sit flush in the lug cavity. Completed in a gloss black finish wrapped in a machined lip, this unmistakable wheel will look great on any color Mustang!

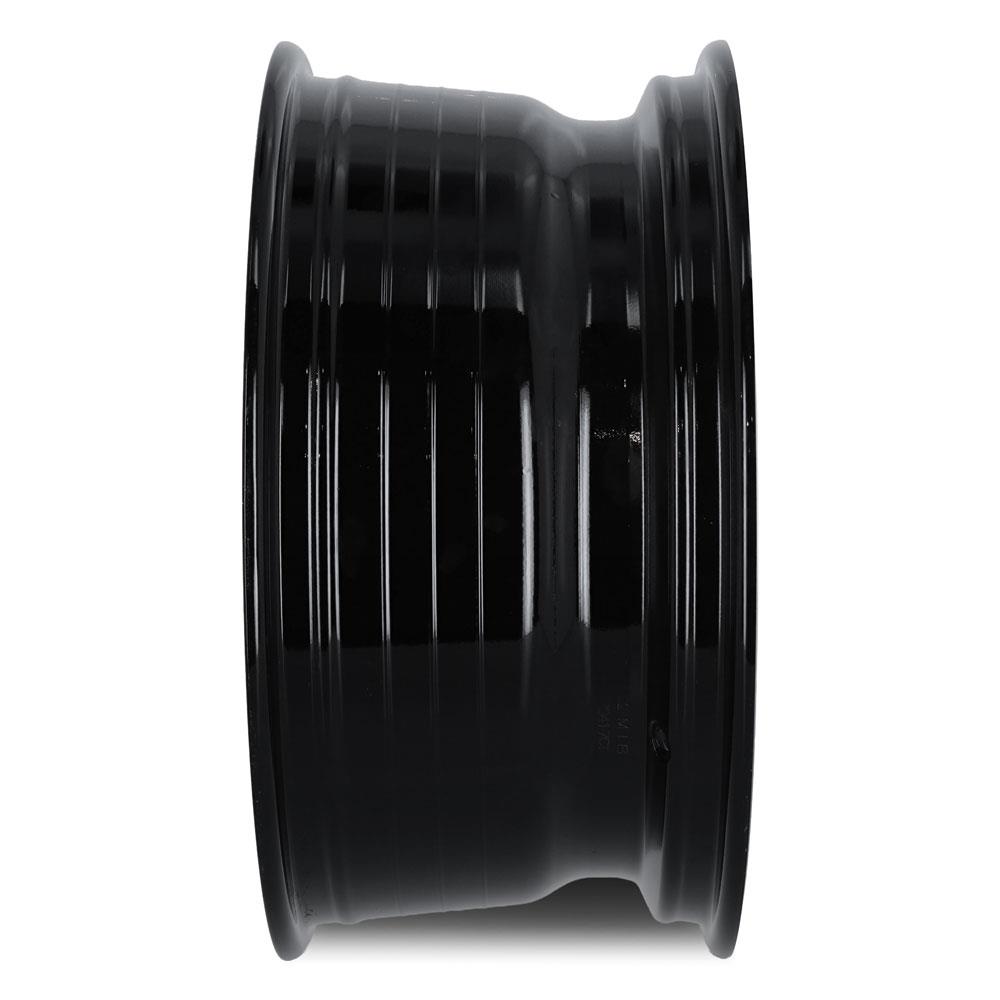

Flow Formed Construction
SVE carefully measured every section of this wheel to provide a perfect fit on your Fox Body Mustang. From the backspacing and offset to the width and diameter, it is tailored specifically for your Fox Body. SVE's S89 wheel is our first Fox Body wheel constructed using the flow formed process. After casting, the wheel is then flow formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance and load capacity and results in a very strong, lightweight wheel versus heavier, cast-aluminum wheels. Working with both standard Fox Body 5 lug rotor swaps as well as SN95 style brake conversions, clearing the large 1994-04 13" Cobra brake conversions. SVE backs this wheel with an industry-leading warranty for the ultimate peace of mind.

Saleen Fitment Disclaimer
Want to put SVE S89 wheels on a genuine Fox Body Saleen? Because factory Saleen Mustangs came equipped with a rear-disc brake setup, the S89 wheels will not directly fit the factory Saleen rear brake configuration. To run S89 wheels on a factory Saleen, the rear brakes must be converted to an SN95-style rear-disc setup that maintains the Fox Body rear track width. This requires an SVE 5-lug rear-disc brake conversion kit along with Fox-length 5-lug rear axles. The result is an SN95-style rear-disc setup using Fox-length axles, allowing the S89 wheels to maintain the proper fitment and track width on the Saleen chassis.

Required for factory Saleen applications:

SVE/SN95-style rear-disc brake conversion
Fox-length 5-lug rear axles
SVE S89 wheels

Important: The S89 wheels are not compatible with the factory Saleen rear-disc brake setup. Do not attempt to install the wheels without verifying brake and wheel clearance.

1979-1993 Mustang Front Wheel Clearance Notes

1979-93 Mustang (All):
- Steering rack limiters may be needed to eliminate rubbing issues when turning the front wheel.
- May require a front 8mm spacer to keep the grease cap from pushing out the center cap.
1979-86 Mustang (All) - Requires an 8mm front-wheel spacer OR upgrading to 1987-1993 5.0 struts, spindles & brakes.
1987-93 Mustang (2.3L) - Requires an 8mm front-wheel spacer OR upgrading to 1987-1993 5.0 struts, spindles & brakes.
1979-90 Mustang (All) - Due to smaller front wheel openings, installing wheels or tires wider than the factory may require additional clearance on front fenders such as rolling fenders and modifying splash shield.

1979-1993 Mustang Rear Wheel Clearance Notes

1984-1993 (All):
- Rear quad shocks may need to be reversed or removed for proper fitment. Please check for clearance issues before driving the car.
- See our Quad Shock Flip Article for more information on this procedure.
- Installation of wheels that are wider than the factory wheels on the rear of your Mustang may require inner fender clearance and exhaust modification for proper fitment.

5.0 Resto and SVE Wheel Limited Warranty - Click Here

Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

Fitment Notice

Fits 1979-1993 Mustang with Fox spindle 5-Lug Conversion (or) SN95 spindle 5-Lug Conversions with drum or rear disk brake conversion that maintains factory track width.
Will NOT fit SVO or 1993 Cobra with factory rear disc brake applications.
These wheels will NOT clear ATS Brembo, 2000 Cobra R brakes, or M-2300-X Brembo brakes.

Wheel Specs	Front	Rear
Diameter	17"	17"
Width	8"	9"
Bolt Pattern	5x114.3 mm.	5x114.3 mm.
Offset	+19 mm.	+20 mm.
Backspacing	5.25 in.	5.79 in.
Centerbore	70.6 mm.	70.6 mm.
Weight	17.83 lbs	19.45 lbs
