Spline drive lug nuts are recommended due to the narrow lug cavity.
Will fit factory GT350 center caps.
Wheel Torque Specs
1979-2014 = 100 lb/ft
Benefits
Provides new sleek and modern Styling
Lightweight Flow Formed Construction
Superior Fitment

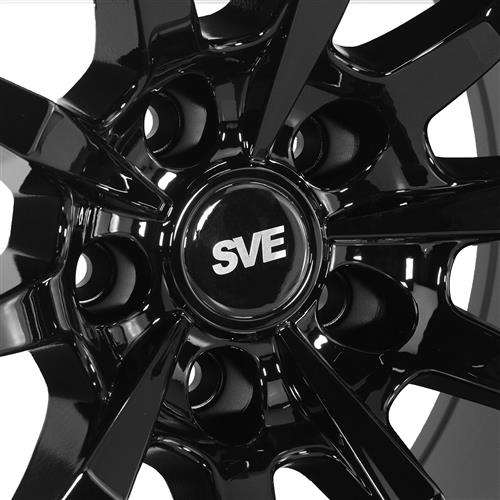

Accepts Factory GT350 Center Cap
Features
Gloss Black Finish 10-Spoke Design
Lifetime Structural Warranty
What's in the Box

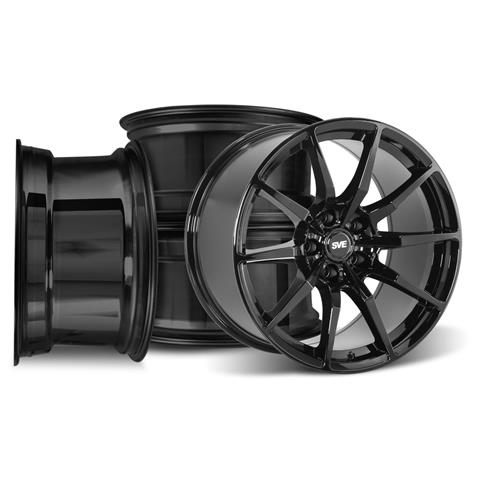

(2) 18x9 S350 Wheels
(2) 18x10 S350 Wheels

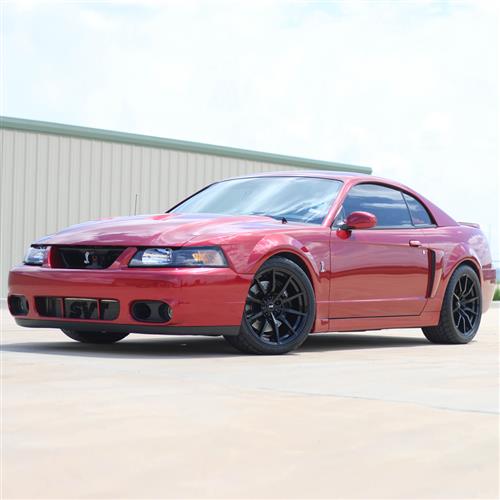

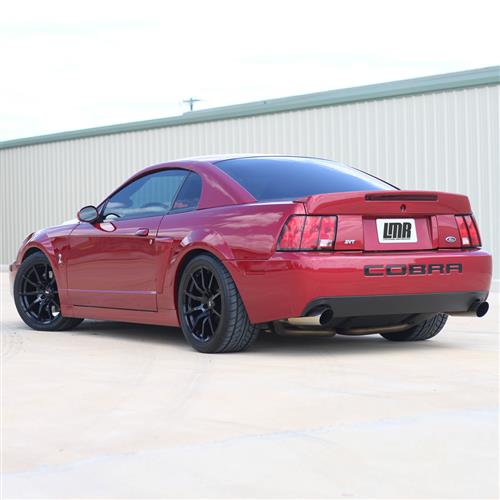

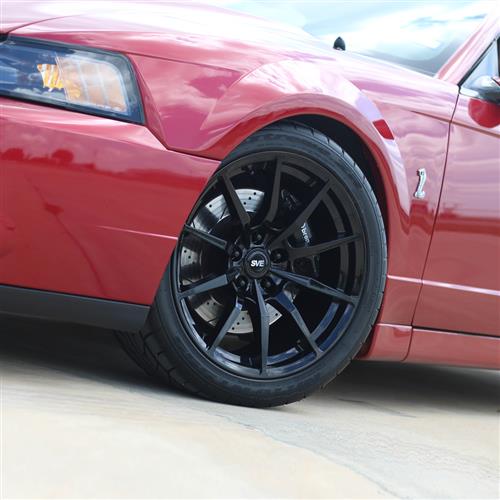

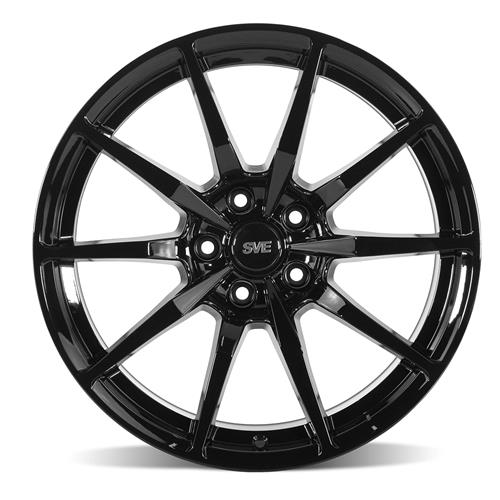

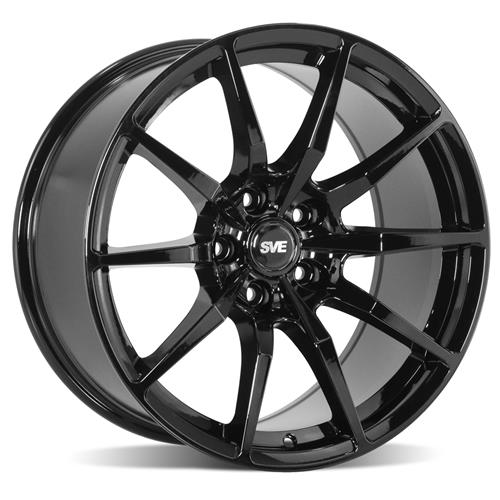

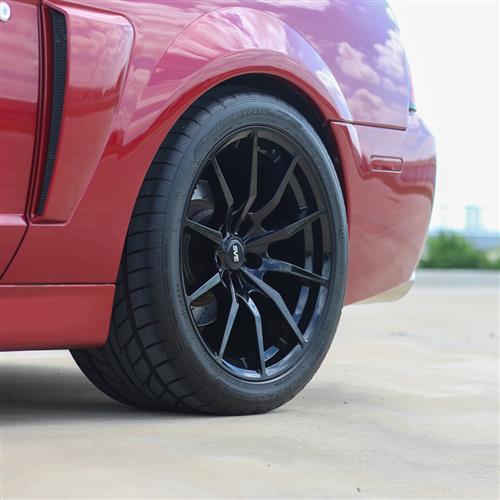

SVE Gloss Black S350 Wheel Kit Modernize the look of your 1994-2004 Mustang with this SVE S350 wheel kit! The SVE S350 brings a new level of style to the Mustang world. Our SVE S350 wheel has a 10-spoke design in an 18" diameter! A gloss black finish is featured on this wheel, and it is sure to look great on any color Mustang!
Flow Formed Construction SVE's S350 wheel is constructed using the flow-formed process. After casting, the wheel is flow-formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance, load capacity and results in a very strong, lightweight wheel versus heavy, cast aluminum wheels. A limited lifetime structural warranty backs SVE's S350 wheel for the ultimate peace of mind! Superior Fitment SVE carefully measured every millimeter of this wheel to ensure the best fit and finish on the market. Designed to flow with your Mustang's body lines, the S350 wheel will also clear big brake packages. From the backspacing and offset to the width and diameter, the S350 wheel provides your Mustang with superior styling and exceptional performance! These wheels fit factory GT350 center caps.
SN95 Spindle Wheels - Clearance Notes
1979-04 Mustang (All)
Installation of wheels that are wider than the factory wheels on the rear of your Mustang may require fender rolling and exhaust modification for proper fitment.
Rear quad shock equipped Mustangs may need to have the quad shocks reversed or removed for proper fitment. Please check for clearance before driving.
The 1996-2004 spindle can still be easily used, but these will have a slightly different position for the outer tie rod end and may cause bumpsteer in some cases. These will also kick the wheel out around 8mm.
1979-93 Mustang (All)
Must be using 1994-2004 Mustang spindles for correct fitment.
Steering rack limiters May be needed to eliminate rubbing issues when turning the front wheel.
1979-90 Mustang (All)
Due to smaller front wheel openings, installing wheels or tires that are wider than the factory may require additional clearance on front fenders.
A 1/8" Wheel Spacer may be required to ensure the rear center caps are adequately secured.
For information on installing these wheels on a 1979-1993 Fox Body Mustang, please review our detailed Fox Body Wheel & Tire Fitment Guide for everything required.
1994-2004 Mustang SVE S350 Flow Formed Wheel - LMR.com Exclusive!
1994-2004 Mustang SVE S350 Flow Formed Wheel - Review
Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!
Published on 2017-09-05 SVE S350 Wheels. The SVE S350 wheel brings a new level of style to the Mustang world. This SVE S350 wheel features a sleek and modern styled 10 spoke design in a 19" diameter. This will fill out your wheel wells while still maintaining the race-inspired Mustang look! The SVE S350 wheel features a gloss graphite finish that is sure to look great on any color Mustang! This kit comes in your choice of Gloss Black or Gloss Graphite, finishes that look great on any color Mustang. The Flow Formed wheel is produced in 18x9" and 18x10" sizes that not only look great, but perform good. The 9" and 10" widths provide better traction over your factory wheels while coming in at a lighter weight. Shop one of our many wheel kits or wheel and tire kits below to transform the look of your SN95 or New Edge Mustang!
Flow Formed Construction. SVE's S350 wheel is constructed using the flow formed process. After casting, the wheel is then flow formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance, load capacity, and results in a very strong, lightweight wheel versus heavy, cast aluminum wheels. SVE's S350 wheel is backed by a limited lifetime structural warranty for the ultimate peace of mind!
Superior Fitment. SVE carefully measured every millimeter of this wheel to ensure the best fit and finish on the market. Designed to not only flow with the body lines of your Mustang, the S350 wheel will also clear big brake packages. From the backspacing and offset, to the width and diameter, the S350 wheel provides your Mustang with superior styling and exceptional performance! Even the center cap bore is the correct size.
Published on 2017-09-06 SVE S350 Wheels. The SVE S350 wheel features a race-inspired 10-spoke design in an 18" diameter! This wheel is currently available in your choice of Gloss Black or Gloss Graphite, finishes that look great on any color Mustang. The Flow Formed wheel is produced in 18x9" and 18x10" sizes that not only look great but perform great. The 9" and 10" widths provide better traction over your factory wheels while coming in at a lighter weight. Shop one of our many wheel kits or wheel and tire kits below to transform the look of your SN95 or New Edge Mustang!
Flow Formed Construction. SVE's S350 wheel is constructed using the flow formed process. After casting, the wheel is then flow formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance, load capacity, and results in a very strong, lightweight wheel versus heavy, cast aluminum wheels. SVE's S350 wheel is backed by a limited lifetime structural warranty for the ultimate peace of mind!
Superior Fitment. SVE carefully measured every millimeter of this wheel to ensure the best fit and finish on the market. Designed to not only flow with the body lines of your Mustang, the S350 wheel will also clear big brake packages. From the backspacing and offset, to the width and diameter, the S350 wheel provides your Mustang with superior styling and exceptional performance!
SVE Wheels® is a brand dedicated to producing premium-grade wheels that boost the aesthetics and performance of any 1979-present Mustang or Ford Lightning truck. Precision-engineered down to every millimeter, each SVE Wheel not only ensures the best fit and finish on the market, but provides performance with purpose. SVE Wheels® fuels the enthusiast lifestyle through in-depth research and development to create cutting-edge wheel solutions, built with the highest quality materials, giving you a sense of security on or off the road! As always, SVE Wheels are covered by a two-year finish warranty and a lifetime structural warranty, eliminating any guesses on which wheels are the perfect choice for your Mustang or Lightning project.
Email Me When It's Back In Stock!
Email Me When It Arrives!
Wheel Diameter
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore, a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
Wheel Width
Wheel Backspacing
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Pattern
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
Wheel Offset
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Centerbore
The centerbore of the wheel is the opening in the middle of the wheel, surrounded by the lug holes. This opening helps to center the wheel to the hub. Its diameter is typically measured in millimeters (mm) and varies in size depending on vehicle application. Manufacturers approve up to a 1% variance in tolerance to pass wheels during inspection.
