1994-04 Mustang SVE Series 4 Wheel Kit - 18x9/10 - Gloss Silver

SVE Series 4 Wheels | 18x9/10" (1994-2004 SN95 & New Edge Mustang)

Add timeless 5-spoke styling with a modern twist to your 1994-2004 Mustang with SVE's Series 4 18x9/10 wheel kit in gloss silver!

Item #WK-503893

Everyday Low Price: $999.99

In Stock

This item is returnable. Details

Free Shipping over $99

Add to Cart

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

High End, Elegant Styling
Industry Leading Warranty
Superior SVE Quality
Exceptional Fit & Finish

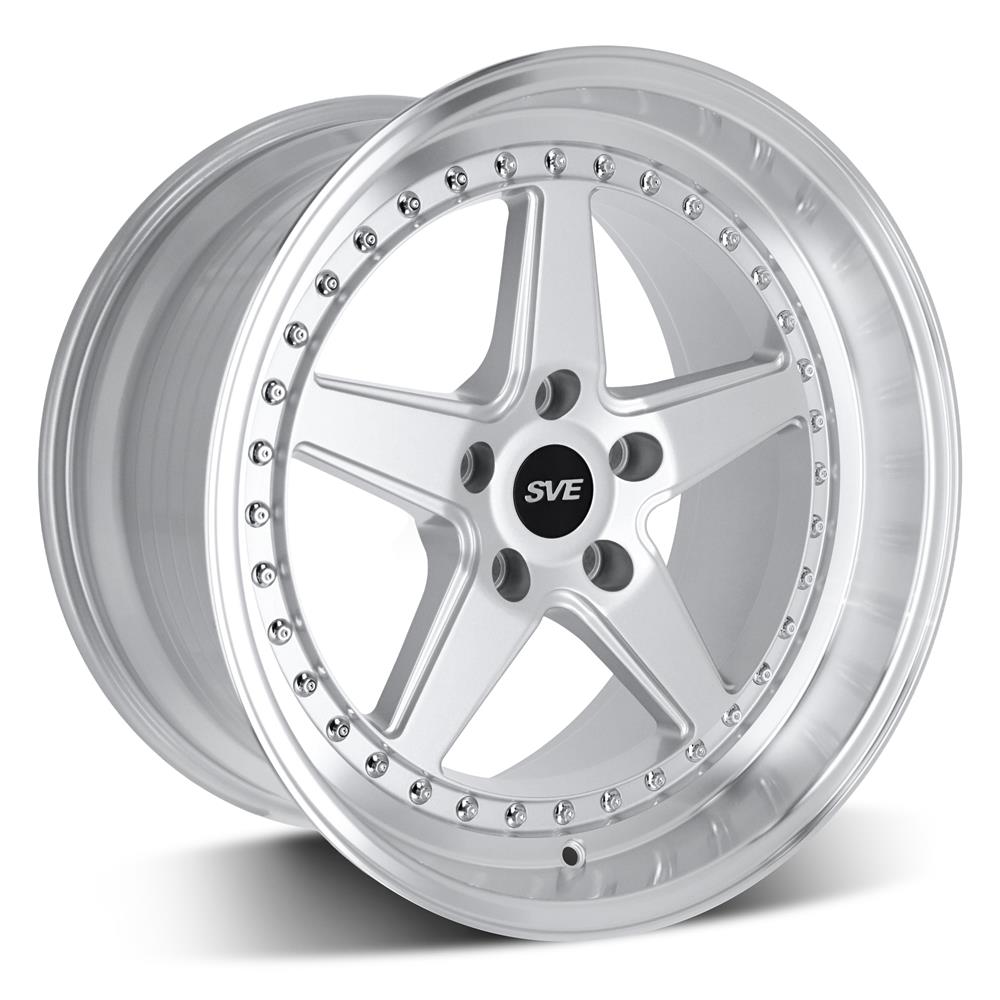

Features

Gloss Silver Finish
Polished Lip
Simulated Chrome Rivets

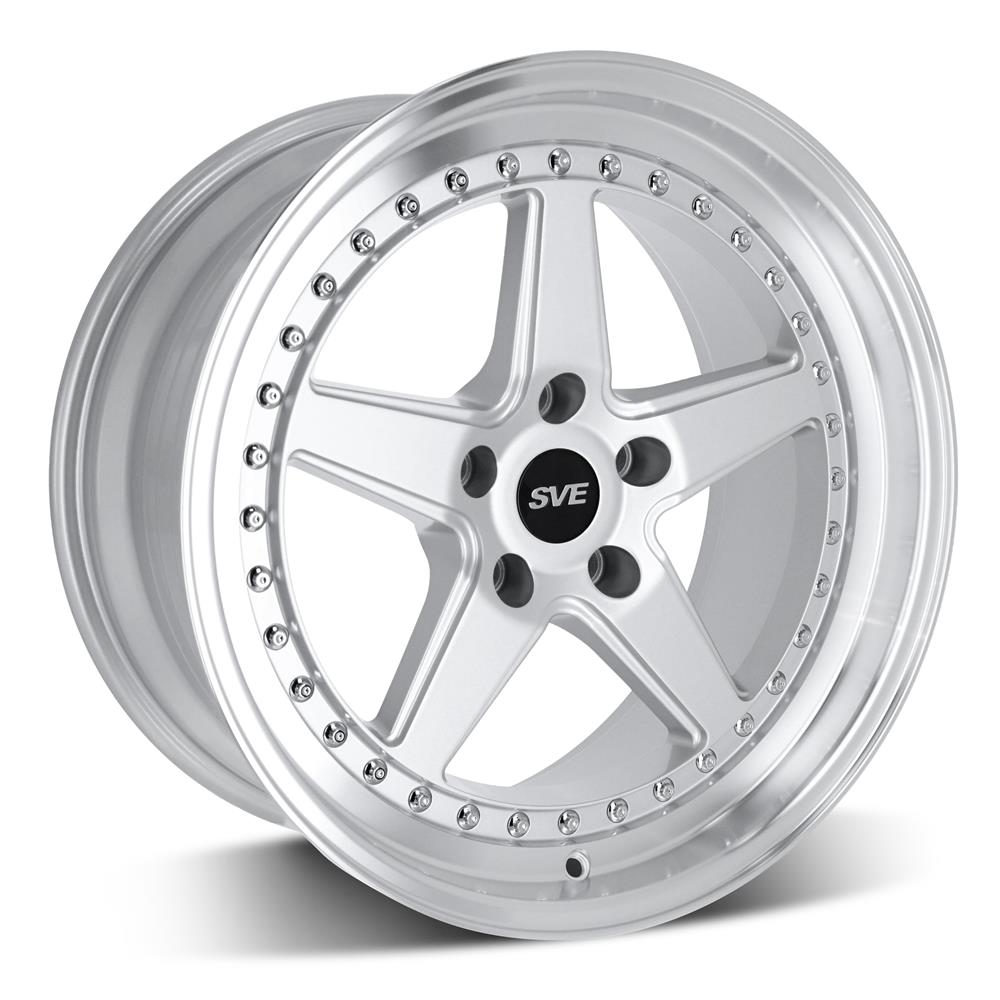

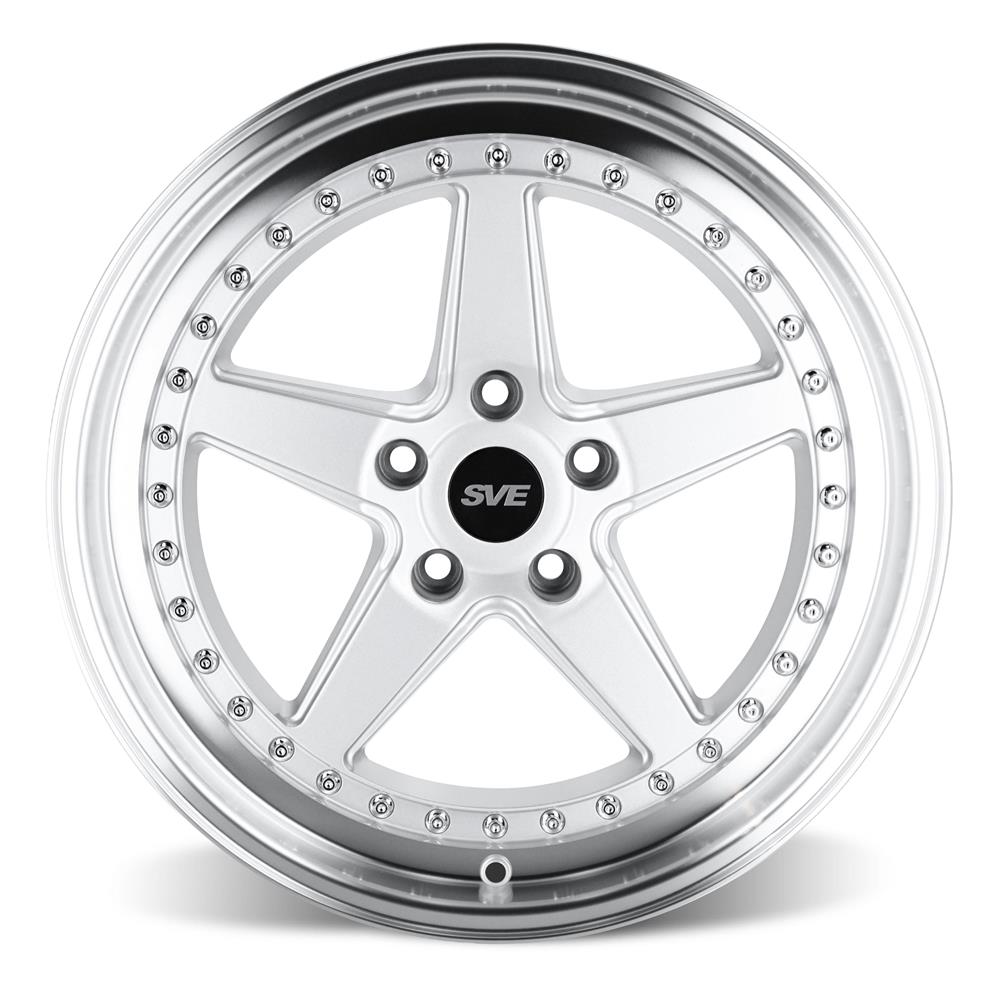

Tapered 5 Spoke Design
Flow Formed Construction

What's in the Box

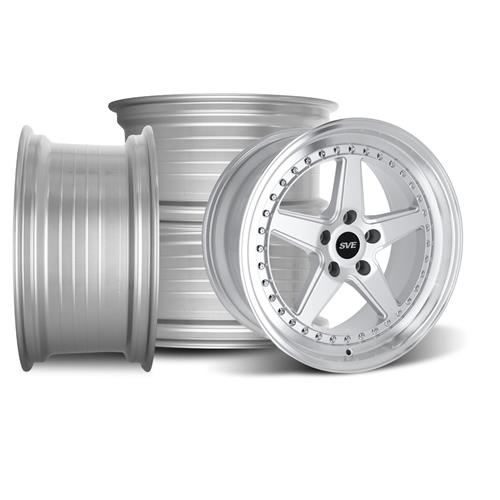

(2) SVE Series 4 Wheel - 18x9
(2) SVE Series 4 Wheel - 18x10

Mustang SVE Series 4 Wheel Kit - 18x9/10 - Gloss Silver

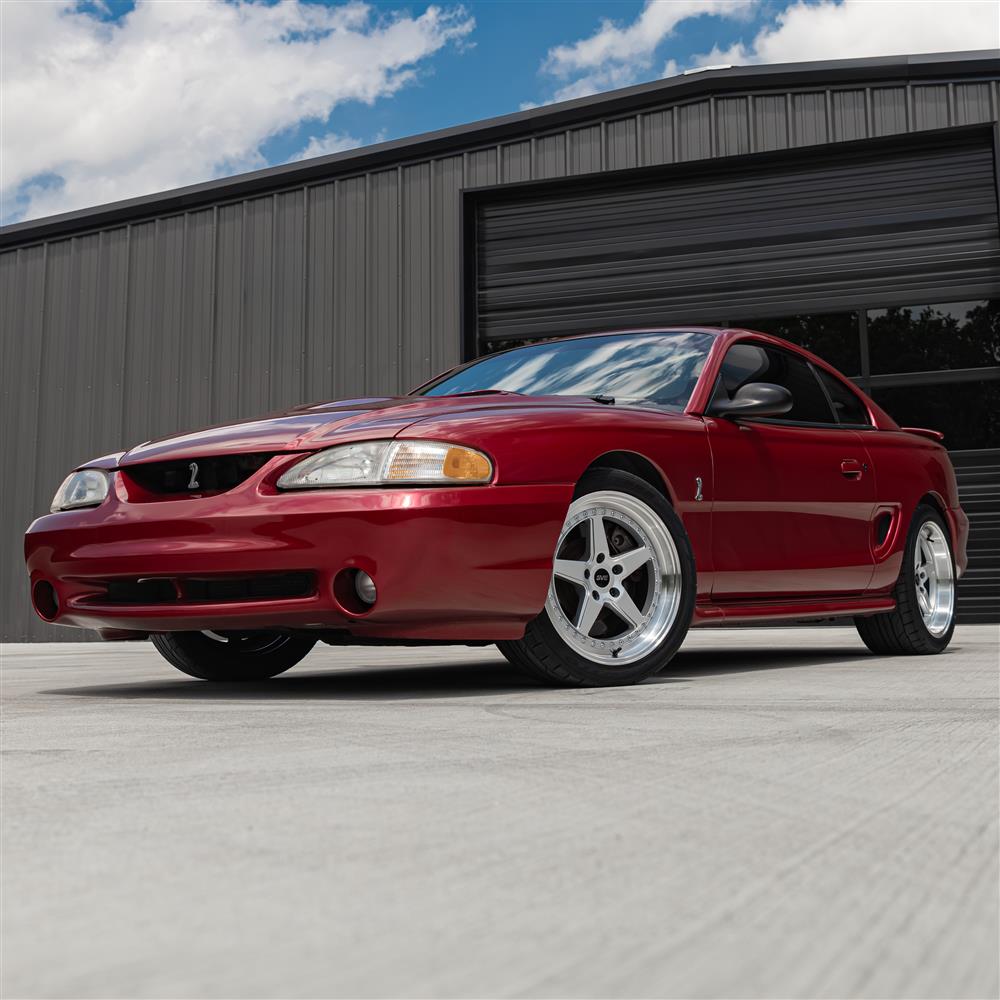

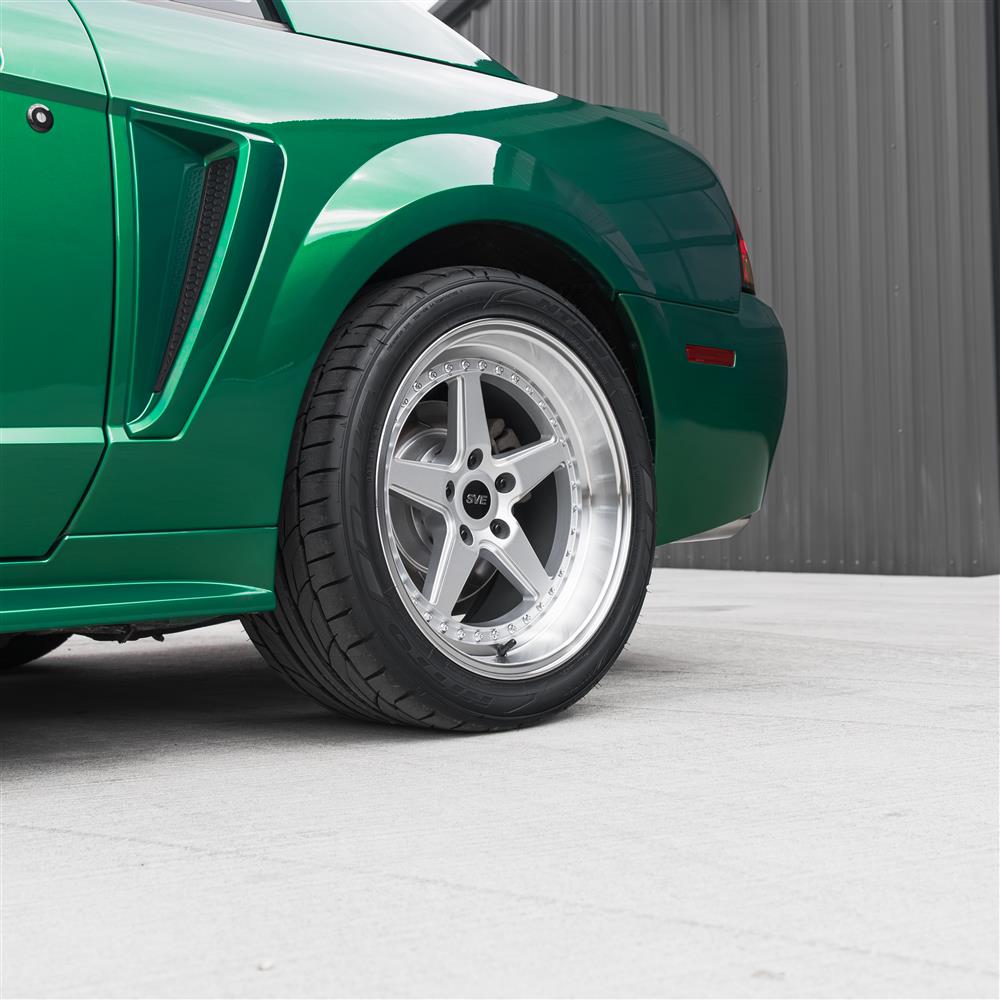

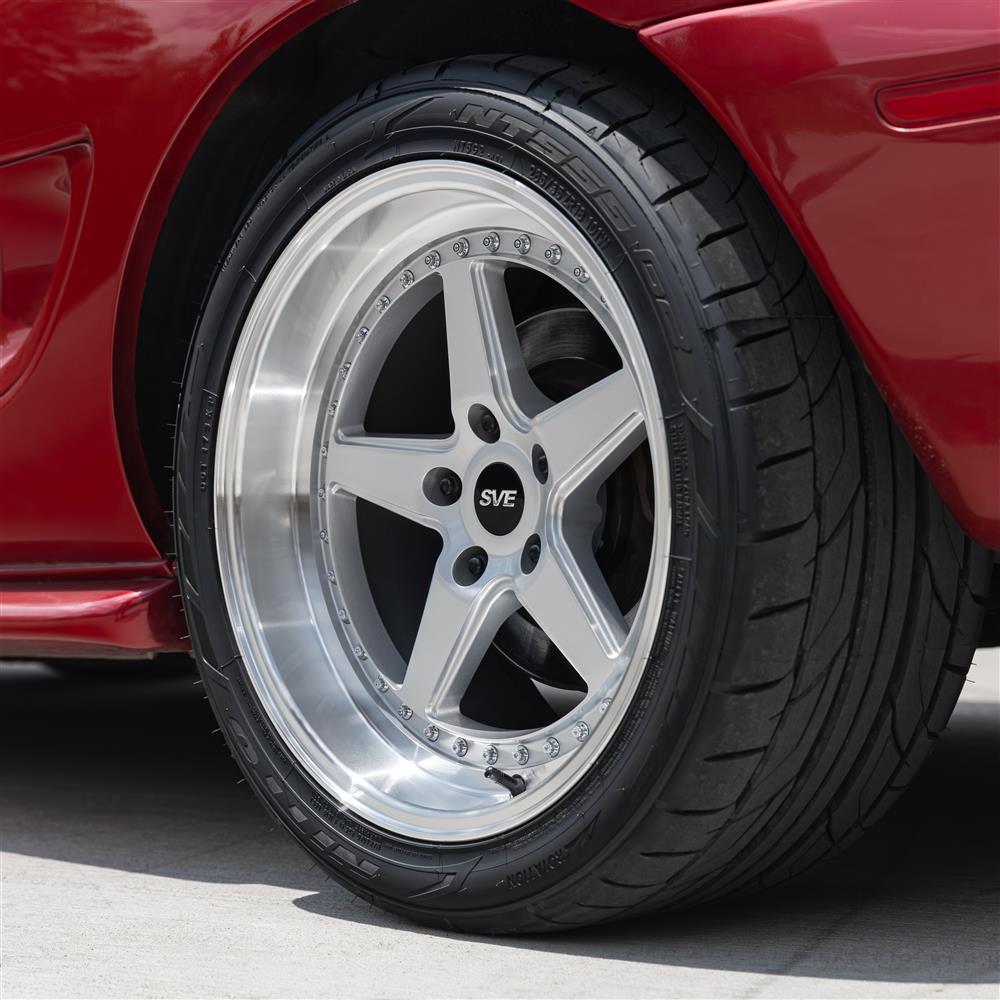

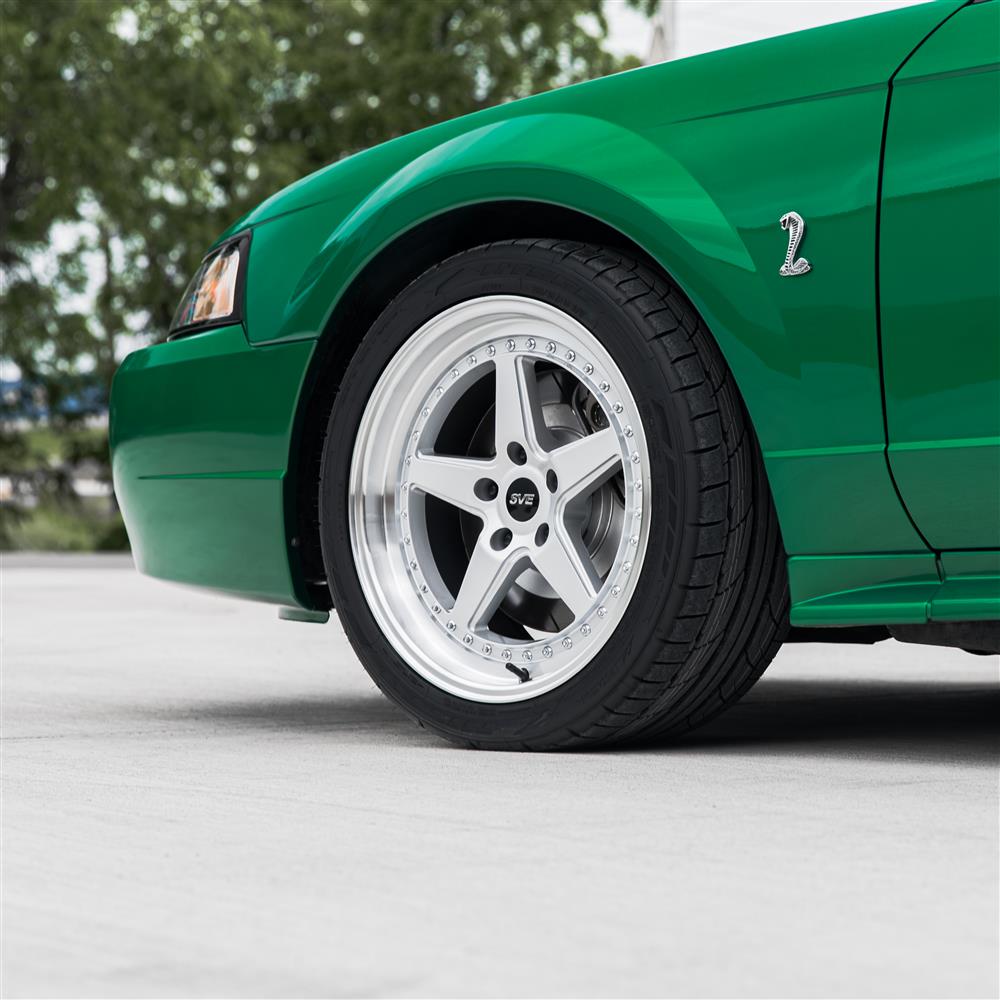

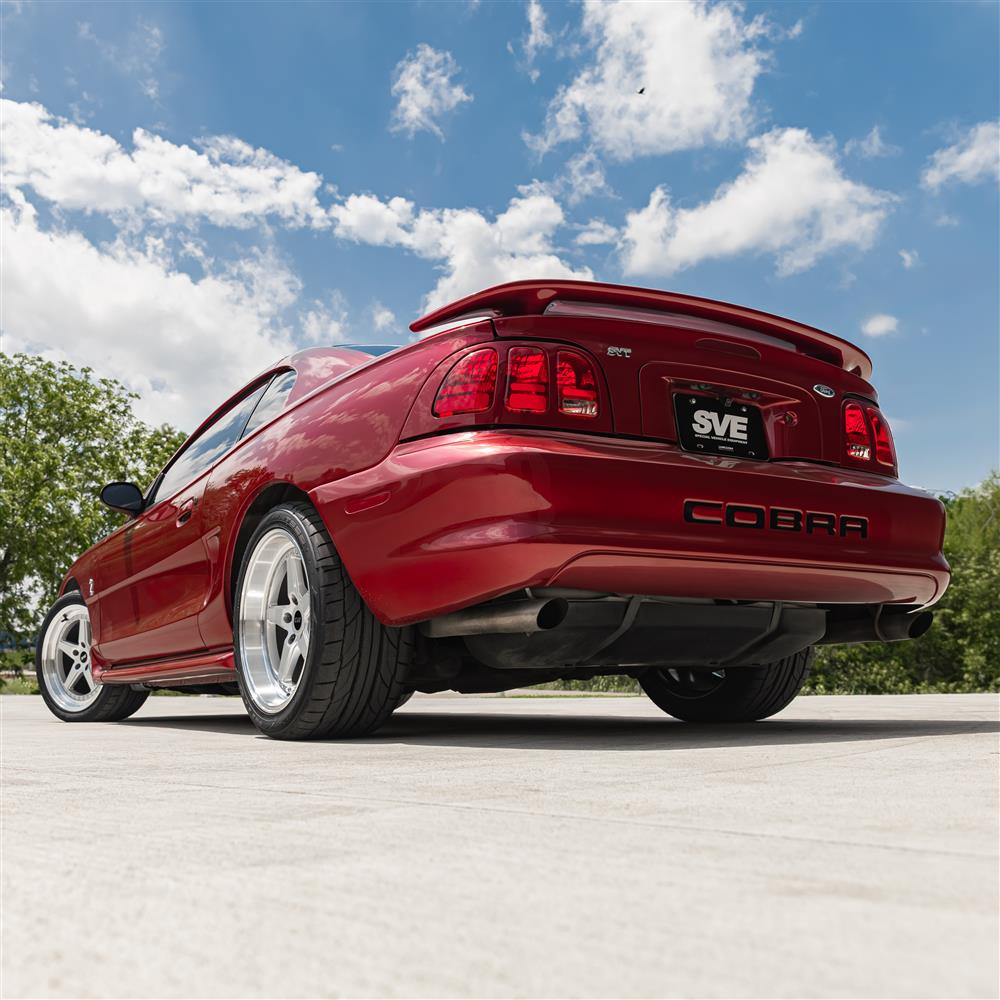

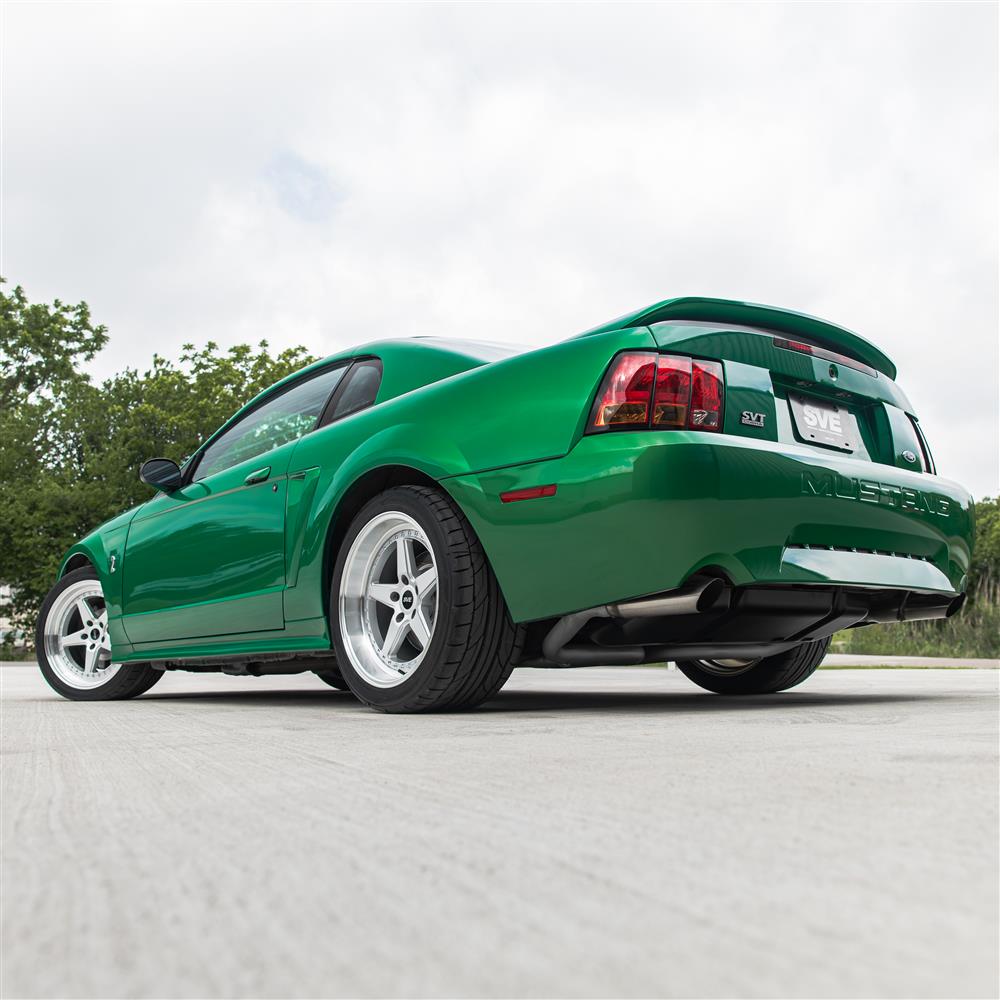

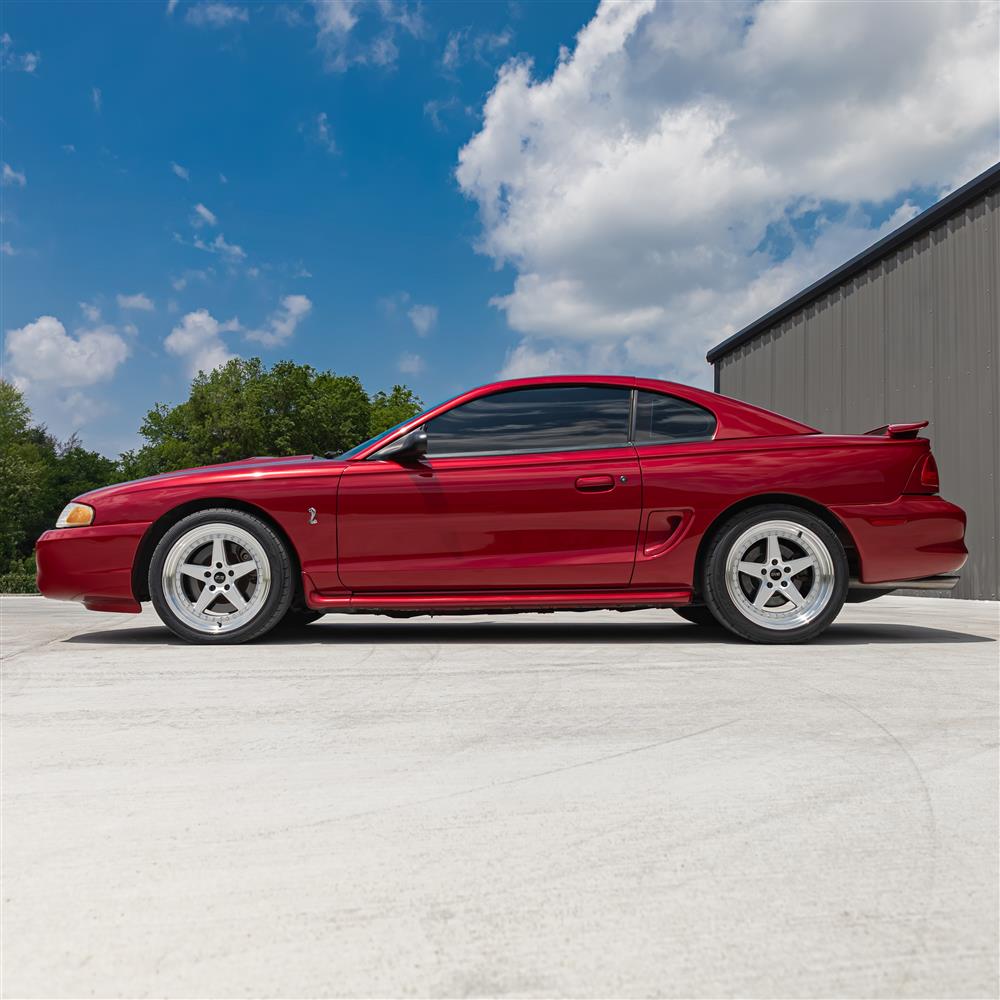

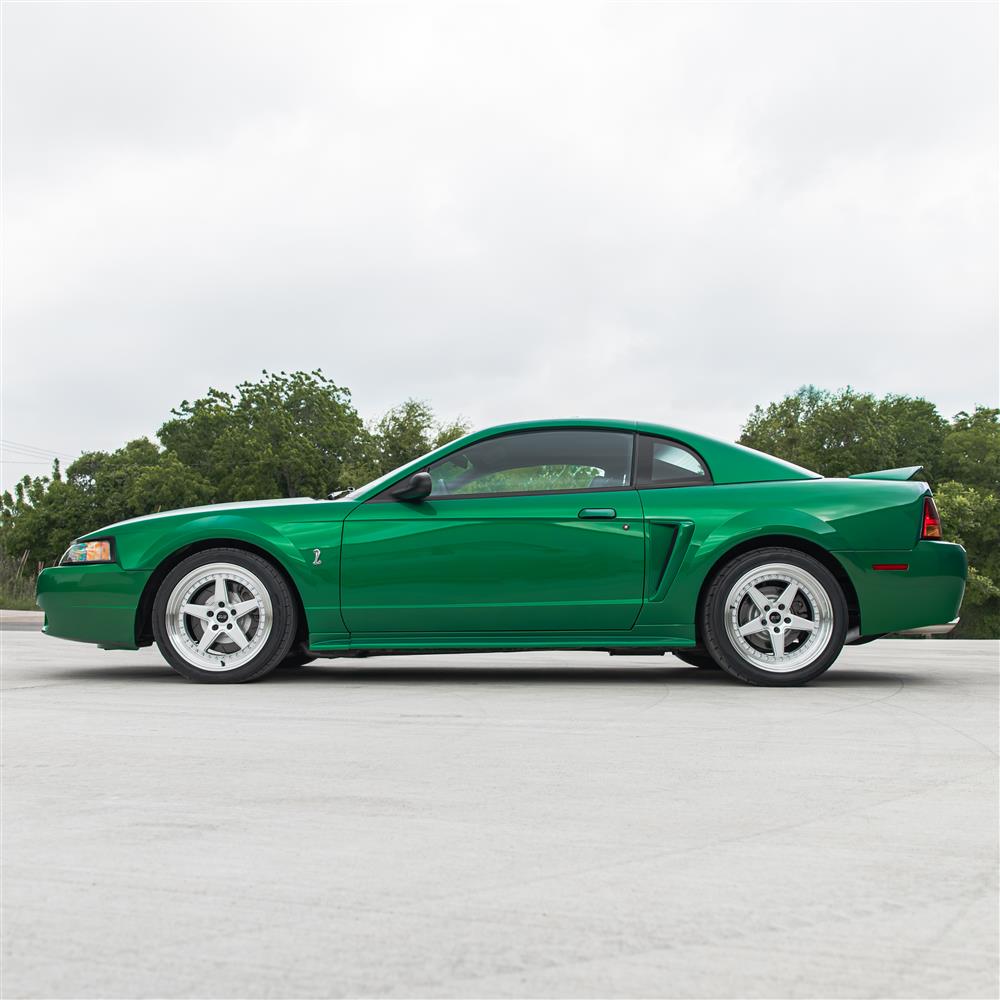

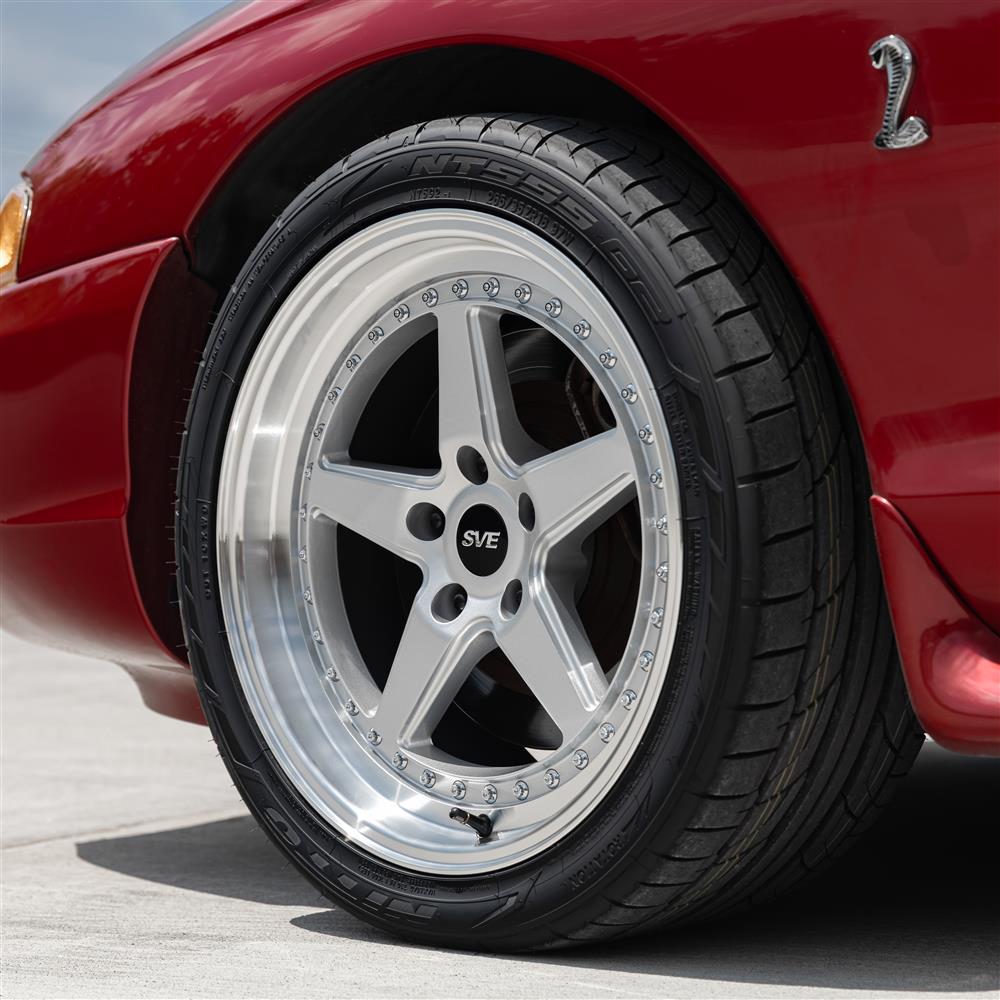

Breathe life back into the appearance of your 1994-2004 Mustang with SVE's Series 4 18x9/10 wheel kit in gloss silver! Designed with inspirations from classic SVT Cobra styling with an ultramodern twist, the wheel has been refined into a work of art. With elegant styling and a modern-inspired design, the Series 4 wheel exudes an exceptional presence that turns heads! Featuring a tapered five-spoke design with a subtle step to the spokes, the Series 4 wheels tastefully highlights the body lines of all SN95 and New Edge Mustangs. The 18" diameter fills out your wheel wells nicely without the worry of rubbing. Finished in a gloss silver paint, with a wide polished lip and simulated chrome rivets, the Series 4 wheel will make any paint color pop!

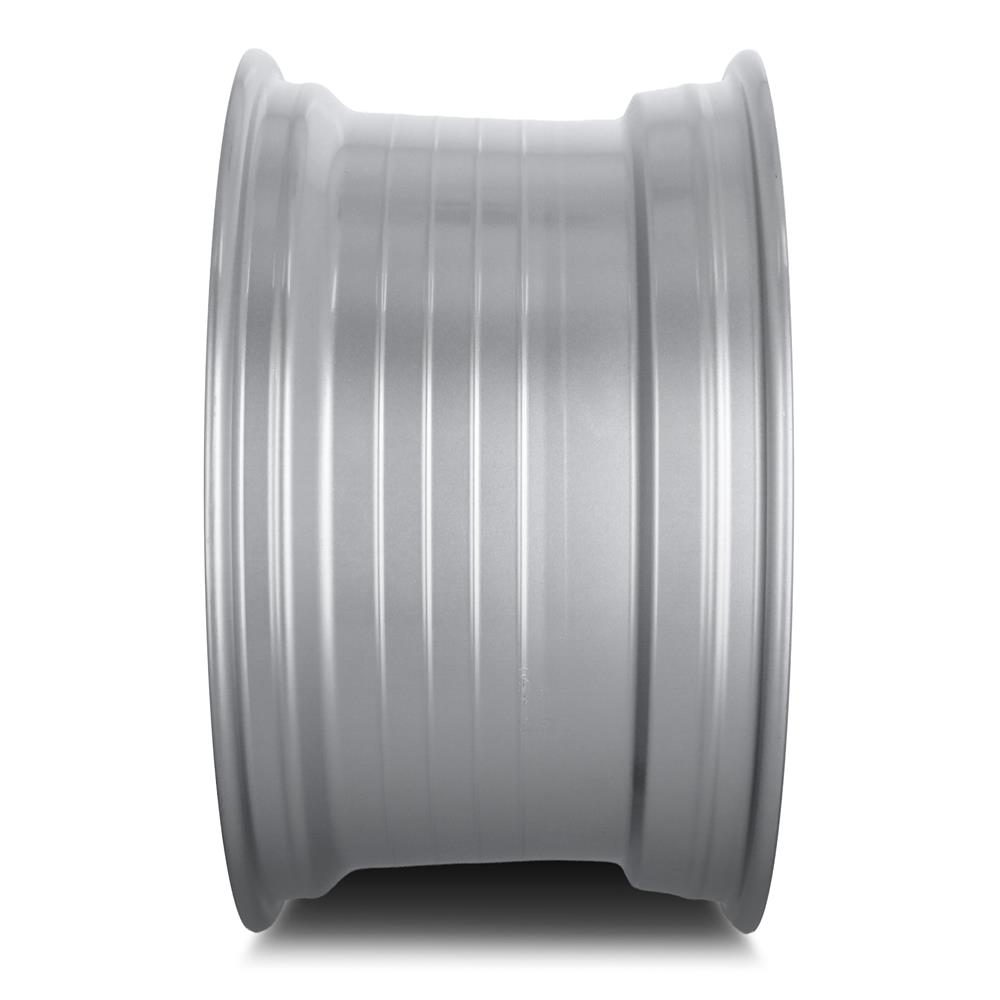

Flow Formed Construction

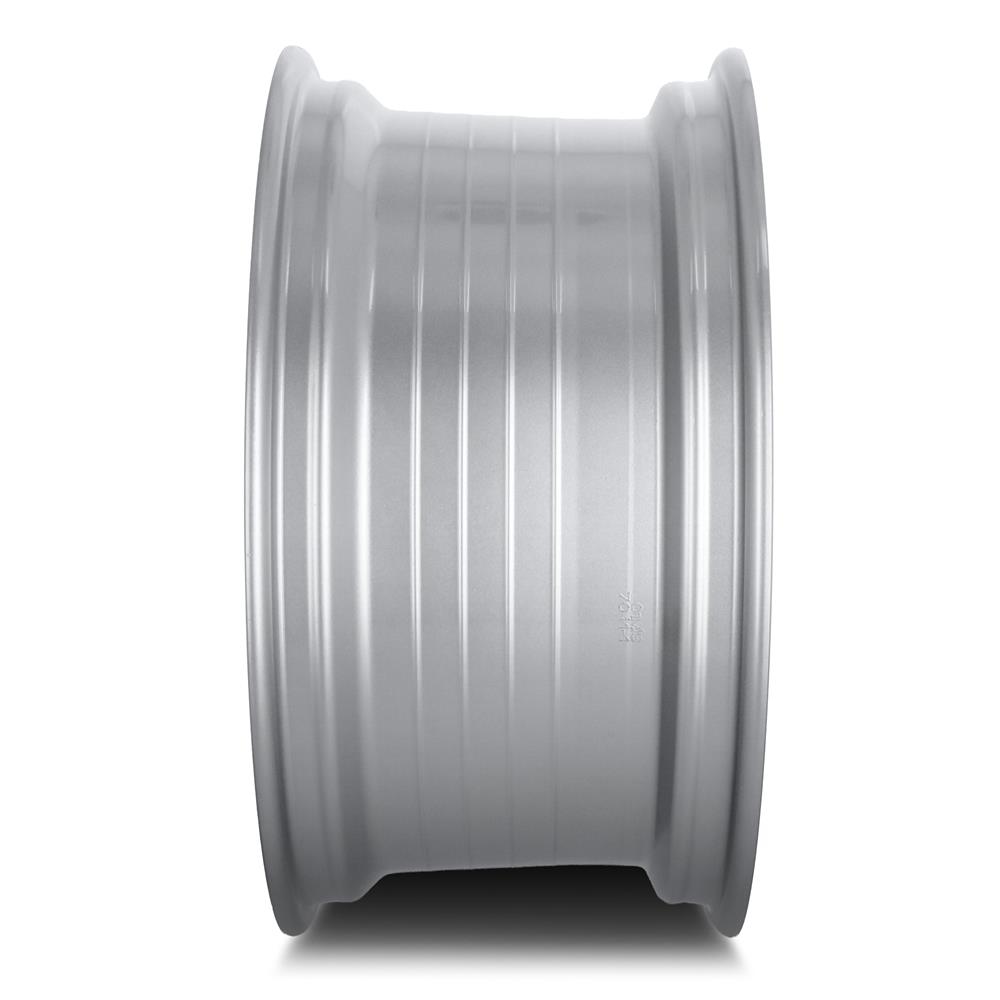

SVE carefully measured every section of this wheel to provide a perfect fit on your Mustang. From the backspacing and offset to the width and diameter, it is tailored specifically for your SN95 or New Edge. SVE's Series 4 wheels are constructed using the flow formed process. After casting, the wheel is then flow formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance and load capacity, and results in a very strong, lightweight wheel versus heavier, cast-aluminum wheels. SVE backs this wheel with an industry-leading warranty for the ultimate peace of mind.

1994-2004 Mustang Wheel Clearance Notes

Rear Quad Shocks
- Rear quad shock may need to be reversed or removed for proper fitment. Please check for clearance before driving.

1999-2004 Mustang Cobra/IRS Equipped (All)

17"/18" wheels may require Low Profile IRS Subframe Bolts for proper clearance.
An 1/8" Wheel Spacer may be required to ensure the rear center caps are adequately secured.

5.0 Resto and SVE Wheel Limited Warranty - Click Here

Ford Mustang - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Fitment Notice

Spline drive lug nuts are recommended due to the narrow lug cavity.
Will clear 13" Cobra brakes.
Will NOT clear big brake packages. This includes 2000 Cobra R brakes, M-2300-X, StopTech, Baer, ATS, or Wilwood.

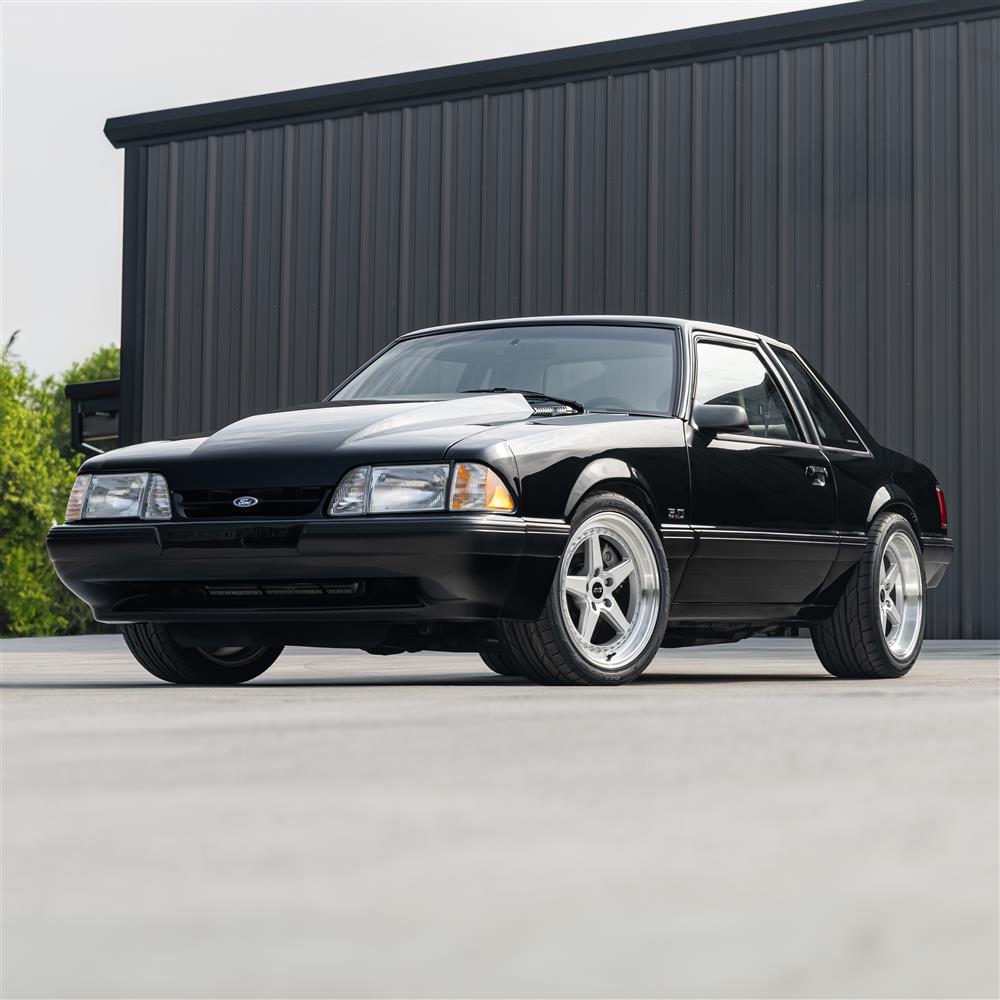

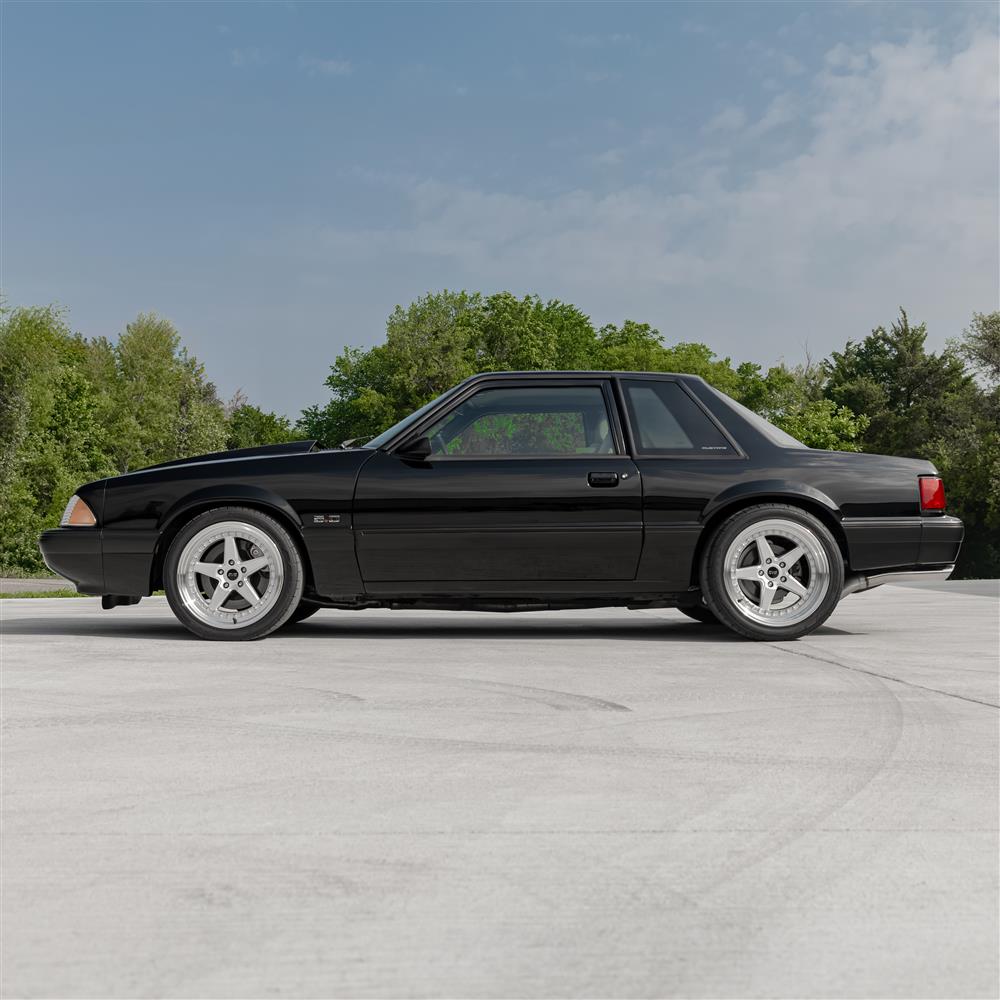

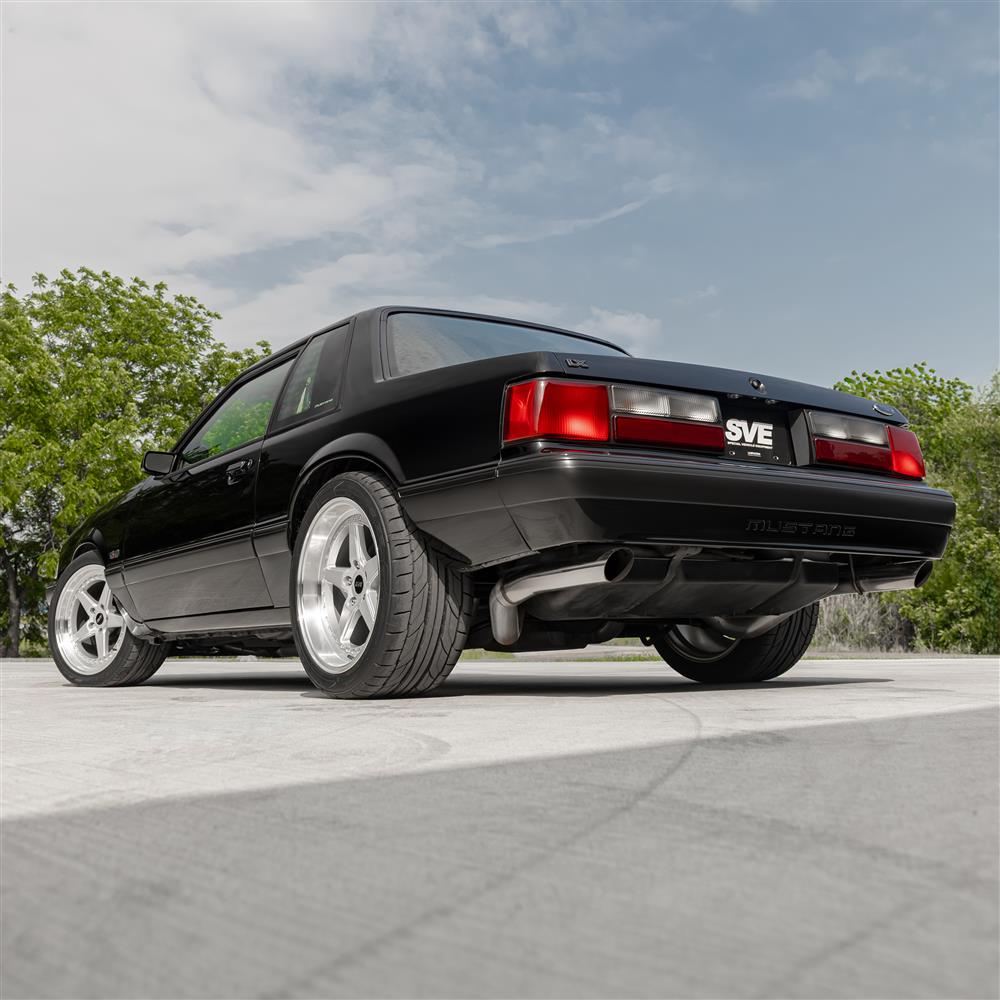

1979-1993 Fox Body Mustangs will require a 1994-2004 Mustang spindle upgrade.

Wheel Torque Specs

1979-2014 = 100 lb/ft

Wheel Specs	Front	Rear
Diameter	18"	18"
Width	9"	10"
Bolt Pattern	5x114.3 mm.	5x114.3 mm.
Offset	+22 mm.	+25 mm.
Backspacing	5.9 in.	6.5 in.
Centerbore	70.6 mm.	70.6 mm.
Weight	23.8 lbs	24.5 lbs

SVE Series 4 Wheels | 18x9/10" (1994-2004 SN95 & New Edge Mustang)
