10.5 - Gloss Black by SVE Wheels ®

Price: 1599.99 USD
Availability: OutOfStock

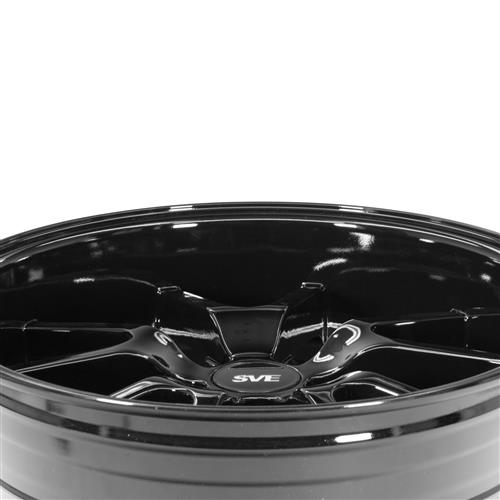

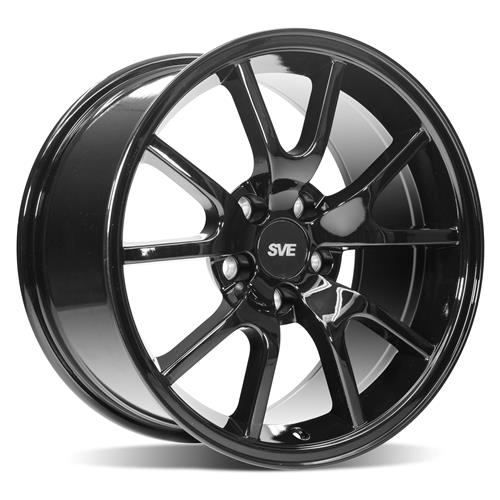

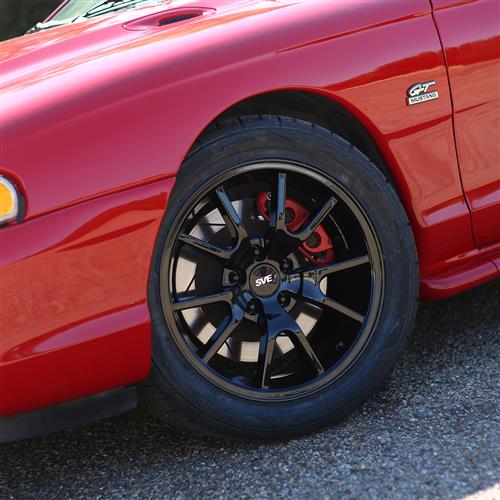

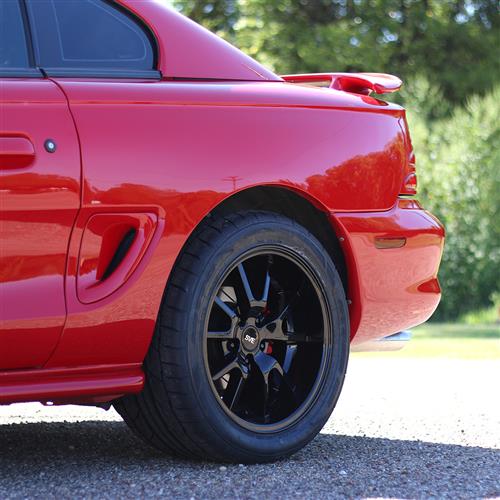

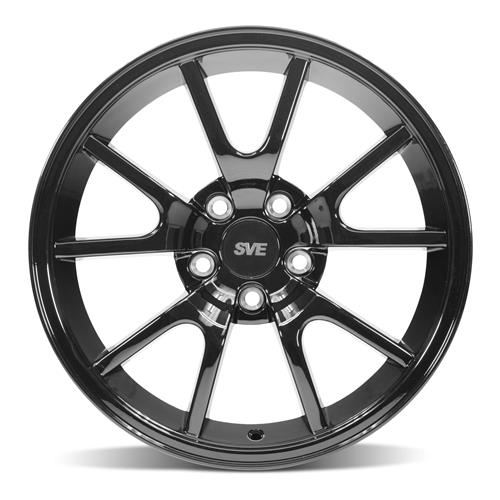

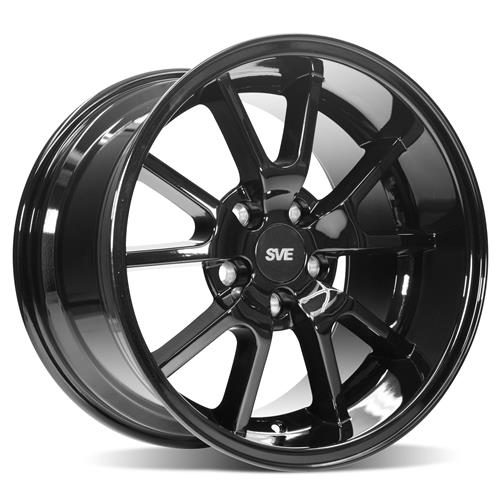

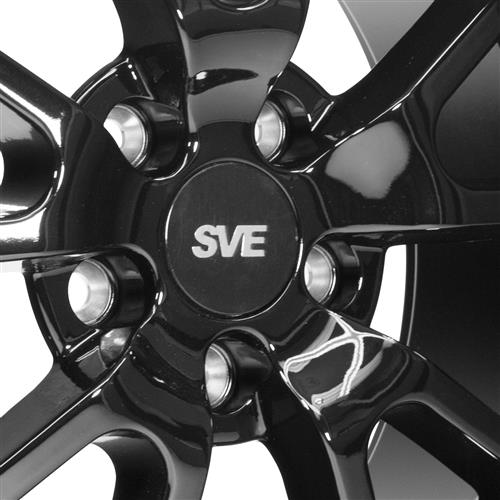

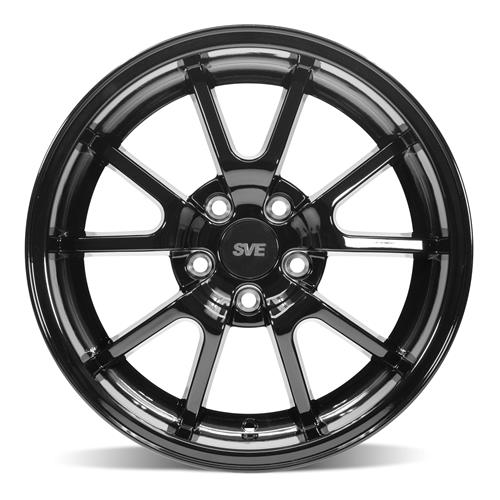

1994-04 Mustang SVE FR500 Wheel & M/T Tire Kit - 17x9/10.5 - Gloss Black

1995 GT SVE Springs (SVE-5300A)

1994-2004 Mustang SVE FR500 Style Wheels

Add a race inspired look to your 1994-2004 Mustang with a gloss black FR500 wheel and tire kit with Mickey Thompson Street Comp tires from SVE!

Item #WTK-1007UASZ

Everyday Low Price: $1,599.99

Out of Stock

This item is returnable. Details

× close

Images

1995 GT SVE Springs (SVE-5300A)

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Lifetime Structural Warranty
Pre-Mounted & Balanced
Clears Cobra Brakes
Superior Fitment
FR500 Styling
Lightweight

Features

1 Piece Cast Aluminum Construction
Mickey Thompson Street Comp Tires
Gloss Black Finish
Split-Spoke Design

What's in the Box

(2) 17x9 FR500 Wheels
(2) 17x10.5 FR500 Wheels
(2) 275/40/17 Mickey Thompson Street Comp Tires
(2) 315/35/17 Mickey Thompson Street Comp Tires

Mustang FR500 Wheel & Tire Kit
Add a race-inspired look to your 1994-2004 Mustang with a gloss black FR500 wheel and tire kit with Mickey Thompson Street Comp tires from SVE! The FR500 was based on the 1999 SVT Cobra with a heavily modded engine. The FR stands for Ford Racing and the 500 means five liters of V-8 displacement. The FR500 concept was never before seen on a Mustang, which brought to life the current FR500 wheel offered by LMR! This SVE wheel features a sleek race-inspired look with a split spoke design. It is designed to provide an invigorating look on your SN95 that accents your body lines. This wheel comes finished in gloss black!

SVE Quality
SVE's FR500 wheels are designed and manufactured to provide the best fit and finish possible. Each wheel has the backspacing and offset carefully measured down to the final millimeter. Manufactured in a 1-piece, cast aluminum construction; this wheel is lightweight and built to last! SVE backs each wheel with a 2-year finish warranty and a lifetime structural warranty!

Mickey Thompson Street Comp Tires
This kit comes pre-mounted and balanced with Mickey Thompson Street Comp tires. This tire was manufactured specifically for ultra high performance applications. Featuring an asymmetric tread design, you get a tire that gives you high speed cornering ability, amazing handling, and great traction, this tire is built to the same high standard Mickey Thompson is famous for. Compounded for both dry and wet traction, this tire will improve the look and handling of your Mustang with its 300 AA A UTQG rating.

Tire Specs

Speed Rating: W
Treadwear: 300
Traction: AA
Temperature: A

From Start To Finish
All of our wheel and tire kit orders are handled professionally and with the highest level of quality to make sure they are ready to bolt on when they arrive on your doorstep! Our facilities utilize high tech digital mounting equipment, trained technicians, and a clean work area. All of our mounting and balancing is done FREE of charge with the purchase of any wheel & tire kit!

1994-2004 Mustang Wheel Clearance Notes

Rear Quad Shocks
- Rear quad shock may need to be reversed or removed for proper fitment. Please check for clearance before driving.

1999-2004 Mustang Cobra/IRS Equipped (All)

17"/18" wheels may require Low Profile IRS Subframe Bolts for proper clearance.
An 1/8" Wheel Spacer may be required to ensure the rear center caps are adequately secured.

5.0 Resto and SVE Wheel Limited Warranty - Click Here

Ford Mustang - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Fitment Notice

Will clear 13" Cobra brakes.
Spline drive lug nuts are recommended due to the narrow lug cavity.

Wheel Torque Specs

1979-2014 = 100 lb/ft

Wheel Specs	Front	Rear
Diameter	17"	17"
Width	9"	10.5"
Bolt Pattern	5x114.3 mm.	5x114.3 mm.
Offset	+24 mm.	+27 mm.
Backspacing	5.85 in.	6.84 in.
Centerbore	70.6 mm.	70.6 mm.
Weight	23 lbs	24 lbs
