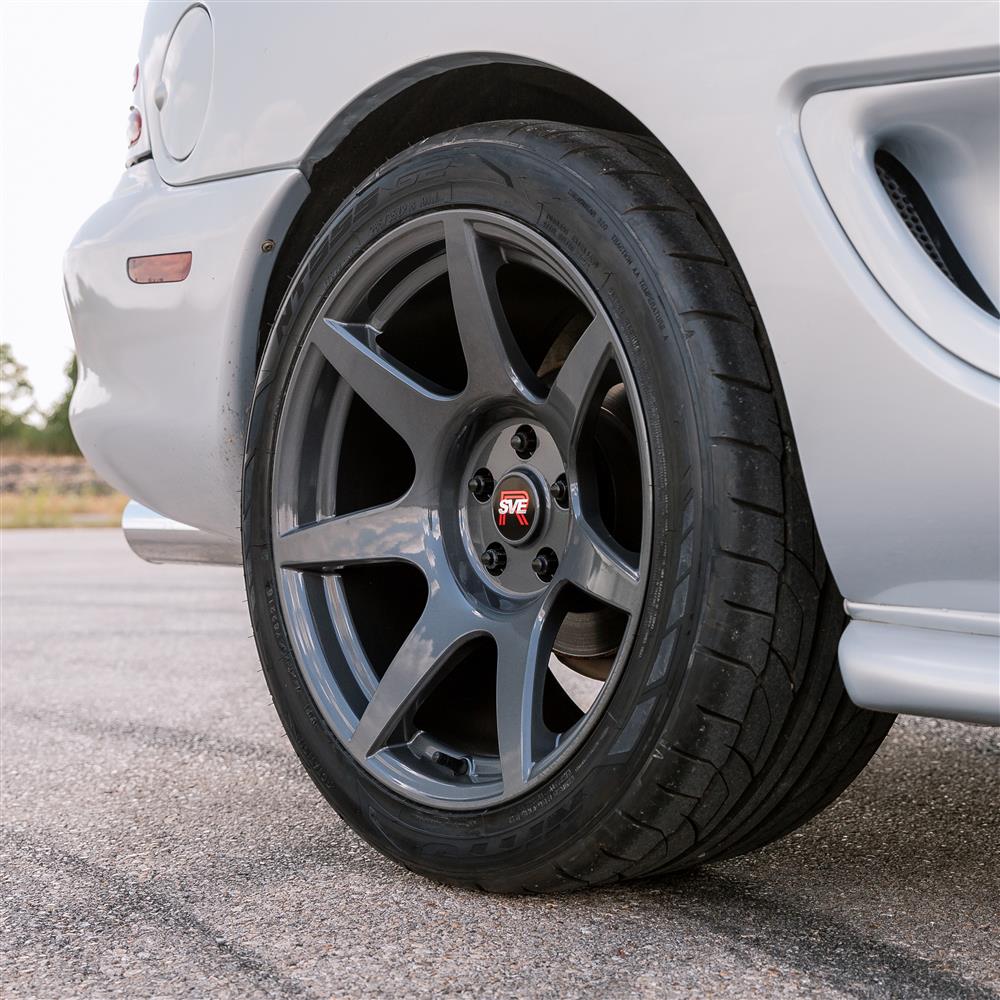

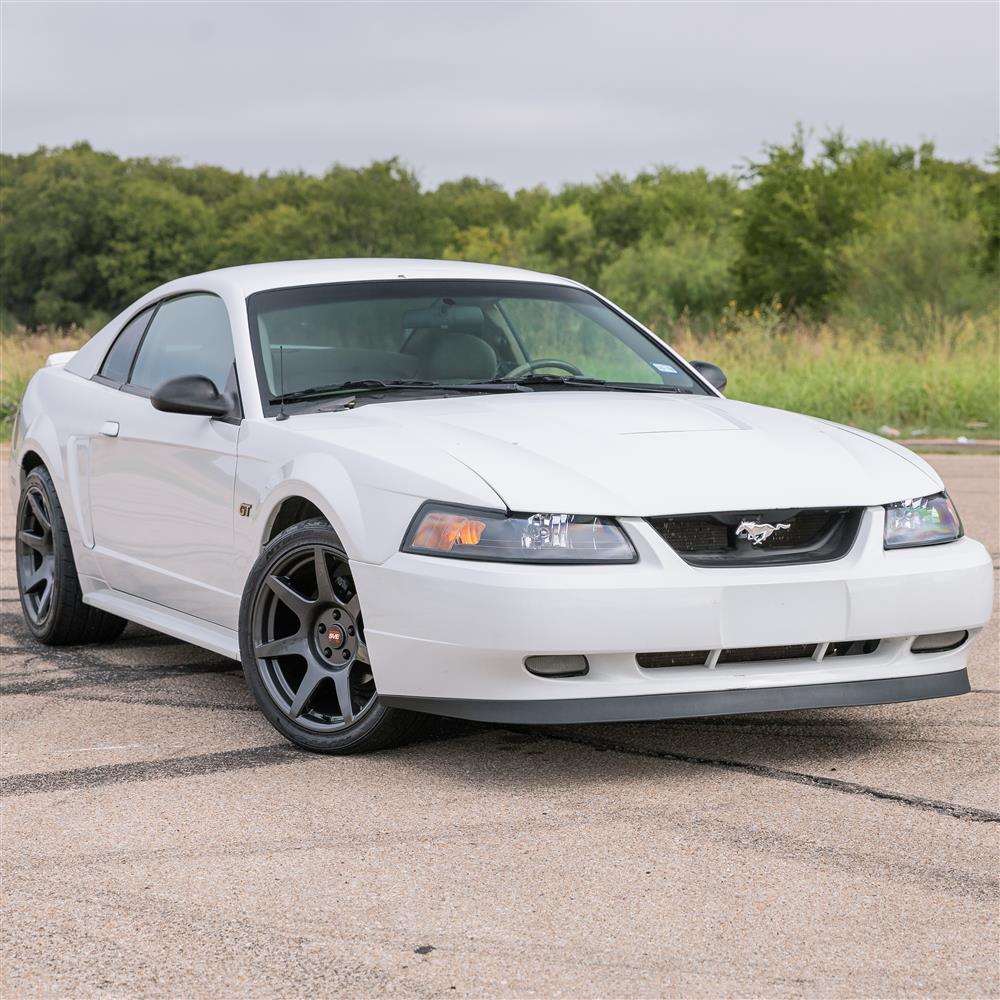

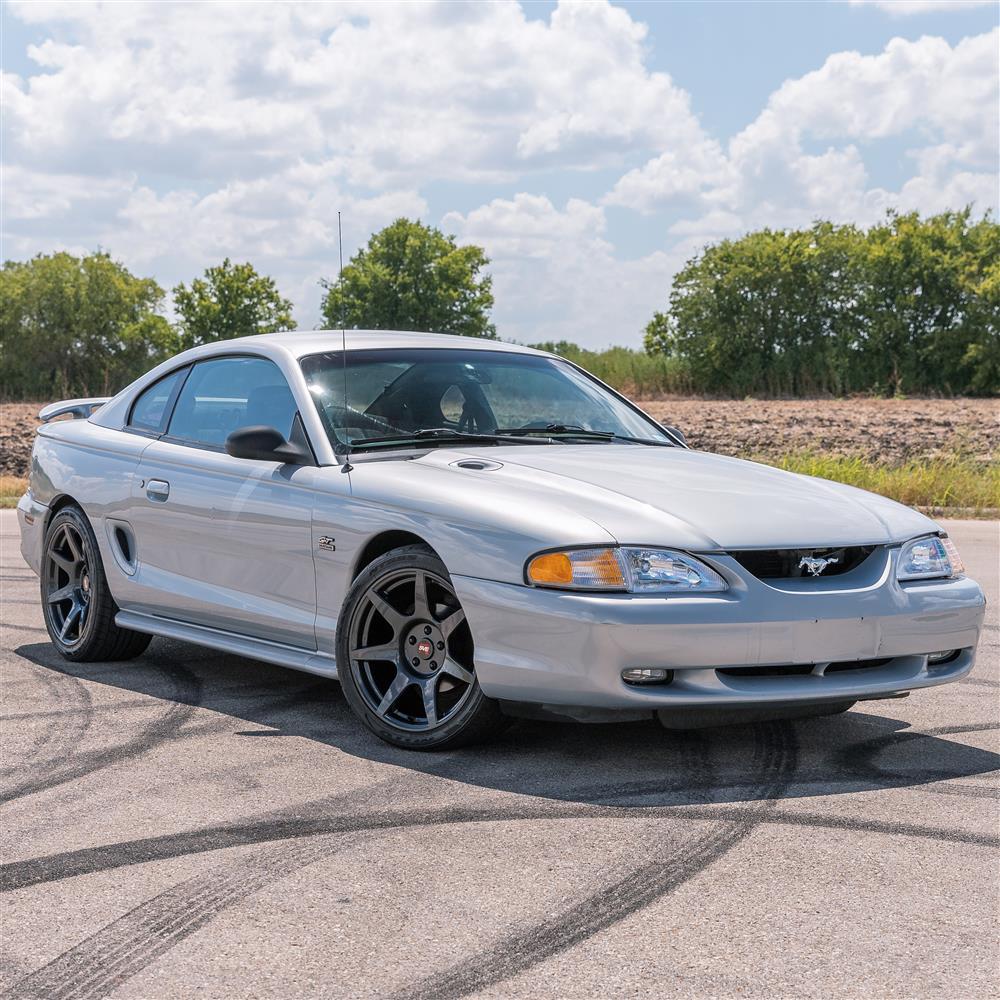

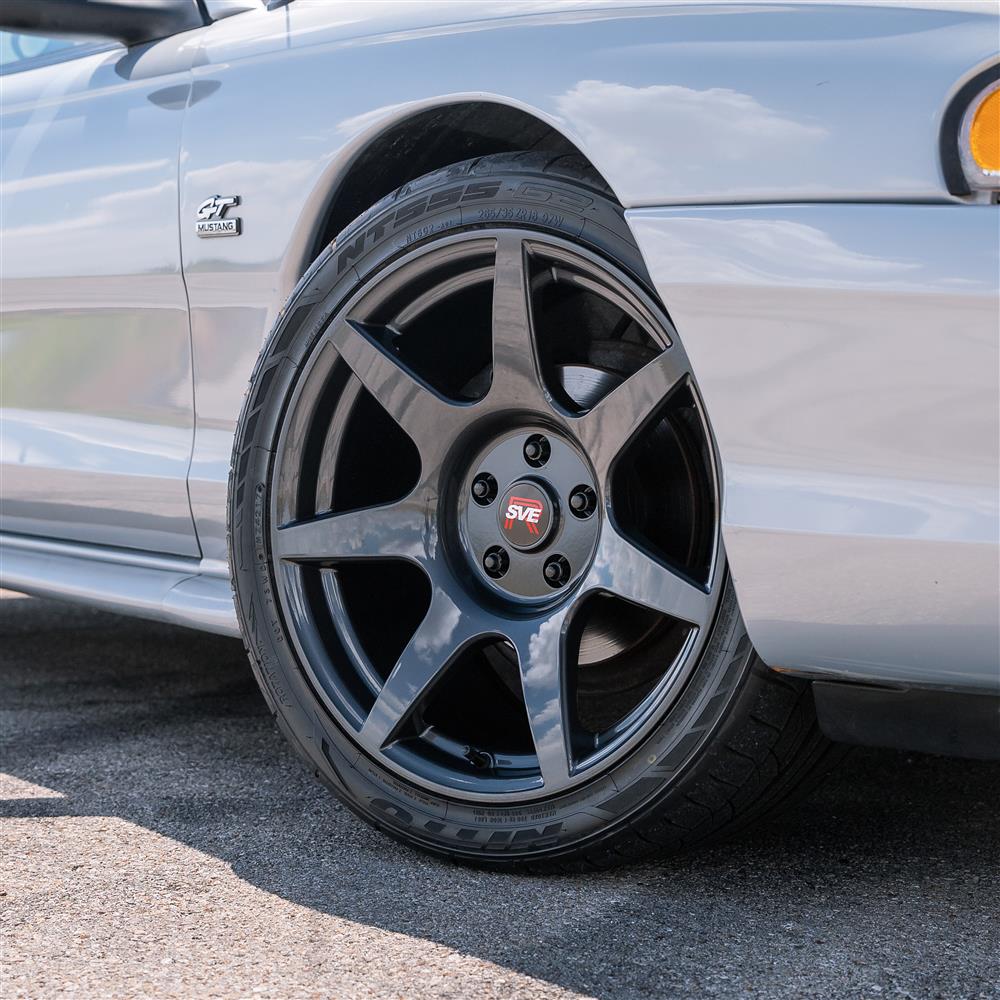

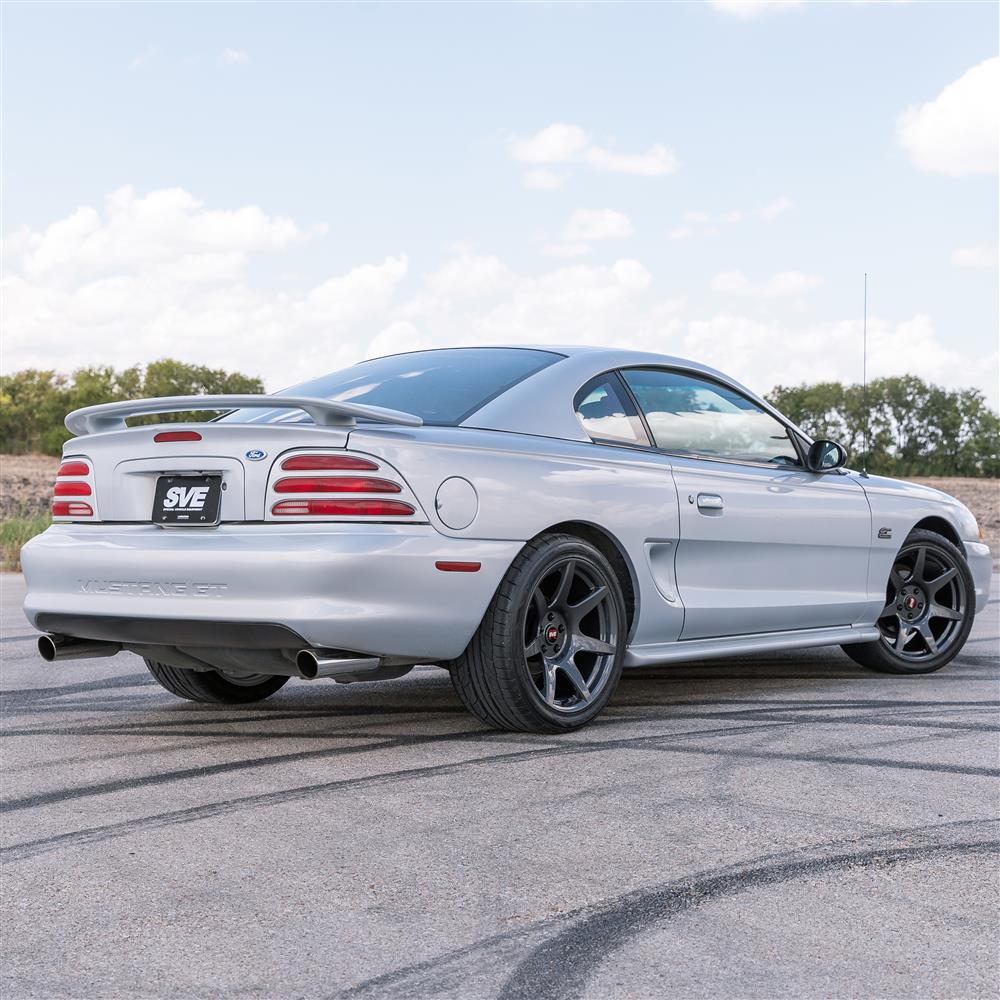

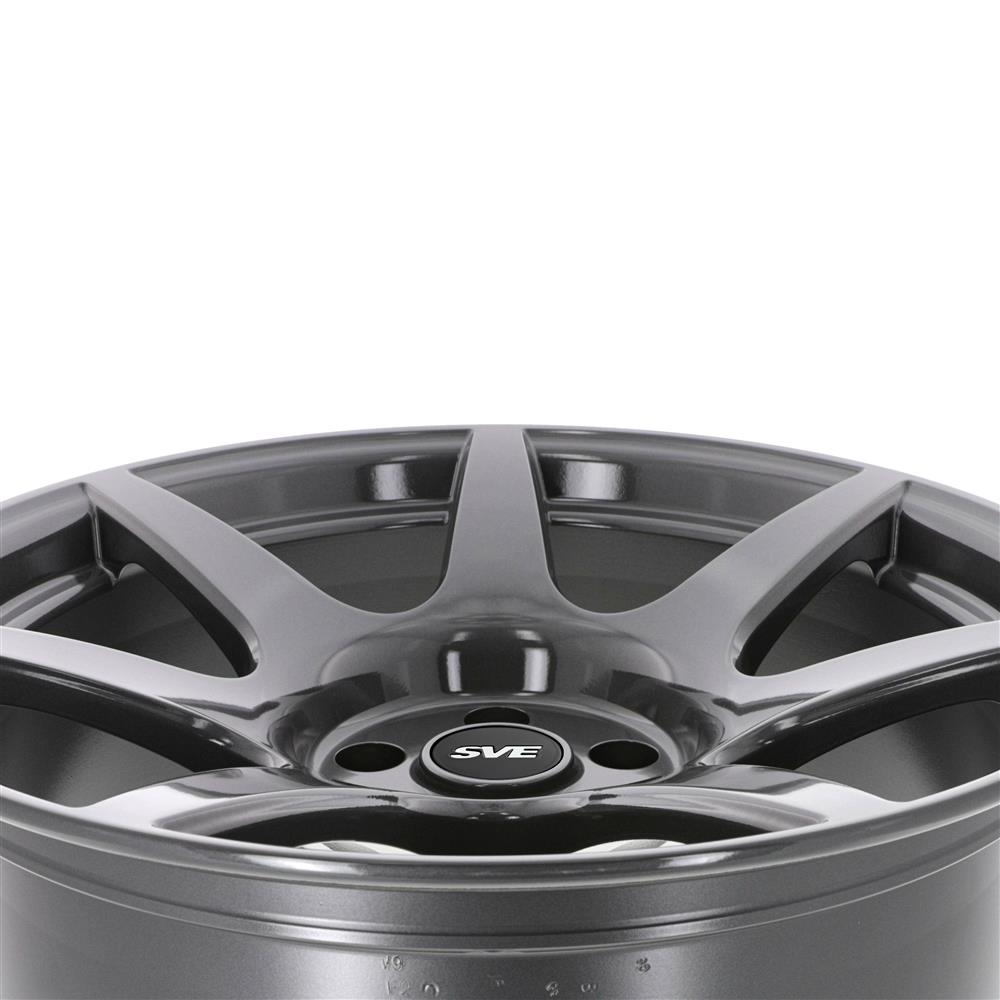

1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1995 GT SVE Springs (SVE-5300A)
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1995 GT SVE Springs (SVE-5300A)
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1995 GT SVE Springs (SVE-5300A)
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
2003 GT SVE Springs (SVE-5300A)
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
2003 GT SVE Springs (SVE-5300A)
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
2003 GT SVE Springs (SVE-5300A)
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite
1994-04 Mustang SVE R350 Wheel & Nitto Tire Kit  - 18x9/10 - Liquid Graphite

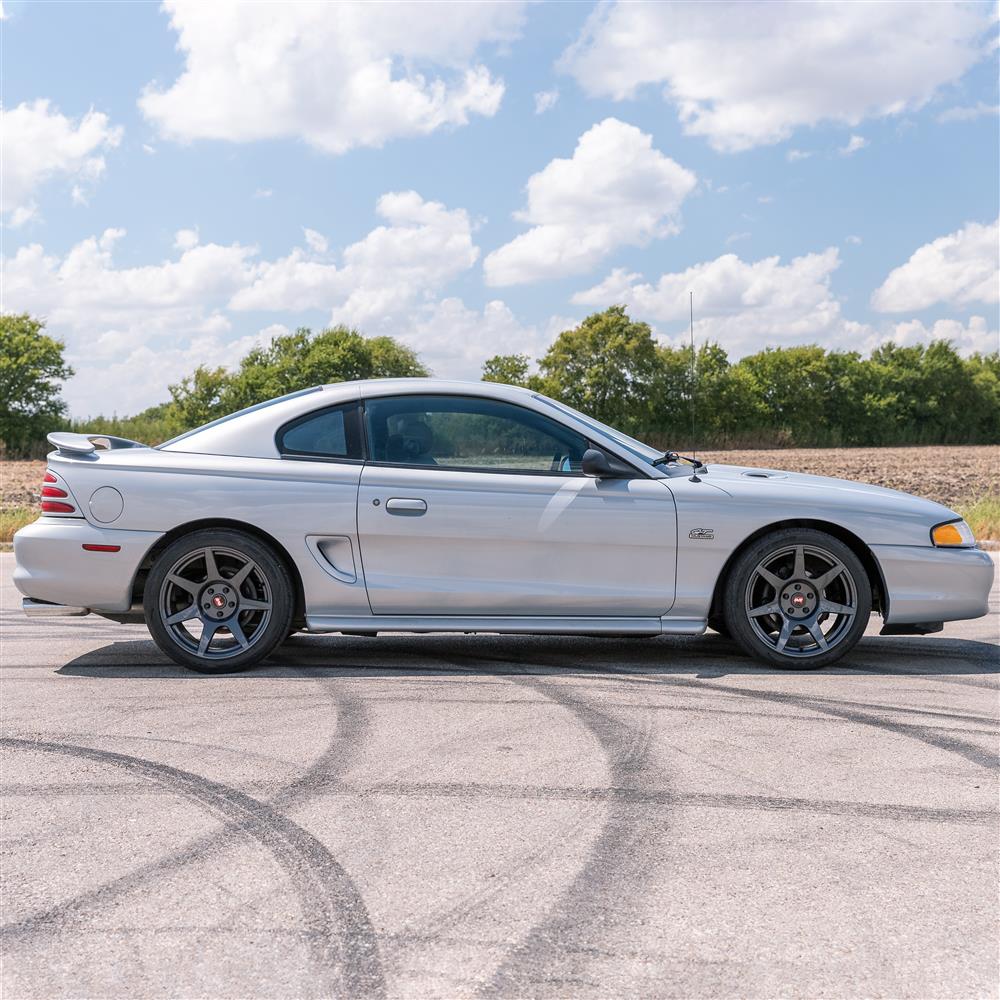

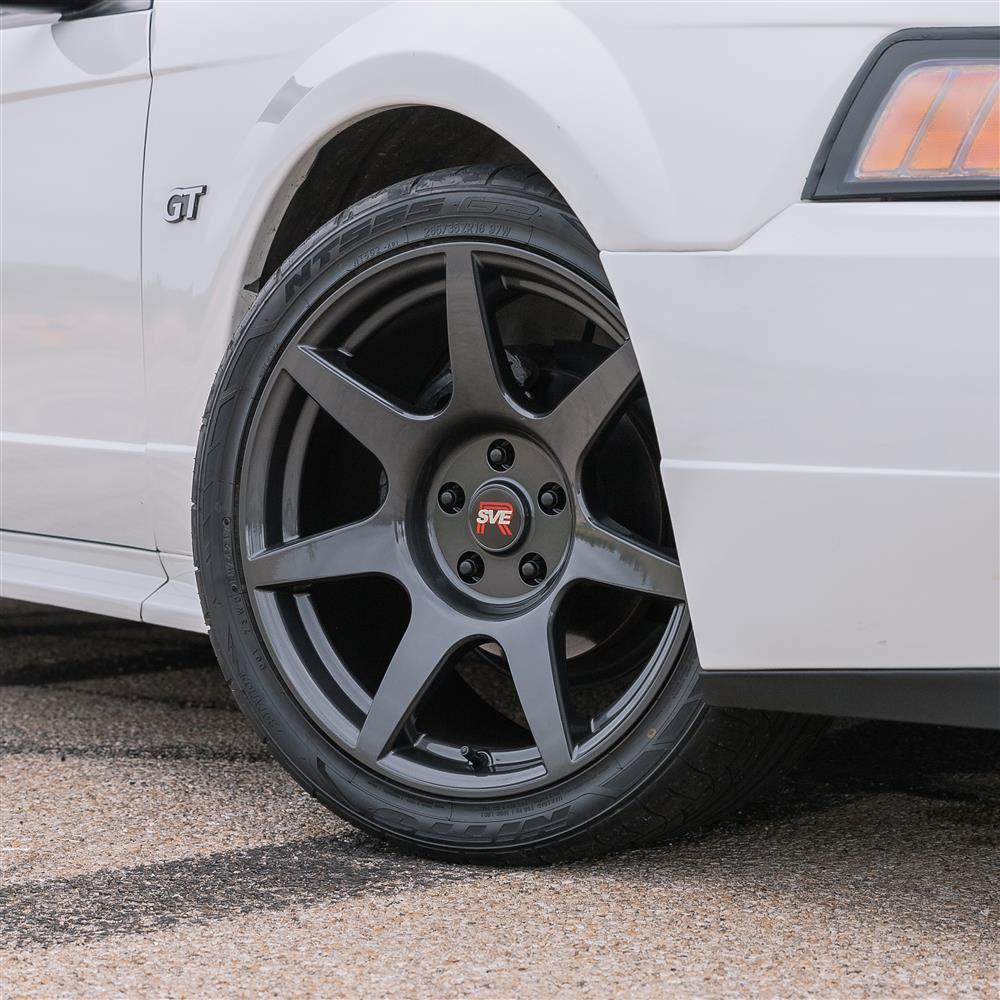

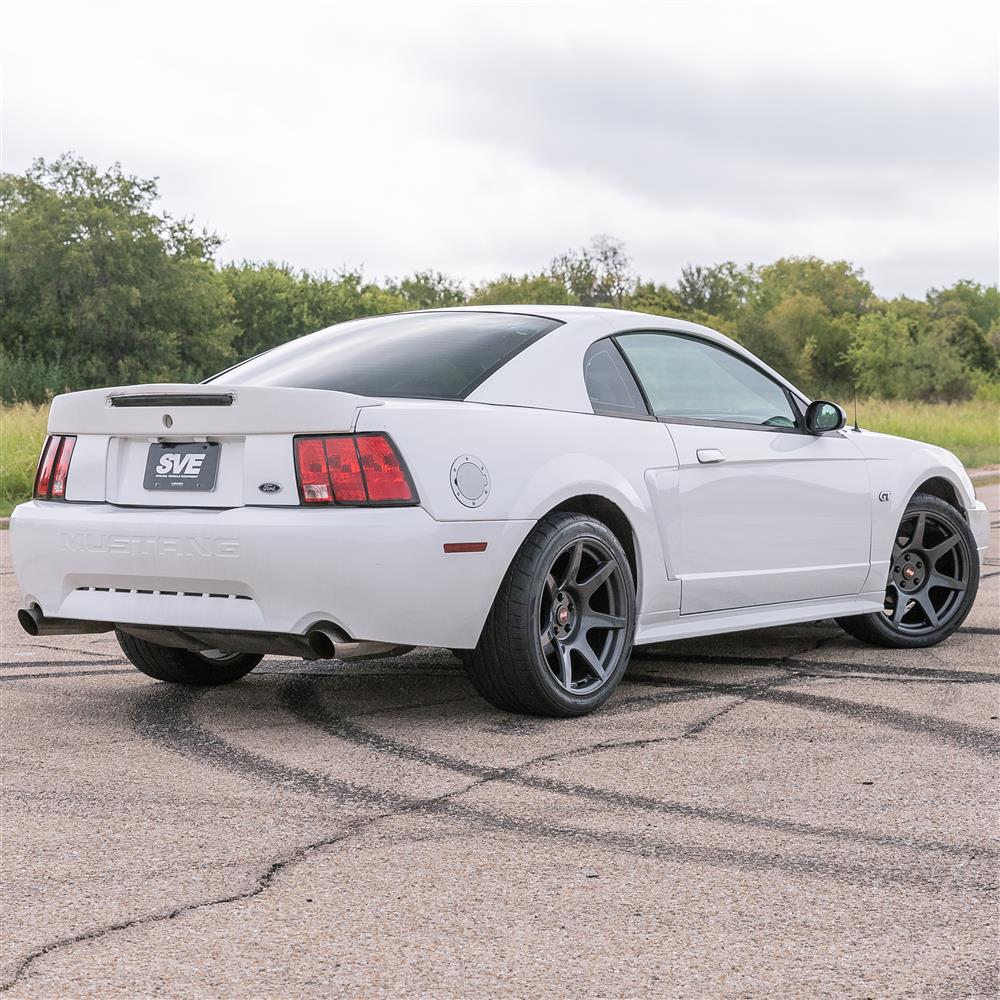

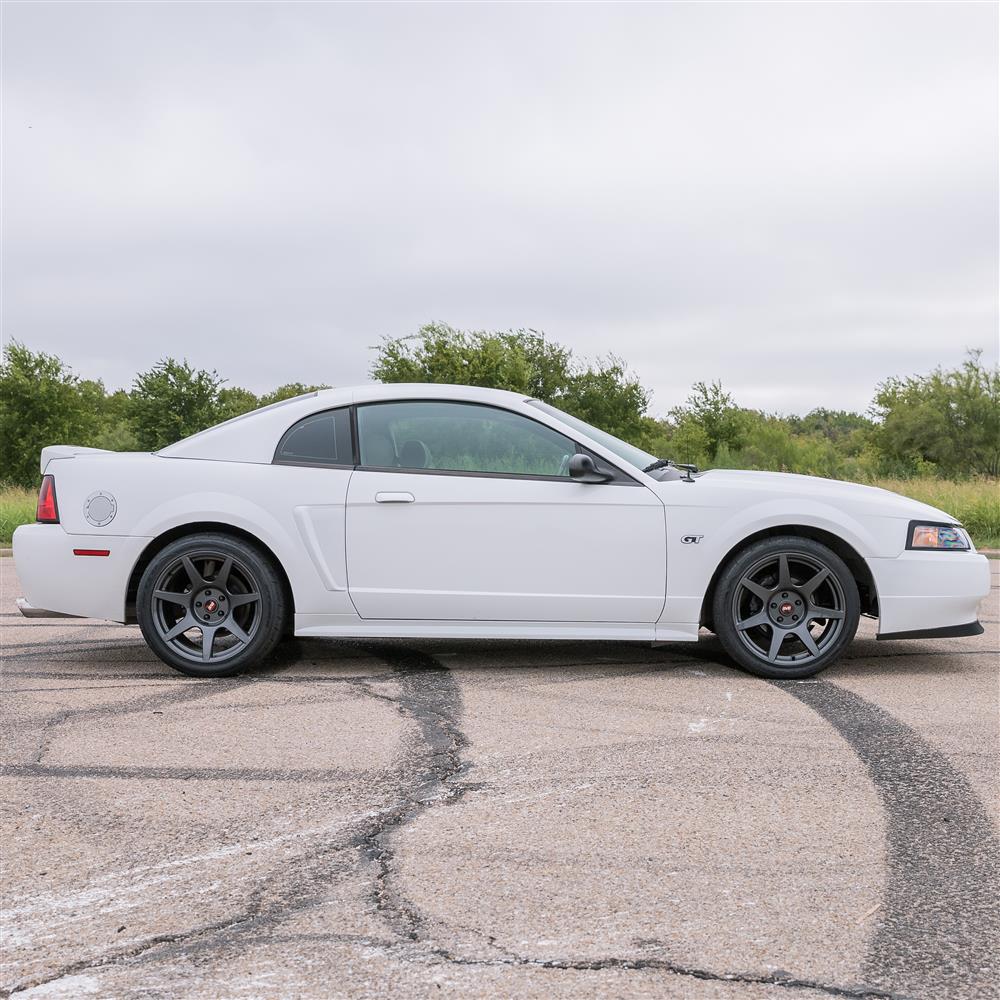

Invigorate the look of your 1994-2004 Mustang with this liquid graphite, 18x9/10 SVE R350 wheel & Nitto NT555 G2 tire kit!

Item #WTK-177803G2

Everyday Low Price: $1,949.99

Out of Stock
 This item is returnable. Details



 Benefits

  • Lightweight, Flow Formed Construction
  • Pre-Mounted & Balanced
  • Sleek Modern Design
  • Clears Cobra Brakes
  • Superior Fitment

 Features

  • Lifetime Structural Warranty

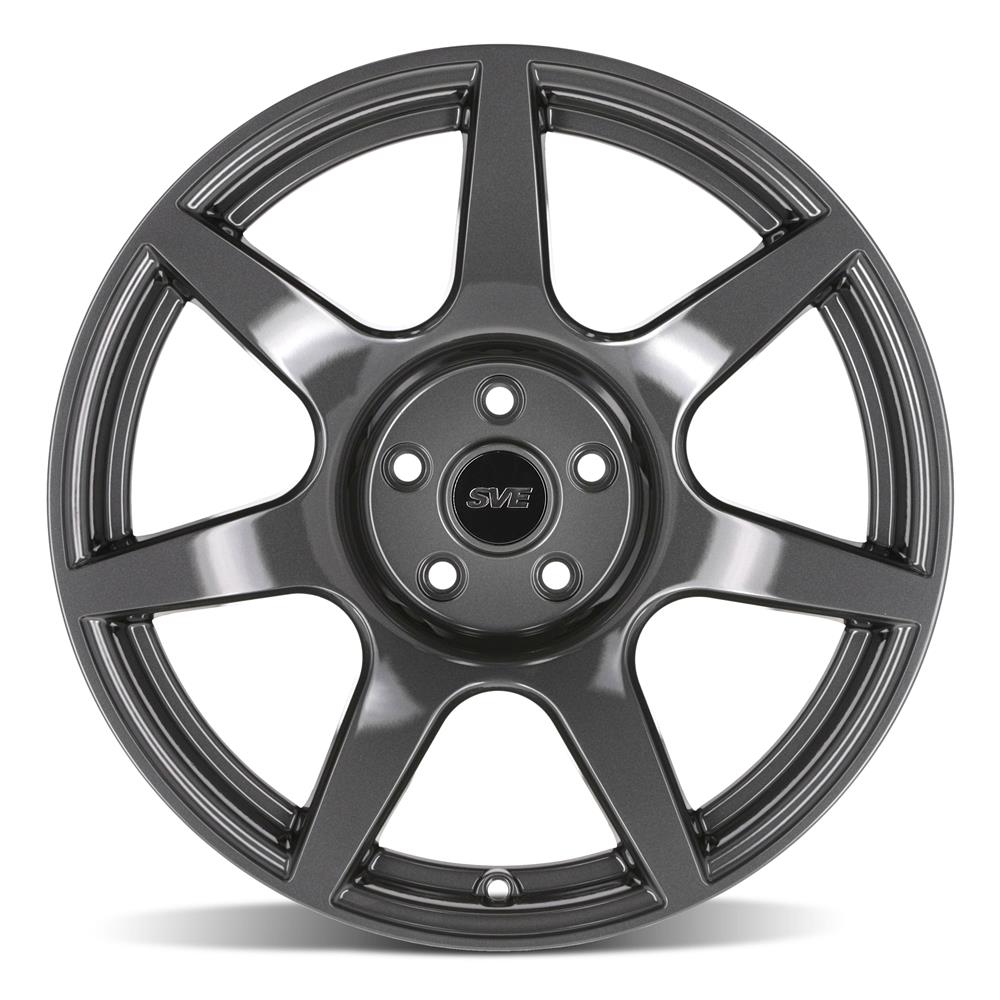

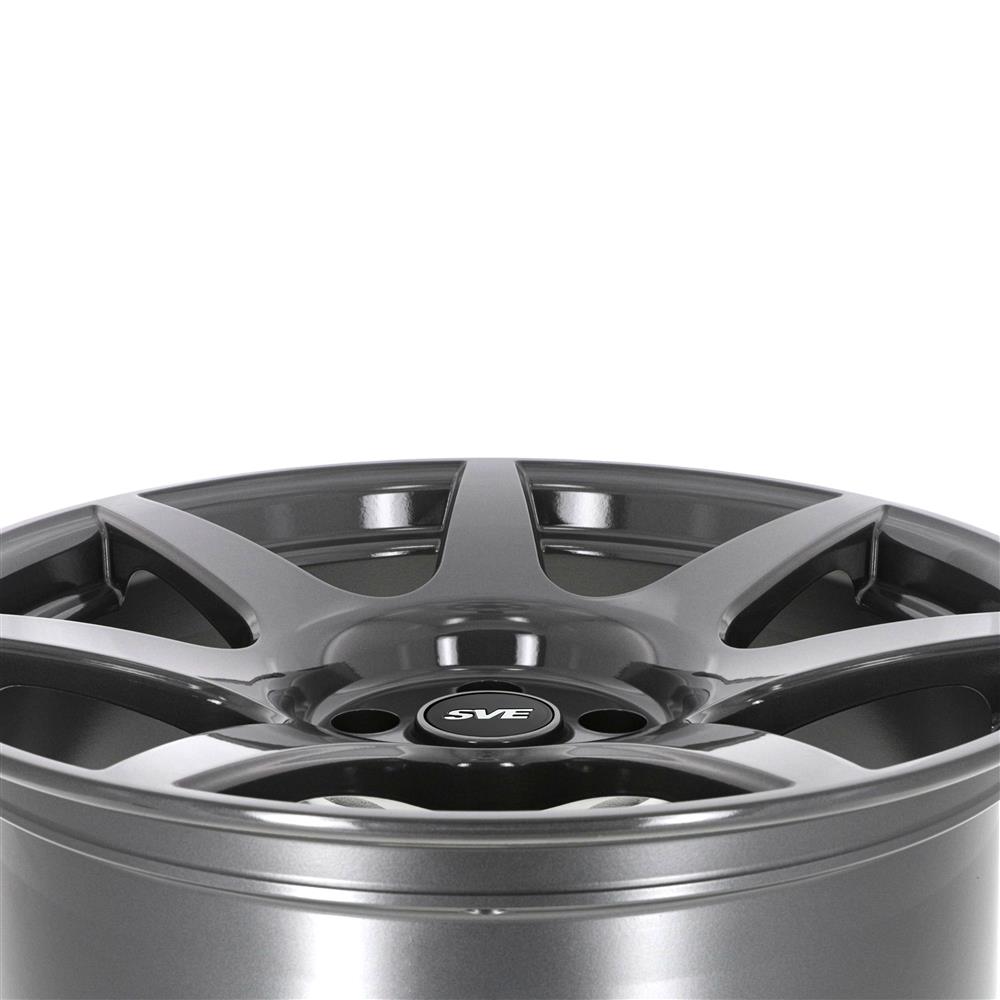

  • Concave, 7-Spoke Design
  • Liquid Graphite Finish
  • Nitto NT555 G2 Tires
  • SVE R Center Cap

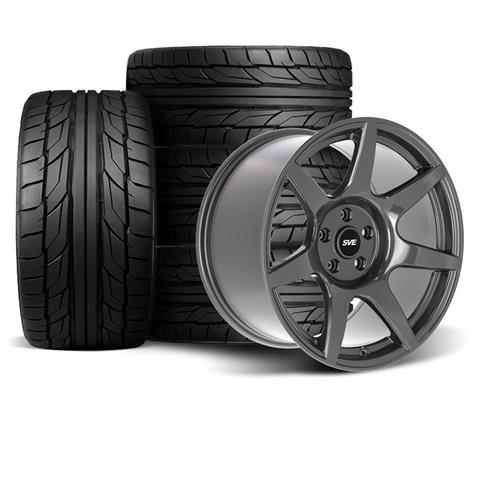

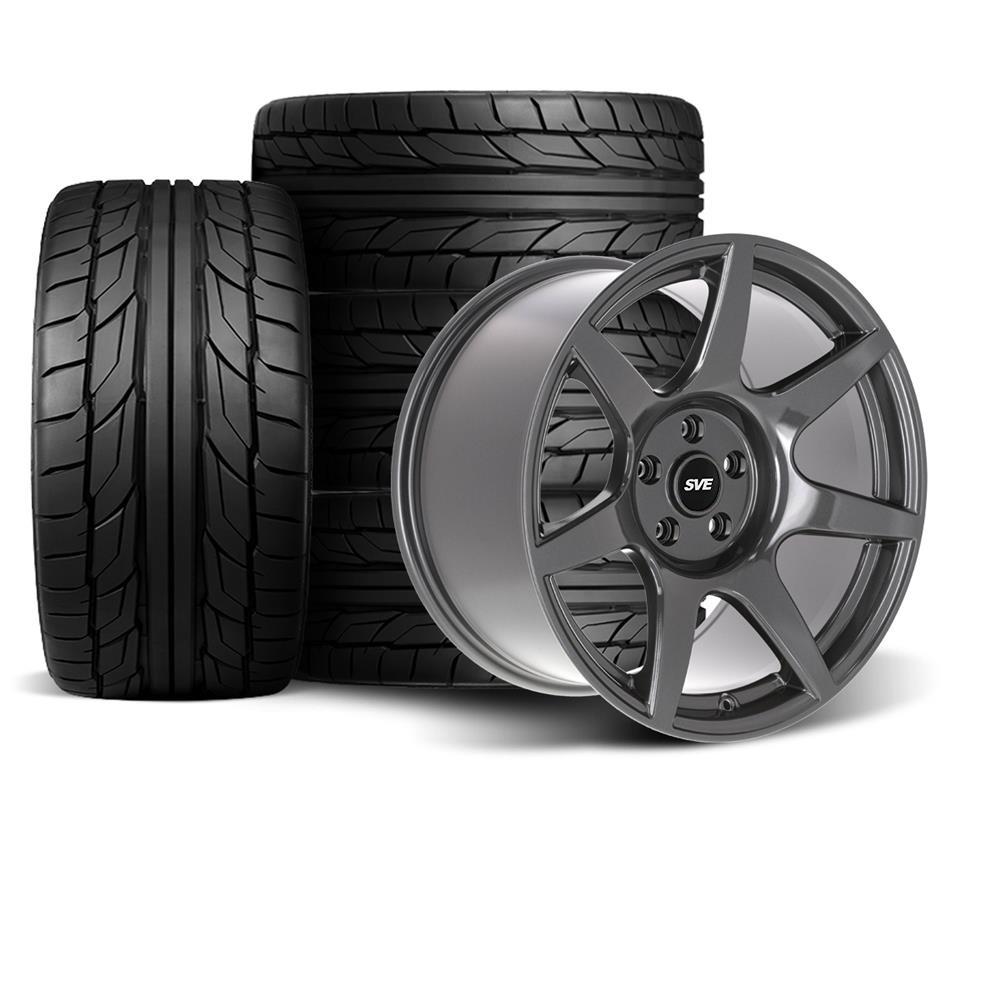

 What's in the Box

  • (2) 18x9 R350 Wheels
  • (2) 18x10 R350 Wheels
  • (2) 265/35/18 Nitto NT555 G2 Tires
  • (2) 285/35/18 Nitto NT555 G2 Tires

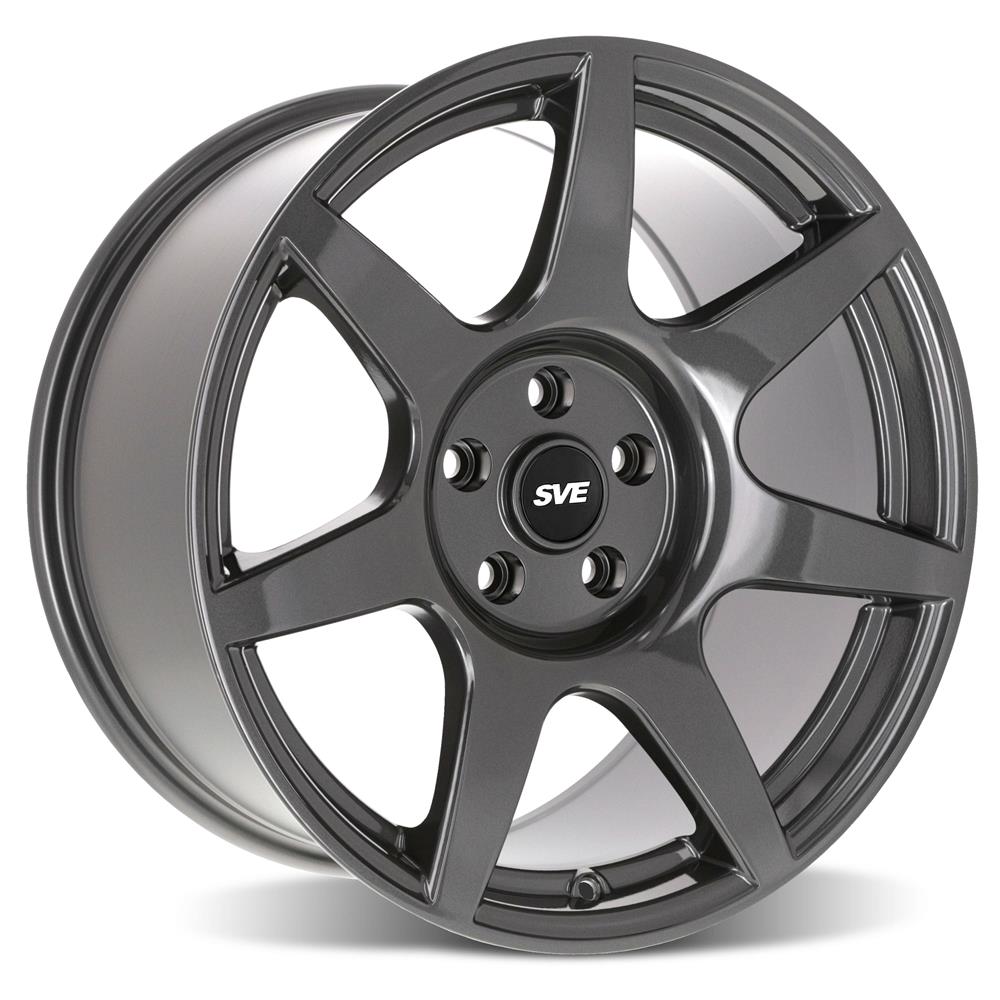

Mustang Liquid Graphite SVE R350 Wheel & Tire Kit

Invigorate the look of your 1994-2004 Mustang with this liquid graphite, 18x9/10 SVE R350 wheel & tire kit! The R350 wheel transcends the wheel market with a flawless blend of race-inspired design and elegant styling. SVE's R350 wheel uses flow-formed aluminum for lightweight performance at an economical price! Featuring a concave, 7-spoke design; the R350 wheel highlights the body lines of your SN95 or New Edge Mustang. Each concave spoke descends to the center section of the wheel, where an SVE "R" center cap resides. Finished in a sleek, liquid graphite paint; your new SVE R350 wheel & tire kit will look right at home on any color Mustang!

Flow Formed Construction

SVE's R350 wheel is constructed using the flow-formed process. After casting, the wheel is then flow-formed with hydraulic rollers that apply intense pressure to the barrel to increase tensile strength. Flow forming provides greater shock resistance, load capacity, and results in a very strong, lightweight wheel versus heavy, cast-aluminum wheels. The R350 wheel is backed by a limited lifetime structural warranty for the ultimate peace of mind!

Superior Fitment

SVE carefully measured every millimeter of this wheel to ensure the best fit and finish on the market. Designed to not only flow with the body lines of your Mustang, the R350 wheel is designed to clear large brake packages. From the backspacing and offset, to the width and diameter, the R350 wheel provides your Mustang with superior styling and phenomenal performance!

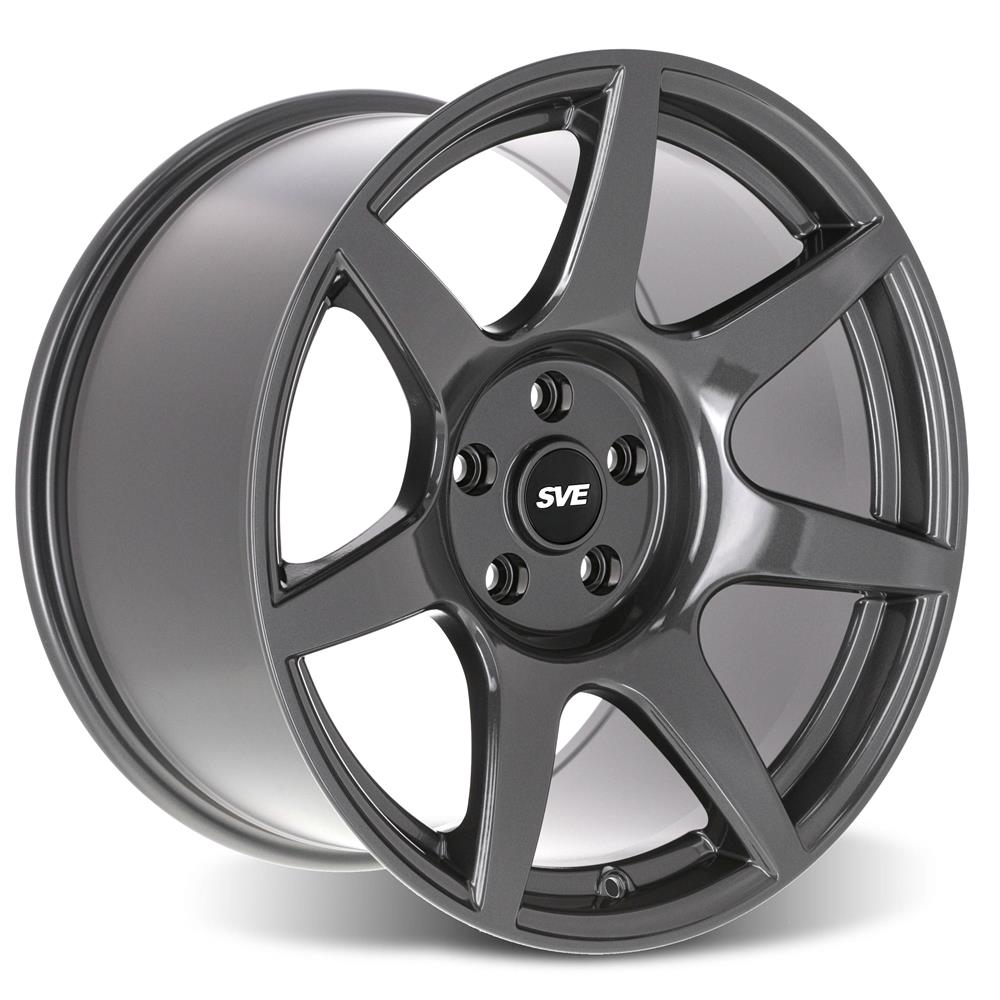

Wheel Specs

Front:
  • Size: 18x9
  • Backspace: 5.94"
  • Offset: +24mm
  • Hub Bore: 70.6
  • Weight: 20.97lbs
Rear:
  • Size: 18x10
  • Backspace: 6.29"
  • Offset: +20mm
  • Hub Bore: 70.6
  • Weight: 21.66lbs


Brake Fitment

Will clear 13" Cobra brakes as well as M-2300-X Brembo brakes.

Nitto NT555 G2 Tires

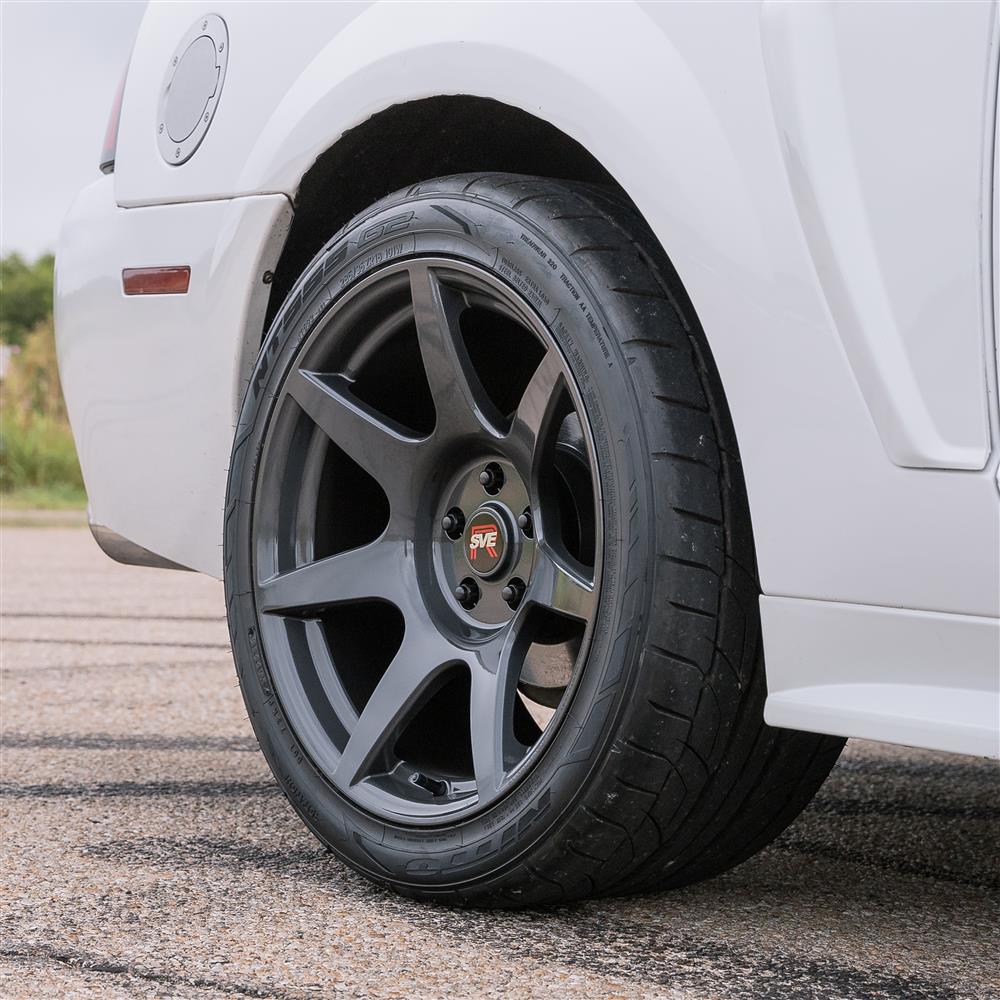

This kit comes pre-mounted and balanced with Nitto NT555 G2 tires. This summer ultra-high-performance tire is designed with the performance driver in mind. The new Nitto G2 has increased traction, handling, and wet-braking capabilities to help you get off the line quicker and provide your Mustang with stability in the straights and confidence when cornering.

Tire Specs

  • Treadwear: 320
  • Traction: AA
  • Temperature: A

From Start To Finish

All of our wheel and tire kit orders are handled professionally and with the highest level of quality to make sure they are ready to bolt on when they arrive on your doorstep! Our facilities utilize high-tech digital mounting equipment, trained technicians, and a clean work area. All of our mounting and balancing is done FREE of charge with the purchase of any wheel & tire kit!

Application

  • Fits 1994-2004 Mustang


SN95 Spindle Wheels - Clearance Notes

  • 1979-93 Mustang (All) - Must be using 1994-2004 Mustang spindles for correct fitment.
  • 1979-93 Mustang (All) - Steering rack limiters May be needed to eliminate rubbing issues when turning the front wheel.
  • 1979-90 Mustang (All) - Due to smaller front wheel openings, Installation of wheels or tires that are wider than the factory may require additional clearance on front fenders.
  • 1979-04 Mustang (All) - Rear quad shock equipped Mustangs may need to have the quad shocks reversed or removed for proper fitment. Please check for clearance before driving.
  • 1979-04 Mustang (All) - Installation of wheels that are wider than the factory wheels on the rear of your Mustang may require fender rolling and exhaust modification for proper fitment.
  • 1994-04 Mustang Cobra/IRS Equipped (All) - May require Low Profile IRS Subframe Bolts for proper clearance.
  • 1994-04 Mustang Cobra/IRS Equipped (All) - An 1/8" Wheel Spacer may be required to ensure the rear center caps are properly secured.

5.0 Resto and SVE Wheel Limited Warranty - Click Here

Wheel Specs Front Rear
Diameter 18" 18"
Width 9" 10"
Bolt Pattern 5x114.3 mm. 5x114.3 mm.
Offset +24 mm. +20 mm.
Backspacing 5.94 in. 6.29 in.
Weight 20.97 lbs 21.66 lbs
  • Ford Mustang - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
