1994-04 Mustang SVE Series 2 Wheel & Nitto Tire Kit - 18x9/10 - Gloss Black by SVE Wheels ®

Price: 1999.99 USD
Availability: OutOfStock

1994-04 Mustang SVE Series 2 Wheel & Nitto Tire Kit - 18x9/10 - Gloss Black

2003 GT SVE Springs (SVE-5300A)

1994-2004 Ford Mustang SVE Series 2 Wheels - Review

Add aggressive styling, and a set of high performance tires to your 1994-2004 Mustang with this SVE Series 2 & Nitto NT555 G2 Wheel & Tire Kit!

Item #WTK-56481652

Everyday Low Price: $1,999.99

Out of Stock

This item is returnable. Details

× close

Images

2003 GT SVE Springs (SVE-5300A)

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Aggressive Styling
Mounted & Balanced
Direct Fit for 94-04 Mustang

Features

Gloss Black Finish
Split 5 Spoke Design
Brushed Center Cap

What's in the Box

(2) 18x9" SVE Series 2 Wheels
(2) 18x10" SVE Series 2 Wheels
(2) 265/35/18 Nitto NT555 G2 Tires
(2) 285/35/18 Nitto NT555 G2 Tires

Series 2 Wheels

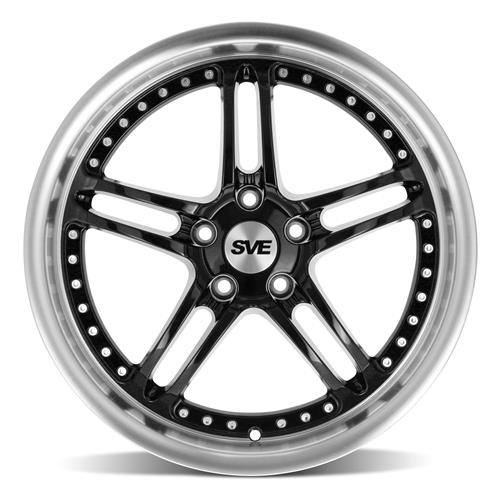

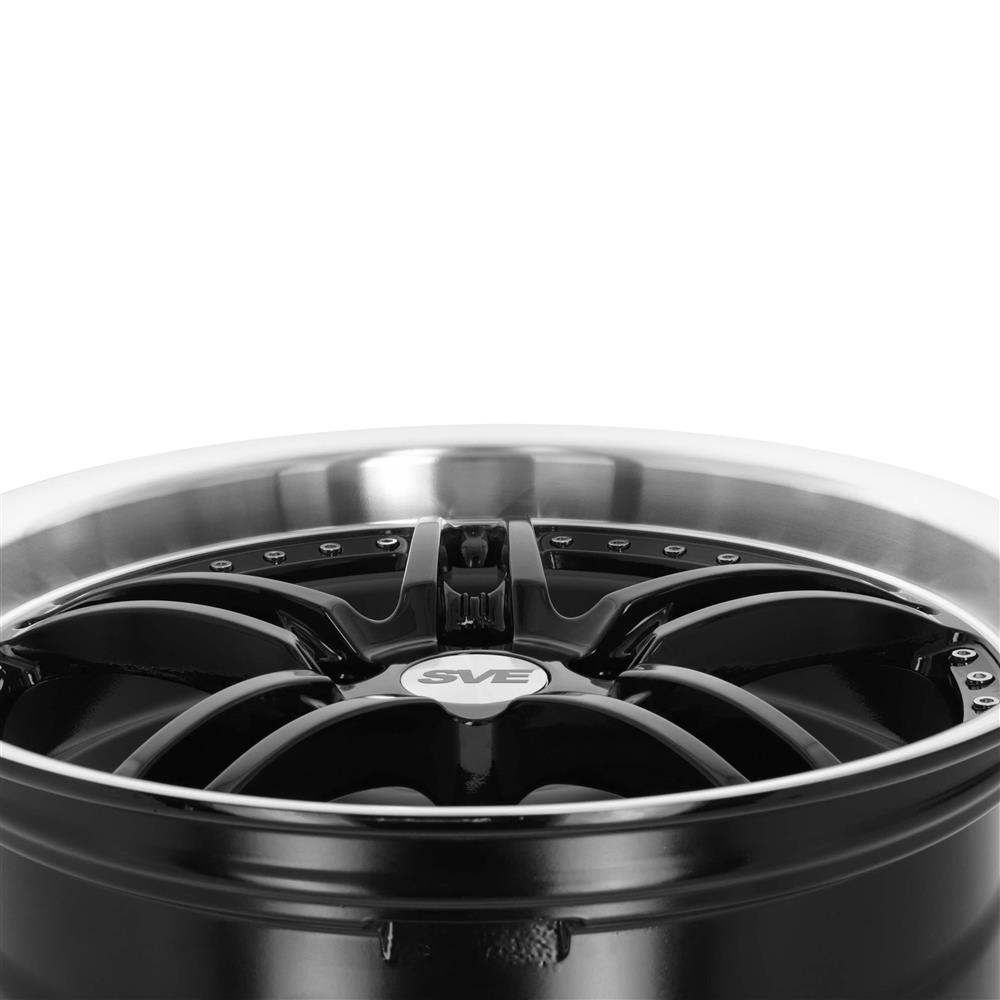

This SVE Series 2 wheel and tire kit is a great way to give your 1994-2004 Mustang an aggressive new look! These wheels feature a black finish with a machined lip and chrome rivets. This kit includes (2) 18x9", (2) 18x10" wheels, (2) 265/35/18 Nitto NT555 G2 tires, and (2) 285/35/18 Nitto NT555 G2 tires to give your SN-95 or New Edge Mustang that popular staggered look. Designed with a split 5 spoke design, these SVE wheels look great on any show, drag, or track car! Includes 4 brushed SVE center caps to finish off this great wheel kit. Pair this kit up with a set of SVE lowering springs to transform the look of your 94-04 Mustang!

SVE Quality
SVE carefully measured every millimeter of this wheel to ensure the best fit, and finish, for your Mustang. From the backspacing and offset, to the width and diameter, the Series 2 wheel provides your Mustang with superior styling and exceptional performance! Constructed using 1-piece, cast aluminum; the Series 2 wheel is built to last! SVE wheels are backed by a two-year finish warranty, and lifetime structural warranty, for the ultimate peace of mind!

From Start To Finish
All-wheel and tire kit orders are handled professionally and with the highest level of quality to make sure they are ready to bolt on when they arrive on your doorstep! Our facilities utilize high tech digital mounting equipment, trained technicians, and a clean work area. All mounting and balancing are completed FREE of charge with the purchase of any wheel & tire kit!

Nitto NT555 G2 Tires
This kit comes pre-mounted and balanced with Nitto NT555 G2 tires. This summer ultra high performance tire is designed with the performance driver in mind. The new Nitto G2 has increased traction, handling and wet braking capabilities to help you get off the line quicker and provide your Mustang with stability in the straights and confidence when cornering.

Tire Specs

Treadwear: 320
Traction: AA
Temperature: A

1994-2004 Mustang Wheel Clearance Notes

Rear Quad Shocks
- Rear quad shock may need to be reversed or removed for proper fitment. Please check for clearance before driving.

1999-2004 Mustang Cobra/IRS Equipped (All)

17"/18" wheels may require Low Profile IRS Subframe Bolts for proper clearance.
An 1/8" Wheel Spacer may be required to ensure the rear center caps are adequately secured.

5.0 Resto and SVE Wheel Limited Warranty - Click Here

Ford Mustang - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Fitment Notice

These wheels will clear 2000 Cobra R brakes and M-2300-X Brembo brakes.
Spline drive lug nuts are recommended due to the narrow lug cavity.

Wheel Torque Specs

1979-2014 = 100 lb/ft

Wheel Specs	Front	Rear
Diameter	18"	18"
Width	9"	10"
Bolt Pattern	5x114.3 mm.	5x114.3 mm.
Offset	+24 mm.	+20 mm.
Backspacing	5.94 in.	6.29 in.
Centerbore	70.6 mm.	70.6 mm.
Weight	24.86 lbs	24.86 lbs
